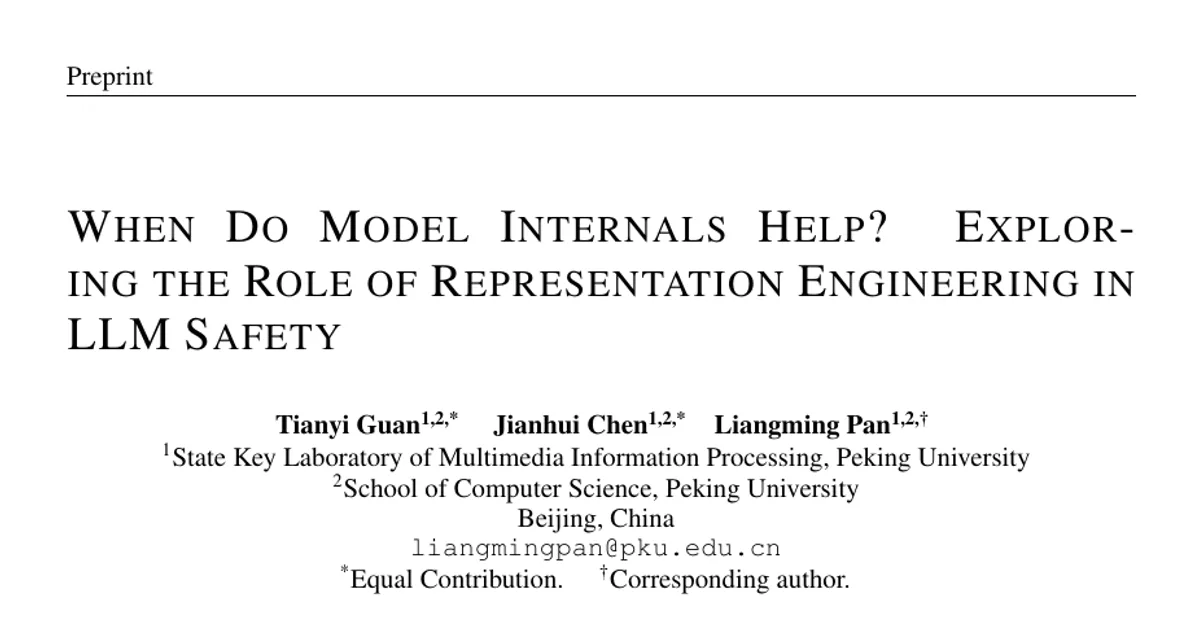

When Do Model Internals Help? Exploring the Role of Representation Engineering in LLM Safety

AI summary

Overview

• Research area: AI safety and alignment for large language models — specifically the comparison between behavioral safeguards (preference-based alignment and text-based safety classifiers) and representation engineering (activation steering and internal-state probes).
• Technical level: Advanced. The paper assumes familiarity with DPO, RLHF, LoRA fine-tuning, activation steering, linear probes, AUROC/AUPRC, and jailbreak attack success rate.
• Scope (one sentence): A matched, side-by-side evaluation of representation engineering versus behavioral safeguards across two safety tasks — control (reducing unsafe behavior) and monitoring (detecting safety risks) — plus a study of whether probe signals can reinforce weakened alignment.

What This Paper Is About

Safety systems for LLMs generally operate on model behavior: alignment methods such as DPO shape what the model outputs, and text monitors judge the visible interaction. Representation engineering instead reads or rewrites the model's internal activations. These two families are almost always evaluated in isolation, so it has been unclear when internal-state methods can substitute for behavioral safeguards and when they cannot. This paper runs a controlled, matched comparison of both families on the same models, data, and protocols, and additionally tests whether internal monitoring signals can repair safety lost after benign fine-tuning.

Key Contributions

1. A matched control benchmark. DPO and three representation-steering methods — contrastive activation addition (CAA), probe-based steering following Inference-Time Intervention, and flow-based steering — are compared under identical PKU-SafeRLHF supervision (5,406 safe–unsafe pairs) on Qwen2.5-1.5B-Instruct, Qwen2.5-14B-Instruct, and Meta-Llama-3.1-8B-Instruct across robustness, practicality, and granularity.
2. A matched monitoring benchmark. Four representation probes (mean, last-token, rolling, attention) are compared against two text monitors — a LoRA-fine-tuned Qwen2.5-7B-Instruct and Qwen3Guard-Stream-4B — on held-out trajectories natively generated by Qwen2.5-32B-Instruct, measuring full-response detection, streaming timeliness, and marginal FLOPs.
3. A monitor–control integration study. The paper tests three ways of coupling a rolling probe to a controlled model — blocking, corrective regeneration, and increasing flow-steering strength — to see whether detection signals can recover safety lost after benign fine-tuning on Alpaca-Cleaned.
4. A data-scaling and cross-domain transfer analysis. Control methods are constructed at 100, 200, 500, 1,000, 2,000, 5,000, 10,000, 20,000, 40,000, or all available preference pairs, and evaluated for transfer across general safety, cybercrime, physical harm, and toxicity.

Main Findings

• DPO gives the strongest overall control. Before benign fine-tuning, DPO reaches the lowest attack success rate (ASR) on both AIM (0.027) and refusal suppression (0.017), against 0.411 and 0.288 for the base model and 0.308 and 0.198 for flow-based steering. CAA (0.407 / 0.291) and probe-based steering (0.409 / 0.289) stay close to the base model.
• DPO's safety degrades most in absolute terms after benign fine-tuning. Across the two attacks, DPO shows the largest average ASR increase (0.271), with AIM ASR rising from 0.027 to 0.436. Under refusal suppression, however, the increases are comparable: 0.132 for DPO versus 0.159 for flow. Flow's smaller AIM degradation does not extend to refusal suppression, and its persistence depends on the steering layer.
• Flow has the highest over-refusal. Flow's macro-average over-refusal rises from 0.281 to 0.308 after fine-tuning. DPO starts elevated (0.277) but falls to 0.175. CAA and probe-based steering end at 0.164, close to the base model's 0.169.
• Capability effects differ by method. Flow incurs the largest pre-update MMLU drop (0.616 vs. 0.659 for Base), while its GSM8K and HumanEval scores stay near or above baseline; its post-update macro-average (0.722) is comparable to Base (0.721). DPO's initial MMLU and HumanEval gaps largely close after training, which the authors note may come at the cost of increased ASR.
• DPO scales with data quantity; steering depends more on data quality. DPO improves as the training set grows for both the original PKU-SafeRLHF set (63,094 pairs) and the filtered contrastive subset (5,406 pairs). CAA and probe-based steering gain little from more examples, while flow can match or beat DPO in low-data settings trained on smaller, high-quality contrastive subsets.
• DPO transfers best across safety scopes. DPO shows the strongest overall cross-domain transfer, especially from domain-specific training to general safety. Among steering methods, flow transfers best from general safety to individual domains; CAA and probe-based steering show limited transfer and can reduce general-safety performance after domain-specific training.
• Text monitors lead on full-response detection, narrowly. Qwen3Guard achieves the highest AUROC (0.996) and ties FT-LLM for the highest AUPRC (0.995). The strongest probe, mean pooling, reaches 0.982 AUROC and 0.978 AUPRC. At the 5% calibration point, mean pooling reaches 0.986 TPR at 0.190 realized FPR, versus 0.968 TPR at 0.056 FPR for Qwen3Guard.
• Qwen3Guard dominates streaming detection. Qwen3Guard reaches 0.948 recall with a median first-alarm position of 0.034 and sequence-level FPR of 0.058, versus 0.575 recall, 0.158 median position, and 0.163 sequence FPR for FT-LLM.
• Rolling is the best-balanced representation probe. Rolling achieves the highest probe recall in streaming (0.913), an earlier median alarm position than the other probes (0.143), and the lowest sequence-level FPR of all monitors (0.017). Mean pooling has slightly higher full-response AUROC/AUPRC but a higher realized FPR at 5% calibration (0.190 vs. 0.122). The last-token probe has lower recall (0.618) and more false alarms.
• Native probes are far cheaper. Qwen3Guard requires approximately 7.6 × 10^5 times as many marginal FLOPs as the rolling probe when the probe reuses the generating model's hidden states. Replaying responses through a separate model for activations requires an additional forward pass.
• Probe-guided blocking recovers safety lost after benign fine-tuning. At the 5% calibration threshold, blocking and corrective regeneration both reduce the post-update Qwen2.5-14B DPO model's mean ASR from 0.500 to 0.042, approaching its pre-fine-tuning ASR of 0.058. Regeneration raises over-refusal from 0.108 to 0.120, versus 0.124 for blocking.
• Blocking is more reliable than stronger steering. Blocking reduces ASR for both DPO (0.058 → 0.021 before fine-tuning; 0.500 → 0.042 after) and Flow (0.157 → 0.038; 0.639 → 0.056). Increasing flow-steering strength is non-monotonic and can raise ASR at some thresholds. Corrective regeneration is more model-dependent and works best for larger, more capable models.
• Text monitors can also trigger blocking. The authors report that text-monitor baselines reduce ASR when used for blocking, so monitor-guided intervention is not unique to representation probes.

Methodology in Plain English

The authors built a single experimental harness so that behavioral and representation methods face identical conditions.

For control, every method was constructed on the same 5,406 PKU-SafeRLHF examples containing one safe and one unsafe response per prompt. DPO treated the pairs as preferred and rejected completions (β = 0.1, LoRA rank 16, scaling factor 32, dropout 0.05, learning rate 5×10⁻⁵, 2 epochs). The steering methods used the same pairs as activation contrasts: CAA computed the difference between mean last-token activations of safe and unsafe sequences; probe-based steering fitted a linear probe and converted its weight into a unit-norm direction; flow-based steering learned a transport from unsafe to safe activations using a three-layer velocity MLP. Steering was applied at inference through a forward hook with strength α = 1.0 for CAA/probe and three Euler steps with horizon T = 0.7 for flow, at model-specific layers.

Safety was measured by attack success rate on StrongREJECT for the AIM and refusal-suppression attacks, with a custom LLM judge (DeepSeek-V3.2, temperature 0) labeling responses harmful only when they give concrete or otherwise usable assistance. Utility was measured on MMLU, GSM8K, and HumanEval, and over-refusal on XSTest. To test persistence, each controlled model was further fine-tuned on 20,000 Alpaca-Cleaned examples for one epoch with LoRA (learning rate 5×10⁻⁵, max sequence length 512, effective batch size 64) — and, crucially, the safeguards were not rebuilt afterward: DPO was not re-run and steering vectors were not re-extracted. Granularity was tested by splitting data into general safety, cybercrime, physical harm, and toxicity scopes (1,500 pairs each except cybercrime at 787) and measuring transfer in a 4×4 matrix.

For monitoring, four probe formulations were trained on PKU-SafeRLHF prompt–response data and read layer-48 hidden states, while text monitors received the interaction text. Evaluation used held-out trajectories generated natively by Qwen2.5-32B-Instruct. Full-response accuracy was scored with AUROC, AUPRC, and TPR at thresholds calibrated to target 1% and 5% FPR. Streaming timeliness aligned observations by text position and recorded the first threshold crossing, reporting recall, normalized first-detection position, and safe sequence-level FPR. Cost was estimated as marginal FLOPs, counting only probe computation when activations are reused and the extra forward pass for text monitors.

For integration, the researchers avoided training DPO on Qwen2.5-32B-Instruct (judged computationally expensive) by using the smaller control models as targets and replaying their completed interactions through Qwen2.5-32B-Instruct for scoring by the rolling probe. Three coupling strategies were tested: blocking (replace a flagged response with a refusal), corrective regeneration (ask the model to rewrite a flagged draft safely), and stronger steering (raise flow-intervention strength and rerun generation).

Why This Matters

Research impact. The paper addresses a structural gap: activation steering, probes, and behavioral safeguards had been evaluated on different models, datasets, and protocols, making relative claims unverifiable. By fixing the supervision data, base models, attacks, calibration thresholds, and judge, it produces directly comparable numbers and reframes representation engineering as a conditional complement rather than a challenger. The monitor–control integration results also connect two literatures — safety monitoring and safety alignment — that are usually treated separately.

Real-world applications.

• Data-constrained safety tuning: flow-based steering can be competitive with DPO when only a small, high-quality contrastive set is available.
• Cheap continuous monitoring: probes that reuse the generating model's own activations offer detection close to specialized text monitors at a small fraction of the marginal compute, which matters for latency- or cost-bounded deployments.
• Recovering degraded safety: probe-guided blocking restores much of the safety DPO loses after ordinary post-training, without a fresh alignment round.
• Streaming guardrails: rolling aggregation gives the lowest sequence-level false-alarm rate (0.017) among the evaluated monitors, relevant for interactive applications where repeated alarms are costly.

Industry relevance. The results give practitioners a decision guide tied to deployment conditions: choose DPO when safety data and compute are ample, flow steering when data are scarce and high quality, text monitors when detection accuracy is paramount and an extra forward pass is acceptable, and native probes when activations are already available. The finding that benign fine-tuning silently degrades alignment is directly actionable for teams that continually re-tune deployed models.

Future Directions

• Multiple training seeds. The authors note that some control experiments use a single training seed, so run-to-run variability is not captured. Repeating the control comparison across seeds would establish whether the DPO-versus-flow gaps are stable.
• Adaptive attacks. The jailbreak evaluation uses non-adaptive attacks, so robustness to attackers who tailor prompts to the deployed safeguard remains untested.
• Understanding non-monotonic steering. Increasing flow-steering strength is not consistently beneficial and can raise ASR at some thresholds, while its persistence depends on the steering layer — the conditions governing this behavior deserve systematic study.
• Extending integration beyond the replay setup. Corrective regeneration was more model-dependent than blocking and could only be evaluated on larger models; scaling regeneration to more target models and comparing against text-monitor-triggered regeneration would clarify when each coupling strategy is appropriate.

Target Audience

Safety and alignment researchers who need head-to-head numbers rather than paradigm-level claims; ML engineers deciding among DPO, activation steering, text monitors, and internal probes for a deployed guardrail; and evaluation researchers interested in matched-protocol benchmarking of representation engineering against behavioral safeguards. Readers without a background in activation intervention, preference optimization, or detection metrics will find the paper dense and should be prepared for an advanced read.

Authors’ abstract

Reliable AI safeguards require both control mechanisms that reduce unsafe behavior and monitoring mechanisms that detect safety risks during model interactions. Established behavioral safeguards include alignment methods that optimize model outputs and text monitors that assess interaction text. Representation engineering instead reads or modifies internal model states, but the relative strengths of these approaches remain unclear because they are often evaluated under different settings. We present a matched evaluation across two tracks. For safety control, we compare DPO, a behavioral alignment method, with three representation steering methods across robustness, practicality, and granularity. DPO provides the strongest overall control and generally improves with increasing training data, although its safety can degrade after subsequent benign fine-tuning. Representation steering remains competitive primarily in low-data settings, particularly with high-quality contrastive data. For safety monitoring, we compare representation probes with fine-tuned and open-weight text monitors across full-response detection, early detection, and computational cost. Specialized text monitors achieve the strongest overall detection accuracy, while representation probes remain competitive at substantially lower marginal cost. Finally, monitor-guided interventions recover much of the safety lost by DPO after benign fine-tuning, with little additional over-refusal. Overall, representation engineering does not generally replace behavioral safeguards, but offers practical advantages under specific conditions and can provide complementary safety benefits.
