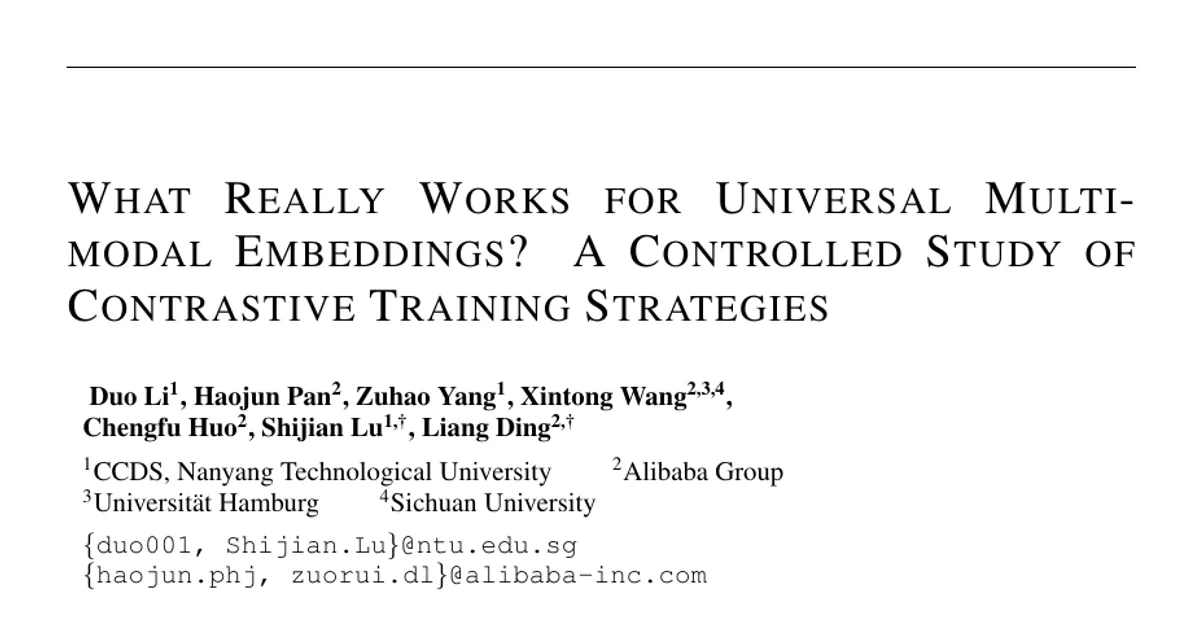

What Really Works for Universal Multimodal Embeddings? A Controlled Study of Contrastive Training Strategies

AI summary

Overview

Research area: Multimodal representation learning — specifically, contrastive training strategies for universal multimodal embedding models built on multimodal large language models (MLLMs), evaluated on the Massive Multimodal Embedding Benchmark (MMEB).

Technical level: Advanced. The paper assumes familiarity with contrastive objectives (InfoNCE), hard/false negatives, LoRA fine-tuning, and retrieval metrics such as Precision@1.

Scope: A controlled, single-benchmark comparison of eight representative contrastive training strategies on Qwen2-VL-2B/7B and Qwen3.5-2B, plus an "MLLM-as-a-Judge" diagnostic that explains why most of them fail to help.

What This Paper Is About

Many papers propose tricks for contrastive multimodal embedding training — reweighting gradients toward hard negatives, filtering out false negatives, building "harder" batches — and each reports gains. But these methods are tested on different backbones, data, and hyperparameters, so it is unclear whether the tricks themselves work or whether the gains come from tuning. This paper asks a blunt question: under one fixed, carefully aligned training setup on MMEB, do these strategies actually improve downstream retrieval, and if not, why not?

Key Contributions

1. A controlled head-to-head comparison. Eight representative strategies (LLaVE, EGA, GloFND, FN Risk, FALCON, HOBIT, UniME-V2, B3) plus a B3 + EGA variant are re-implemented on a shared VLM2Vec baseline and evaluated under one fixed configuration (learning rate 1e-4, up to 2,880 visual tokens, LoRA rank 16, last-token pooling) on MMEB's 36 datasets, using Qwen2-VL-2B/7B and Qwen3.5-2B.

2. An MLLM-as-a-Judge diagnostic framework. Instead of collapsing all non-matching top-1 predictions into "errors," the judge splits them into Labeled Positive, False Negative (semantically valid but unlabeled), Hard Negative (plausible but violates a constraint), and Easy Negative, over a fixed sample of 7,200 cases (200 per dataset across 36 datasets).

3. Three named failure modes and a recipe. The paper identifies gradient distortion, distribution illusion, and synergistic training, showing that only a joint combination of false-negative mitigation, hard-negative mining, and hard-batch construction (B3) produces a substantial gain.

4. A reproducibility warning. The aligned baseline alone reaches 65.1 on MMEB — comparable to LLaVE-2B's originally reported 65.2 and above UniME-V2-2B's originally reported 63.6 — implying that reported gains must be measured against a properly tuned baseline.

Main Findings

• Most strategies add nothing, and several hurt. Against the 65.1 baseline: LLaVE 63.9, EGA 64.8, GloFND 64.3, FN Risk 65.0, FALCON 64.8, HOBIT 65.3, UniME-V2 65.1, B3 69.0, B3 + EGA 68.6. Only B3 shows a large, consistent gain across all four meta-task categories.

• Gradient distortion. Upweighting high-similarity negatives (LLaVE, EGA) degrades performance because similarity measures hardness, not label reliability — so the weighting amplifies both genuine hard negatives and misleading false negatives. LLaVE/EGA increase Hard Negative errors by +0.39/+0.05 and Easy Negative errors by +0.82/+0.19 while lowering Semantic Valid by −1.15/−0.37.

• The effect survives better negative quality. Adding EGA on top of B3 still raises Hard Negative errors (+0.73) and lowers Semantic Valid (−0.53), dropping the overall score from 69.0 to 68.6.

• Distribution illusion. Wider separation between positive and negative similarity distributions does not predict retrieval quality. LLaVE reduces positive–hard-negative overlap by 7.77 and positive–easy-negative overlap by 0.30, whereas EGA increases them by 2.69 and 7.20 — yet both degrade. B3 and LLaVE have similar overlap rates (HN 58.64 vs 59.62; EN 7.61 vs 8.14), but B3 beats LLaVE by 5.1 MMEB points and 4.60% in Semantic Valid. UniME-V2 increases both overlaps (+2.47/+4.10) while keeping the same 65.1 score.

• Isolated fixes fall short. False-negative mitigation improves False Negative recognition by only +0.05 (GloFND) and +0.38 (FN Risk) while costing 1.51/0.53 in Labeled Positive accuracy and adding 1.59/0.46 Hard Negative errors. Batch construction (FALCON, HOBIT) improves FN recognition by +0.21/+0.24 and cuts Easy Negative errors by 0.88/0.42, but both land at 75.21% Semantic Valid versus the baseline's 75.36%.

• Synergy is the answer. B3 raises Semantic Valid from 75.36% to 78.81% and cuts Hard Negative errors from 17.19% to 15.58% and Easy Negative errors from 6.85% to 4.94%, producing an MMEB score of 69.0 and gains of 2.7 (IND) and 5.5 (OOD) points. The abstract describes this as an average improvement of 6.0% on MMEB with Qwen2-VL-2B.

• Results generalize across backbones. B3 beats VLM2Vec by 1.5 points on Qwen3.5-2B (70.2 vs 68.7) and 3.3 points on Qwen2-VL-7B (73.3 vs 70.0); adding EGA again costs 0.2 and 0.6 points respectively.

• Isolated combinations are not enough. UniME-V2 combines false-negative treatment and hard-negative mining with gradient modulation but stays at the baseline 65.1, indicating that instance-level and batch-level interventions must be coordinated.

• The gain costs compute. B3 takes 29:44 hours of training wall-clock versus 19:12 for the baseline, and UniME-V2 takes 39:31 (one-time preprocessing excluded).

Methodology in Plain English

The authors first fix one training recipe. They take VLM2Vec on Qwen2-VL-2B and sweep four mundane knobs — learning rate, maximum visual tokens, LoRA rank, and pooling — to find the strongest baseline, landing at 1e-4, 2,880 tokens, rank 16, and last-token pooling (mean-pooling collapses to 42.5 overall, and <embedding> pooling to 56.6). They then hold data, prompts, and optimization budget constant while swapping in each candidate strategy, so any difference is attributable to the strategy rather than to tuning.

Because a single Precision@1 number cannot say how a model is wrong, they add a second layer: an MLLM judge inspects each top-1 prediction and files it as a labeled positive, an alternative-but-valid answer, a hard negative, or an easy negative. Sampling a fixed 7,200 cases lets every method be compared on identical queries. Finally, they plot similarity distributions for query–positive, top-5 non-positive, and bottom-5 non-positive pairs and measure their overlap, testing the common assumption that cleaner separation means a better embedding space.

Why This Matters

The paper is a corrective to benchmark-chasing in multimodal retrieval: it shows that several published "improvements" evaporate once the baseline is properly tuned, and it supplies a diagnostic vocabulary (labeled positive, false negative, hard negative, easy negative) that explains why a method fails rather than just that it fails. It also reframes the training problem as requiring three complementary properties at once — reliable labels, informative hardness, and adequate coverage — which is a useful design principle beyond this specific benchmark.

Real-world applications (implied by universal multimodal retrieval, not evaluated in the paper):

• Product search where a shopper's image-plus-text query must match catalog items, and where alternate valid matches should not be treated as failures.
• Enterprise and media asset retrieval over large collections of images, screenshots, and documents.
• Visual question answering and classification pipelines that reuse one embedding model across heterogeneous tasks.
• Grounding queries to image regions for UI automation or robotics-style referring tasks.

Industry relevance: Teams training embedding models for search or recommendation can use this as a due-diligence checklist — tune the baseline before adopting a new loss, be suspicious of similarity-distribution plots as evidence, and expect the largest payoff from coordinating false-negative filtering with hard-negative mining and batch design rather than from any single trick.

Future Directions

• Scaling the diagnostic. The MLLM-as-a-Judge analysis covers 7,200 sampled cases on one benchmark; whether the same labeled-positive/hard-negative/easy-negative breakdown holds on other embedding benchmarks is untested here.
• Cheaper joint training. B3 requires a pretrained teacher for ranking, a preference graph, and preprocessing, and takes 29:44 hours versus 19:12 for the baseline. Reducing that cost while keeping the three-way synergy is an open engineering problem.
• Better hardness signals. Since similarity conflates hardness with label reliability, a principled substitute for similarity-based gradient reweighting — one that estimates whether a negative is valid as well as hard — remains open.
• Explaining why gradient modulation never helps. The paper shows EGA and LLaVE fail even on top of B3; whether any gradient modulation scheme can be complementary, or whether the dimension is fundamentally unhelpful for MLLM-based embeddings, is left unresolved.

Target Audience

Researchers and engineers working on multimodal embedding models, retrieval, or contrastive learning who are deciding which training strategy to adopt; benchmark and evaluation researchers interested in MLLM-as-a-Judge diagnostics; and practitioners who need a realistic picture of how much a new loss function is likely to buy them over a well-tuned baseline.

Authors’ abstract

Contrastive learning has become the standard paradigm for multimodal representation learning, aligning semantically matched pairs while separating mismatched ones in a shared embedding space. Although various contrastive training strategies have been proposed across negative selection, batch construction, and gradient modulation, their actual effectiveness under controlled, reproducible conditions remains poorly understood. This motivates a fundamental question: Do sophisticated contrastive strategies consistently bring meaningful downstream gains in multimodal embedding learning? To address this, we systematically evaluate representative strategies under a unified benchmarking framework on MMEB. Surprisingly, direct evaluations reveal that most existing strategies offer marginal gains over a standard aligned baseline, with several even degrading overall performance. To uncover the underlying failure modes, we introduce an MLLM-as-a-Judge diagnostic framework that dissects top-1 retrieval behaviors into labeled positives, false negatives (unlabeled valid matches), and hard/easy negative errors. Our systematic analysis yields three key insights: (1) Gradient distortion: Upweighting gradients from high-similarity negatives consistently hurts downstream generalization; (2) Distribution illusion: Wider separation between positive and negative similarity distributions does not necessarily translate to better retrieval performance; and (3) Synergistic training: While false-negative mitigation or hard-batch construction yields limited gains in isolation, integrating hard-negative mining, false-negative mitigation, and hard-batch construction achieves optimal performance, delivering an average improvement of 6.0% on MMEB with Qwen2-VL-2B. Overall, our findings demystify popular contrastive strategies and provide actionable recipes for training universal multimodal embedding models.
