Wasserstein Gradient Flows and Forward-Only Diffusion Are Not Enough for Multimodal Sampling

AI summary

Overview

Research area: Statistical machine learning / stochastic sampling — specifically Wasserstein gradient flow (WGF) samplers and forward-only diffusion process (FODP) samplers, analyzed through tools from nonequilibrium statistical physics.

Technical level: Intermediate. The paper's central message is accessible, but the argument rests on Fokker–Planck operators, eigenfunction expansions, and mean first-passage time equations, and it assumes comfort with the Jordan–Kinderlehrer–Otto (JKO) scheme and optimal transport notation.

Scope: A position paper arguing that the exponential-convergence guarantees often cited for WGF- and FODP-based samplers do not imply efficient sampling of well-separated multimodal targets, because the underlying marginal dynamics are the same metastable diffusion and can mix exponentially slowly.

What This Paper Is About

Given an unnormalized density ν̃(x) on x ∈ ℝ^D, the sampling problem is to draw i.i.d. samples from the normalized density ν(x) = ν̃(x)/𝒵, where 𝒵 = ∫ν̃(x)dx is typically intractable. A recent wave of WGF-based samplers (including Stein Variational Gradient Descent, SVGD) and forward-only diffusion samplers (including ULA, MALA, and related dynamics) comes with theoretical guarantees of exponentially fast convergence, and these are often read as evidence that the methods handle complex multimodal distributions efficiently. The authors argue this interpretation is misleading, using the JKO scheme and Otto calculus to show that canonical WGF sampling dynamics and overdamped forward diffusion share the same density evolution — and therefore inherit the slow-mixing and metastability long understood for diffusion processes in nonequilibrium statistical physics.

Key Contributions

1. A marginal-equivalence argument unifying the two sampler families. Using the JKO scheme and Otto calculus, the authors show that the deterministic KL-induced WGF velocity field (Eq. 6) and the forward-only diffusion SDE dX_t = ∇_x log ν(X_t)dt + √2 dW_t (Eq. 7) produce marginals obeying the same Fokker–Planck equation. The equivalence holds only at the level of marginal distributions; the joint laws (path measures) differ in general.

2. A transfer of classical physics tools to modern sampling. Spectral analysis and mean first-passage time (MFPT) analysis, standard in nonequilibrium statistical physics, are applied to characterize the mixing behavior of these samplers, yielding the claim that well-separated multimodality induces exponentially long mixing times tied to small spectral gaps and rare inter-mode transitions.

3. A negative result on log-linear annealing. For the commonly adopted geometric (log-linear) annealing schedule, the authors find that introducing intermediate distributions does not remove the exponential scaling of total transport time; the cost is redistributed across stages rather than eliminated, even under an idealized assumption that each intermediate distribution is fully equilibrated.

4. The claim that the limitation is structural, not implementational. The authors argue that errors from finite particles, score estimation, time discretization, approximate transport maps, kernel density estimation, and Metropolis corrections are not the source of the problem; purely local, gradient-driven transport itself requires exponentially long times to move probability mass across well-separated modes. They explicitly frame this as a position paper, not a new sampler, benchmark, or theory of metastability, and as not a universal impossibility result for multimodal sampling.

Main Findings

• Marginal equivalence between WGF and FODP. The generalized Liouville equation for the deterministic WGF dynamics reduces to ∂_t ρ_WGF = −∇_x·[∇_x log ν(x) ρ_WGF] + ∇²_x ρ_WGF, identical to the classical Fokker–Planck equation ∂_t ρ_FODP = −∇_x·[∇_x log ν(x) ρ_FODP] + ∇²_x ρ_FODP satisfied by the FODP marginals. Under standard regularity conditions ensuring uniqueness of FPE solutions, ρ_WGF(x,t) = ρ_FODP(x,t) for all t ≥ 0 whenever the initial densities agree.

• Exponential convergence guarantees can coexist with impractical mixing. In the eigenfunction expansion ρ(x,t) = Σ_n c_n e^{λ_n t} ψ_n(x), the eigenvalues satisfy 0 = ℜ(λ₀) > ℜ(λ₁) ≥ ℜ(λ₂) ≥ …, with ψ₀ proportional to the target density and T_mix ≈ |ℜ(λ₁)|⁻¹. Even when the system relaxes exponentially to ψ₀, convergence can be very long if |ℜ(λ₁)| is small. No closed form exists for λ₁ for general ν, so the authors estimate it numerically.

• Spectral and MFPT analyses agree, and both show stiff scaling. The two independent analyses produce consistent mixing times when the modes are well separated (2d ≳ 0.87), the regime where the two-state MSM approximation k_{1→2} ≈ T_{1→2}⁻¹, k_{2→1} ≈ T_{2→1}⁻¹ and T_mix ≈ (T_{1→2}⁻¹ + T_{2→1}⁻¹)⁻¹ is valid. The scaling with mode separation is extremely stiff on a logarithmic y-scale: even when modes are not terribly separated (right-most inset of Figure 1), the mixing timescale exceeds 10⁷.

• A sharp transition in sampler performance at the predicted timescale. For FODP simulated with Euler–Maruyama (timestep 10⁻³, integrated until T = 10, initial samples from a standard Gaussian), sample quality degrades sharply at 2d ≈ 0.87, matching the spectral and MFPT predictions. This matches the point at which the intrinsic relaxation timescale exceeds the accessible simulation horizon. The tested particle methods (SVGD and VWGF) degrade at smaller mode separations.

• Longer terminal time helps FODP but not deterministic particle methods. Increasing T can improve FODP's global sample statistics at fixed mode separation, because intrinsic stochasticity provides a rare-event escape mechanism governed by the slowest decaying eigenmode λ₁ and large-deviation events. SVGD and VWGF, being deterministic, relax and then stabilize once the local flow field vanishes or becomes numerically negligible; extending time does not create inter-mode crossings or improve recovered mode weights. The authors caution that this observation concerns tested finite-particle implementations, since the exact population-level KL-induced WGF follows the same FPE as FODP and transfers mass on the same slow timescale.

• The critical separation appears robust in higher dimensions. For D = 10, the qualitative behavior persists and the 1D-predicted critical mode separation (2d ≈ 0.87) remains rather robust. The authors explain this via transition path theory: in metastable regimes reactive trajectories concentrate near dominant minimum-action pathways through saddle points, so the leading barrier-crossing mechanism can be described by an effectively one-dimensional reaction coordinate.

• Log-linear annealing does not fix the scaling. Using the schedule log ν_k(x) = (1 − k/N_a) log ρ(x,0) + k/N_a log ν(x) for k = 0, 1, …, N_a, with N_a = 1 corresponding to no annealing, and a convergence criterion KL(ρ(t) ‖ ν_{k+1}) ≤ ε with ε = 10⁻³, the authors find that the total time required remains comparable to the spectral and MFPT predictions for the original target. Intermediate distributions reduce the effective barrier between adjacent stages but the total cost is redistributed across multiple stages. The authors state they worked in an idealized best-case scenario where each intermediate distribution is fully equilibrated, and that in practice finite-time evolution and approximation errors would further increase cost.

• What is not reported. The truncated content does not include the numerical values of the three FODP performance metrics (squared Wasserstein-2 distance, mean log probability, estimated left-mode weight), the exact mixture weights w₁ and w₂, the number of particles used in the SVGD/VWGF comparisons, or the specific mixing-time values plotted in the annealing figure. The authors also note that a general optimality or lower-bound result covering arbitrary annealing schedules, initial distributions, and target densities is beyond the scope of the work.

Methodology in Plain English

The authors do not propose a new sampler. They argue by reduction and by reusing established analysis tools:

1. Reduce one method to another. They write down the deterministic particle dynamics of a canonical WGF sampler (driven by the difference between the target's score and the current distribution's score) and the stochastic dynamics of a forward-only diffusion sampler. They then compute how the density of particles evolves in each case and show the two equations are the same — the Fokker–Planck equation. This means anything known about the long-run behavior of diffusion processes applies to WGF as well.

2. Analyze that shared equation with two classic tools. First, spectral analysis: decompose the density into decaying modes and measure how fast the slowest non-constant mode decays; that rate sets the mixing time. Second, mean first-passage time: compute the expected time for a trajectory to travel from one mode to the other, then convert those times into inter-mode rates and a mixing time. The MFPT approach has a closed-form expression in one dimension (given in Appendix B).

3. Test on deliberately simple problems. The testbeds are bimodal Gaussian mixtures with fixed component variance σ² = 1.2 × 10⁻², modes separated along the first coordinate by 2d, and asymmetric weights with w₁/w₂ = 1/10 — chosen to be simple, representative of real multimodal structure, and easy to generate ground-truth samples for. In D = 1, a uniform discretization over the truncated state space [−1.2, 1.2] with an upwind scheme produces a discretized Fokker–Planck operator whose eigenvalues are computed directly, avoiding the need to simulate.

4. Compare theory against simulation. They simulate the FODP, SVGD, and VWGF samplers and measure sample quality, checking whether the degradation point lines up with the predicted mixing timescale. They repeat the analysis at D = 10 and then evaluate whether annealing changes the picture.

Why This Matters

The paper reframes a widely repeated interpretation: exponential convergence rates for WGF and forward-only diffusion samplers describe asymptotic decay, not practical speed, and in the metastable regime the constant in front of that exponential can make sampling computationally infeasible. It also supplies a concrete bridge — the JKO/Otto-based marginal equivalence — that lets decades of results on metastability, Eyring–Kramers scaling, and large-deviation transition rates be imported directly into the analysis of modern samplers. The authors state that the contribution is a critical synthesis rather than new theory, and they reach the strong position that WGF, in its current form as a sampling mechanism, may represent a practical dead-end for general multimodal sampling, motivating fundamentally nonlocal mechanisms instead.

Real-world applications the paper's domains touch:

• Bayesian inference — posterior distributions are frequently multimodal or funnel-shaped, and slow inter-mode mixing directly translates into unreliable posterior expectations.
• Statistical physics — sampling from Boltzmann-type densities with separated basins of attraction is the canonical metastable setting the analysis describes.
• Molecular dynamics simulation — conformational transitions between metastable states are governed by the same barrier-crossing timescales.
• Scientific computing workflows more broadly — where samplers are embedded as components and their silent failure to recover mode weights propagates error into downstream quantities.

Industry relevance: The affected methods include widely deployed algorithms such as ULA, MALA, Stochastic Gradient Langevin Dynamics, momentum-based and underdamped variants, MYULA, SVGD, and JKO/ICNN-based transport-map samplers. Practitioners using these methods for high-dimensional multimodal targets should treat "converged" loss curves or stabilized particle configurations as insufficient evidence that mode weights have been recovered — the paper shows deterministic particle methods can look stable while being trapped. The reliance on SVGD and Variational Wasserstein Gradient Flow as representatives also matters because these are common baselines in generative modeling and variational inference pipelines.

Future Directions

• Develop nonlocal transport mechanisms. The authors explicitly motivate future development of fundamentally nonlocal mechanisms for efficient multimodal sampling, since local gradient-driven transport is bottlenecked by barrier crossing.
• Establish lower bounds for general annealing schedules. The authors conjecture that changing the intermediate path cannot systematically eliminate the metastable bottleneck when every stage relies on the same local WGF/FODP dynamics, and state that confirming this across general annealing schedules, initial distributions, and target densities would require an optimality or lower-bound result beyond this work.
• Make the spectral diagnostic scalable. Grid-based discretization with N points per coordinate yields O(N^D) degrees of freedom, making direct spectral gap estimation impractical beyond very low dimensions even with sparse eigensolvers; the authors use it as a quantitatively precise illustration in 1D rather than a general high-dimensional diagnostic.
• Preserve the rare-event mechanism in practical implementations. The contrast between stochastic FODP (which retains exponentially rare but real inter-mode transitions) and deterministic particle methods (which can stall entirely) raises the question of how to build samplers that keep some rare-event escape channel without paying the exponential cost.

Target Audience

Researchers and practitioners working on sampling algorithms, generative modeling, and Bayesian computation — particularly those using or evaluating WGF-based samplers (SVGD, JKO/ICNN transport maps) and forward-only diffusion samplers (ULA, MALA, SGLD, and related dynamics). It is also relevant to scientists in statistical physics, molecular dynamics, and uncertainty quantification who rely on these samplers for multimodal targets, and to reviewers and method developers who need to interpret exponential convergence guarantees carefully. Readers need some background in probability densities, gradient flows, and stochastic differential equations, though the central message is stated in plain terms and backed by deliberately simple one-dimensional examples.

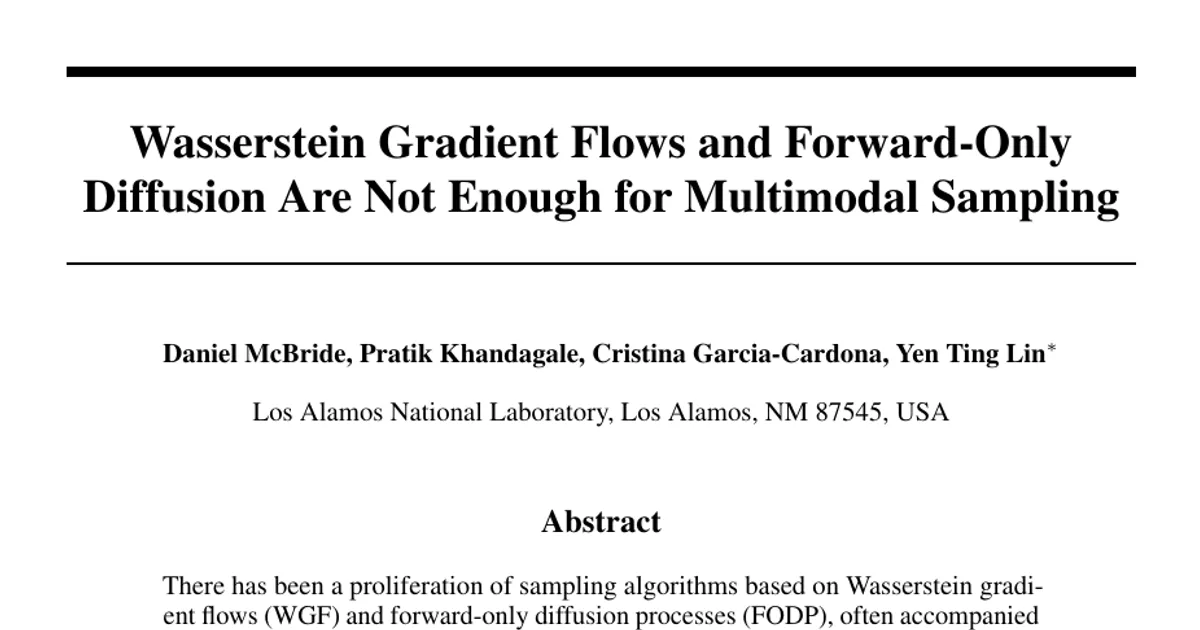

Authors’ abstract

There has been a proliferation of sampling algorithms based on Wasserstein gradient flows (WGF) and forward-only diffusion processes (FODP), often accompanied by theoretical guarantees of exponentially fast convergence to the target distribution. These guarantees are frequently interpreted as evidence that such methods can efficiently sample complex multimodal distributions, often supported by empirical results. In this work, we argue that this interpretation is fundamentally misleading. By invoking the Jordan-Kinderlehrer-Otto (JKO) scheme and Otto calculus, we establish that the canonical WGF sampling dynamics and overdamped forward diffusion share the same density evolution and therefore inherit the same metastability and slow-mixing phenomena long understood in nonequilibrium statistical physics. We analyze this family of samplers using two complementary tools -- spectral analysis and mean first-passage time (MFPT) analysis -- and show that well-separated multimodality can induce exponentially long mixing times associated with small spectral gaps and rare inter-mode transitions. For the commonly adopted log-linear annealing schedule studied here, we find that introducing intermediate distributions does not remove the exponential scaling of the total transport time. The limitation is structural rather than implementation-specific: purely local, gradient-driven transport mechanisms can require exponentially long times to transport probability mass across well-separated modes. We argue that this represents a fundamental limitation of WGF- and FODP-based sampling in their standard forms, and motivates future development of fundamentally nonlocal mechanisms for efficient multimodal sampling.
