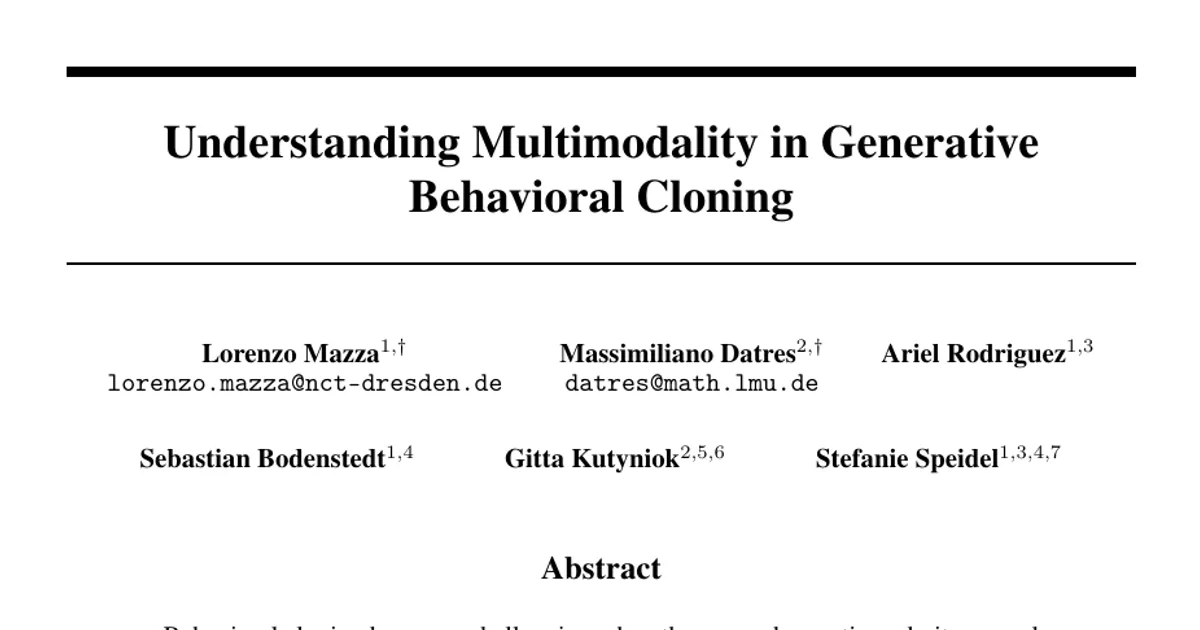

Understanding Multimodality in Generative Behavioral Cloning

AI summary

Overview

• Research area: Imitation learning and robot policy learning, specifically behavioral cloning (BC) with generative policy families — conditional latent-variable policies (CVAEs) and action-space generative policies such as flow-matching and diffusion samplers.
• Technical level: Advanced. The paper is built around formal definitions, propositions, corollaries and proofs, with supporting empirical studies on synthetic navigation tasks, simulated robot benchmarks, and one real surgical-robot task.
• Scope: The paper formalizes what "multimodality" means for expert conditional action distributions, derives the model- and training-level quantities that control whether a generative behavioral-cloning policy preserves demonstrated modes, and tests those mechanisms empirically.

What This Paper Is About

Behavioral cloning breaks down when the same observation admits several equally valid expert actions: a standard unimodal or L2 regression head predicts the conditional mean, which typically lies on none of the demonstrated modes (the inverse-kinematics example is the canonical case, where averaging disconnected joint-space solutions yields a joint command that lies on no feasible branch). Generative policies — latent-variable and action-space generative models — are meant to solve this, but it has been unclear which training or architectural quantities actually determine whether the learned policy keeps its modes. The paper's goal is to define multimodality precisely and identify exactly which quantities must be controlled to preserve it.

Key Contributions

1. A formal definition of multimodal behavioral cloning. The paper defines, for each observation s, a mode count K(s) ≥ 1, mode sets C₁(s), …, C_{K(s)}(s) covering the support of the expert conditional action distribution, and a mode-separation quantity Δ(s) := min over distinct modes of the distance between them, required to be positive. A mode-assignment function g and the induced mode-label random variable M := g(S, A) provide a mode-level labeling of expert actions for analysis.
2. A mode-information lower bound for latent-variable policies (Proposition 1) and a collapse criterion (Corollary 2). Preserving demonstrated modes requires action-conditioned information in the latent variable, lower-bounded by a Fano-corrected mode entropy B_ρ. Under the pointwise KL regularizer of the form in Eq. (6), the learned conditional mutual information is squeezed between B_{ρ̂} and a constant over β (C/β), so a nontrivial multimodality certificate B_{ρ̂} > b₀ requires β < C/b₀.
3. A Lipschitz-based mode-representation limit for action-space generative policies (Proposition 2). An L_{θ,s}-Lipschitz base-to-action transport map can represent at most a number of τ-represented modes bounded by 1 + ⌊[2(√(2π)|Φ⁻¹(τ)|+1) / (√(2π) τ)] · L_{θ,s}/Δ(s)⌋, meaning smooth generators must either stretch base space sharply or place mass on off-support "bridge" regions.
4. Empirical validation plus a diagnostic for unlabeled data. Controlled synthetic navigation tasks with ground-truth modes, a proof-of-concept real bimodal tissue-grasping task on a surgical robotic platform, and a Gaussian-mixture-based estimator for conditional mode count and entropy in demonstration datasets. The paper reports code at https://github.com/Lorenzo-Mazza/VersatIL.

Main Findings

• Mode coverage is necessary but not sufficient. The deterministic baseline collapses onto the invalid average trajectory on all four synthetic tasks, achieving zero success. Generative policies recover high valid mode coverage, yet on the two hardest K = 16 tasks success ranges from 0.37 to 0.52 despite near-complete coverage.
• Strong pointwise KL regularization destroys mode information. Increasing β sharply reduces both the mode information I(M;Z|S) and the action information I(A;Z|S) beyond the level of the empirical mode entropy H(M|S) = log K (the modes are balanced), and the downstream success rate of the posterior-sampled policy collapses toward zero. At small β, I(M;Z|S) is close to H(M|S), indicating the latent nearly identifies the demonstrated mode.
• The Fano bound is valid but loose. Observations in Figure 2 support Proposition 1; the gap between B_{ρ_z} and I(M;Z|S) reflects the looseness of the Fano bound, which depends on both the mode-recovery error rate and how errors are distributed.
• Admissible β values can be bounded but not guaranteed. The paper gives β_max := L⁰ / b₀(ρ̄) as a threshold above which no solution can reach the desired mode-recovery accuracy. In every reported run the empirical inequality B_{ρ̂} ≤ D_KL ≤ L⁰/β holds; all tested β values below the heuristic recommendation achieve ρ̂ ≤ ρ̄ for both tested tasks, every run with D_KL < b₀(ρ̄) has ρ̂ > ρ̄, and no run above β_max achieves the desired recovery — but several runs below β_max also fail, so the threshold alone is not sufficient.
• Lipschitz constant trades off against bridge mass. Circle and Sequential show high normalized transition sensitivities of approximately 7.9 and 17.7, negligible interpolation bridge fractions, and success rates of 1.00 and 0.99. Radial and Corridor show lower sensitivities (2.63 and 1.67), substantial interpolation bridge fractions (0.46 and 0.55), and lower success rates (0.47 and 0.41). Corridor represents 15 of its 16 modes despite exceeding the bound, consistent with the bound being necessary rather than sufficient. All benchmarks that represent all ground-truth modes at τ = 0.01 lie above the bound.
• Standard robotic simulation benchmarks show limited conditional multimodality. Using the proposed estimator (previously used benchmarks: Push-T, UR3 BlockPush, LIBERO, Meta-World, Kitchen), Push-T, UR3, LIBERO and Meta-World give estimates extremely close to 1, while Kitchen is the most multimodal at 1.231 when the action horizon is 30. In the real bimodal tissue-grasping dataset, multimodality is higher and approximates the ground-truth value of 2 semantic modes when the action horizon is long enough. The authors conclude that deterministic regression remains competitive on these benchmarks.
• The estimator reconstructs known mode counts on synthetic data. With action horizon 60, radius ε = 0.5 and a 2.5% modal-mass cutoff, estimated mode counts were 2.000 (Circle), 4.000 (Sequential), 15.970 (Radial) and 15.920 (Corridor), with entropies in bits of 0.998, 1.986, 3.972 and 3.960 respectively.
• Aggregate regularization behaves differently from pointwise KL. Weaker or aggregate regularization can preserve mode information, but this shifts the challenge to ensuring the deployment-time prior covers the relevant latent regions; the paper states that the Corollary 2 relation does not hold in general for other regularization strategies, with aggregate matching objectives as a counterexample (Appendix B.2).
• Regularization that restricts the Lipschitz constant suppresses multimodality. Because separating modes in continuous-time diffusion and flow-matching policies requires extreme spatial stretching near terminal sampling steps, the paper argues that stabilization or regularization techniques that overly restrict the network's Lipschitz constant compromise this stretching and force mode collapse.

Methodology in Plain English

The authors treat the expert's action distribution given an observation as made up of finitely many well-separated "mode sets," and build their analysis around how much information about which mode was demonstrated is retained by a policy's internal machinery. For latent-variable policies, they use an information-theoretic decomposition of the training objective: the expected posterior–prior KL splits into a conditional mutual information term I(A;Z|S) — how much the latent knows about the action beyond the state — plus a mismatch term between the aggregated posterior and the prior. A Fano-style argument converts this into a statement about recovering the mode label M, giving a lower bound on the information required and, combined with an upper bound of order 1/β, a ceiling on how strong the regularizer can be. For action-space generative policies, they instead reason geometrically: the sampler is a map from Gaussian base noise to actions, and a map with a bounded Lipschitz constant cannot spread probability across many far-apart regions, which yields an upper bound on how many modes can each receive more than a threshold τ of probability.

Empirically, they design four 2D multimodal navigation tasks with known ground-truth modes (the synthetic figure shows expert trajectories color-coded by mode, with grey obstacle rectangles, green goal regions and red final agent positions; policies see a single RGB observation at t = 0 and predict a full open-loop chunk a_{0:H−1} ∈ ℝ^{60×2} without replanning) and run representative policy families on them to test specific questions about mode coverage, bound tightness, β selection, and the Lipschitz/mode-count trade-off. Because real robot datasets have no mode labels, they add a heuristic estimator that clusters future action chunks belonging to nearby observation states with a Gaussian mixture, and apply it to standard simulation benchmarks and to their own real surgical tissue-grasping dataset. Lipschitz constants are estimated with finite differences of cross-mode transitions.

Why This Matters

• For research: The paper replaces a vague intuition ("generative models capture multimodality") with concrete, checkable quantities — the conditional mutual information I(A;Z|S), the Fano-corrected mode entropy B_ρ, and the ratio L_{θ,s}/Δ(s) — and shows that the two dominant families of multimodal BC methods fail for structurally different reasons. It also challenges the assumption that widely used simulation benchmarks are actually multimodal, which affects how results on multi-task policy benchmarks should be interpreted.
• Real-world applications:
  • Surgical robotics: the paper's own real-robot proof of concept is a bimodal tissue-grasping task on a surgical robotic platform, where two grasp strategies are equally valid.
  • Robot manipulator control: inverse-kinematics-style ambiguity, where one end-effector target admits disconnected joint-space solutions, is the paper's motivating case.
  • Navigation around obstacles: the synthetic tasks are multimodal 2D navigation problems where multiple route choices reach the goal.
  • Any imitation-learned system with unobserved latent factors (expert style, tool choice, human preference) that make the same observation consistent with several correct actions.
• Industry relevance: Teams training visuomotor policies from demonstration datasets need to decide how strongly to regularize a CVAE latent, or how smooth a flow/diffusion sampler can be made for stability or efficiency. The paper provides a concrete decision rule — a threshold β_max below which multimodality is possible, plus a check that the trained policy actually achieves the desired mode-recovery error and a total loss below the collapsed reference — and warns that making a sampler smoother or more stable tends to trade away mode coverage or force mass onto invalid "bridge" actions. The released estimator offers a way to audit whether a demonstration dataset even contains the multimodality a generative policy is being bought to capture.

Future Directions

• Prior coverage at deployment time. The paper shows aggregate regularization can preserve mode information while shifting the problem to whether the deployment-time prior covers the relevant latent regions; how to guarantee that coverage is left open.
• Extending the analysis beyond the pointwise KL regularizer. Corollary 2 is stated as specific to regularizers of the form in Eq. (6), and the authors explicitly note that an analogous relation does not follow in general for other strategies, leaving the behaviour of other regularizers as an open question.
• Sharpening the Fano bound. The reported gap between B_{ρ_z} and I(M;Z|S) shows the bound is loose and depends on the mode-recovery error rate and error distribution; tightening it would make the certificate more useful in practice.
• Closing the gap between necessary and sufficient conditions. Several runs below β_max still fail to recover modes, and Corridor represents 15 of 16 modes despite exceeding the Lipschitz bound, so conditions that are both necessary and sufficient for mode recovery remain an open problem.
• Multimodality estimation without task semantics. The authors describe estimating K(S) and H(M|S) without knowledge of task semantics as a hard problem in general, and their heuristic is validated only on synthetic tasks and the real bimodal dataset, so broader validation and better estimators are natural next steps.

Target Audience

This paper is aimed at machine learning and robotics researchers already familiar with imitation learning, variational inference and generative models — particularly those working on multimodal behavioral cloning, action-chunking policies, flow-matching or diffusion policies, and CVAE-based policy architectures. It will also be useful to practitioners who train visuomotor policies on large demonstration datasets and need concrete guidance on regularization strength and sampler smoothness, and to benchmark designers who want to know whether the datasets they evaluate on actually contain conditional multimodality. Readers without a background in information theory and Lipschitz-based analysis will find the theoretical sections demanding.

Authors’ abstract

Behavioral cloning becomes challenging when the same observation admits several valid actions. We study how generative behavioral-cloning policies represent such multimodal expert behavior and identify different bottlenecks across model parameterizations. For latent-variable policies, preserving demonstrated modes requires action-conditioned information in the latent representation. Excessive posterior-prior regularization can suppress this information and prevent the policy from distinguishing demonstrated modes. Weaker or aggregate regularization can preserve mode information, but shifts the challenge to ensuring that the deployment-time prior covers the relevant latent regions. For action-space generative policies, multimodality is constrained by the smoothness of the base-to-action transport: a map with a small Lipschitz constant cannot assign substantial probability to many well-separated modes. Covering many modes therefore requires either sharp transitions in base space or off-support bridge regions in action space. Experiments on synthetic multimodal navigation and a physical-robot bimodal manipulation task support these mechanisms. In contrast, our analysis reveals limited conditional multimodality in standard robotic simulation benchmarks, where deterministic regression remains competitive.
