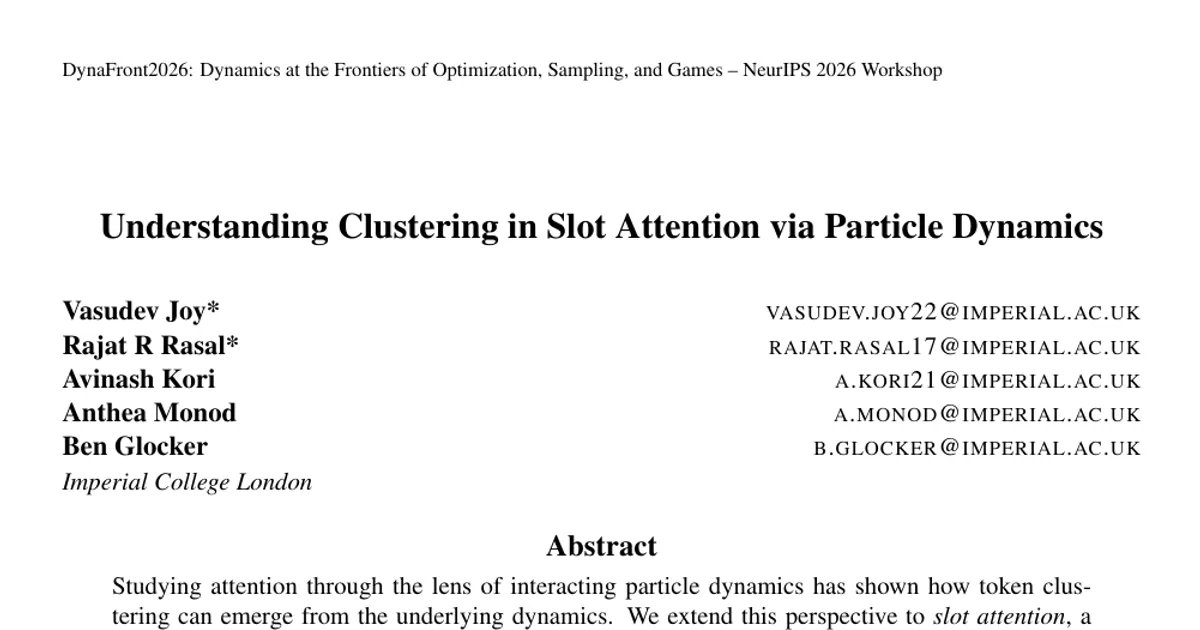

Understanding Clustering in Slot Attention via Particle Dynamics

AI summary

Overview

Research area: Machine learning theory and object-centric representation learning, specifically interpreting attention mechanisms as interacting particle systems.

Technical level: Advanced. The paper relies on interacting particle dynamics, energy-function derivations, and alternating minimisation arguments, alongside deep learning experiments.

Scope in one sentence: The paper asks how much of slot attention's object-centric clustering behaviour comes from its competitive assignment dynamics alone, by deriving a parameter-free variant called simplified slot attention (SSA) and testing it against slot attention and several soft clustering baselines on Pascal VOC 2012.

What This Paper Is About

Slot attention groups image features into a fixed set of latent representations ("slots") that are meant to capture objects, but its learned components (query/key/value projections, a GRU, LayerNorm, and a residual MLP) make it hard to tell how much of this clustering is intrinsic to the attention dynamics themselves. The authors strip slot attention down to just its competitive assignment step, creating a parameter-free model, and compare its behaviour to soft k-means style clustering methods. The goal is to determine whether competition between slots alone is sufficient to produce useful object-centric segmentations.

Key Contributions

1. A particle-system formulation of slot attention and a reduced model. The authors write slot attention as an interacting particle system and derive simplified slot attention (SSA), a parameter-free model that isolates the competitive assignment mechanism while dropping the learned projections, GRU, LayerNorm, and residual MLP.

2. Theoretical links to soft clustering. SSA is related to soft k-means (SKM), soft spherical k-means (SSKM), and to an unnormalised energy-based surrogate the authors derive and call USSA.

3. An energy function for the surrogate. The paper derives a bounded energy for USSA (E_1), shows its zero-temperature limit, and shows that its hard-assignment minima are governed by dot-product similarity rather than Euclidean distance.

4. An empirical comparison on Pascal VOC 2012. SSA and four clustering baselines are swapped into the same encoder-decoder pipeline with frozen DINO features, with the finding that SSA reaches segmentation and reconstruction performance close to slot attention.

Main Findings

• Both components of SSA matter. SSA combines the competitive weighted-mean update of soft k-means with dot-product assignments. SKM keeps the weighted-mean update but uses Euclidean similarity and "tends to produce under-segmented groups"; SSKM shares SSA's assignment but projects centroids onto the unit sphere and "produces much poorer segmentations"; USSA keeps the assignments but uses a weighted sum and "progressively collapses towards a small number of active slots."

• SSA closely tracks slot attention on Pascal VOC 2012. With frozen DINO ViT-B/16 features, N = 196 patch tokens of dimension d = 768, and M = 6 slots, SSA is reported as best or second-best on every metric except FG-ARI. On cluster assignments SSA reaches FG-ARI 0.155 ± 0.001, mBO_i 37.369 ± 0.379, and mBO_c 40.920 ± 0.554, against slot attention's 0.186 ± 0.005, 38.257 ± 0.243, and 40.790 ± 0.226. On decoder alpha masks SSA reaches FG-ARI 0.147 ± 0.005, mBO_i 32.214 ± 0.339, and mBO_c 34.672 ± 0.356, against slot attention's 0.181 ± 0.007, 35.262 ± 0.486, and 37.232 ± 0.469. Reconstruction MSE is 0.390 ± 0.001 for SSA versus 0.382 ± 0.001 for slot attention.

• FG-ARI needs cautious interpretation. The paper notes that FG-ARI ignores background and that the collapsed USSA obtains the highest cluster-based FG-ARI of 0.499 ± 0.000, while its decoder mask FG-ARI is only 0.095 ± 0.010.

• Reconstruction is slightly worse without learned components. Slot attention's slightly lower reconstruction MSE (0.382 ± 0.001 versus SSA's 0.390 ± 0.001) is interpreted as evidence that learned components improve slot representations, while simple dynamics suffice for clustering.

• USSA's energy minimises at hard assignments. The zero-temperature limit of the USSA energy yields minima attained at hard slot assignments where w_ij ∈ {0,1}, and the paper shows that splitting a cluster lowers this energy when the aggregate cross-cluster dot product is negative — so the clustering geometry is governed by dot-product similarity rather than Euclidean distance.

• SSA and USSA share assignments but differ in stability. For fixed slot positions they induce identical assignments, but USSA's weighted sum lets slots shrink to zero and die, while SSA's weighted mean prevents this.

• Slot collapse is demonstrated. In one illustration, USSA is run with K = 10 slots on N = 1000 Gaussian-initialised points, and a single active slot remains by iteration 12. In a DINO-feature example, only 2 slots survive by the end of the algorithm.

Methodology in Plain English

The authors take slot attention and re-interpret it as a system of interacting particles: the slots are particles, the image patch features are fixed points, and each attention update moves the slots based on how strongly they respond to each feature. This framing makes it natural to compare slot attention to clustering algorithms, because soft k-means and its spherical variant do essentially the same thing — update cluster centres as weighted averages of the points they claim — but normalise the competition across clusters instead of across features.

They then remove everything from slot attention that is learned or that does more than the assignment step: they set the query, key, and value projections to the identity, assume matching dimensions, and replace the LayerNorm-GRU-residual MLP update chain with the weighted-mean aggregation itself. What remains is SSA, which has no learned parameters.

To check whether the "sum" versus "mean" in that update matters, they also derive USSA, which replaces the weighted mean with a weighted sum. They write down an energy function for USSA, show that minimising it alternately over the weights and the slot positions reproduces the USSA update, and analyse what happens at low temperature (large β) — namely, that the optimal weights become hard 0/1 assignments.

For experiments, they plug k-means, SKM, SSKM, USSA, SSA, and full slot attention into the same segmentation module slot of an encoder-decoder pipeline. All methods group the same frozen DINO ViT-B/16 patch features into M = 6 slots and share the same decoder and training recipe, so differences can be attributed to the grouping module. Training uses the Pascal VOC 2012 trainaug split, evaluation uses the val split, images are resized to 224 × 224 (with random crop and horizontal flip for training, center crop for evaluation) and normalised with ImageNet statistics. Slot attention uses 3 routing iterations; k-means and soft k-means centroids are initialised from N(0, I) and updated for 20 iterations; the decoder is a token-wise MLP with dimensions 768 → 768 (LayerNorm) → 2048 → ReLU → [2048 → 2048 → ReLU] × 2 → 769, with slot and embedding dimension both 768. Training uses AdamW at learning rate 2 × 10⁻⁴, weight decay 10⁻⁶, batch size 32, gradient-norm clipping at 1.0, 150 epochs with evaluation every 5 epochs, linear warmup over the first 10,000 steps and exponential decay with a half-life of 100,000 steps. All results are averaged over 3 seeds, and all models were trained on a single NVIDIA Tesla T4 GPU (15,360 MiB).

Why This Matters

Impact on research. The paper separates "what the architecture learns" from "what the dynamics do." If a parameter-free competitive assignment rule recovers most of slot attention's segmentation quality on this benchmark, then theoretical work on attention as an interacting particle system becomes directly relevant to a widely used object-centric model — and the learned GRU, projections, and normalisation can be studied as refinements of an existing clustering mechanism rather than as its source. It also supplies a concrete theoretical link between attention and soft k-means style clustering, with an explicit energy function for the unnormalised surrogate.

Potential real-world applications (these follow from the object-centric segmentation setting; the paper does not itself evaluate any of them):

• Scene decomposition for robotics or autonomous systems, where a scene must be split into object-like entities before reasoning about them.
• Image editing and compositing workflows that need per-object masks rather than a single global segmentation.
• Medical and scientific imaging, where grouping features into a small number of coherent regions supports downstream measurement and reporting.
• Data annotation and dataset curation, where cheap unsupervised mask proposals reduce manual labelling effort.

Industry relevance. The practical claim is about cost: a grouping module with no learned parameters can be competitive with a learned one on this setup, which is attractive where memory, latency, or training data are constrained. It also reframes the design question for object-centric architectures — whether to invest modelling capacity in the grouping mechanism at all, or in the feature extractor and decoder instead.

Future Directions

1. Characterise SSA directly. The energy function in the paper describes the USSA surrogate, not SSA's weighted-mean dynamics, so the fixed points and convergence properties of the SSA update remain open.

2. Test on more demanding settings. The empirical study uses a single dataset (Pascal VOC 2012), a single frozen encoder (DINO ViT-B/16), 3 seeds, and reconstruction of DINO patch features as the downstream task; generalisation to other datasets, feature extractors, and harder tasks such as generation or structured prediction is untested.

3. Systematically reintroduce the omitted components. The roles of the GRU, the Q/K/V projections, and LayerNorm are discussed only heuristically. The authors hypothesise the GRU acts as a learned damping term analogous to a gradient-descent step size, that Q and K form a learned similarity function, that V represents slots for the downstream task, and that LayerNorm constrains slot growth in a way related to spherical k-means — none of these hypotheses is tested empirically here.

4. Connect to probabilistic and metastable views. The derived energies suggest sampling-based alternatives to gradient-based training, such as a Dirichlet process mixture reading or contrastive divergence, which could also address the fixed number of clusters assumed by both k-means and slot attention. The authors also note empirically observed metastable clusters in the USSA dynamics and ask whether analogous metastable clusters appear in self-attention.

Target Audience

This paper is aimed at machine learning researchers working on attention theory, interacting particle dynamics, and object-centric representation learning, and at practitioners who want to understand why slot attention clusters the way it does. Readers need comfort with softmax-based assignment rules, energy functions, and constrained optimisation to follow the derivations, though the experimental comparison table is accessible to anyone familiar with object-centric segmentation benchmarks. Those looking for state-of-the-art segmentation numbers will find the paper's contribution is analytical rather than a performance claim; those asking whether a learned grouping module is necessary will find a direct and quantified answer on Pascal VOC 2012.

Authors’ abstract

Studying attention through the lens of interacting particle dynamics has shown how token clustering can emerge from the underlying dynamics. We extend this perspective to slot attention, a method for object-centric image segmentation and representation learning in which learned components obscure how much of the clustering behaviour is intrinsic to the attention dynamics. We therefore introduce simplified slot attention (SSA), a parameter-free variant whose dynamics are connected to soft $k$-means clustering and which provides a straightforward mechanistic explanation for the emergence of object-centric representations. On the Pascal VOC dataset, SSA achieves performance comparable to that of slot attention, demonstrating that competitive object-centric segmentation can be achieved without learned neural-network components.
