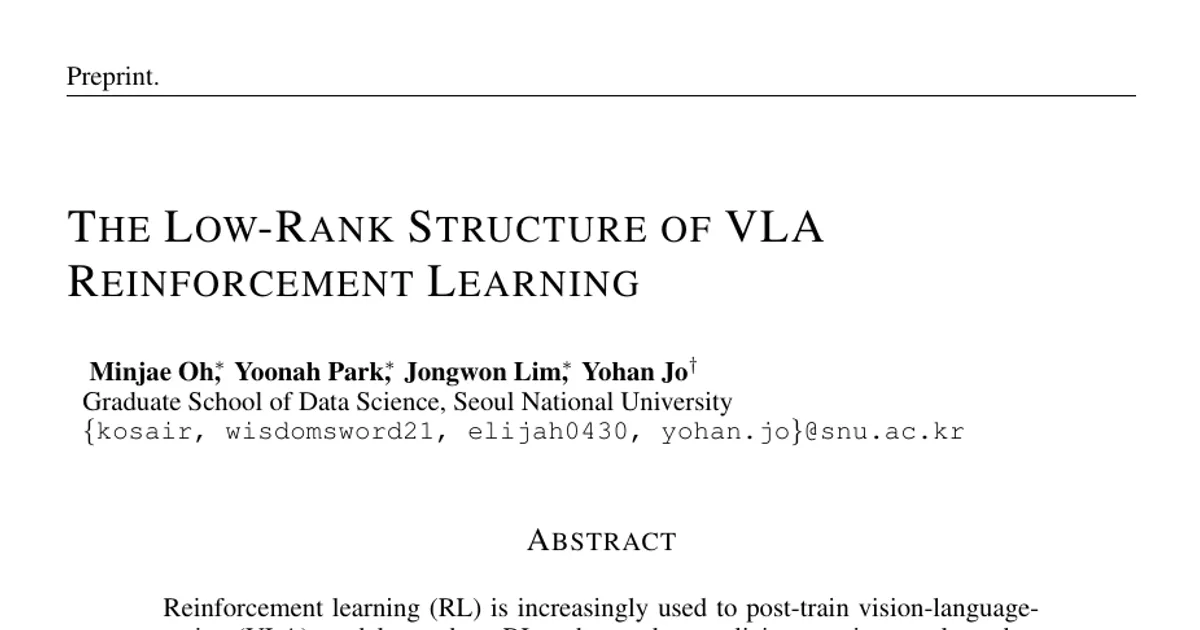

The Low-Rank Structure of VLA Reinforcement Learning

AI summary

Authors: Minjae Oh, Yoonah Park, Jongwon Lim, Yohan Jo (Graduate School of Data Science, Seoul National University) arXiv: 2609.34599v1 [cs.LG], 28 Sep 2026 — License: CC BY 4.0

Overview

• Research area: Reinforcement learning for vision-language-action (VLA) robot foundation models; parameter-space analysis of post-training.
• Technical level: Intermediate — the paper assumes familiarity with RL (PPO), flow matching, LoRA, and singular value decomposition, but its core claims are architectural and can be read without deep math.
• Scope: A systematic study of where and how RL post-training changes the parameters of flow-based VLA policies, spanning π0.5, GR00T N1.5, GR00T N1.6, and SmolVLA across the LIBERO, ManiSkill, MetaWorld, and CALVIN benchmarks.

What This Paper Is About

Reinforcement learning is now widely used to post-train VLA robot policies, but nobody had mapped out what actually changes inside these models when RL runs. The authors compare parameters before and after RL and find that the learning signal is not spread evenly — it concentrates in a small, usually ignored component called the Timestep Modules, and it collapses into a very small number of directions. The paper then asks what those directions encode and whether they can be used to improve a policy without any further RL training.

Key Contributions

1. A parameter-level characterization of VLA RL. Across four flow-based VLA families and four manipulation benchmarks, the authors show that RL induces dense but low-rank updates concentrated in the Timestep Modules of the action expert, a component typically excluded from standard LoRA configurations.
2. Causal evidence that Timestep Modules carry the RL gain. Through module-replacement experiments, keeping only the Timestep Modules RL-trained preserves most of the RL performance, despite these modules being 14.83–27.58% of the action expert.
3. An explanation for the low-rank structure. RL trains on-policy only at the discrete denoising timesteps used during rollouts, whereas standard behavior cloning samples timesteps continuously from [0, 1]. This discrete-timestep training is identified as the cause of the low-rank updates.
4. A demonstration that shift updates are actionable. The shift vector (one of the Timestep Module outputs) encodes task outcomes and cross-task relationships, and steering along shift update directions improves already-trained RL policies at test time with no additional RL training.

Main Findings

• Updates concentrate in the Timestep Modules. On π0.5 trained on LIBERO-Spatial, the Timestep Modules (AdaRMS and Time MLP) are updated far more densely (70–95%) than attention and MLP modules (<5%). In π0.5, the Timestep Modules make up 27.58% of the action expert's parameters, 98.23% of which belongs to AdaRMS.
• RL updates are low-rank; BC updates are not. RL updates to the Timestep Modules have an effective rank of only 6–30, roughly an order of magnitude lower than BC (250–650), while RL updates to attention and MLP modules remain high-rank. Effective rank is defined as the smallest number of singular directions explaining 95% of the update's squared Frobenius norm, using an update-density threshold of 10⁻⁵.
• The effect is specific to action policies. RL-trained image and video DiTs do not show the same low-rank structure; their Timestep Module updates require 29–80% of the available rank.
• Timestep Modules hold most of the RL gain. In π0.5, the "Timestep Modules only" setting nearly matches full RL: −1.4% on LIBERO, −1.6% on ManiSkill, +0.4% on MetaWorld, and −0.7% on CALVIN. The "MLP+Attn only" setting drops by up to 39.7% on ManiSkill. A notable exception is GR00T N1.5 on LIBERO, where "Timestep Modules only" falls 29.0% behind RL.
• Discrete timesteps drive specialization. Under standard BC the AdaRMS response varies smoothly across timesteps; under RL it becomes sharply localized around the discrete timesteps used during rollouts. Discrete-timestep BC reproduces both the localization and the low-rank updates.
• The shift vector changes most. The RL-induced change is substantially more aligned with the base output for the scale and gate vectors than for the shift vector, meaning RL largely rescales scale and gate while introducing new directions predominantly in shift.
• Shift updates predict task success. Projecting hidden states onto RL-induced shift updates and combining them with an ℓ2-regularized logistic regression probe yields ROC-AUCs up to 99.6%, well above random-label controls. A single sublayer–timestep direction alone yields ROC-AUCs of 96.9–99.0 on LIBERO-Spatial, LIBERO-Object, and ManiSkill.
• Shift geometry tracks task relationships. Across the ten LIBERO-Spatial tasks, shift-update alignment correlates positively with cross-task transfer behavior, with a mean task-wise correlation of 0.504 (range 0.224–0.794). The abstract reports a Spearman ρ = 0.794.
• Shift steering improves trained policies. Adaptive steering raises success rates by 2.0–4.0% on all five evaluated benchmarks and consistently beats matched-norm random directions — for example, 86.7% to 90.0% on LIBERO-Spatial and 90.7% to 94.7% on LIBERO-Goal.

Methodology in Plain English

The authors treat post-training as a subtraction problem. For each model they take the parameters before training and the parameters after, and subtract one from the other to get a "parameter update" matrix for every layer. They then measure two things: how many parameters actually moved (update density), and how many singular directions are needed to explain 95% of the update's energy (effective rank). This tells them both where learning happened and how complex it was.

To check whether the concentration matters rather than being a coincidence, they run module-replacement experiments: start from a fully RL-trained checkpoint, then swap back the base parameters for either the Timestep Modules or everything else, and see which substitution hurts more.

They then look inside AdaRMS, the dominant Timestep Module, by taking the singular value decomposition of its update and asking which input directions the update responds to. Because the Timestep Modules only see the denoising timestep and nothing else, any timestep-specific pattern is easy to isolate. They compare RL against standard BC and against a new control, "discrete-timestep BC," trained only on the timesteps RL actually uses.

Finally, they use the RL-induced shift change (the shift vector after RL minus the shift vector before) as a direction in representation space. They project hidden states onto it during rollouts, aggregate over sublayer–timestep pairs, and train a logistic regression probe on a 70:30 train/test split within each benchmark to predict episode success. The same direction then becomes an intervention: when a probe indicates the projection has deviated from the mean projection of successful episodes, they nudge it back by the minimum needed.

Why This Matters

Impact on research. This is, by the authors' account, the first parameter-level characterization of VLA reinforcement learning. It connects VLA post-training to a body of LLM work on sparse and low-rank RL updates, and it identifies a concrete architectural component — the Timestep Modules — that standard LoRA configurations leave out. Since the authors find that targeting LoRA at the Timestep Modules converges faster and to a higher success rate than the standard configuration, the finding is immediately actionable for anyone fine-tuning these models.

Real-world applications:

• Cheaper robot policy post-training. If most of RL's benefit lives in modules that are 14.83–27.58% of the action expert, training can be targeted rather than applied to the whole network.
• Faster sim-to-real adaptation. Lightweight, module-scoped updates are more practical for adapting a deployed policy to a new robot or environment than full-parameter RL.
• Test-time performance boosts without retraining. Shift-vector steering improves an already-trained policy by 2.0–4.0% at inference, which matters when collecting more interaction data is expensive.
• Diagnostics for robot deployment. The probe reaches ROC-AUCs up to 99.6% at predicting whether an episode will succeed, which could feed into early failure detection or intervention.

Industry relevance. The paper speaks directly to the design of residual RL and lightweight adaptation modules that adapt frozen VLAs — approaches used to avoid retraining large robot foundation models. Its results suggest a small residual module may suffice to capture much of full-parameter RL's benefit.

Future Directions

• Discrete-timestep BC as a training choice in its own right. Since discrete-timestep BC induces the same low-rank structure as RL, the authors flag investigating its effects and potential advantages over standard continuous-timestep BC as a promising direction for VLA policies.
• Explaining residual RL. If full-parameter RL largely reduces to low-rank modulation, that would help explain why adapting frozen VLAs through lightweight trainable modules works, and could inform better residual RL designs.
• More parameter-efficient RL post-training. The low-rank structure is a natural target for methods that update fewer parameters.
• Composition and transfer of task-specific behaviors. The correlation between shift-update geometry and cross-task transfer patterns raises the question of whether task-specific RL behaviors can be deliberately composed or transferred.

Target Audience

Researchers and engineers working on robot foundation models, VLA post-training, and reinforcement learning for control. It is also relevant to the parameter-efficient fine-tuning community, since the central finding — that the highest-value updates sit in modules most LoRA setups skip — applies directly to tooling decisions. Readers primarily interested in LLM RL will find the cross-domain comparison to image and video DiTs useful, though the paper does not report LLM results. A basic grasp of singular value decomposition and policy gradient RL is sufficient; the paper's own analysis rests mostly on comparing weight matrices and probing hidden states.

Authors’ abstract

Reinforcement learning (RL) is increasingly used to post-train vision-language-action (VLA) models, yet how RL reshapes these policies remains poorly understood. We find that RL across widely used flow-based VLA models, including $π_{0.5}$ and GR00T~N1.5/N1.6, on LIBERO, ManiSkill, MetaWorld, and CALVIN induces substantially lower-rank parameter updates that are highly concentrated in the action expert's Timestep Modules, a small and previously overlooked component. Through systematic module-replacement experiments, we further show that these modules capture a disproportionate share of the performance gains from RL. We then characterize what is encoded in these Timestep Modules. First, we show that RL specializes them to the discrete denoising timesteps used during rollouts, and that this discrete-timestep training underlies the low-rank updates. Second, we find that among their outputs, the shift vector changes most distinctly under RL, and through probing, we show that shift update directions strongly predict task success (ROC-AUC up to $99.6\%$). Third, we find that the geometry of shift updates reflects task relationships, as their pairwise similarity correlates with cross-task transfer patterns. Building on these findings, we show that steering along shift update directions further improves RL-trained policies without additional RL training. Overall, we provide a systematic understanding of how RL reshapes VLA policies by studying how learned signals are encoded in parameter space, offering insights into more efficient and interpretable VLA post-training.
