The Effect of Attention Head Count on Transformer Approximation

AI summary

Overview

• Research area: Theoretical machine learning — specifically approximation theory and expressive power of the Transformer architecture, with a focus on attention head count as a structural hyperparameter.
• Technical level: Advanced. The paper is written in the language of approximation theory (upper/lower parameter-complexity bounds, epsilon-approximation, density arguments) and will be most accessible to readers with a background in deep learning theory or mathematical analysis.
• Scope: The paper introduces a new target function class (generalized D-retrieval tasks), proves it is dense in continuous sequence-to-vector mappings, derives matching-style upper and lower bounds on transformer parameter complexity as a function of head count relative to intrinsic task dimension D, and validates the predicted phase transitions with synthetic and real-data experiments.

What This Paper Is About

Transformers are the dominant architecture for sequence modeling, but it is largely unknown how structural choices such as the number of attention heads affect what a model can efficiently represent. The authors study single-layer transformers on sequence-to-vector tasks and ask what happens when the number of heads h is smaller than the intrinsic dimension D of the target function. They prove that too few heads force exponentially large parameter requirements in the sequence length, while enough heads allow efficient approximation.

Key Contributions

1. First rigorous lower bounds for transformers in nonlinear settings. The authors show that when h < D, the parameter count required for epsilon-approximation grows as Ω(1/ε^k) with exponent k = ((1/4)T − s − D + 1) / ((n+1)s + 1) − 1, i.e., scaling exponentially in sequence length T. The abstract states the abstract-level form as O(1/ε^{cT}) for some constant c and sequence length T.
2. Constructive upper bounds. They prove that when h ≥ D (specifically h = D, with per-head embedding dimension n = 2), efficient approximation is achievable with parameter count M > C_{d,D,T}/ε^γ, with growth independent of sequence length T.
3. A memorization regime for single-head transformers. They show that with one head and per-head embedding dimension n ≥ Td, and a 5-layer ReLU feed-forward block, the model can achieve epsilon-approximation with M > C_{d,D,T}/ε^{1+γ}, with the complexity living in the feed-forward block rather than the attention layer.
4. A dense, expressive target family plus empirical validation. They introduce generalized D-retrieval tasks, prove density in C(X_T), argue D is a unique intrinsic dimension, and confirm the predicted head-count phase transitions on synthetic data, MS MARCO, and CIFAR-10.

Main Findings

• The target class is universal. Theorem 1 proves that the family {F_D} for D = 1, 2, ... is dense in C(X_T): for every continuous F and every ε > 0, there is some D and f in F_D with max error ≤ ε. The authors also prove (Corollary 1) that under D₁² + D₂² ≤ (1/50)T, two valid representations must have D₁ = D₂, so D is an intrinsic, representation-invariant property of the target.

• Enough heads give an efficient regime. With h = D heads and n = 2 per head, the hypothesis class H(h, n, d, T, M) epsilon-approximates any target H in F_D^{d,T} once M > C_{d,D,T}/ε^γ. The paper describes this as each head specializing to one component (in the toy example of max + min, one head tracks the maximum and the other the minimum), with the feed-forward block aggregating.

• Too few heads create an exponential bottleneck. When h = s < D, the minimum parameter count is Ω(1/ε^k) with the exponent k defined above, and the abstract summarizes it as parameter scaling of at least O(1/ε^{cT}). The intuition given: a single head must encode multiple roles, softmax attention only produces weighted averages, and distinguishing the growing number of relevant sequence elements out of an n-dimensional vector forces the feed-forward block to disentangle increasingly entangled representations.

• The proof strategy for the lower bound is sketched. (i) each head responds to certain locations (y_j, t_j) in D disjoint minima basins around x^(i); (ii) because s < D, at least one segment G_i ⊂ B(x^(i), r) is ignored by every head; (iii) a pigeonhole argument on that segment yields two subsequences Z₁, Z₂ with nearly identical post-attention representations but different contribution to f₁; (iv) embedding these into full sequences W₁, W₂ gives targets separated by at least 3ε while the attention block maps them within O(ε^{k+1}), forcing a large feed-forward network. The authors note this differs from geometric arguments in prior work and relies directly on the fact that approximating a function with large Lipschitz norm requires a large network or large parameters.

• Single-head with large embedding behaves differently. With n ≥ Td, the sequence can be encoded into the classification token c₀ via embeddings e_t ⊗ x(t) ∈ R^{Td}, so trivial attention aggregates to (1/T)(x(1), ..., x(T)); the feed-forward block then recovers the target. The paper states this is not mere memorization of training data (contrasting with work on memorization capacity) because it captures the relation itself, and that approximating max/min with a shallow ReLU network needs width O(T/ε) for ε accuracy. It also states this regime is impractical because the embedding dimension grows linearly with T.

• The lower bound's constant is made explicit. The paper gives C_{d,D,T} = C_{d,D}(rT)^{−α_{d,D}T}, where r > 0 depends on the local behavior of f_i near x^(i) and of F₀, and α_{d,D} depends only on d and D; this form is stated as valid in the regime d, D ≪ T ≪ 1/ε.

• A conjecture extends the result to depth. Conjecture 1 states that a necessary condition for efficient approximation is L·h ≥ D, and that with insufficient heads across layers, log(ParamCount) = Ω(|log ε| · a_L T^{b_L}/(nh)) for constants a_L, b_L > 0 depending only on depth L.

• Synthetic experiments show a transition exactly at the intrinsic dimension. The synthetic task uses x(t) ∈ R⁴ with output y = Σ_{i=1}^{4} max_{1≤t≤T} a_i^T x(t), inputs x(t) ~ N(0, I₄), T ∈ {8, 16, 32, 64, 128}, and 8000 training plus 2000 validation examples. With single-layer transformers over h ∈ {1, 2, 3, 4, 5} and hidden dimension fixed at N = 32, NMSE (equivalent to 1 − R²) improves monotonically with h and there is a clear transition at h = 4, matching D = 4. For h < D, NMSE grows with T; for h ≥ D, curves flatten across T. In the h ≤ 3 regime, negative log NMSE scales approximately linearly with log parameter count, as predicted. At h = 4, validation error reaches the order of 10⁻⁶ and the slope reverses, which the authors attribute to tiny overfitting.

• Robustness checks on synthetic data. Additional runs with the total embedding dimension held at E = nh = 32 (for h = 3 and h = 5 the per-head dimension is ⌈32/h⌉, giving E = 33 and 35) and runs with D = 3 showed similar trends. A 2-layer transformer without positional encoding and without layer normalization verified the transition at D = L·h.

• Text retrieval on MS MARCO shows a transition near h = 12. Retrieval-style datasets were built from the MS MARCO passage ranking collection with one positive passage and T − 1 mined hard negatives, T ∈ {8, 16, 32, 64}. A two-layer transformer encoder with per-head embedding dimension fixed at 32 was trained over heads {1, 2, 4, 6, 8, 10, 12, 14, 16}. Text was tokenized with the BERT tokenizer, and frozen pretrained BERT word, positional, and segment embeddings (768-dimensional) were linearly projected to E = heads × 32, with only the projection and transformer layers trained. Below h = 12, accuracy declines as T increases; above h = 12 this T dependence disappears. Fitting Err(h,T) = 1 − Accuracy(h,T) in log scale with cT^β exp(αh/T^δ), dropping h = 1, 12, 14, 16 as outliers, gave δ = 0.25 > 0 and α = −1.40 < 0, so that −log(Err(h,T)) ∝ h/T^δ, consistent with Theorem 2(2) at fixed parameter count M.

• Image classification on CIFAR-10 shows a transition near h = 10. A four-layer ViT was used on 32×32 images split into non-overlapping 8×8 patches (patch size 8), with per-head embedding dimension fixed at 16 and heads h ∈ {1, 2, 4, 8, 10, 11, 12, 13, 14, 16, 20, 24}. Sequence length is (image side length / patch size)² + 1 including the classification token, varied by extending the image border with interpolation. A weighted reversal score for the image experiment becomes positive at h ≥ 10 and, in the synthetic experiment, at h = 4 — exactly the intrinsic dimension of the task.

• Metric choice is deliberate. Because there is no natural NMSE-like metric for retrieval, the real-data experiments focus on training accuracy to isolate architectural expressivity from optimization or data-scarcity effects; test accuracy is reported in appendix tables. Exact accuracy percentages are not given in the main text excerpt, which is truncated mid-sentence in the result analysis for CIFAR-10.

Methodology in Plain English

The authors first define a family of target functions, generalized D-retrieval tasks, where the output is built from D "minimum" features over subsets of the sequence positions, each with |S_i| ≥ (1/4)T, combined by an outer function F₀. They prove this family can approximate any continuous sequence-to-vector mapping, which justifies using it as a testing ground for general claims. They then formalize a single-layer transformer class with h heads, per-head embedding dimension n, total embedding dimension E = nh, no layer normalization, and no residual connections outside the feed-forward block (the paper argues the residual branch can be folded into the feed-forward transformation by reparameterization in this single-layer, classification-token setting). Under stated boundedness and non-degeneracy assumptions on the model and targets, they prove an upper bound when h = D and a lower bound when h < D, using a pigeonhole argument over disjoint minima basins plus a Lipschitz-norm argument for the required feed-forward size. Finally they test the predictions: a synthetic max-of-linear-functions task that mirrors the theory, and two real tasks (MS MARCO retrieval with a two-layer transformer encoder, CIFAR-10 with a four-layer ViT) where they sweep the number of heads at fixed per-head embedding dimension and measure how performance depends on sequence length.

Why This Matters

The paper gives a concrete, quantitative reason why attention head count is not a free design knob: below the intrinsic dimension of a task, the parameter cost of approximating that task provably blows up with sequence length. This reframes head count as an expressivity constraint rather than a heuristic. The authors position the lower bound as the first rigorous result of its kind in a nonlinear, practically relevant setting, addressing a gap left by prior universal-approximation results that only describe sufficient conditions.

Real-world applications implied by the work:

• Search and passage retrieval: MS MARCO-style ranking, where a query must be compared against one positive passage and many hard negatives, is the paper's own text retrieval testbed.
• Retrieval-augmented and question-answering pipelines: the generalized D-retrieval formulation is motivated by problems where several salient features must be identified across many candidates and then combined.
• Vision transformers: patch-based image classification (the paper's CIFAR-10 experiment) inherits the same head-count versus sequence-length trade-off, since sequence length grows with image resolution.
• Multimodal and long-context models: the introduction cites multimodal learning alongside NLP and vision, and the results speak directly to how head budgets should be allocated when sequence lengths grow.

Industry relevance: the findings suggest that when deploying transformers under a fixed parameter budget, under-provisioning heads relative to task complexity is not merely a smooth quality loss but a qualitatively different and much costlier regime. Conversely, the paper's upper bound indicates that head growth — not embedding growth — is what removes the sequence-length penalty, which is directly actionable for architecture selection. The paper also notes the single-head "large embedding" workaround requires embedding dimension that grows linearly with T, which it calls impractical.

Future Directions

• Extending the lower bound to multilayer transformers. The paper states this only as Conjecture 1, with the condition L·h ≥ D and a conjectured bound log(ParamCount) = Ω(|log ε| · a_L T^{b_L}/(nh)); making this rigorous is the most obvious open problem.
• Restoring layer normalization and residual connections. The analysis drops layer normalization for tractability and argues residual branches can be merged in this setting; the authors explicitly conjecture that the key lower bound still holds with layer normalization present, leaving that conjecture to be proved.
• Characterizing the transition point for realistic tasks and architectures. The observed transitions occur near h = 4 (synthetic, D = 4), h = 12 (MS MARCO), and h = 10 (CIFAR-10). The relationship between these empirically observed head counts and a measurable intrinsic dimension D for real data is not resolved in the excerpt.
• Escaping the impractical single-head regime. The n ≥ Td memorization mechanism works but requires embedding dimension growing with sequence length; the paper offers no alternative route to the same expressivity at practical embedding sizes.

Target Audience

This paper is for researchers in deep learning theory, approximation theory, and transformer architecture design — particularly those working on expressivity, parameter complexity, and the theory of attention. Practitioners who choose head counts and embedding dimensions under compute budgets will find the phase-transition framing and the reported empirical transitions (h = 4 synthetic, h = 12 text retrieval, h = 10 image classification) useful, though the formal bounds and assumptions require mathematical maturity. Readers looking for new empirical benchmarks or training recipes will find the paper's contribution is primarily theoretical with supporting experiments rather than a new method.

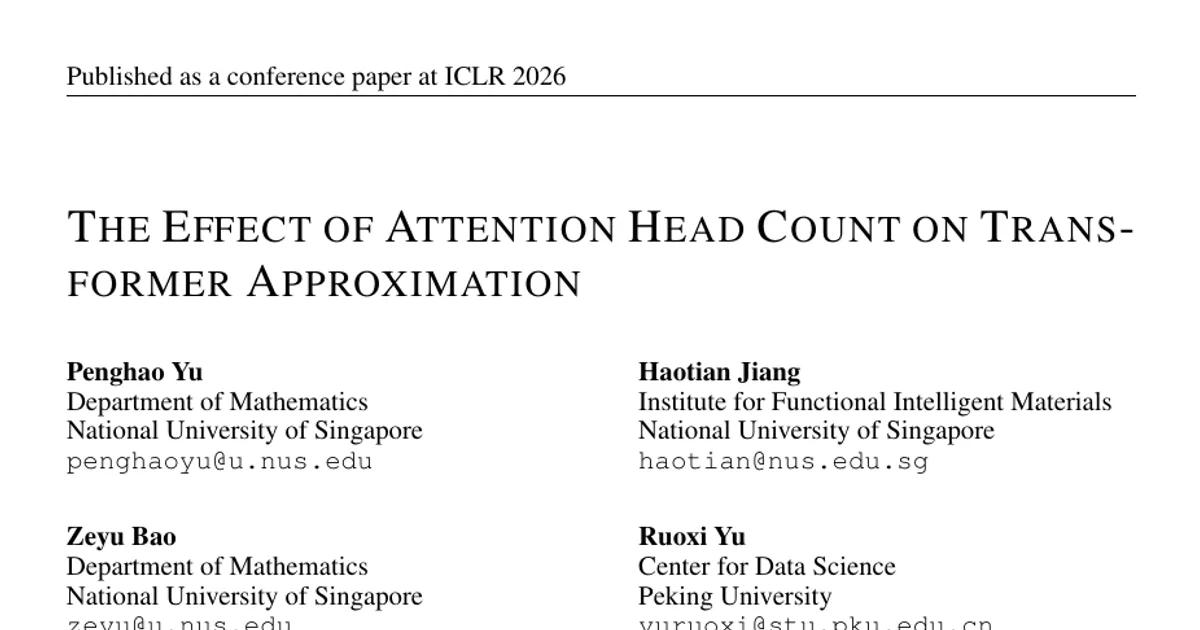

Authors’ abstract

Transformer has become the dominant architecture for sequence modeling, yet a detailed understanding of how its structural parameters influence expressive power remains limited. In this work, we study the approximation properties of transformers, with particular emphasis on the role of the number of attention heads. Our analysis begins with the introduction of a generalized $D$-retrieval task, which we prove to be dense in the space of continuous functions, thereby providing the basis for our theoretical framework. We then establish both upper and lower bounds on the parameter complexity required for $ε$-approximation. Specifically, we show that transformers with sufficiently many heads admit efficient approximation, whereas with too few heads, the number of parameters must scale at least as $O(1/ε^{cT})$, for some constant $c$ and sequence length $T$. To the best of our knowledge, this constitutes the first rigorous lower bound of this type in a nonlinear and practically relevant setting. We further examine the single-head case and demonstrate that an embedding dimension of order $O(T)$ allows complete memorization of the input, where approximation is entirely achieved by the feed-forward block. Finally, we validate our theoretical findings with experiments on both synthetic data and real-world tasks, illustrating the practical relevance of our results.
