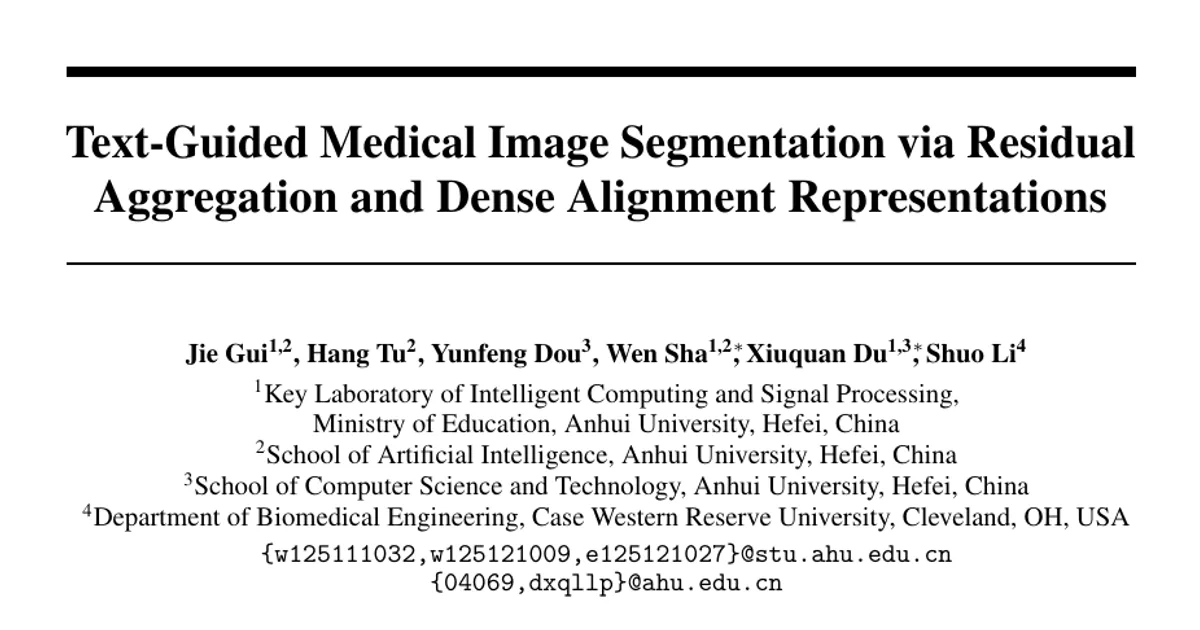

Text-Guided Medical Image Segmentation via Residual Aggregation and Dense Alignment Representations

AI summary

Overview

Research area: Medical image segmentation with vision-language foundation models (text-guided segmentation; VLM–SAM cascades).

Technical level: Advanced — assumes familiarity with CLIP-style dual encoders, Segment Anything-style promptable decoders, LoRA, and dense feature distillation.

Scope: A parameter-efficient framework (RADAR) that couples a frozen BiomedCLIP semantic encoder to a frozen MedSAM2 mask decoder through three modules that improve cross-layer aggregation, dense feature discriminability, and automatic prompt generation, evaluated on three public 2D medical segmentation datasets.

What This Paper Is About

Text-guided medical segmentation lets a clinician specify what to segment in words (e.g., "lung opacity"), but text only gives high-level semantics while segmentation needs pixel-accurate boundaries. The paper argues that existing VLM-plus-SAM pipelines fail for two reasons: text is injected too late (and intermediate visual evidence gets washed out in deep layers), and VLM dense features are trained for image-level matching, not pixel-level discrimination, so they fire on target, boundary, and nearby similar anatomy alike — producing noisy automatic prompts. RADAR's goal is to close that "semantic-to-spatial gap" while training only a tiny fraction of parameters.

Key Contributions

1. RADAR framework: A parameter-efficient architecture that decouples BiomedCLIP's medical semantic anchoring from MedSAM2's prompt-driven mask decoding, adapting both frozen backbones only through LoRA and small projection/aggregation modules (0.74M trainable parameters).
2. Guided Residual Depth Aggregation (GRDA): A text-conditioned depth-routing mechanism that uses textual semantics to decide which historical layer features to retain at each spatial location, rather than repeatedly re-injecting text into the current layer.
3. Structured Dense Representation Alignment (SDRA): A training-only alignment scheme that builds crop-level target, boundary, and context anchors from a frozen BiomedCLIP teacher, plus a "boundary negative rejection" term that prevents boundary features from becoming as target-like as the target itself.
4. Multi-modal Prompt Generation (MPG): A semantic-to-spatial interface converting cross-modal similarity responses into composite text, point, and mask prompts for MedSAM2, with a modified last ViT block (replacing attention output with the projected Value-branch representation) for denser feature extraction.

Main Findings

• Best Dice and mIoU on all three benchmarks: RADAR reaches Dice/mIoU of 84.12/75.32 on QaTa-COV19, 75.47/62.43 on MosMedData+, and 92.15/86.65 on Kvasir, with HD95/ASSD of 14.27/4.09, 13.16/3.26, and 14.79/3.91 pixels respectively.
• Large margins over pure visual models: Dice gains of 6.65, 10.12, and 5.96 percentage points over the strongest pure-visual baselines on QaTa-COV19, MosMedData+, and Kvasir.
• Gains over vision-language models and cascades: Improvements of 0.84/1.01 and 1.53/2.04 Dice/mIoU over the best V-L methods on MosMedData+ and Kvasir, and 2.65, 3.01, 2.35 Dice points over the best external V-L+S baselines on the three datasets.
• Extreme parameter efficiency with moderate compute: 0.74M trainable parameters and 46.66G FLOPs, versus e.g. 381.18G FLOPs for LGA and 92.82G for DIT. Backbone variants with more trainable parameters (CLIP-SAM2 at 1.13M, 252.66G FLOPs; BioCLIP-SAM2 at 0.74M, 254.55G FLOPs; CLIP-MedSAM2 at 1.13M, 93.85G FLOPs) all score lower than full RADAR.
• Each prompt type helps monotonically (Table 2, MosMedData+/Kvasir Dice): MedSAM2-only 69.19/88.11 → +Text 69.86/88.73 → +Text+Point 71.14/89.93 → Full MPG 71.47/90.36 → +GRDA 72.78/91.35 → full RADAR 75.47/92.15. Removing SDRA (73.71/91.63), removing the dense-block modification (75.29/91.77), or removing GRDA (74.63/90.84) each degrades results.
• Modules transfer across backbones (Table 3): Adding GRDA and SDRA together beats either alone on CLIP-SAM2, BioCLIP-SAM2, and CLIP-MedSAM2 (e.g., CLIP-SAM2 goes from 71.86/86.11 Dice on MosMedData+/Kvasir without both modules to 74.58/88.25 with both).
• Aggregation-score fusion matters (Table 4): Base-only scores give Dice 75.13/91.75, multiplicative Base×Text 75.35/91.90, Text-only 75.22/92.00, and the additive Base+Text used in RADAR 75.47/92.15 on MosMedData+/Kvasir. Restricting GRDA to only the MedSAM2 image encoder (74.82/91.00) or dropping either BiomedCLIP branch also degrades performance.
• SDRA sharpens spatial responses qualitatively: Without SDRA, dense activations scatter over non-target lung regions, bone structures, and similar backgrounds; with SDRA they concentrate on true lesion regions.

Methodology in Plain English

The authors keep both foundation models frozen and bolt on small trainable pieces, so the model learns the task without wrecking pretrained knowledge.

1. Two views of each image. The image is resized to 224×224×3 for BiomedCLIP (which provides text-aligned semantics and a 768×14×14 dense feature grid) and to 512×512×3 for MedSAM2 (which provides the mask decoder and multi-scale image features). Text is encoded into token-level features (L×768), a padding mask, and a global 512-d vector.
2. Cheap adaptation. LoRA is inserted into selected Transformer layers (rank r=8, scaling α=1.0), so only low-rank matrices are trained.
3. Smarter layer mixing (GRDA). Instead of fixed-weight residual accumulation, GRDA stacks features from all layers up to the current one, scores each layer per spatial position, softmaxes those scores into depth-wise weights, and mixes them. For the visual encoder, the score includes a cosine-similarity term between stacked visual features and the text tokens, pooled with the text mask. The mixed feature is added back through a learnable residual scale initialized to 0, so training starts from the pretrained behavior.
4. Sharper dense features (SDRA). During training, the ground-truth mask's bounding box is expanded into three nested regions (target, boundary, context). A frozen BiomedCLIP teacher encodes each crop as an anchor; the student's mask-pooled dense features are pulled toward their matching anchors with a cosine loss. A ReLU term penalizes the boundary representation for being closer to the target anchor than the target representation is — explicitly teaching the model that boundary is not the same as target. This teacher is removed at inference.
5. Turning semantics into prompts (MPG). The global text embedding goes through a two-layer MLP into MedSAM2 prompt space as a text prompt. The cross-modal cosine similarity map between dense features and the text embedding becomes a mask prompt (normalized and resized), and is also thresholded at the 0.90 quantile, cleaned with connected-component analysis (removing regions under 16 pixels), and used to sample positive points from eroded high-confidence cores and negative points from hard background.
6. Training. The segmentation loss is a 0.5/0.5 BCE-Dice mix, plus an auxiliary BCE-Dice loss on the similarity map (λ_sim = 0.2) and the structured alignment loss (λ_align = 0.2, with λ_tar = 0.5 and λ_bd = λ_ctx = λ_N = 0.2). Optimization uses AdamW at 3×10⁻⁴, batch size 8, CosineAnnealingWarmRestarts, and early stopping, on one NVIDIA RTX 5090 D GPU with PyTorch 2.9.0 / CUDA 12.8.

Datasets are QaTa-COV19 and MosMedData+ (chest infection, using LViT's splits and text annotations) and Kvasir (colonoscopy polyps, using MAdapter's text annotations, with the original training set split 9:1 into train/val and the standard test set kept fixed). Dataset sizes are given in Appendix C, which is not included in the provided text, so exact image counts are not reported here.

Why This Matters

Research impact. The paper reframes the VLM-SAM cascade problem: instead of adding heavier cross-modal fusion, it targets when text enters the visual encoder (depth routing) and how discriminative dense VLM features are (structured region alignment). The result that 0.74M trainable parameters beats baselines training 40M–190M parameters suggests that adaptation strategy, not capacity, is the bottleneck in this setting. The boundary-negative-rejection idea is a small but transferable trick for any dense alignment objective.

Real-world applications.

• Radiology triage for chest infection segmentation in CT and X-ray, where lesion contrast is low and text descriptions are vague.
• Colonoscopy polyp delineation, where boundary precision directly affects resection planning.
• Rapid adaptation of a single foundation-model stack to new hospitals or new target vocabularies at low training cost.
• Natural-language-driven annotation assistance, since only text and a few auto-generated prompts are required from the user.

Industry relevance. 0.74M trainable parameters and 46.66G FLOPs make deployment and per-site fine-tuning cheap compared to full-model retraining or 381.18G-FLOP cascades. It also avoids requiring manually drawn boxes or clicks at inference, which is the practical barrier for SAM-style tools in clinical workflows.

Future Directions

• Learnable prompt generation. The authors explicitly flag MPG's reliance on heuristic quantile thresholding, connected-component analysis, and morphological operations as unstable under low contrast, complex targets, or inaccurate/incomplete text, and propose learnable prompt generation as future work.
• 3D and multi-class extension. Current validation is limited to 2D tasks; the limitations section names native 3D, multi-organ, and simultaneous multiclass evaluation as untested.
• Reducing backbone dependence. RADAR inherits the priors of BiomedCLIP and MedSAM2, so robustness when those priors are mismatched to the target modality remains an open question.
• Text robustness as a first-class target. The authors point to Appendix D.1 for robustness to incomplete, noisy, synonymous, and incorrect text, which invites further work on making the semantic anchor resilient to real clinical phrasing.

Target Audience

Graduate students and applied researchers in medical imaging and vision-language modeling who already understand CLIP-style encoders and SAM-style decoders; engineers building clinical segmentation products who need low-cost adaptation of frozen foundation models; and ablation-minded readers interested in how much of a cascade's gain comes from prompt type versus feature aggregation versus dense alignment. Beginners will find the introduction's framing of the semantic-to-spatial gap accessible, but the methodology sections require prior exposure to LoRA, ViT dense features, and promptable segmentation.

Authors’ abstract

Specifying segmentation targets with natural language provides flexible semantic conditioning for medical image segmentation. However, existing methods still struggle to reliably ground high-level textual semantics into accurate pixel-level spatial prompts, especially under low-contrast lesions, ambiguous boundaries, and visually similar anatomical contexts. In this paper, we propose RADAR (Residual Aggregation and Dense Alignment Representations), a parameter-efficient framework for text-guided medical image segmentation. RADAR explicitly decouples and synergizes the medical semantic anchoring capability of BiomedCLIP with the prompt-driven mask decoding ability of MedSAM2, while enabling low-cost task adaptation via LoRA. Specifically, Guided Residual Depth Aggregation adaptively aggregates cross-layer features under semantic guidance to alleviate delayed textual injection and deep semantic dilution. Structured Dense Representation Alignment leverages a frozen BiomedCLIP to construct crop-level target, boundary, and context anchors, improving the local discriminability of dense features and the reliability of automatic prompts. Multi-modal Prompt Generation further converts cross-modal semantic responses into composite text, point, and mask prompts for MedSAM2 decoding. Experiments on three public medical image segmentation datasets show that RADAR achieves competitive performance with only 0.74M trainable parameters, demonstrating its effectiveness in parameter-efficient adaptation, semantic grounding, and dense representation enhancement. The source code is available at https://github.com/JGuiidev/RADAR.
