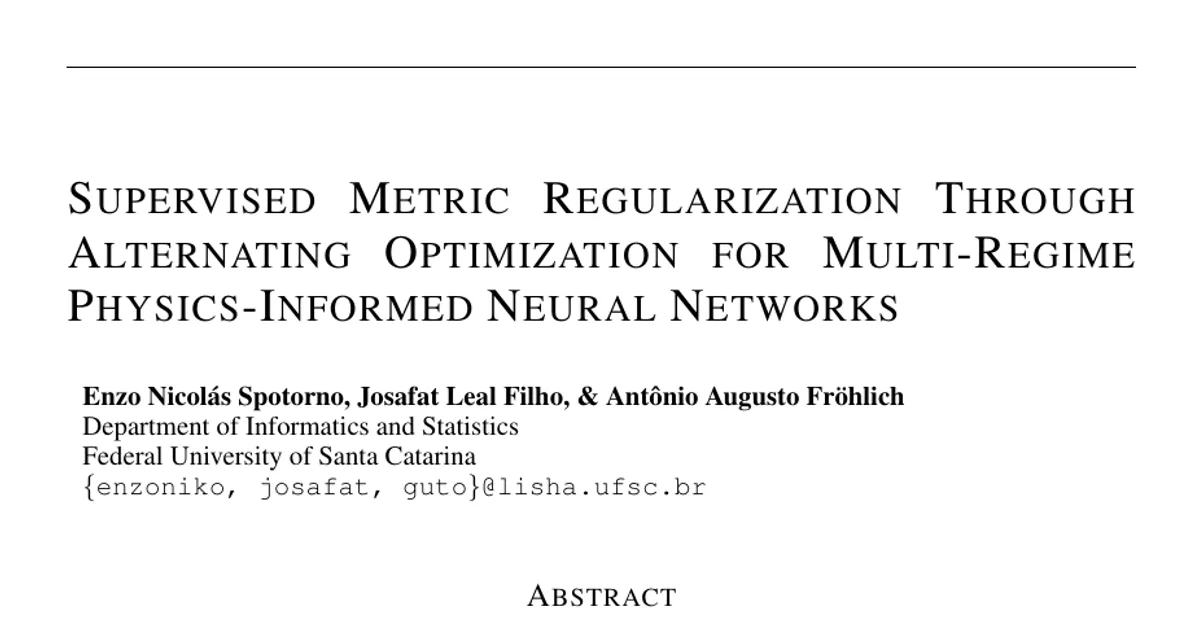

Supervised Metric Regularization Through Alternating Optimization for Multi-Regime Physics-Informed Neural Networks

AI summary

Overview

Research area: Scientific machine learning / physics-informed neural networks (PINNs) applied to parameterized dynamical systems with regime transitions (bifurcations).

Technical level: Advanced. The paper assumes familiarity with PINNs, latent-space representation learning, triplet loss, hypernetworks, and multi-objective optimization.

Scope: This is an exploratory proof-of-concept study on a single ODE system (the Duffing oscillator) that proposes a latent-space regularization scheme plus a phased training schedule for multi-regime PINNs.

What This Paper Is About

When a physical system changes qualitatively as a parameter varies — for example, moving from periodic to chaotic behavior across a bifurcation — a standard parametric PINN tends to average the different behaviors together, producing a blurry compromise rather than distinct solutions. The authors propose conditioning the solver not on the physical parameter itself but on a learned latent state that is explicitly organized so that trajectories from the same regime cluster together and trajectories from different regimes are pushed apart. The goal is to get better physics compliance and more stable training without the cost of hypernetwork-style architectures.

Key Contributions

1. Topology-Aware PINN (TAPINN): A single-network architecture combining an LSTM-based encoder that reads a short observation window with a PINN generator, where the latent space is structured by supervised metric regularization (triplet loss) rather than by discrete regime labels.

2. Alternating Optimization (AO) schedule: A phase-based training procedure — Phase I (metric alignment, 5 epochs, encoder only), Phase II (physics reconstruction, 20 epochs, generator only with encoder frozen), then interleaved joint updates on the total loss every k = 5 batches (approximately 20% of steps) — designed to manage gradient conflicts between the metric and physics objectives.

3. Data-assimilation framing: Unlike the parametric and HyperPINN baselines, which receive the known parameter lambda as input, TAPINN infers the regime solely from the first 100 timesteps (10% of the trajectory) of observed data.

4. Empirical demonstration on the Duffing oscillator: Reported reductions in physics residual, a measured reduction in gradient variance versus a multi-output Sobolev-loss baseline, and a parameter-efficiency comparison against a hypernetwork baseline.

Main Findings

• Lower physics residual: TAPINN reached a physics residual of 0.082, compared with 0.160 for the Parametric Baseline, 0.192 for the Multi-Output baseline, and 0.158 for HyperPINN. The abstract describes this as approximately 49% lower physics residual (0.082 vs. 0.160).

• Parameter efficiency: TAPINN used 8,003 parameters, versus 39,169 for HyperPINN — a factor of 5 times fewer. The Parametric Baseline used 8,577 and the Multi-Output baseline 8,069.

• Data MSE trade-off: HyperPINN achieved the lowest Data MSE (0.281), while TAPINN reported 0.425, the Parametric Baseline 0.392, and the Multi-Output baseline 0.426. The authors argue HyperPINN's low Data MSE together with a high physics residual indicates a "memorization" pathology — overfitting trajectory points while violating the governing ODE.

• Training stability: The Multi-Output baseline (Sobolev H1 loss on both x and its derivative) showed gradient norms 2.14 times higher on average and a variance 2.18 times larger than the proposed method, with significant spikes near regime transitions.

• Latent space structure: A t-SNE visualization showed distinct clusters emerge by regime (F0) without discrete supervision. A linear probe regressing the physical parameter F0 from the latent vector z achieved a prognostic MSE of 3.5 times 10 to the minus 4.

• Alternating optimization is necessary: Training the same architecture with standard joint optimization (summing Metric, Physics, and Data losses) yielded a physics residual of approximately 0.158, nearly identical to the standard baseline (0.160). The authors conclude that metric regularization alone is insufficient without the phased schedule.

• Capacity is not the explanation: The authors note that the Parametric and Multi-Output baselines operate at roughly 8k parameters yet yield physics residuals approximately 2 times higher (0.160 and 0.192 vs. 0.082), arguing the latent-space structuring — not merely reduced capacity — drives the improvement.

Methodology in Plain English

The system studied is the Duffing oscillator, governed by a second-order ODE with damping delta = 0.3, linear stiffness alpha = -1, nonlinear stiffness beta = 1, and driving frequency omega = 1. The forcing amplitude F0 is varied over the range 0.3 to 0.8, which produces transitions from periodic to chaotic behavior. Data was generated with a 4th-order Runge-Kutta solver at dt = 0.01, producing 500 trajectories for each of three regimes (F0 in {0.3, 0.5, 0.8}).

The architecture has two parts. An LSTM encoder reads the first 100 timesteps of a trajectory and compresses it into a latent vector z. A generator — a 4-layer MLP with 32 hidden units and tanh activations — takes the time coordinate t and the latent vector z and reconstructs the trajectory. Because the network never sees F0 directly, it must infer the dynamical regime from the observation window alone.

Training has three stages. First, the encoder is trained alone on a triplet loss that pulls embeddings of trajectories with the same forcing amplitude together and pushes embeddings with different amplitudes apart. Triplets are formed in-batch using the known forcing amplitudes as proxies for regime similarity (anchors and positives share the same F0, negatives differ), with no hard or semi-hard mining, Euclidean distance, and a margin of 0.2. Second, the encoder is frozen and the generator is trained on the physics and data losses, giving it a stable conditioning signal. Third, the two are updated jointly on the combined loss every 5 batches, keeping the encoder adaptable so the generator does not overfit to a stale representation. The total loss combines data, physics, and metric terms with weights alpha = 1.0 and beta = 0.1, chosen by grid search. All models were trained for 30 epochs with the Adam optimizer at a learning rate of 10 to the minus 3. Physics residual is computed as the mean squared ODE residual over 10,000 uniformly sampled collocation points.

Three baselines are used: a standard parametric PINN (a 4-layer MLP with 64 hidden units per layer) that receives the explicit parameter lambda; a HyperPINN that predicts weights as functions of lambda; and a multi-output baseline identical in architecture to TAPINN but trained with standard joint optimization under a Sobolev (H1) loss enforcing constraints on both the trajectory and its derivative.

Why This Matters

The paper targets a known failure mode in physics-informed machine learning: models that must represent qualitatively different behaviors across a parameter sweep tend to collapse into an averaged, physically wrong solution. The proposed fix is lightweight — it adds a metric-learning objective and a training schedule rather than a large auxiliary network — which the results suggest can be more parameter-efficient than generating weights conditioned on parameters.

Real-world applications:

• Structural and mechanical health monitoring: Duffing-type oscillators model forced vibrating structures; regime-aware surrogates could help distinguish normal periodic vibration from chaotic or pre-failure behavior.

• Data assimilation from partial sensor windows: Since TAPINN infers regime from a short observation window without knowing the physical parameter, it maps onto settings where the driving force or operating condition is unknown and must be inferred from measurements.

• Control and digital twins of nonlinear systems: A surrogate that reliably separates operating regimes could inform controllers or digital-twin models that would otherwise smooth across a bifurcation.

• Energy and power systems: Nonlinear oscillatory and grid dynamics exhibit regime transitions where misclassifying the operating mode carries cost.

Industry relevance: The main industrial argument is cost. TAPINN reports 8,003 parameters versus 39,169 for the HyperPINN baseline while achieving lower physics residual, and the authors highlight 5 times fewer parameters along with 2.18 times lower gradient variance — both relevant to training stability and deployment footprint. The authors explicitly note, however, that trajectory-level comparison against ground truth in physical coordinates is not yet included, so these results are preliminary.

Future Directions

• Theoretical analysis: Characterizing Jacobian conditioning and spectral properties to explain why latent metric structuring improves solver trainability.
• Rigorous statistical validation: Repeating experiments across random seeds; the current study is presented as an initial proof-of-concept.
• Sensitivity and noise studies: Varying the observation-window length and testing on noisy data are both listed as open questions.
• Broader empirical scope: Extending evaluation to PDE systems, continuous parameter regimes, and harder bifurcations such as the Lorenz attractor or reaction-diffusion equations like Allen-Cahn; the authors also plan benchmarking against domain decomposition methods and operator learning frameworks, and against capacity-matched HyperPINN variants.

Target Audience

Researchers and graduate students working on physics-informed machine learning, scientific computing, or surrogate modeling of nonlinear dynamical systems who are already comfortable with PINN training objectives and multi-objective optimization. Practitioners building regime-aware digital twins or data-assimilation pipelines will find the architecture and the Alternating Optimization schedule the most directly transferable pieces. Readers looking for production-ready benchmarks or large-scale validation should treat this as an early-stage proof-of-concept, since the evaluation covers one ODE system, three discrete parameter values, and no ground-truth trajectory comparison in physical coordinates.

Authors’ abstract

Standard Physics-Informed Neural Networks (PINNs) often face challenges when modeling parameterized dynamical systems with sharp regime transitions, such as bifurcations. In these scenarios, the continuous mapping from parameters to solutions can result in spectral bias or "mode collapse", where the network averages distinct physical behaviors. We propose a Topology-Aware PINN (TAPINN) that aims to mitigate this challenge by structuring the latent space via Supervised Metric Regularization. Unlike standard parametric PINNs that map physical parameters directly to solutions, our method conditions the solver on a latent state optimized to reflect the metric-based separation between regimes, showing ~49% lower physics residual (0.082 vs. 0.160). We train this architecture using a phase-based Alternating Optimization (AO) schedule to manage gradient conflicts between the metric and physics objectives. Preliminary experiments on the Duffing Oscillator demonstrate that while standard baselines suffer from spectral bias and high-capacity Hypernetworks overfit (memorizing data while violating physics), our approach achieves stable convergence with 2.18x lower gradient variance than a multi-output Sobolev Error baseline, and 5x fewer parameters than a hypernetwork-based alternative.
