Structure-Aware Encodings of Argumentation Properties for Clique-width

AI summary

Overview

Research area: Computational complexity and knowledge representation, specifically parameterized algorithms for abstract argumentation, satisfiability solving, and graph width measures (clique-width, treewidth).

Technical level: Advanced. The paper assumes familiarity with quantified Boolean formulas, clique-width and k-expressions, Dung-style argumentation semantics, and the Exponential Time Hypothesis.

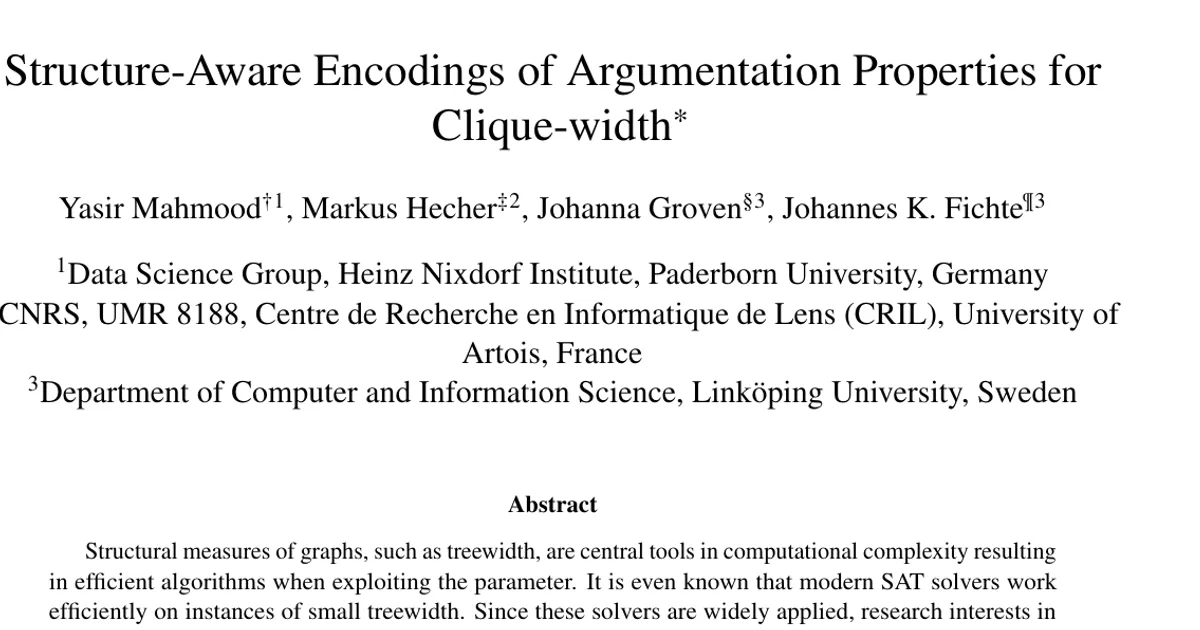

Scope: The paper (arXiv:2511.10767v1, cs.AI, 13 Nov 2025, CC BY 4.0) by Yasir Mahmood (Paderborn University), Markus Hecher (CNRS/CRIL, University of Artois), Johanna Groven and Johannes K. Fichte (Linköping University) designs structure-preserving reductions from abstract argumentation problems to (quantified) SAT that keep clique-width linear, and proves matching lower bounds.

What This Paper Is About

Argumentation problems are computationally hard (some are second-level of the polynomial hierarchy or beyond), so researchers look for structure in the input that makes them tractable. Treewidth is the classic structural measure, but clique-width is more general and can be small even for dense graphs. While dynamic programming algorithms for clique-width already exist for preferred semantics, almost nothing was known about whether argumentation problems can be encoded into SAT or QSAT without destroying the small clique-width. This paper answers that question by building reductions guided by the graph's k-expression itself.

Key Contributions

1. Directed decomposition-guided (DDG) reductions. The authors design reductions from argumentation problems to satisfiability of (quantified) Boolean formulas that are driven by a k-expression of the argumentation framework and linearly preserve clique-width.

2. Tractability results for all common argumentation semantics. For stable, admissible, complete, preferred, semi-stable and stage semantics, they establish favorable upper bounds for extension existence, argument acceptance (credulous and skeptical) and counting, including the maximization-based (second-level) semantics. These rely on an auxiliary result converting mixed normal-form QBF matrices into DNF and CNF for the innermost ∀ and ∃ quantifier, respectively.

3. Structurally optimal reductions. They show the overhead caused by DDG reductions cannot be significantly improved under reasonable assumptions, already for skeptical reasoning, with the result carrying over to counting.

4. A demonstration that edge direction is essential. They give an example of two frameworks that are identical when edges are treated as undirected but differ in directed clique-width (2 versus 3) and in stable-extension count (3 versus 0), showing that encoding only undirected edges loses needed information.

Main Findings

• Parameter used throughout. Results are stated in terms of k = dscw(G^d_i(F)), the directed clique-width of the directed incidence graph of the input framework F = (A, R), and n = |A|.

• First-level semantics run in single-exponential parameter time. For the semantics {stab, adm, comp}, runtime upper bounds are 2^{Θ(k)} · poly(n) (Theorem 7–13 in the paper's numbering).

• Second-level semantics run in double-exponential parameter time. For {pref, semiSt, stage}, runtime upper bounds are 2^{2^{Θ(k)}} · poly(n) (Theorem 15–19).

• Clique-width increases only linearly. The table lists CW-Aw. (clique-width increase caused by DDG reductions) as O(k) for both groups of semantics; in the stable case the construction for the directed incidence graph of the SAT instance needs 11k + 2 colors (Theorem 8).

• Matching lower bounds under ETH. Clique-width lower bounds of DDG reductions under ETH are Ω(k) for both groups (Theorem 21 / Corollary 22 and Proposition 23), so the upper bounds cannot be significantly improved under reasonable assumptions; the argument starts with skeptical reasoning and extends to counting.

• Special cases noted. Results for credulous acceptance under stable semantics (c_stab) also apply to existence of stable extensions (exist_stab), whereas existence is trivial for all other semantics; credulous acceptance under preferred semantics (c_pref) can be solved faster via credulous acceptance under admissible semantics (c_adm) and therefore shares the same bounds.

• Reasoning machinery exploited. Proposition 1 ([29]) states that for Boolean formulas of directed incidence clique-width k and size n, counting SAT can be solved in time 2^{O(k)} · poly(n); Proposition 5 (cf. [8]) states that for QBFs of directed incidence clique-width k, quantifier depth ℓ and size n, counting QSAT on free variables runs in tower(ℓ+1, O(k)) · poly(n). These are the results the encodings are designed to plug into.

• Relationship between width measures. Proposition 4 ([29]): for any Boolean formula φ, cw(G_i(φ)) ≤ 2 · dscw(G^d_i(φ)) — clique-width and directed incidence clique-width are within a factor of two.

• No empirical evaluation. The paper reports no benchmark datasets, solver experiments or running times; all results are theoretical bounds and correctness/optimality proofs. Proof details are deferred to a self-archived extended version.

Methodology in Plain English

The framework is given as a directed graph, and so is a compact description of that graph called a k-expression: a tree of operations that builds the graph using at most k colors (labels), where operations are creating a single colored vertex, taking disjoint unions, relabeling colors, and drawing edges between two colors.

The authors walk that same tree and, at every operation, generate Boolean formulas. One set of variables records which arguments are in the extension (E), a second set records whether each color currently "contains" an extension member, a third set records whether every non-extension argument of a color has been defeated (D), and further variables track attacks between colors (A) and related conditions. Each operation type — creating a vertex, disjoint union, relabeling, introducing edges — gets its own shape of formula: disjunctive formulas propagate "this color contains an extension member," conjunctive formulas enforce "every argument of this color has been handled," and edge-introduction operations also impose conflict-freeness for stable and admissible variants. At the root, obligations such as "all colors are defeated" are enforced.

For the harder (maximization-based) semantics, the result is not a plain SAT formula but a quantified one, so the authors also show how to rewrite mixed matrices containing both CNF and DNF parts into the form needed by the innermost quantifier.

Correctness is proved by a bijection: each extension of the framework corresponds to exactly one satisfying assignment, and vice versa. For the structure claim, they build an explicit k-expression for the directed incidence graph of the resulting formula, showing it uses 11k + 2 colors in the stable case — that is, the width grows linearly rather than blowing up. Lower bounds follow by arguing under the Exponential Time Hypothesis that no DDG reduction can make the width grow more slowly than Ω(k), and by deriving runtime lower bounds from that.

Why This Matters

The paper opens a line of research that did not previously exist: understanding what encodings into (Q)SAT are possible when the structure measure is clique-width rather than the better-studied treewidth. It gives both the constructions and the limits, so it tells solver designers and complexity theorists exactly what to expect — and the matching lower bounds mean the constructions are essentially the best possible under accepted assumptions.

Real-world domains where the underlying reasoning is naturally argumentation-based (the paper does not itself report deployments or datasets in these areas):

• Legal and regulatory reasoning, where arguments and attacks between them are used to evaluate which claims survive conflicting rules.
• Automated debate, explainable AI and decision support, where one must determine which conclusions are accepted under competing arguments.
• Multi-agent systems and cybersecurity incident analysis, where conflicting evidence or alerts are modeled as arguments attacking one another.
• Dense interaction networks, the case where clique-width has its advantage: it can stay small where treewidth is large, so structure-aware solvers can remain feasible on graphs that tree decompositions handle poorly.

Industry relevance: the work is about feeding SAT and QSAT solvers, which are widely deployed engineering tools. Knowing that a problem instance maps to a formula of small directed incidence clique-width means a solver can exploit that width, and knowing the overhead cannot be reduced further means effort spent optimizing the encoding is not wasted indefinitely.

Future Directions

• Empirical evaluation. No experiments are reported; implementing the DDG reductions and measuring them against existing argumentation solvers and encodings would test whether the theoretical width advantage translates into practical speedups.
• Closing the gap between Proposition 5 and the lower bounds. The QBF counting bound is tower(ℓ+1, O(k)) · poly(n) and the paper's widths are stated for fixed semantics groups; whether tighter bounds are attainable for individual semantics and quantifier depths is left open.
• Other structural measures and formalisms. The paper positions clique-width against treewidth, modular treewidth and symmetric incidence clique-width, and cites hardness for undirected clique-width; extending the DDG paradigm to further target formalisms and width notions is a natural next step.
• Beyond the six semantics studied. The results cover {stab, adm, comp, pref, semiSt, stage}; whether the same decomposition-guided approach extends to other argumentation semantics and other reasoning tasks (noted as future work territory by the exceptions flagged for exist_stab and c_pref) remains to be settled.

Target Audience

Complexity theorists and algorithm designers working on parameterized algorithms, graph width measures, and knowledge representation; SAT/QBF researchers interested in encoding limits and structure-aware solving; and argumentation researchers who want to understand when their problems become tractable. Readers need comfort with quantified Boolean formulas, clique-width and k-expressions, and parameterized complexity; the paper does not assume prior background in the specific encodings it introduces, but the proofs and notation are dense.

Authors’ abstract

Structural measures of graphs, such as treewidth, are central tools in computational complexity resulting in efficient algorithms when exploiting the parameter. It is even known that modern SAT solvers work efficiently on instances of small treewidth. Since these solvers are widely applied, research interests in compact encodings into (Q)SAT for solving and to understand encoding limitations. Even more general is the graph parameter clique-width, which unlike treewidth can be small for dense graphs. Although algorithms are available for clique-width, little is known about encodings. We initiate the quest to understand encoding capabilities with clique-width by considering abstract argumentation, which is a robust framework for reasoning with conflicting arguments. It is based on directed graphs and asks for computationally challenging properties, making it a natural candidate to study computational properties. We design novel reductions from argumentation problems to (Q)SAT. Our reductions linearly preserve the clique-width, resulting in directed decomposition-guided (DDG) reductions. We establish novel results for all argumentation semantics, including counting. Notably, the overhead caused by our DDG reductions cannot be significantly improved under reasonable assumptions.
