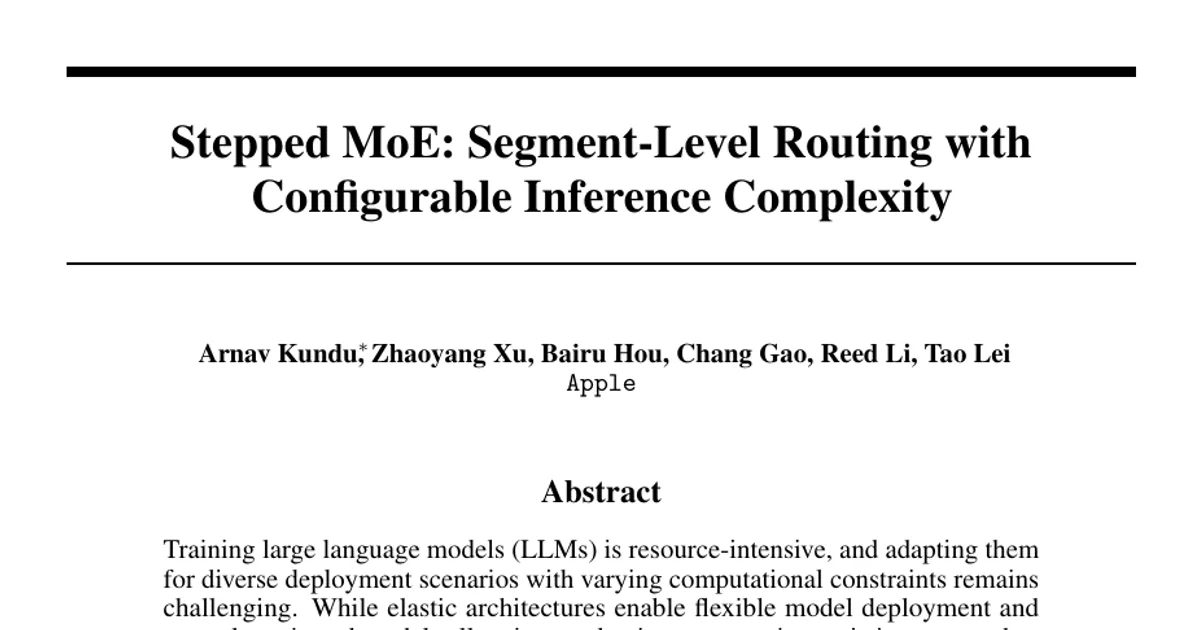

Stepped MoE: Segment-Level Routing with Configurable Inference Complexity

AI summary

Overview

Research area: Efficient large language model inference — the intersection of sparse Mixture-of-Experts (MoE) routing and elastic ("once-for-all") sub-network architectures, aimed at memory-constrained and on-device deployment.

Technical level: Advanced. The paper assumes familiarity with MoE routing, dense transformer decoder blocks, differentiable top-k selection, and inference-time I/O bottlenecks.

Scope: A single 12B-parameter checkpoint — "Stepped MoE" — that selects experts once per fixed segment of tokens rather than per token, and can be served at 1B, 2B, 3B, or 4B active parameters.

What This Paper Is About

Sparse MoE models save compute per token, but standard per-token routing means the active expert set changes at every decoding step, forcing constant expert weight swapping between disk and DRAM. On memory-limited edge devices this turns a compute-bound workload into an I/O-bound one, and serving systems end up keeping the entire model resident anyway. The authors' goal is a single model that (a) decides which experts to load ahead of time rather than per token, and (b) lets a user pick an active-parameter budget at inference time to trade accuracy against latency.

Key Contributions

1. Shrinking the pruning search space. Instead of treating individual hidden dimensions of a feed-forward block as the units to prune (as in Instruction Following Pruning, IFP), the authors convert feed-forward blocks into MoE blocks and have the selector choose entire experts. This reduces the dimensionality of the selection problem and avoids the sparse-gemm training bottleneck the paper attributes to IFP.

2. A unified routing mechanism with no separate pruner model. The initial dense layers of the transformer decoder itself act as the expert selector, removing the need to train and ship a separate pruner network — a limitation the authors attribute to IFP, which they note cannot be pre-trained from scratch.

3. Stepped expert switching. Experts are selected for all MoE layers at once and held fixed for a segment of S inference steps, then refreshed. This is positioned between per-token MoE routing (adaptive but I/O-heavy) and query-level pruning (I/O-friendly but rigid for the whole response).

4. Configurable active-parameter budgets from one checkpoint. A learned size embedding conditions the model on the requested active budget, so a single trained model spans multiple capacity points with input-adaptive routing at each.

Main Findings

• Pre-training accuracy versus dense baselines. At 1T training tokens, Flexible S-MoE is compared against Dense models of 1B–4B parameters. On MMLU-5s, Flexible S-MoE reaches 0.5706 at 1B, 0.6144 at 2B, 0.6227 at 3B, and 0.6317 at 4B, versus Dense scores of 0.470, 0.552, 0.578, and 0.610 respectively. On GSM-8k it reaches 0.283, 0.459, 0.480, and 0.483 versus Dense 0.174, 0.260, 0.345, and 0.411.

• Not uniformly better at the smallest size. On Core-En-0s the 1B active configuration scores 0.640 versus 0.662 for the dense 1B baseline. The authors hypothesize that the 12 dense layers are a disproportionately large fixed cost at 1B scale — 21% of all layers — leaving insufficient capacity for MoE-specific learning.

• A Vanilla MoE upper bound. A 3B-active, 12B-total Vanilla MoE model using per-token expert swaps scores highest across the board: Core-En-0s 0.725, Core-En-1s 0.305, MMLU-5s 0.662, GSM-8k 0.528, HumanEval-py 0.278. The authors frame Stepped MoE as targeting a latency–accuracy trade-off curve beneath this upper bound.

• Ablation chain matters. Moving from Static S-MoE to Flexible S-MoE drops accuracy at the larger active sizes (3B MMLU-5s falls from 0.621 to 0.584). Adding batch replication raises 3B MMLU-5s to 0.598; adding weighted cross-entropy raises it to 0.617; adding the active-size embedding brings it to 0.6227. The active-size embedding also recovers the 1B MMLU-5s from 0.556 back to 0.5706.

• Segment length of 16 beats 32. With S = 16, Flexible S-MoE at 1B scores Core-En-0s 0.666, Core-En-1s 0.223, MMLU-5s 0.601, GSM-8k 0.305; at 3B it scores 0.722, 0.298, 0.653, 0.513. The corresponding S = 32 numbers are 0.640, 0.196, 0.5706, 0.283 at 1B and 0.701, 0.279, 0.6227, 0.480 at 3B. Shorter segments win everywhere in this ablation, consistent with per-token Vanilla MoE outperforming segment routing.

• Post-SFT instruction-following results. After supervised fine-tuning (batch size 512 for 30k steps for baselines; batch size 128 with 4x batch replication for Flexible S-MoE), the 12B→3B Flexible configuration scores IFEval-Instruction 85.252, IFEval-Prompt 79.482, AlpacaEval-Prompt 22.111, Arena-Hard 19.75, Tool Execution 77.056, COT-Minerva 43.414, GSM-8k 72.200, MBPP 46.200, HumanEval 45.700, and MultiPL-E 32.900. The Dense 3B comparison scores 83.693, 76.895, 16.479, 10.85, 75.736, 36.900, 64.600, 38.300, 35.600, and 24.150.

• MultiPL-E favors the Static S-MoE. Static S-MoE at 12B→3B reaches 34.450 on MultiPL-E, above both the Flexible 12B→3B (32.900) and Dense 6B (29.900) numbers.

• Latency profile is nearly flat. Profiling on an NPU simulator using true matmul latencies and NAND-to-DRAM transfer times, and varying the Cache Hit Rate (CHR) — the fraction of experts already in DRAM from the previous decoding step — from 0 to 0.6, Vanilla MoE latency decreases with higher CHR but stays exponentially higher than dense baselines due to continuous expert swapping. Stepped MoE instead closely tracks the 3B Dense model's latency and stays strictly faster than the 6B Dense model, and closely matches the 4B dense model's latency while being more accurate than it.

• Scaling total parameters helps. In a supplementary experiment, holding active size fixed while raising total parameters from 12B to 20B improves most benchmarks — for example, Flexible 3B active on MMLU-5s goes from 0.6227 to 0.646, and on GSM-8k from 0.480 to 0.507.

• Batch replication versus more unique tokens. A supplementary comparison shows that extra unique training tokens (with no batch replication) do not improve smaller active sizes much but improve MMLU at larger active sizes — 3B MMLU-5s 0.648 and GSM-8k 0.528 with extra tokens, versus 0.623 and 0.480 with batch replication. The authors attribute this to novel information in the added data.

• Compute-normalized comparison favors Static. Under an approximate budget of C ≈ 6NT, a Flexible S-MoE checkpoint supporting 1B and 3B on 1T unique tokens uses roughly 24×10²¹ FLOPs, matching the combined ~12×10²¹ FLOPs at each size of two separately trained baselines. Under this normalization, Flexible S-MoE beats Dense on MMLU-5s and GSM-8k at both sizes but scores lower on Core-En-0s and Core-En-1s, and Static S-MoE outperforms Flexible S-MoE on all four reported metrics at both sizes.

• Routing masks are interpretable. Cosine similarity between successive segment masks is high within a single topic, falls as a topic transitions, drops sharply on an abrupt topic switch, and returns to high similarity when the conversation reverts to an earlier topic. The authors connect high within-topic similarity to higher Cache Hit Rates.

• A caveat on short prompts. Fine-grained Core-En analysis notes that about 70% of ARC prompts are very short, and that under the pre-training evaluation protocol experts are selected from the first-token representation, so short prompts may complete without an expert refresh informed by more context. WinoGrande remains below the dense baseline at both 1B and 3B under S = 16.

Methodology in Plain English

The model splits into two parts. Early layers are a standard dense transformer decoder. Their output embeddings feed a mask generator, which produces an importance score for every expert in every subsequent MoE layer. Those scores are sorted, and the top-k experts per layer are selected, where k corresponds to the requested active parameter budget. The selection and ranking are made differentiable so the whole thing trains end to end on the next-token prediction loss — there is no separate pruner network to train.

A learned "size embedding," indexed by the active budget, is added to the token embeddings. This explicitly tells the model which sparsity regime it is operating under, which the authors report is critical for consistent routing across budgets.

Because selection happens once per segment of S tokens (using the first token of each segment to maintain causality), all experts across all layers are known before the later layers run. That lets the system prefetch later-layer experts from disk while earlier layers execute, parallelizing compute and I/O instead of serializing them.

Training uses a multi-budget recipe: each batch element is replicated n times so that every supported active size is exercised on every example. The loss sums cross-entropy over the sparsity levels with a per-level scaling factor αᵢ that penalizes denser configurations more, as a simpler proxy for what the authors say should properly be different learning rates for rarely activated experts. Pre-training uses 1 trillion tokens, context length 8192, batch size 2048 replicated 4 times, decoupled weight decay, and a simplified μParam optimizer, implemented in AXLearn on JAX.

At inference, only the dense part stays permanently resident in DRAM. The user picks an active budget based on task and device; DRAM is allocated accordingly; experts are loaded and refreshed every S steps.

Why This Matters

Impact on research. The paper argues that the two dominant ways to make LLM inference cheaper — per-token sparse routing and query-level pruning — each solve half the problem. Per-token routing preserves adaptivity but is I/O-bound on memory-constrained hardware; query-level pruning fixes I/O but locks the model into one sub-network for an entire response. Stepped MoE proposes segment-level routing as the middle point and shows it can be pre-trained from scratch, unlike IFP as characterized here.

Real-world applications:

• On-device assistants on phones or laptops where available DRAM varies by device tier.
• Serving fleets where one checkpoint must cover multiple hardware tiers without retraining or shipping parallel model sizes.
• Latency-sensitive generation where a user or product team wants to dial accuracy against response time per request.
• Edge deployments where disk-to-DRAM bandwidth, not arithmetic throughput, is the binding constraint.

Industry relevance. The paper reports sharing parameters across all four active sizes, saving on-device disk space — one 12B checkpoint rather than several dense models — while allowing serving based on available DRAM and compute. The authors also report that Stepped MoE tracks the 3B Dense model's latency and beats the 6B Dense model, which is the practical argument for replacing per-token MoE in memory-constrained serving.

Future Directions

• Longer training runs. The authors state they could not demonstrate what happens with longer training and anticipate a larger gap between Vanilla MoE and Stepped MoE models.
• Attention parameters are shared across all active sizes. The paper flags this as a possible saturation point for the larger active configurations when trained longer, and suggests early exiting for smaller active sizes as a candidate fix.
• Variable segment length conditioned on context. Rather than a fixed S, adapt the segment length to the input.
• Larger total and active parameter models. The authors want to observe the scaling trend and test viability for server-scale models, which they suggest could reduce DRAM demand in serving infrastructure.
• Training-compute efficiency. The paper acknowledges that pre-training the flexible-size model costs almost the same as training equivalent static Stepped-MoE models, and states an intent to optimize the recipe.

Target Audience

Researchers and engineers working on efficient LLM inference, model compression, and MoE serving systems, particularly those targeting edge devices or DRAM-constrained hardware. It is also relevant to practitioners who must ship a single checkpoint across heterogeneous deployment tiers, and to readers already familiar with IFP, MatFormer, Slimmable Networks, or Once-for-All-style elastic architectures who want to see those ideas combined with sparse routing. The paper is not introductory — it assumes comfort with transformer internals, routing mechanisms, and inference profiling metrics.

Authors’ abstract

Training large language models (LLMs) is resource-intensive, and adapting them for diverse deployment scenarios with varying computational constraints remains challenging. While elastic architectures enable flexible model deployment and sparsely activated models allow input-adaptive computation, existing approaches treat these dimensions independently. Moreover, models catered towards on-device edge inference need to conform to the memory and compute limitations of the serving devices. In this paper, we introduce a unified framework that combines elastic structures with sparsely gated architectures to create models that adapt simultaneously to both deployment constraints and task requirements. Our approach employs a model backbone that conditions on both the context and target efficiency specifications, enabling fine-grained control over the accuracy-efficiency trade-off at inference time. The model learns to activate task-relevant parameters within elastically-nested sub-networks, allowing a single model to span multiple capacity points while maintaining input-adaptive routing. Through experiments we demonstrate that we can create a model that allows the flexibility to use 1,2,3,4 billion parameters while being more accurate than their dense counter-parts (2-5\% on knowledge-intensive benchmarks) and at par with their static versions while delivering similar latency metrics as dense models. Overall, we save on device disk space by sharing the model parameters, allow flexibility of serving based on DRAM and compute available while delivering more accurate results.
