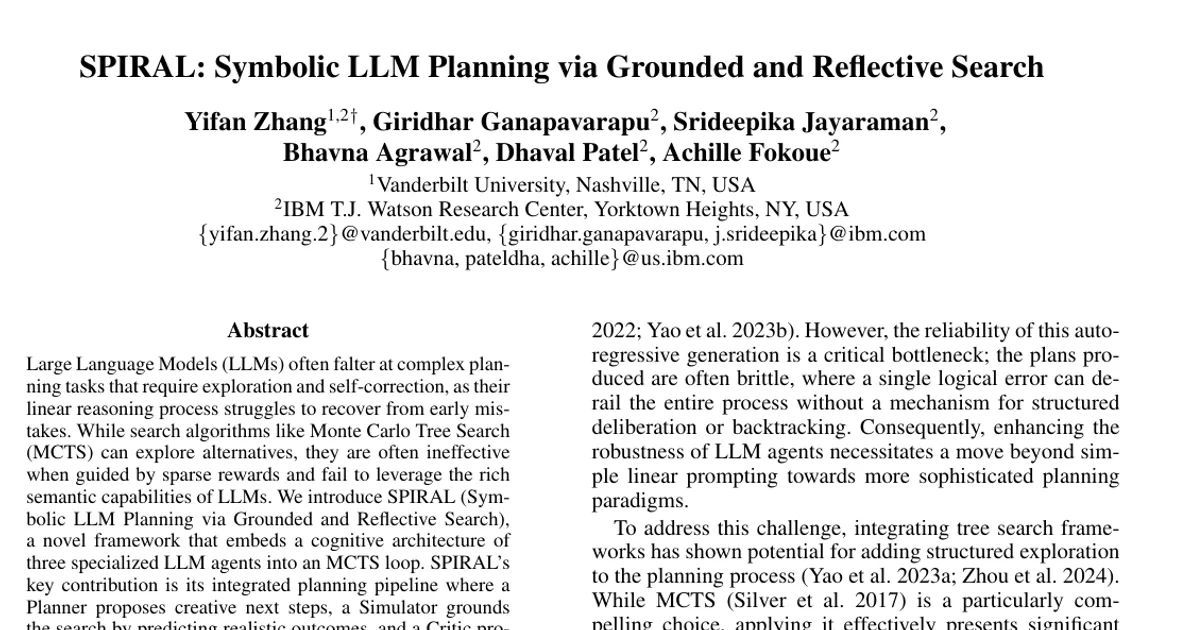

SPIRAL: Symbolic LLM Planning via Grounded and Reflective Search

AI summary

Overview

• Research area: LLM-based planning and autonomous tool-using agents, combining large language models with Monte Carlo Tree Search (MCTS).
• Technical level: Advanced. The paper assumes familiarity with MDPs, UCT, MCTS phases (selection, expansion, simulation, backpropagation), and prompting-based agent architectures.
• Scope: The paper proposes SPIRAL, a framework that replaces MCTS rollout and reward components with three specialized LLM agents (Planner, Simulator, Critic), and evaluates it on two TaskBench tool-use datasets against Chain-of-Thought, ReAct, RAFA, LATS, and Tree of Thoughts.

What This Paper Is About

LLM agents that plan step-by-step tend to fail when a single early mistake derails the whole plan, because their linear reasoning offers no mechanism for backtracking or deliberation. Tree search can explore alternatives, but standard MCTS with LLMs suffers from sparse terminal rewards and no grounding, so it wanders down syntactically valid but practically nonsensical paths. SPIRAL's goal is to make LLM planning robust by embedding grounded simulation and reflective, dense scoring directly inside the MCTS loop.

Key Contributions

1. The SPIRAL framework: A framework that embeds a synergistic tri-agent cognitive architecture (Planner, Critic, Simulator) into Monte Carlo Tree Search to enable structured, dynamic planning. The authors state this is, to their knowledge, the first framework to holistically integrate decomposition, grounding, and reflection within a formal search algorithm for LLM agents.
2. Core mechanisms: A Planner to generate actions, a Critic to provide dense reflective feedback (a reflection score combined with a validity heuristic), and a Simulator to ground the search as a learned world model — together addressing the common MCTS problems of sparse rewards and ungrounded exploration.
3. Empirical evaluation on tool-use benchmarks: SPIRAL is evaluated on complex tool-use benchmarks and reported to substantially outperform default planners and state-of-the-art frameworks such as ReAct and LATS.
4. Efficiency and ablation validation: The paper reports SPIRAL's resource efficiency (token and API-call efficiency) and validates each component through ablation studies confirming the critical role of each agent.

Main Findings

• Large accuracy gains over Chain-of-Thought: On DailyLifeAPIs, SPIRAL beats CoT for every model tested. With Llama 4 Maverick 17B, CoT (k=1) achieves 57.95% overall accuracy versus SPIRAL's 83.31%; on HuggingFace the same pairing is 76.43% versus 93.04%. With DeepSeek-V2.5, CoT (k=1) scores 66.60% overall on DailyLifeAPIs versus SPIRAL's 91.24%, and 75.77% versus 96.84% on HuggingFace.
• The gap is largest on complex, multi-step tasks: On DailyLifeAPIs with Llama 4 Maverick 17B, SPIRAL's complex-task accuracy is 79.53% versus 50.21% for the best CoT variant (k=3) — described by the authors as over 29 percentage points higher. SPIRAL also reaches 100.00% ± 0.00 complex-task accuracy on DailyLifeAPIs with Qwen 2.5 72B and Llama 3.3 70B (Table 2 reports Llama 3.3 70B at 98.82% complex accuracy on DailyLifeAPIs and 100.00% with Qwen 2.5 72B).
• Reported headline result: SPIRAL achieves 83.6% overall accuracy on DailyLifeAPIs, an improvement of over 16 percentage points against the next-best search framework. In the cascaded comparison on Llama 4 Maverick 17B, SPIRAL scores 83.61% overall on DailyLifeAPIs versus 67.39% for LATS.
• Superiority over state-of-the-art frameworks on hard cases: In a cascaded setup where each method is applied only to the failures of a CoT (k=1) baseline, SPIRAL achieves 83.61% overall on DailyLifeAPIs and 92.18% on HuggingFace with Llama 4 Maverick 17B, compared with LATS at 67.39% and 85.67%, ReAct+RAFA at 64.90% and 83.43%, RAFA at 63.75% and 81.86%, and ReAct at 61.60% and 79.54%.
• Outperforms Tree of Thoughts in the cascaded comparison: On Llama 4 Maverick 17B, ToT configurations (S=4, B=3, C=2), (S=5, B=4, C=3), and (S=6, B=5, C=4) score 60.99%, 60.99%, and 60.83% on DailyLifeAPIs, and 82.50%, 82.54%, and 82.21% on HuggingFace. SPIRAL scores 80.83% and 88.46% respectively on these residual problems.
• Better token efficiency, higher call counts: SPIRAL uses more API (LLM) calls than CoT, but consistently consumes fewer total tokens than the more effective CoT baselines (k=3 and k=5), and achieves the highest accuracy per token and per API call. The authors report higher wall-clock latency (detailed in Appendix H in the paper).
• The Simulator is the most critical component: In the ablation on Llama 3.3 70B, removing the Simulator drops HuggingFace accuracy from 97.44% to 69.48%, which the authors describe as a catastrophic drop. With Llama 4 Maverick 17B, removing the Simulator drops HuggingFace accuracy to 55.28%.
• Reflective rewards matter: Replacing the Critic's dense feedback with uniform rewards degrades performance (88.27% versus 98.35% on DailyLifeAPIs with Llama 3.3 70B; 79.01% versus 83.30% with Llama 4 Maverick 17B).
• The tri-agent synergy beats plain MCTS: SPIRAL outperforms a well-budgeted standard MCTS baseline across iteration budgets of N=15, 30, and 50. For Llama 4 Maverick 17B, standard MCTS scores between 79.83% and 80.16% on DailyLifeAPIs, while SPIRAL scores 83.30%.
• Removing other agents also hurts: Removing the Planner or the Validator reduces performance noticeably (e.g., w/o Planner on Llama 4 Maverick gives 81.82% on DailyLifeAPIs and 91.08% on HuggingFace; w/o Validator gives 80.00% and 75.16%).
• Not reported: The paper's main text does not state the number of tasks or examples in the DailyLifeAPIs and HuggingFace datasets; it refers to Appendix C for data sampling and pre-processing methodology.

Methodology in Plain English

The researchers treat tool-use planning as a sequential decision problem: the agent's state is the history of actions and observations, actions are tool calls plus a terminal "finish" action, and a reward signals success. A key difficulty is that in standard setups this reward is zero for every intermediate step and only appears at the end.

To fix this, SPIRAL keeps the four classic MCTS stages but swaps in LLM agents:

1. Selection: Walk down the tree choosing the child with the highest UCT score (balancing known-good paths against unexplored ones) until reaching a leaf.
2. Expansion: Rather than a random policy, the Planner LLM proposes one contextually relevant next action from the accumulated history.
3. Simulation and reflection (replacing the random rollout): The Simulator LLM predicts a plausible natural-language observation for that action — a one-step, grounded lookahead instead of an expensive noisy rollout. Separately, the Critic LLM scores the strategic merit of the action, producing a reflection score.
4. Backpropagation: A composite reward is computed as a weighted blend of a validity heuristic and the Critic's reflection score, controlled by a hyperparameter α. This numeric reward is propagated up to update each ancestor's value and visit count, which in turn improves future UCT selections.

All three roles are instantiated within a single LLM using prompting and in-context learning, with no fine-tuning. The configuration used throughout is a Planner temperature of 0.1, Critic and Simulator temperatures of 0.0, an MCTS budget of 50 iterations, exploration constant C = 1.5, and α = 0.5. Experiments were run over five fixed random seeds, reporting mean and standard deviation. Models used were DeepSeek-V2.5, Llama 3.3 70B, Llama 4 Maverick 17B, Phi 4 14B, and Qwen 2.5 72B, orchestrated with the LangChain library.

Why This Matters

The paper argues that reliability, not raw generation quality, is the bottleneck for autonomous agents, and that structuring reasoning as a guided search — rather than a single linear chain — produces more robust and more efficient planners. It also shows that "more deliberation" does not have to mean "more cost": SPIRAL's targeted calls consume fewer total tokens than strong self-consistency CoT baselines, even though it makes more calls. The full source code, appendices, and experimental data are released for reproducibility at the project repository (https://github.com/IBM/SPIRAL).

• Enterprise workflow automation: Reliable multi-step tool and API orchestration for business processes, which the authors connect to IBM WatsonX capabilities for governed, scalable automation in enterprise AI workflows.
• IT operations and support agents: Agents that must respect constraints and backtrack when an action fails, rather than committing to a flawed sequence.
• Customer-facing assistants: Constraint-aware planning with the user's preferences, as illustrated by the paper's weather-based conditional planning example.
• Any tool-calling assistant where correctness outranks latency: The authors explicitly note higher wall-clock latency, so this favors applications where accuracy and token cost matter more than response time.

Industry relevance: The work was conducted at the IBM T.J. Watson Research Center with support from IBM Research and the IBM WatsonX team, using an internal research cluster and WatsonX.ai for managed model serving. The acknowledgments state the expectation that these methods will inform future WatsonX capabilities.

Future Directions

1. Improving search efficiency, for example through pruning or distillation, since the framework's deliberative search increases API calls and wall-clock latency.
2. Enabling self-improvement, so the agent architecture can refine itself over time rather than relying purely on in-context learning.
3. Extending to complex domains such as robotics, moving beyond the API and tool-use benchmarks used here.
4. Open question — cost and latency trade-offs: The paper reports higher latency and does not report wall-clock latency figures in the main text (it points to Appendix H), leaving open how the approach scales in latency-sensitive deployments.

Target Audience

Researchers and engineers working on LLM agents, tool use, and planning; practitioners building autonomous or multi-step API-orchestration systems who need robustness and backtracking; and readers interested in combining classical search algorithms such as MCTS with LLM-based cognitive architectures. A working knowledge of reinforcement learning search concepts and LLM prompting will make the paper considerably easier to follow.

Authors’ abstract

Large Language Models (LLMs) often falter at complex planning tasks that require exploration and self-correction, as their linear reasoning process struggles to recover from early mistakes. While search algorithms like Monte Carlo Tree Search (MCTS) can explore alternatives, they are often ineffective when guided by sparse rewards and fail to leverage the rich semantic capabilities of LLMs. We introduce SPIRAL (Symbolic LLM Planning via Grounded and Reflective Search), a novel framework that embeds a cognitive architecture of three specialized LLM agents into an MCTS loop. SPIRAL's key contribution is its integrated planning pipeline where a Planner proposes creative next steps, a Simulator grounds the search by predicting realistic outcomes, and a Critic provides dense reward signals through reflection. This synergy transforms MCTS from a brute-force search into a guided, self-correcting reasoning process. On the DailyLifeAPIs and HuggingFace datasets, SPIRAL consistently outperforms the default Chain-of-Thought planning method and other state-of-the-art agents. More importantly, it substantially surpasses other state-of-the-art agents; for example, SPIRAL achieves 83.6% overall accuracy on DailyLifeAPIs, an improvement of over 16 percentage points against the next-best search framework, while also demonstrating superior token efficiency. Our work demonstrates that structuring LLM reasoning as a guided, reflective, and grounded search process yields more robust and efficient autonomous planners. The source code, full appendices, and all experimental data are available for reproducibility at the official project repository.
