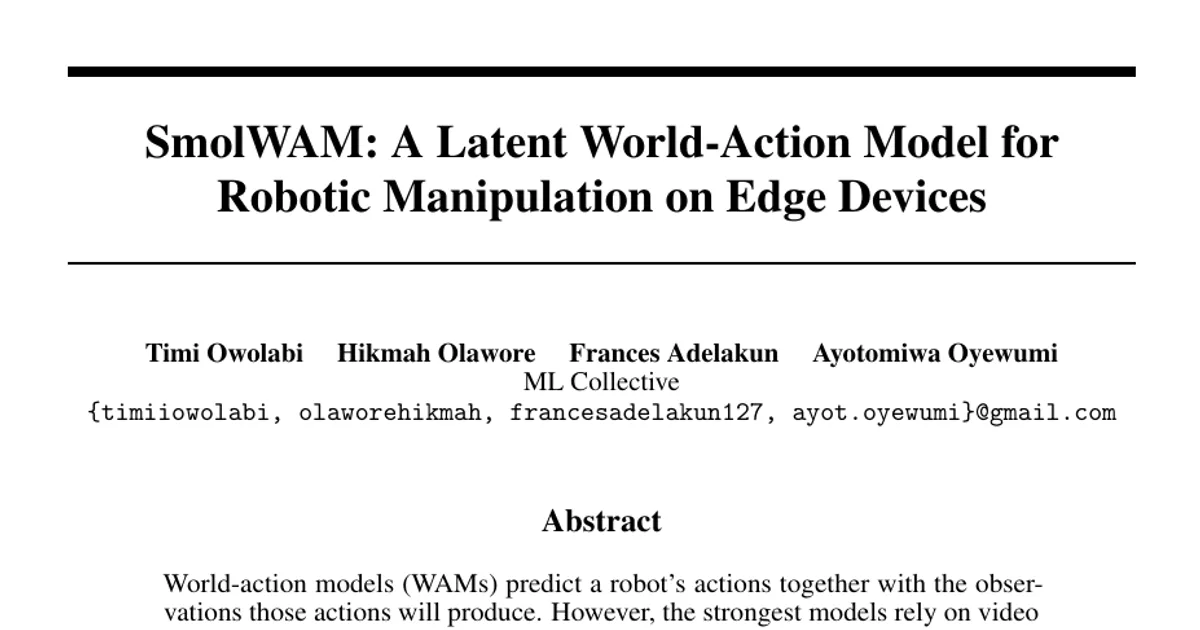

SmolWAM: A Latent World-Action Model for Robotic Manipulation on Edge Devices

AI summary

Overview

Research area: Robotics — efficient world-action models (WAMs) for robotic manipulation, combining video-model pretraining with policy learning for resource-constrained hardware.

Technical level: Advanced. The paper assumes familiarity with diffusion/rectified-flow transformers, knowledge distillation, pruning, attention sinks, and vision-language-action architectures.

Scope: The paper derives a compact 0.88B-parameter world-action model from the 2B-parameter Cosmos Policy by redesigning its inference interface and pruning its transformer, then evaluates success, latency, FLOPs, memory, and world-model quality on the LIBERO benchmark.

What This Paper Is About

World-action models predict a robot's actions together with the future observations those actions will produce, but the strongest ones rely on video diffusion transformers that are far too expensive for edge devices. The authors ask whether a strong pretrained WAM can itself be made small while still predicting the future. They answer by rebuilding the inference interface of Cosmos Policy — single-frame latents, cached BERT text features padded to preserve attention sinks, only 12 of 28 transformer blocks, and 1,008 tokens read out in one rectified-flow step — into a model they call SmolWAM.

Key Contributions

1. SmolWAM, a latent world-action model that retains 97% of its teacher's success (95.5% vs. 98.2% on the 400-episode LIBERO protocol) at 11× lower latency.
2. A derivation method for turning a pretrained video WAM into a compact WAM, with a diagnostic behind each step: single-frame latents plus a 0.5M-parameter adapter, attention-sink-preserving text padding, boundary-preserving block pruning, state-conditioned action queries, and a one-pass readout.
3. Three documented pitfalls: attention-sink padding (truncating text context drops the teacher to 0/5 closed-loop successes), jointly fatal blocks (removals do not compose), and chunks that cannot be cut short (re-querying the teacher after 8 of 16 actions solves no screening episode).
4. Findings on what survives compression: the compressed world head preserves motion forecasting, whereas latent-action cascades (SmolWAM-LA) or visual-reward fine-tuning degrade control.

Main Findings

• Success retention (Q1): SmolWAM succeeds in 382/400 episodes (95.5%; 95% Wilson interval 93.0–97.1) against the teacher's 393/400 (98.2%; 96.4–99.1), with both evaluated from the same initial states. No detected difference on the Spatial and Object suites; the deficit sits in the multi-step Goal (94 vs. 99) and Long (89 vs. 97) suites, where failed rollouts usually complete the first subgoal and stall on the second.
• Cost: 57 ms, 2.30 TFLOP, and 2.36 GiB per 16-action chunk on one A100-SXM4-40GB (batch 1, bf16), versus 624 ms, 42.6 TFLOP, and 7.55 GiB for the 5-step teacher — 11× faster, 18.5× fewer FLOPs, 3.2× less memory. The transformer takes 37 ms, the VAE encode 13 ms, and preprocessing 7 ms of the 57 ms.
• Chunk throughput: At 57 ms per chunk SmolWAM issues 17.7 chunks (282 actions) per second, and because chunks execute open loop, that rate bounds how often the policy reacts to new observations.
• Where the savings come from (Q2): Running the teacher's unmodified weights for one step on single-frame inputs cuts latency 5× and compute 5.7× to 126 ms and 7.5 TFLOP with no loss on the 60-episode screening set. SmolWAM's trunk redesign then adds 2.2× latency, 3.3× compute, and 1.9× memory. Reported training cost is 3.6 GPU-hours on one A100.
• Training does not keep helping: An additional 7,500 steps lower the training loss but neither the validation loss nor success (94.2% full protocol, 93.3% screen, versus 95.5% for the main model). Validation action L1 settles near 0.09, ten times the teacher's own one-step error, so offline L1 is a poor proxy for closed-loop success.
• Depth matters: An 8-block, 0.60B-parameter variant falls to 83.3% on the screen (saving a further 0.5 TFLOP at 134 ms on a shared GPU). An earlier student that removed only 8 blocks and recovered with LoRA distillation (19.7M trainable parameters, under an hour on one L4, no demonstrations) on 414 teacher-rollout observations reached 87.5%.
• World model survives (Q3): On 96 held-out contexts, forecasting the view 16 steps ahead lowers latent L1 by 24% relative to copying the current frame (0.101 vs. 0.133), and lowers the end-point error between RAFT optical flow to the predicted versus the real future from 1.63 to 1.43 pixels. Decoded forecasts keep the scene and place the arm near its future pose but blur appearance, and LPIPS stays at the copy-frame level (0.128 vs. 0.115) — the world head captures motion rather than texture.
• Richer components hurt (Q4): Porting ABot-M0.5 (latent-action tokens, mixture-of-transformer towers, four-step flow matching, dream forcing) yields SmolWAM-LA at 53.3% of screening episodes and 239 ms. Reward fine-tuning of its world head collapses success to 5.0–16.7% while worsening every image metric (LPIPS from 0.130 to 0.167–0.177).
• Layout is learned, not arbitrary: Zero-shot, dropping the future-state and value frames barely changes action error (0.009 to ≤0.019), but dropping the blank frame (0.30), dropping the state frame (0.058), or compacting the vector frames to 28 tokens (0.21) does. The teacher solves all 60 screening episodes in one step.
• Quantization: Per-channel INT8 quantization of the 172 largest linear layers shrinks the stored network from 1.64 to 0.85 GiB and costs one screening episode; simulated with bf16 kernels, it does not yet reduce latency (65 ms on a shared GPU).

Methodology in Plain English

The authors start from Cosmos Policy, a 2B-parameter video diffusion transformer that treats actions, future observations, and values as latent frames in one denoising sequence. They observe that much of its cost comes from an interface designed for video generation rather than for control, and rebuild that interface piece by piece:

• Images: Instead of encoding a 33-frame clip per query, SmolWAM encodes a single frame with the Wan2.1 encoder (54M parameters). Because single-frame latents raise the teacher's normalized action error from 0.0089 to 0.038, a 0.5M-parameter adapter maps them back to clip-mode latents, restoring error to 0.0092.
• Text: The 4.8B-parameter T5-XXL encoder is replaced by cached BERT-base features projected to the context width. The trunk's cross-attention uses bias-free key/value projections, so T5's roughly 500 zero-padded positions contribute zero and act as an attention sink; removing them breaks the model, so SmolWAM zero-pads BERT features to 512 positions. Six zero-initialized vision-to-language layers from TurboVLA let the text attend to images.
• Depth: Block influence measurements flag blocks 0, 1, and 25–27 as important and blocks 3–22 as near-identity, but removals do not compose — skipping block 1, 26, or 27 fails every episode, skipping block 7, 14, or 20 alone fails none, and skipping blocks 12–15 together fails all. SmolWAM keeps blocks 0–2 and 19–27.
• Layout: A zero-initialized MLP adds the robot state to 28 action queries that replace the 196-token action frame at its original positions, leaving 1,008 tokens (blank and image frames only).
• Readout: The trunk is evaluated once at τ_max ≈ 0.988 with fixed noise, and the action chunk plus future latents are read from the closed-form clean estimate, so actions never condition on a denoised future.
• Training: A distillation loss matches the student's one-step estimates to both the demonstrations and the teacher's cached one-step predictions, plus 0.1-weighted terms for the state and value frames while they exist. Because pruning and compaction are separate distribution shifts, the student trains in the teacher's 1,764-token layout for the first 1,000 of 5,000 steps and in the compact layout afterward (AdamW, lr 2×10⁻⁵ for inherited and 10⁻⁴ for new weights, batch 32, bf16). Training uses 68,830 observations sampled every fourth step from the 1,700 successful LIBERO demonstrations released with Cosmos Policy, with teacher targets cached at fixed noise in 66 minutes on one A100.

Evaluation uses LIBERO's four suites of ten tasks, the teacher's observation pipeline (wrist and third-person images at 224 px, proprioception, 16-action chunks executed open loop), seed 195, and 10 trials per task (400 episodes), plus a harder 60-episode screening set. Latency is wall-clock observation-to-chunk on one A100-SXM4-40GB; FLOPs are counted with PyTorch's FlopCounterMode including attention.

Why This Matters

Impact on research. The paper shows that a pretrained video world-action model tolerates large interface and depth changes when each change is distilled rather than applied zero-shot, but not auxiliary objectives that train its shared trunk without an action anchor. It also documents concrete pitfalls (attention sinks, non-composable block removals, irreducibly long action chunks) that other compression efforts will likely hit, and reports that offline action L1 is a poor proxy for closed-loop success.

Real-world applications (from the paper's framing of edge devices):

• On-robot manipulation policies running on locally attached or embedded GPUs rather than datacenter hardware.
• Lower-latency closed-loop control where 57 ms per 16-action chunk enables roughly 17.7 policy queries per second.
• Robots with tight memory budgets, where 2.36 GiB peak and a stored network reducible from 1.64 to 0.85 GiB make deployment more feasible.
• Systems that benefit from anticipating motion — the world head's forecast lowers latent L1 by 24% over copying the current frame — potentially for planning or monitoring, though the paper never decodes it at inference.

Industry relevance. The work positions compact WAMs against compact action-only VLAs such as SmolVLA and TurboVLA, arguing that a world model need not be given up for efficiency. Its explicit cost accounting (TFLOP, ms, GiB per chunk) and released code and project page make it directly comparable to production deployment constraints.

Future Directions

• Extend evaluation beyond LIBERO to additional robotics benchmarks such as RoboCasa and, ultimately, real-robot settings.
• Develop pruning strategies that preserve long-horizon control performance, since reducing transformer depth disproportionately affects long-horizon tasks and the largest degradation appears on LIBERO-Long.
• Find training-time changes for faster reaction, because cutting chunks short does not help: re-querying the teacher after 8 of its 16 actions solves no screening episode at one or five denoising steps.
• Run the six planned ablations that were not executed, including removing the world head, the distillation targets, and the layout curriculum.
• Separate the effects the authors say they have not separated: distillation coverage, full fine-tuning, and the learned layout.

Target Audience

Researchers and engineers working on efficient robot learning, vision-language-action models, and world models — particularly those interested in distilling video-generation backbones into deployable policies. It is also relevant to practitioners doing model compression (pruning, quantization, distillation) for embodied AI, and to readers tracking the trade-off between retaining a predictive world model and minimizing inference cost. The paper assumes comfort with diffusion/flow-matching terminology and transformer internals.

Authors’ abstract

World-action models (WAMs) predict a robot's actions together with the observations those actions will produce. However, the strongest models rely on video diffusion transformers that are far too computationally expensive for resource-constrained edge devices. We present SmolWAM, a latent WAM that we derive from the 2B-parameter Cosmos Policy by keeping its pretrained trunk and rebuilding its inference interface: single-frame visual latents, cached text features that preserve the trunk's attention sinks, 12 of 28 transformer blocks, and 1,008 tokens from which actions and future visual latents are read out in one rectified-flow step. Trained in 3.6 GPU-hours, SmolWAM succeeds in 95.5% of 400 LIBERO episodes at 57 ms and 2.3 TFLOP per 16-action chunk with 2.4 GiB of GPU memory, 11x faster than its teacher with 18.5x fewer FLOPs and 3.2x less memory, and its world head still forecasts scene motion.
