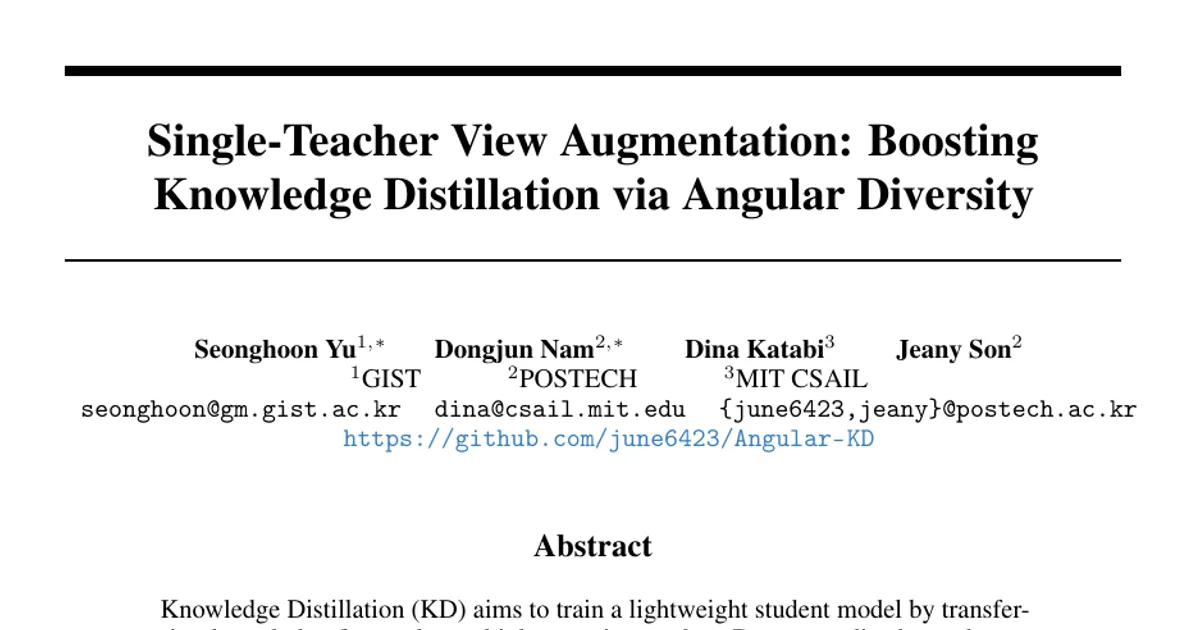

Single-Teacher View Augmentation: Boosting Knowledge Distillation via Angular Diversity

AI summary

Overview

Research area: Computer vision; specifically knowledge distillation (KD) for model compression, with a focus on generating diverse teacher supervision without training multiple teacher networks.

Technical level: Advanced. The paper combines a new architectural augmentation scheme with two custom angular loss functions and an ensemble-diversity upper-bound analysis, so it assumes familiarity with distillation losses (KL divergence, CRD), cosine similarity objectives, and ensemble generalization bounds.

Scope: The paper proposes Angular-KD, a single-teacher knowledge augmentation framework that attaches lightweight learnable linear branches to one frozen-capacity teacher and diversifies them with two angular objectives, evaluated on CIFAR-100, ImageNet, Imbalanced CIFAR-100, STL-10, TinyImageNet, and a binary segmentation dataset (arXiv:2510.22480v1, 26 Oct 2025; code at https://github.com/june6423/Angular-KD).

What This Paper Is About

Knowledge distillation trains a small student model to imitate a large teacher, and prior work shows that exposing the student to multiple diverse teacher perspectives improves results — but that diversity normally requires training and storing several large teacher networks, which is expensive. A recent single-teacher alternative, TeKAP, simulates multiple perspectives by injecting random noise into teacher features, which gives diversity but offers no control over the semantic structure or informativeness of the augmented outputs. This paper's goal is to generate structured, controllable, semantically meaningful multi-view supervision from a single teacher at low cost.

Key Contributions

1. Angular-KD framework: A knowledge augmentation framework that generates multiple diverse views from one pre-trained teacher by attaching lightweight, learnable linear branches (view augmentation heads), eliminating the need to train and store multi-teacher models.

2. Two angular diversity objectives: (a) a constrained inter-angle diversity loss that maximizes angular separation between augmented views while keeping them within a learnable angular margin of the original teacher output, and (b) an intra-angle diversity loss that enforces a uniform spread of the offset vectors around the teacher output.

3. Theoretical analysis: A demonstration that the two objectives reduce the similarity terms in an ensemble diversity metric, which in turn tightens the upper bound on the ensemble's expected loss (Eq. 6), linking the objectives to improved distillation.

4. Empirical validation: Gains over TeKAP across CIFAR-100 configurations, ImageNet, imbalanced CIFAR-100, transfer to STL-10 and TinyImageNet, binary segmentation, plug-and-play integration with DKD, ReviewKD, and MLKD, plus ablations on each component.

Main Findings

• CIFAR-100 logit-level augmentation beats TeKAP consistently: With a ResNet32×4 teacher and VGG13 student, logit distillation improves from 73.33 (no augmentation) to 74.79 with TeKAP and to 76.08 with Angular-KD. In the different-architecture setting (WideRN-40-2 teacher, ResNet8×4 student), the corresponding numbers are 74.70, 75.08, and 76.22.

• Feature-level and combined augmentation also improve: With feature distillation (CRD) on ResNet32×4 → VGG13, accuracy rises from 75.51 to 75.65 (TeKAP) and 75.82 (Angular-KD). Combining logit and feature distillation gives 75.46 → 75.98 (TeKAP) → 76.46 (Angular-KD).

• ImageNet scalability: Using a ResNet34 teacher (73.31% Top-1, 91.42% Top-5) and ResNet18 student under logit-level augmentation, Top-1 accuracy is 69.75 without augmentation and 71.07 with Angular-KD (TeKAP reported at 70.67); Top-5 accuracy is 89.07 without augmentation and 90.39 with Angular-KD (TeKAP at 89.92).

• Plug-and-play gains on top of other KD methods: Added to DKD on ResNet32×4 → VGG13, accuracy moves from 76.32 (no augmentation) to 76.51 with Angular-KD (TeKAP: 76.65). Added to ReviewKD on the same pair, 75.63 → 75.78 (TeKAP: 75.32). Added to MLKD, 77.08 → 77.28 (TeKAP: 77.04). The paper notes Angular-KD outperforms TeKAP in most settings.

• Robustness on imbalanced data: On Imbalanced CIFAR-100, Angular-KD reaches 35.66 on the imbalanced set and 61.84 on the full set, versus 33.23 / 60.74 without augmentation and 34.98 / 61.18 with TeKAP.

• Better transferability: A CIFAR-100 student distilled with Angular-KD reaches 70.23 on STL-10 and 32.97 on TinyImageNet, versus 68.01 / 31.17 (no augmentation) and 68.71 / 31.54 (TeKAP).

• Segmentation generality: On the Carvana Image Masking dataset (5,088 training and 100,064 test images) with a U-Net-32 teacher and U-Net-16 student, Dice loss improves from 0.0218 (naïve KD) to 0.0208, and IoU from 94.83 to 95.72.

• Single teacher is cheaper than multi-teacher: In the WideRN-40-2 → WideRN-16-2 setting, Angular-KD reaches 76.33 accuracy with 2.40M teacher parameters and 329M FLOPs, versus Ensemble Distillation at 76.31 accuracy with 11.28M parameters and 1645M FLOPs, TAKD at 75.04 (6.69M / 797M), and DGKD at 76.24 (6.69M / 797M). In the VGG13 → VGG8 setting, Angular-KD reaches 74.76 (11.04M / 287M) versus Ensemble Distillation's 74.67 (47.31M / 1427M).

• Ablation: both angular losses matter: From a 75.46 baseline, the constrained inter-angle loss alone gives 76.28 (ensemble diversity 11.617), the intra-angle loss alone gives 76.16 (11.522), and combining both gives 76.46 (11.633).

• Ablation: augmentation count: Accuracy improves from 75.46 (no augmentation) to 75.87 at N=1, 75.85 at N=2, 76.25 at N=3, 76.44 at N=4, 76.46 at N=5, and 76.37 at N=6, with each added augmentation costing only +0.092M parameters and about +0.092M FLOPs on top of a 7.434M / 1085.629M baseline.

• Ablation: head design and margins: Orthogonal initialization alone gives 76.31 and dropout alone 76.35 (baseline 76.17); combining both gives 76.46. For the inter-angle loss, constraint-only gives 76.25 and diversity-only 76.29; both together give 76.46. An angular margin γ of 0.2 gives 76.46, versus 76.34 at γ=0.1 and 76.31 at γ=0.3.

• Few-shot behavior: Across 25%, 50%, and 75% random subsets of the CIFAR-100 training set, Angular-KD achieves the best average performance over three trials compared with unaugmented KD + CRD and TeKAP; the specific accuracy values are shown only in a figure and are not reported numerically in the paper text.

• Visual evidence: t-SNE visualization of teacher and augmented logits (sampling 10 of 100 classes) shows Angular-KD's augmented views more evenly dispersed, while TeKAP's views cluster and overlap in some class regions.

Methodology in Plain English

The team starts with one pre-trained teacher network and does not train any additional teachers. Instead, they bolt a set of small linear "view augmentation heads" onto the teacher — one head per view — at both the feature level (a linear layer plus BatchNorm, applied to a dropout-masked copy of the teacher's final feature) and the logit level (a linear layer plus softmax applied to that augmented feature). Each head is initialized orthogonally and receives a different dropout probability, so the branches begin in different directions.

To keep those branches meaningfully different rather than randomly different, two losses are trained on them. The constrained inter-angle diversity loss has two parts: a constraint term that pulls any view straying too far (outside a learnable angular margin γ from the teacher's output) back toward the teacher, and a diversity term that only switches on once all views are inside the margin, at which point it minimizes pairwise cosine similarity between views (using negatives from other batches). The intra-angle diversity loss looks at each view's offset vector — the difference between the teacher's representation and that view's representation — and minimizes cosine similarity between those offsets, so views spread out evenly in different directions around the teacher rather than clumping on one side. Both losses can be applied either at the feature level, the logit level, or both.

Each augmented logit is also supervised with ground-truth cross-entropy, which keeps the augmented predictions anchored to the real class semantics. At distillation time, the original teacher output and the N augmented views are averaged into an (N+1)-way ensemble; the student then matches this ensemble using a KL divergence loss at the logit level and a CRD contrastive loss at the feature level, plus a standard cross-entropy loss. Training uses a 30-epoch warm-up where only the view augmentation heads are trained, after which the student is trained for 240 epochs with N=5 views, dropout probabilities of 0.2, 0.25, 0.3, 0.35, and 0.4, softmax temperature τ^Z = 4, contrastive temperature τ^C = 0.07, and margin γ initialized to 0.2, on a single RTX 2080 Ti GPU with SGD, batch size 64, learning rate 0.01 decayed by a factor of 10 at epochs 150, 180, and 210.

Why This Matters

Impact on research. The paper reframes teacher-side augmentation as a controllable geometric problem rather than a noise-injection heuristic, and backs it with a diversity-based generalization bound. It also provides a direct comparison against multi-teacher distillation, showing that a single augmented teacher can match or exceed ensembles of four or five trained teachers at a fraction of the parameter and FLOP cost — a useful reference point for future work on efficient distillation.

Real-world applications (as framed by the paper's own motivation and experiments):

• Deploying compressed models on mobile devices, where a lightweight student is paired with a large cloud- or server-side teacher.
• Embedded systems and IoT platforms, where memory and compute budgets are tight and keeping multiple teacher checkpoints is impractical.
• Image segmentation pipelines, such as the Carvana Image Masking setting tested here, where the same augmentation extends beyond classification.
• Small-data or class-imbalanced training scenarios, such as the 43-class, 50-samples-per-class imbalanced CIFAR-100 benchmark, where richer supervisory signals compensate for scarce labels.

Industry relevance. Angular-KD is described as plug-and-play: it improved results on top of DKD, ReviewKD, and MLKD, meaning teams can add it to an existing distillation pipeline without redesigning it. The cost profile is attractive in production — the WideRN configuration used 2.40M teacher parameters and 329M FLOPs versus 11.28M and 1645M for Ensemble Distillation — and each added view costs only about 0.092M parameters and 0.092M FLOPs on a 7.434M / 1085.629M baseline.

Future Directions

• Automatic configuration of the angular objectives. The results show a clear optimum at N=5 augmentations and margin γ=0.2, with performance dropping at N=6 and at γ=0.1 or 0.3. Whether these values can be set adaptively per teacher-student pair, rather than tuned by search, is not resolved.

• Extension beyond image classification and binary segmentation. The paper validates classification plus one segmentation task; detection, dense prediction at scale, and non-vision modalities are untested.

• Combination with multi-teacher distillation. Angular-KD is presented as an alternative to multi-teacher methods; whether angularly diverse augmented views from each of several teachers would compound the gains, or saturate, is an open question.

• Quantifying where the gains come from. The paper ties accuracy to increasing ensemble diversity in the ablations, but the reported increments are modest (75.46 → 76.46 across the ablations on ResNet32×4 → ResNet8×4), and the few-shot figure is not reported numerically in the text — a fuller accounting of when the approach helps most would strengthen the case.

Target Audience

Practitioners and researchers working on model compression and knowledge distillation who already understand standard KD losses and are looking for a low-cost way to enrich teacher supervision. It is also relevant to engineers deploying compact models on mobile, embedded, or IoT hardware, and to graduate students interested in how diversity-based generalization bounds connect to concrete loss design. Readers without a background in ensemble diversity theory or contrastive objectives will find the theoretical section (Section 3) and the angular loss formulations (Section 2.2) demanding.

Authors’ abstract

Knowledge Distillation (KD) aims to train a lightweight student model by transferring knowledge from a large, high-capacity teacher. Recent studies have shown that leveraging diverse teacher perspectives can significantly improve distillation performance; however, achieving such diversity typically requires multiple teacher networks, leading to high computational costs. In this work, we propose a novel cost-efficient knowledge augmentation method for KD that generates diverse multi-views by attaching multiple branches to a single teacher. To ensure meaningful semantic variation across multi-views, we introduce two angular diversity objectives: 1) constrained inter-angle diversify loss, which maximizes angles between augmented views while preserving proximity to the original teacher output, and 2) intra-angle diversify loss, which encourages an even distribution of views around the original output. The ensembled knowledge from these angularly diverse views, along with the original teacher, is distilled into the student. We further theoretically demonstrate that our objectives increase the diversity among ensemble members and thereby reduce the upper bound of the ensemble's expected loss, leading to more effective distillation. Experimental results show that our method surpasses an existing knowledge augmentation method across diverse configurations. Moreover, the proposed method is compatible with other KD frameworks in a plug-and-play fashion, providing consistent improvements in generalization performance.
