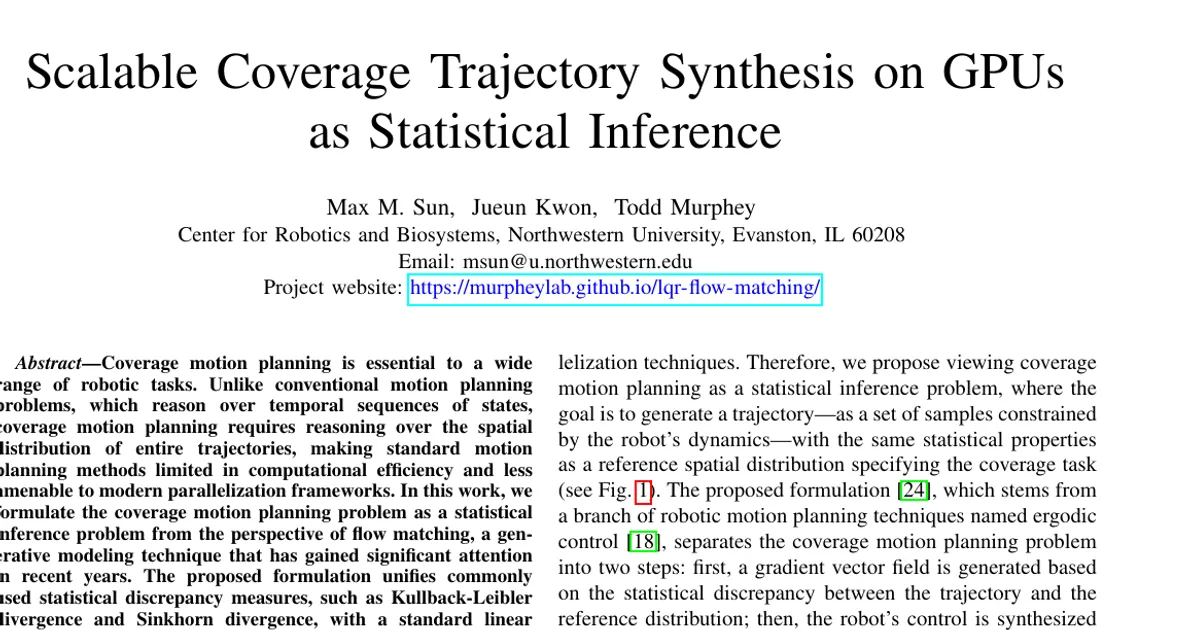

Scalable Coverage Trajectory Synthesis on GPUs as Statistical Inference

AI summary

Overview

Research area: Robotics — coverage motion planning, generative modeling (flow matching), optimal control, and GPU-accelerated computation.

Technical level: Advanced. The paper assumes familiarity with optimal control (LQR, Riccati equations), generative modeling, and optimal transport (Kullback-Leibler divergence, Sinkhorn divergence).

Scope: A complementary study to the authors' prior work, arguing that formulating coverage motion planning as statistical inference decouples trajectory-gradient generation from control synthesis, enabling GPU parallelization and better scalability than a waypoint-tracking baseline based on the traveling salesman problem (TSP).

What This Paper Is About

Coverage motion planning asks a robot to visit regions of a space according to a specification such as a density map. Unlike ordinary motion planning, it must reason over both the temporal sequence of states and the spatial distribution of an entire trajectory, which makes it hard to parallelize with conventional methods that first solve a TSP and then track the resulting waypoints. This paper reformulates the problem as statistical inference from the perspective of flow matching, so that the expensive spatial reasoning step becomes a parallelizable generative inference problem and the dynamics-constrained control step becomes a standard optimal control problem.

Key Contributions

1. A formulation of coverage motion planning as statistical inference via flow matching, unifying common statistical discrepancy measures — including Kullback-Leibler divergence and Sinkhorn divergence — with a standard linear quadratic regulator (LQR) problem.
2. A decoupling of trajectory-gradient generation for coverage from control synthesis under nonlinear system dynamics, which is what makes GPU parallelization effective.
3. Two concrete specifications of the reference flow vector field: a Stein variational gradient flow, which requires only the score function of the reference distribution, and a Sinkhorn divergence gradient flow, computed via auto-differentiation of the entropic-regularized optimal transport problem.
4. A benchmark study of computational scalability against a TSP-based waypoint-tracking baseline, with and without GPU acceleration, using a differential-drive robot and a 3D aircraft.

Main Findings

• Short horizons favor the alternatives: At shorter planning horizons (for example, fewer than 300 time steps), the authors' method running on CPU and the TSP baseline both showed lower computation time than their GPU-accelerated method.
• GPU parallelism dominates at long horizons: With GPU parallelization, the flow matching method exhibited better scalability across different time horizons and significantly outperformed the other methods at longer horizons, for both specifications of the reference flow (Stein variational gradient and Sinkhorn divergence).
• TSP baseline was not tested far: The TSP baseline was not tested beyond 1000 time steps because of its high computation time.
• Benchmark settings: The Stein variational gradient flow was benchmarked with differential-drive dynamics over horizons from 100 to 1000 time steps in intervals of 100, and from 1000 to 10000 time steps in intervals of 1000. The Sinkhorn divergence gradient flow was benchmarked with a 3D aircraft over horizons from 100 to 500 time steps in intervals of 100, and from 500 to 2500 time steps in intervals of 500.
• Coverage quality preserved: All methods achieved consistent coverage across the trials; the paper reports that quantitative coverage accuracy and robustness metrics for their methods are available in their prior work, rather than reporting new accuracy numbers here.
• Multiple equally good optima: The statistical inference formulation naturally yields multiple equally good optima depending on initial conditions — analogous to different random seeds producing different but equally good sample sets — a property the authors suggest can be leveraged for robustness.
• Different gradient flows suit different tasks: The Stein variational gradient is more robust when the reference distribution is not normalized because it only needs the score function, while the Sinkhorn divergence gradient gives better coverage accuracy on reference distributions with non-smooth and irregular support.
• Complementary to waypoint methods: The method is not mutually exclusive with waypoint-based approaches; those can supply a better initial trajectory to accelerate convergence.

Methodology in Plain English

The robot's trajectory is treated as a set of spatial samples rather than as a strict time-ordered plan. The goal is to make the statistical distribution of those samples match a reference distribution describing the coverage task.

The approach runs in two decoupled stages:

1. Generate a reference flow. For each sample along the current trajectory, compute a direction in which that sample should move to reduce the discrepancy between the trajectory's empirical distribution and the reference distribution. Two ways of computing this direction are offered: a Stein variational gradient descent formula, which uses a kernel function and the gradient of the log of the reference distribution, and a Sinkhorn divergence formula built on entropic-regularized optimal transport, whose gradient is obtained by auto-differentiation. Because this step only involves sums of computations over all samples and does not involve the robot's dynamics, every time step can be evaluated at once — which is why GPUs help, especially for long trajectories.

2. Turn the flow into control. The trajectory cannot simply be moved along the reference flow, because it must obey the robot's dynamics. Instead, the authors synthesize a gradient on the control input so that the dynamically feasible flow on the state trajectory matches the reference flow as closely as possible. There is a linear relationship between the control gradient and the resulting state flow, given by the Jacobians of the dynamics with respect to state and control. This yields a linear quadratic regulator problem, solved in closed form with the continuous-time Riccati equation. The LQR solve and the control update are iterated to keep improving the trajectory's statistical properties.

Implementation: The method is implemented in JAX for GPU acceleration, using the OTT package for the Sinkhorn gradient flow and the LQRax package for the LQR problem. Experiments ran on an Intel Xeon w9-3495X CPU and an NVIDIA RTX 6000 GPU. The TSP baseline samples as many points from the reference distribution as the trajectory horizon, orders them by heuristic local search using the python-tsp package, and tracks the result with standard trajectory tracking control.

Why This Matters

Impact on research: The paper argues that coverage motion planning in its conventional form — solve a TSP, then track waypoints — is intrinsically hard to parallelize because it couples temporal and spatial reasoning. Reframing it as statistical inference borrows the machinery of modern generative modeling and makes the expensive part scale on GPUs. This positions long-horizon coverage planning as a problem that benefits from the same hardware trends as machine learning.

Real-world applications (as described or implied by the paper):

• Autonomous exploration, where a robot must systematically cover an unknown area.
• Search and rescue with UAVs, such as a UAV planning a trajectory that comprehensively searches regions of space based on prior information like satellite images.
• Manipulation tasks that require covering a region of space rather than reaching a single goal.
• Embodied learning, where broad spatial coverage supports the learning process.

Industry relevance: Any deployment where planning horizons are long and the compute budget is a bottleneck stands to benefit — particularly field robotics on GPU-equipped platforms, where the paper's benchmarks show the flow matching approach scaling well beyond the point where the TSP baseline was even tested (1000 time steps).

Future Directions

• Integrating the method into practical robotics applications, such as large-scale exploration in unstructured environments, as the authors state.
• Using waypoint-based methods to supply improved initial trajectories, thereby accelerating convergence of the flow matching approach.
• Exploiting the multiple equally good optima that arise from different initial conditions as a source of robustness.
• Reporting quantitative coverage accuracy and robustness directly in this line of work, which the paper currently defers to its prior companion study.

Target Audience

Roboticists and control researchers working on coverage, exploration, and long-horizon motion planning; researchers interested in the intersection of generative modeling, optimal transport, and optimal control; and practitioners who need planning methods that scale on GPU hardware. The paper is written as a complementary scalability study, so readers seeking detailed coverage-accuracy analysis are pointed to the authors' prior work.

Authors’ abstract

Coverage motion planning is essential to a wide range of robotic tasks. Unlike conventional motion planning problems, which reason over temporal sequences of states, coverage motion planning requires reasoning over the spatial distribution of entire trajectories, making standard motion planning methods limited in computational efficiency and less amenable to modern parallelization frameworks. In this work, we formulate the coverage motion planning problem as a statistical inference problem from the perspective of flow matching, a generative modeling technique that has gained significant attention in recent years. The proposed formulation unifies commonly used statistical discrepancy measures, such as Kullback-Leibler divergence and Sinkhorn divergence, with a standard linear quadratic regulator problem. More importantly, it decouples the generation of trajectory gradients for coverage from the synthesis of control under nonlinear system dynamics, enabling significant acceleration through parallelization on modern computational architectures, particularly Graphics Processing Units (GPUs). This paper focuses on the advantages of this formulation in terms of scalability through parallelization, highlighting its computational benefits compared to conventional methods based on waypoint tracking.
