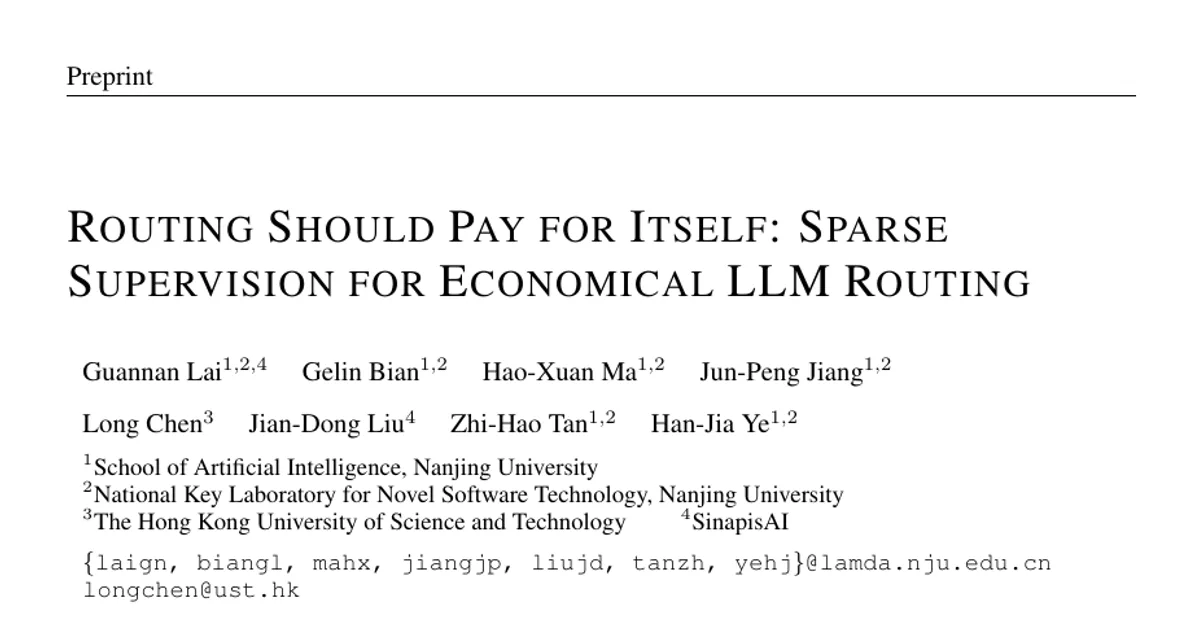

Routing Should Pay for Itself: Sparse Supervision for Economical LLM Routing

AI summary

Overview

Research area: LLM serving efficiency, model routing and selection, and cost-aware machine learning — specifically the economics of building a router rather than only running one.

Technical level: Intermediate. The paper assumes familiarity with LLM routing, quality–cost trade-offs, and basic estimation/shrinkage ideas, but its central argument is an economic one that non-specialists can follow.

Scope: The paper accounts for the upfront cost of collecting query–model feedback needed to train an LLM router, proposes a sparse-supervision routing framework called SaveRouter, and evaluates routing across four benchmarks using two new payback-oriented metrics.

What This Paper Is About

LLM routers save money by sending each query to a cheaper or stronger model, but many of them must first run many candidate models over historical queries to learn which model is good at what — an upfront supervision expense that existing evaluations largely ignore. The paper argues that this expense should be counted against the savings it produces, and that dense query–model evaluation is often economically over-provisioned because routing quality saturates well before all feedback is collected. The goal is a router that acquires only the most informative feedback and still routes well enough to pay for itself quickly.

Key Contributions

1. An economic framing of router construction. The paper introduces upfront supervision cost C_0(Ω) and defines payback via SA-BEP (the number of deployment queries needed for serving savings to recover supervision expenditure) and SA-CR (the cost ratio after amortizing supervision over a fixed deployment horizon of H queries, reported at H = 10^6).
2. SaveRouter, a sparse-supervision routing framework. It combines adaptive feedback acquisition, hierarchical capability estimation, and query-level residual correction, with a supervision budget of at most K ≪ M models per training query.
3. Empirical results across four benchmarks. On LLMRouterBench, Mixinstruct, MMR-Bench, and RouterBench, SaveRouter achieves the highest Peak Score (P_s) and lowest Cost Ratio (CR) in Table 1 while using about 33–41% of available training feedback, and reduces break-even deployment volume by approximately 1.9–9.5× versus the fastest conventional fully supervised router.
4. Evidence that more supervision is not always better economically. Ablations and supervision-budget sweeps show that the supervision level minimizing serving cost can differ from the one achieving earliest payback.

Main Findings

• Routing quality saturates before full supervision is collected. The paper reports that EmbedLLM and kNN reach 99% of their full-supervision accuracy with only 30% and 60% supervision, respectively.
• SaveRouter leads on quality and cost across all four benchmarks. In Table 1 it attains the highest P_s and lowest CR on LLMRouterBench (P_s 0.6338, CR 0.2320), Mixinstruct (0.7498, 0.9359), MMR-Bench (0.7540, 0.7765), and RouterBench (0.8084, 0.6810).
• It pays back earlier. On LLMRouterBench, SaveRouter reaches break-even after 5.3K deployment queries versus 11.5K for the fastest conventional baseline. On RouterBench it requires 42.6K queries versus 326.4K for EmbedLLM.
• Even near-saturated benchmarks show large payback gains. On Mixinstruct, most P_s values cluster near 0.75, yet SaveRouter cuts SA-BEP from 11.63M for the fastest conventional router to 1.23M.
• Beating sparse-feedback baselines. WISERouter and SemiRouter frequently fail to reach the target operating point or produce positive net savings (unreachable metrics, shown as ∞). BaRP reaches competitive quality but its repeated bandit interactions are costly: its SA-BEP is 114.0K, 44.66M, 640.8K, and 3.25M across the four benchmarks, versus 5.3K, 1.23M, 18.2K, and 42.6K for SaveRouter.
• Both estimation components matter. On LLMRouterBench with K = 4, removing query-level residual correction lowers P_s by 1.63 percentage points and raises CR from 0.2320 to 0.3484; collapsing all queries into a single group drops P_s from 0.6338 to 0.5985.
• Acquisition policy matters too. Random-K, capability-only, and uncertainty-only acquisition all underperform the proposed UCB-style policy in either quality or serving efficiency. Random-K actually reaches break-even earlier (3.8K vs. 5.3K queries), while SaveRouter achieves higher P_s and lower SA-CR@1M — showing earliest payback and long-horizon efficiency need not coincide.
• Very little supervision already helps. With only K = 2 models evaluated per query (16.7% supervision), SaveRouter already approaches its full-supervision accuracy and clearly outperforms Uniform Random-K.
• The K trend is not strictly monotonic. The authors state they do not interpret small fluctuations as evidence that extra supervision is intrinsically harmful; changing K changes the observations used to fit the estimator and can alter the learned routing frontier.

Methodology in Plain English

The authors start by observing that a router with N training queries and M candidate models can require up to N × M model executions just to build. They define that collection cost as an upfront supervision cost and add it to the serving cost when judging whether routing was worthwhile.

SaveRouter then tries to buy fewer, better observations:

• Group related queries. Training queries are assigned to groups — using available task labels plus a classifier, or by clustering frozen query representations. Grouping uses only query inputs and training-side group information, never model-quality feedback.
• Acquire selectively. Acquisition runs for K passes; each pass reveals one new model outcome per training query, giving N × K distinct pairs. Models are chosen by a score that combines estimated group–model capability with an uncertainty bonus (a UCB-style term), with a within-pass coverage rule that first picks models with zero observations in the group.
• Estimate capability hierarchically. A two-way additive prior (overall difficulty + group effect + model effect, fit with ridge regularization on observed pairs) provides a stable estimate for sparsely observed group–model pairs. This prior is then blended with observed group–model outcomes via a shrinkage parameter τ, so heavily observed pairs trust their own data and unobserved pairs fall back to shared structure.
• Correct at the query level. A lightweight residual predictor, trained on a separate contextual representation, models what the group-level estimate misses, removing each observation's own contribution from local statistics to avoid self-influence.
• Route with cost awareness. Serving costs are estimated from the same sparse observation set, backing off to model-level means when group-specific data is unavailable, and the router maximizes predicted quality minus a scaled cost term.

Experiments use an in-domain 20%/80% train/test split with random seed 42. Text benchmarks use frozen all-MiniLM-L6-v2 representations for grouping; MMR-Bench uses concatenated CLIP ViT-B/16 text and image representations. All methods are evaluated in the ORBIT toolkit, with WISERouter, BaRP, and SemiRouter reimplemented from their papers. Cost accounting uses fresh-feedback accounting in the main experiments: every model invocation used to obtain feedback is charged, including repeated ones.

Why This Matters

Impact on research. The paper shifts evaluation of LLM routing from serving-time cost alone toward total economics, supplying two reusable metrics (SA-BEP and SA-CR) and a cost-accounting protocol. It also reframes routing as a decision problem rather than a matrix-recovery problem, arguing that observations which refine capability estimates without changing the chosen model carry little value.

Real-world applications:

• Production LLM gateways and API routers that must decide, before launch, how much evaluation data to buy for their routing layer.
• Cost-constrained startups and research labs that cannot afford dense evaluation of a large candidate model pool but still want quality-preserving routing.
• Multi-provider inference platforms where candidate models and prices change frequently and router supervision must be refreshed cheaply.
• Multimodal deployments such as MMR-Bench-style image-plus-text workloads, where per-query evaluation costs are high and selective acquisition is especially valuable.

Industry relevance. The finding that only about 33–41% of available feedback suffices to match or beat fully supervised routers, and that break-even volume drops by roughly 1.9–9.5×, directly affects how quickly a routing deployment becomes profitable. The observation that routing quality saturates early and that the cheapest supervision level may not be the one with earliest payback gives practitioners a concrete budgeting argument for not over-collecting feedback.

Future Directions

• Reconciling earliest payback with long-horizon efficiency. The ablation shows Random-K breaks even at 3.8K queries while SaveRouter reaches 5.3K but wins on SA-CR@1M; a method that optimizes both simultaneously is left open.
• Extending the payback analysis to the cached-feedback regime. The main experiments use fresh-feedback accounting; the paper mentions a cached-feedback sensitivity analysis for BaRP in an appendix, but the broader implications for repeated-interaction methods are not resolved.
• Understanding the non-monotonic response to the supervision budget K. The authors decline to interpret small fluctuations and call for the broader trend to be trusted instead; a more principled account of how budget changes reshape the routing frontier is not provided.
• Generalizing beyond the evaluated settings. All results come from four benchmarks under a fixed 20%/80% in-domain split with seed 42 and specific encoders (all-MiniLM-L6-v2, CLIP ViT-B/16), so out-of-domain, cross-encoder, and alternative split behavior remain untested.

Target Audience

This paper is most useful for machine learning systems and serving engineers who build or budget LLM routing layers, researchers working on model selection, cascading, and cost-aware inference, and applied scientists who need to justify evaluation spend before deployment. Practitioners evaluating router papers will benefit from the SA-BEP and SA-CR metrics, while readers interested in selective data acquisition under budget constraints will find the capability-plus-uncertainty acquisition policy and hierarchical shrinkage estimator the most transferable ideas. The code is publicly available at https://github.com/LAMDA-Model-Reuse/SaveRouter.

Authors’ abstract

Large language model (LLM) routing reduces serving cost by assigning each query to an appropriate model while preserving response quality. Learning such a router, however, often requires executing multiple candidate models on historical queries to collect query--model quality feedback, creating a nontrivial supervision cost before deployment. Existing work largely focuses on serving-time efficiency, overlooking whether the resulting savings are sufficient to recover this upfront expenditure. We further observe that routing quality often saturates well before all query--model feedback is collected, suggesting that dense supervision can be economically over-provisioned. We propose SaveRouter, a sparse-supervision routing framework that selectively acquires informative model feedback and shares capability information across related queries, while retaining query-level refinement for fine-grained routing. We evaluate routing by jointly accounting for supervision expenditure and subsequent serving-time savings. Across four routing benchmarks, the main setting uses only about 33--41% of available training feedback while maintaining competitive or better routing quality, and reduces the break-even deployment volume by approximately 1.9--9.5 times compared with the fastest conventional router. Further analysis shows that acquiring more supervision is not always economically preferable: the supervision level that minimizes serving cost can differ from the one that achieves the earliest payback. Our code is publicly available at https://github.com/LAMDA-Model-Reuse/SaveRouter.
