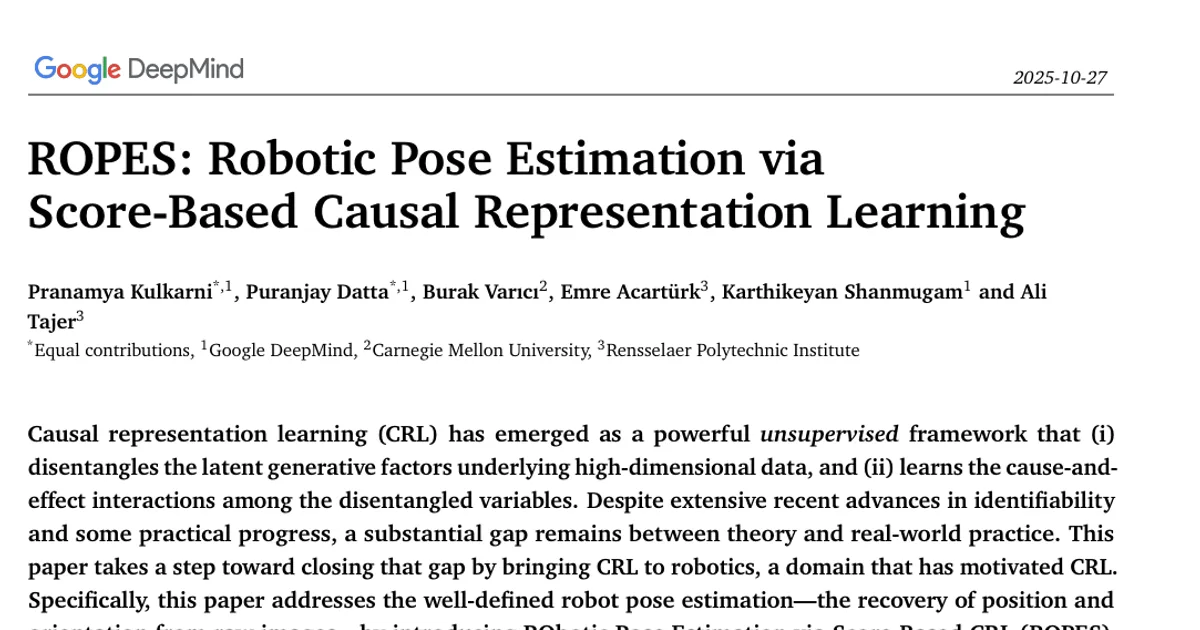

ROPES: Robotic Pose Estimation via Score-Based Causal Representation Learning

AI summary

Overview

• Research area: Robotics and machine learning — specifically causal representation learning (CRL) applied to robot pose estimation from images.
• Technical level: Advanced. The paper assumes familiarity with score functions, interventional causal models, autoencoders, and identifiability theory, though the robotics application is stated in accessible terms.
• Scope: The paper introduces ROPES (Robotic Pose Estimation via Score-Based CRL), an unsupervised pipeline that recovers a simulated robot arm's joint angles from raw images using only distribution-level contrasts between interventional image sets, with no per-sample pose labels.

What This Paper Is About

Causal representation learning has strong identifiability theory but few demonstrations on realistically complex, high-dimensional data. This paper asks whether the joint angles that define a robot arm's pose — the controllable, "intervenable" latent factors — can be recovered from camera images without any labeled pose data. The authors build ROPES around score-based interventional CRL and test it on a simulated multi-joint robot arm, framing pose estimation as a near-practical testbed for CRL.

Key Contributions

1. Formalization: The paper casts pose estimation as a CRL problem, treating robot joint angles as controllable latent causal variables embedded inside a larger generative mapping that also includes arm geometry, lighting, background, and camera configuration.
2. Methodology: It proposes ROPES, an autoencoder-based architecture augmented with interventional regularizers that exploit sparse score-function differences across interventions. The design builds on score-based CRL algorithms that carry provable identifiability guarantees (Theorem 1, reworded from Theorem 22 of Varıcı et al., 2025).
3. Empirical validation: Using a Franka Emika Panda arm in the Panda-Gym simulator (Gallouédec et al., 2021), the paper shows strong correlation between angles recovered by ROPES and ground-truth values, in single-camera, two-camera, causal, and occluded settings.
4. Label-free operation and comparison: ROPES uses no conventional pose supervision — only distribution-level contrasts between datasets collected under different actuation regimes. Without pose labels, it achieves performance comparable to RoboPEPP (Goswami et al., 2025) on joints 1, 2, 4, and 6 when RoboPEPP is trained on 5% of the labels (approximately 13K samples).

Main Findings

• Single-camera in-plane joints work well: With joint angles sampled independently and a single camera, ROPES attains MCC of 0.949 on joint 2, 0.975 on joint 4, and 0.957 on joint 6 (MSE 0.053, 0.029, and 0.049 rad² respectively). The paper notes this disentanglement is stronger than prior CRL experiments on much simpler image datasets.
• Two cameras extend coverage but unevenly: With independent joints and two camera views, MCC values are 0.874, 0.979, 0.634, 0.950, 0.679, and 0.884 for joints 1 through 6. Joints 3 and 5 degrade (MSE 0.217 and 0.198 rad²), which the authors attribute to less precise score estimates from the LDR network — supported by higher classification loss during LDR training for those joints.
• A causal data-generating process generally helps: When joint angles are sampled from a randomly structured linear causal model with joints 1, 2, and 4 as root nodes, MSE decreases across most joints relative to the independent two-camera model. The best joint-level results in this setting include MSE 0.019 rad² for joint 4 and MCC 0.976 for joint 4.
• Occlusion robustness: With 32×32 white pixel square occlusions injected at test time (never seen in training), ROPES degrades less than RoboPEPP, particularly on joints 2 and 4. ROPES maintains lower MSE on these joints at both 10% and 100% RoboPEPP training-label settings, and the AE2 reconstruction inpaints the occluded region.
• Label efficiency versus RoboPEPP: RoboPEPP's MSE falls as labeled data grows — from, for example, joint 1 MSE 0.136 at 1% labels, to 0.075 at 5%, 0.030 at 10%, and 0.003 at 100% labels. ROPES matches RoboPEPP's 5%-label performance on several joints without any pose labels, but RoboPEPP with 100% labels still achieves much lower MSE (e.g., 0.001 on joint 2, 0.007 on joint 3).
• Compute efficiency: ROPES is trained for a single epoch, whereas the paper describes RoboPEPP as requiring extensive training over multiple epochs and being prone to overfitting.
• Partial disentanglement: ROPES disentangles only those joint angles whose interventions appear in the sparsity loss; the authors state they are not aware of any larger-scale CRL demonstration showing such partial and incremental disentanglement when only relevant interventions are available.
• Minor, not perfect, calibration: Theory guarantees recovery up to a monotonic transformation. Empirically the authors observe this transformation is well modeled by an affine function, allowing calibration with a small labeled dataset (ground-truth labels used only for MSE evaluation, not training).

Methodology in Plain English

The researchers treat the robot's joint angles as the hidden variables that generate each camera image. Because different images can look similar under many different angle combinations, they introduce statistical diversity the only way a robot naturally can: by moving one joint at a time and recording images before and after.

Concretely, they collect data in a simulator. For each data point they capture one observational pose, then for each target joint they resample that joint's angle from a shifted distribution (a "hard intervention") while holding the other joints fixed. In the single-camera setting, each data point is one observational image plus six interventional images for joints 2, 4, and 6 (two interventions each). In the two-camera setting, every pose is captured from two yaw angles (45° and 135°), so a complete data point is 26 images: 2 observational plus 24 interventional (6 joints × 2 interventions × 2 cameras). All images are grayscale at 128×128×1.

The pipeline has three stages. First, a shared convolutional autoencoder (AE1) compresses each image to an 8×8×1 feature map. Second, for each joint a binary classifier — called a log-density ratio (LDR) estimator — is trained to distinguish the two intervention distributions for that joint; the gradient of its logit yields the score difference, estimated in the compressed space rather than pixel space. Third, a second autoencoder (AE2) is trained on the compressed features using a combined loss: an image reconstruction term plus a sparsity term that pushes the expected score difference toward the unit vector for that joint's coordinate. In the single-camera case the LDR and AE2 see an 8×8×1 tensor and AE2 outputs a 3×1 pose vector; in the two-camera case the two views are concatenated into an 8×8×2 tensor and AE2 outputs a 6×1 pose vector.

Evaluation uses mean correlation coefficient (MCC) on a separate 500-sample test set, plus MSE from a linear regressor trained on 1,000 random samples and evaluated on the same 500-sample test set, with the whole process repeated 15 times.

Why This Matters

• Impact on research: The paper moves interventional CRL out of stylized, toy image settings and into a semi-synthetic robotics simulator with high-dimensional, structured visual data. It reports the strongest practical demonstration the authors know of for partial disentanglement from a limited set of interventions, and it argues that robot pose estimation is a near-practical testbed for CRL.
• Real-world applications:
  • Label-free robot pose estimation for manipulation and control, where obtaining per-image joint angle annotations is costly.
  • Perception in occluded or cluttered workspaces, since ROPES tolerated unseen 32×32 occlusions better than the supervised baseline on joints 2 and 4.
  • Safe human-robot interaction, where interpretable and identifiable representations of the robot's configuration are needed.
  • Data-efficient sim-to-real pipelines, since ROPES needs only distribution-level contrasts rather than large labeled datasets.
• Industry relevance: Reducing reliance on pose labels and CAD models lowers annotation and engineering cost. ROPES is described as domain-agnostic and independent of the robot's physical model, configuration, or sensing pipeline, and it trains for a single epoch — properties attractive for deployment where compute and labeling budgets are constrained. The paper also points toward video world models such as DreamGen (Jang et al., 2025) as a downstream beneficiary.

Future Directions

• Closing the supervision gap: RoboPEPP with 100% labels still substantially outperforms ROPES on most joints (e.g., MSE 0.001 versus 0.015 on joint 2). The open question is whether ROPES closes this gap without labels.
• Improving the weakest joints: Joints 3 and 5 show markedly lower MCC and higher MSE in the two-camera setting. Since the paper attributes this to weaker LDR score estimates, better score estimation or additional viewpoints could be a direct next step.
• Bridge to the real world: All results come from the Panda-Gym simulator with a Franka Emika Panda arm. Whether the approach transfers to physical hardware, real lighting, and real cameras is not reported.
• Scaling to richer settings: The paper reports partial disentanglement only for the joints whose interventions appear in the loss, and mentions the possibility of extending to video world models that imagine future trajectories in high-dimensional image space. Scaling and completing the disentanglement, plus evaluating on the out-of-distribution test sets referenced in the appendices, remain open.

Target Audience

Researchers and practitioners in causal representation learning, robot perception, and pose estimation who want to see identifiability theory exercised on a robotics problem; robotics engineers interested in label-free pose estimation; and machine learning practitioners evaluating whether interventional CRL can replace or supplement supervised pipelines. The paper is most useful to readers already comfortable with score-based methods and causal identifiability, though the pipeline description and empirical tables are readable for an intermediate audience.

Authors’ abstract

Causal representation learning (CRL) has emerged as a powerful unsupervised framework that (i) disentangles the latent generative factors underlying high-dimensional data, and (ii) learns the cause-and-effect interactions among the disentangled variables. Despite extensive recent advances in identifiability and some practical progress, a substantial gap remains between theory and real-world practice. This paper takes a step toward closing that gap by bringing CRL to robotics, a domain that has motivated CRL. Specifically, this paper addresses the well-defined robot pose estimation -- the recovery of position and orientation from raw images -- by introducing Robotic Pose Estimation via Score-Based CRL (ROPES). Being an unsupervised framework, ROPES embodies the essence of interventional CRL by identifying those generative factors that are actuated: images are generated by intrinsic and extrinsic latent factors (e.g., joint angles, arm/limb geometry, lighting, background, and camera configuration) and the objective is to disentangle and recover the controllable latent variables, i.e., those that can be directly manipulated (intervened upon) through actuation. Interventional CRL theory shows that variables that undergo variations via interventions can be identified. In robotics, such interventions arise naturally by commanding actuators of various joints and recording images under varied controls. Empirical evaluations in semi-synthetic manipulator experiments demonstrate that ROPES successfully disentangles latent generative factors with high fidelity with respect to the ground truth. Crucially, this is achieved by leveraging only distributional changes, without using any labeled data. The paper also includes a comparison with a baseline based on a recently proposed semi-supervised framework. This paper concludes by positioning robot pose estimation as a near-practical testbed for CRL.
