Risk-Sensitive Exponential Actor Critic

AI summary

Overview

• Research area: Model-free deep reinforcement learning (RL), specifically risk-sensitive RL with the entropic risk measure.
• Technical level: Advanced. The paper proves policy gradient theorems, works with exponential Bellman equations, and modifies an off-policy actor-critic algorithm.
• Scope: The paper derives risk-sensitive policy gradient theorems for stochastic and deterministic policies, proposes a numerically stabilized critic representation, and evaluates a new algorithm (rsEAC) on risky GridWorld, Inverted Pendulum, and three MuJoCo continuous control tasks.

What This Paper Is About

Risk-aware agents are needed for real-world deployment, and the entropic risk measure is a common utility for learning them. Existing policy gradient methods that optimize this measure require high-variance, numerically unstable updates, which has limited risk-sensitive model-free approaches to simple tasks and tabular settings. The paper's goal is to provide a theoretical foundation for risk-sensitive policy gradients and to build a practical actor-critic algorithm that avoids the explicit exponential value functions that cause instability.

Key Contributions

1. Risk-sensitive policy gradient theorems. The authors derive an on-policy risk-sensitive policy gradient theorem for stochastic policies (Theorem 1) and for deterministic policies (Theorem 2), plus an approximation for the off-policy setting (Theorem 3) with a deterministic policy improvement guarantee under a linear tabular representation. These results circumvent the need to estimate a gradient over the full trajectory.
2. A stable critic representation. The paper analyzes the instabilities that arise when a critic network approximates the exponentiated return, and proposes parameterizing the exponential value function as Z_ψ(s,a) = e^{Q_ψ(s,a)} so that gradients ∇Q_ψ are computed in the log-domain.
3. A stabilizing mechanism for the critic gradient. A mini-batch normalization scheme and clipping are applied to the exponent, using a helper function f(x,y) = (1 − e^{y−x}) if x ≥ y and (e^{x−y} − 1) otherwise, which is bounded in [−1, 1], leaving instability only in a leading exponential term that is normalized by subtracting a constant z.
4. The rsEAC algorithm. Risk-sensitive exponential actor-critic combines the off-policy risk-sensitive gradient for the actor with the stabilized critic, built on TD3, demonstrating more numerically stable updates than existing approaches and reliably learning risk-sensitive policies on risky continuous MuJoCo tasks. All code is included in the supplemental materials.

Main Findings

• Instability without stabilization: Training value functions for DQN and Z_ψ(s_t,a_t) over β settings (−1, −0.1, 0.1, 1) in CartPole showed that for β < 0 the value estimates and gradient norm are almost zero, leading to unstable learning, while for β > 0 the value estimates and gradients are orders of magnitude larger than DQN's and produce exploding gradients (20 episodes over 200k environment steps).
• Stabilized critic behaves better: With the normalized clipped gradient, Q_ψ(s_t,a_t) is less prone to numerical overflow than Z_ψ, its gradient magnitudes are more manageable than directly optimizing the exponential-TD objective, and the algorithm learned optimal policies for all tested β settings, whereas learning Z_ψ succeeded for only one setting.
• Risk preference is controllable in tabular settings: In the 10 × 10 GridWorld, policies trained with β < 0 preferred longer paths avoiding the cliff region, policies with β > 0 chose the shortest path next to the cliff, and risk-neutral policies were recovered when |β| is small. With β = −10, estimated values exploded in magnitude and the policy could not reach the destination.
• Inverted Pendulum: rsEAC learned both risk-seeking (β = 1) and risk-averse (β = −1) policies that achieved high return, preferring the risky region or avoiding it respectively, while R-AC suffered numerical instabilities leading to low-return policies and a lack of risk-sensitivity (5 independent runs).
• MuJoCo benchmarks: On modified Swimmer, HalfCheetah, and Ant tasks, rsEAC produced risk-averse policies (low rate in risky regions) and performed comparably to baselines in average return, outperformed R-AC in every task, performed comparably to MVPI in final performance across environments, and outperformed MVPI on the higher-dimensional Ant task (10 random seeds).
• Theory-to-practice link: The exponential twisting of dynamics and policy shows the risk-sensitive stochastic gradient is weighted by a twisted state distribution and replaces the action-value function with an exponentiated term, while the deterministic gradient needs no exponential twist and avoids both the action integral and the exponential term.

Methodology in Plain English

The authors start from the standard RL setup of a finite-horizon Markov decision process with unknown transition dynamics and rewards, and replace the usual expected-return objective with the entropic risk measure, which uses an exponential utility and a parameter β (β > 0 risk-seeking, β < 0 risk-averse, β → 0 risk-neutral, matching the standard objective).

To avoid gradient estimates over whole trajectories (which are high variance and scaled by the exponentiated return), they define exponentially twisted versions of the dynamics and the policy and derive gradient expressions analogous to the risk-neutral policy gradient theorem, for both stochastic and deterministic policies. They then approximate the gradient in the off-policy case, where trajectories come from a separate behavior policy, and prove that the approximation still improves the policy given a small enough step size and a tabular representation.

For the critic, rather than learning a network that directly outputs the exponentiated return (which can overflow, underflow, or explode), they learn a network in log-space and exponentiate it, so the trailing gradient is numerically stable. The remaining unstable factor is rewritten using the bounded helper function f(x,y), and the leading exponential is normalized with a constant subtracted in log-domain and clipped. They defer the exact normalization constant and clipping details to Appendix B.

The final algorithm, rsEAC, is an off-policy actor-critic that builds on TD3: two critics, one deterministic actor, and target networks, Gaussian exploration noise, and target values that use the minimum of the twin critics when β > 0 and the maximum when β < 0. The actor is updated using the risk-sensitive off-policy gradient.

Experiments proceed from least to most complex: the tabular GridWorld (10 × 10 states, 0.2 probability of a random move, −1 cost per move, −10 cliff penalty, ε-greedy with ε = 0.1, discount γ = 0.85, 50000 episodes), then a risky Inverted Pendulum from MuJoCo with noise N(0,1) added to the reward when the agent's X-position exceeds 0.01, and finally Swimmer, HalfCheetah, and Ant with risky regions defined by X-position (noise N(0, 10²) for Swimmer above position 0.5 and HalfCheetah below −3, and N(0, 7²) for Ant above 0.5), with the X-position appended to observations. Baselines are Mean Gini deviation (MG), mean-variance policy iteration (MVPI), and risk-sensitive actor critic (R-AC), all actor-critic methods implemented on top of TD3 with the same network architecture, and MG's policy gradient trained with PPO. Exact hyperparameters, the normalization constant, clipping details, and pseudocode are placed in Appendices B, C, and D, which are not included in the provided paper content.

Why This Matters

• Impact on research: The paper supplies on-policy and off-policy gradient theorems for the entropic risk measure and claims to be the first actor-critic algorithm with mechanisms to stabilize exponential TD learning, giving risk-sensitive RL a more rigorous and practical foundation than the previous high-variance, trajectory-based estimators.
• Autonomous driving: The introduction cites autonomous driving as a domain where poor decisions can lead to catastrophic events.
• Robotics: Robotics is cited as another real-world application where risk-aware decision-making matters.
• Finance: Financial applications are cited, along with the foundational risk-measure work of Artzner et al. (1999) and Lai et al. (2011).
• Industry relevance: By being off-policy and model-free, rsEAC works from sampled interactions and a replay buffer rather than requiring known transition dynamics or a simulator, which is the practical setting for deployed learning systems; its built-in risk parameter lets practitioners tune risk aversion rather than retraining a separate algorithm.

Future Directions

• Extending beyond tabular improvement guarantees: The policy improvement guarantee in Theorem 3 holds under a linear tabular representation; establishing guarantees with function approximation remains open.
• Scaling to higher-dimensional and more complex tasks: The authors note that existing risk-sensitive model-free approaches have been limited to simple tasks and tabular settings, and their evaluations cover GridWorld, Inverted Pendulum, Swimmer, HalfCheetah, and Ant, leaving larger domains untested.
• Bias from nonlinear Bellman equations: Because sample-based estimates of the entropic value functions are biased due to the log operator, understanding and mitigating this bias in the approximate setting is a natural next question.
• Broadening the risk criteria comparison: The paper reports comparisons against MG, MVPI, and R-AC; further comparisons to other risk criteria such as CVaR, distortion risk, and variance-related measures are not reported here.

Target Audience

Readers who benefit most are reinforcement learning researchers and graduate students working on risk-sensitive or safe RL, practitioners implementing off-policy actor-critic methods (particularly those built on TD3) who need numerically stable exponential value learning, and theoretically inclined readers interested in policy gradient theorems for nonlinear objectives such as the entropic risk measure. A background in Markov decision processes, policy gradients, and actor-critic methods is required, since the paper assumes familiarity with the risk-neutral policy gradient theorem and the deterministic policy gradient.

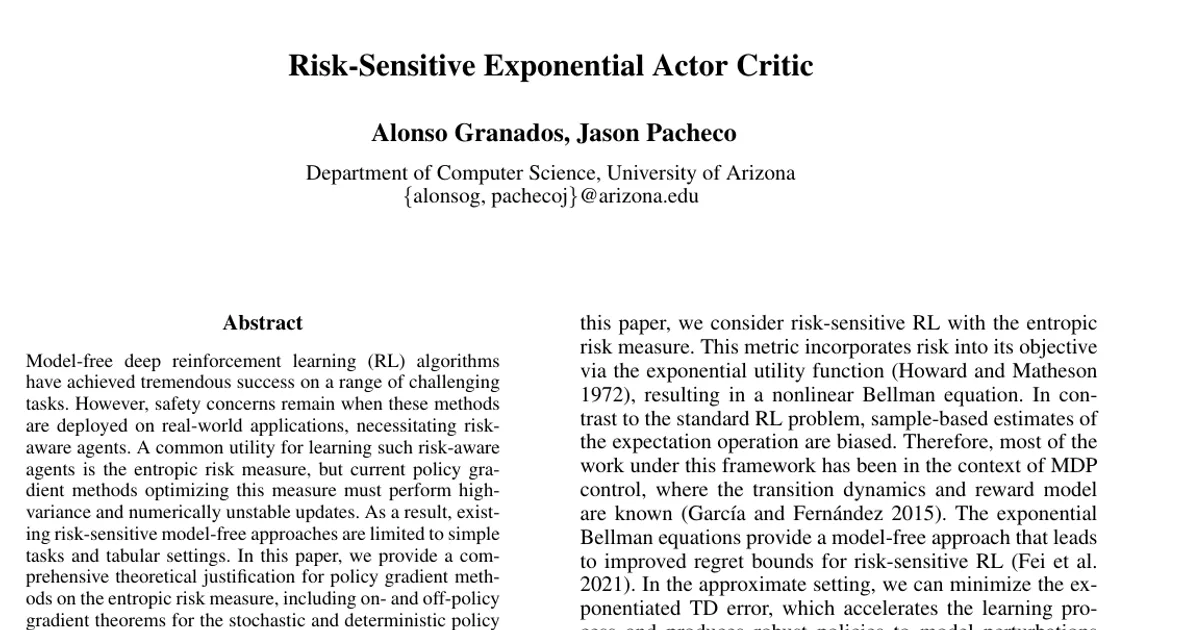

Authors’ abstract

Model-free deep reinforcement learning (RL) algorithms have achieved tremendous success on a range of challenging tasks. However, safety concerns remain when these methods are deployed on real-world applications, necessitating risk-aware agents. A common utility for learning such risk-aware agents is the entropic risk measure, but current policy gradient methods optimizing this measure must perform high-variance and numerically unstable updates. As a result, existing risk-sensitive model-free approaches are limited to simple tasks and tabular settings. In this paper, we provide a comprehensive theoretical justification for policy gradient methods on the entropic risk measure, including on- and off-policy gradient theorems for the stochastic and deterministic policy settings. Motivated by theory, we propose risk-sensitive exponential actor-critic (rsEAC), an off-policy model-free approach that incorporates novel procedures to avoid the explicit representation of exponential value functions and their gradients, and optimizes its policy w.r.t the entropic risk measure. We show that rsEAC produces more numerically stable updates compared to existing approaches and reliably learns risk-sensitive policies in challenging risky variants of continuous tasks in MuJoCo.
