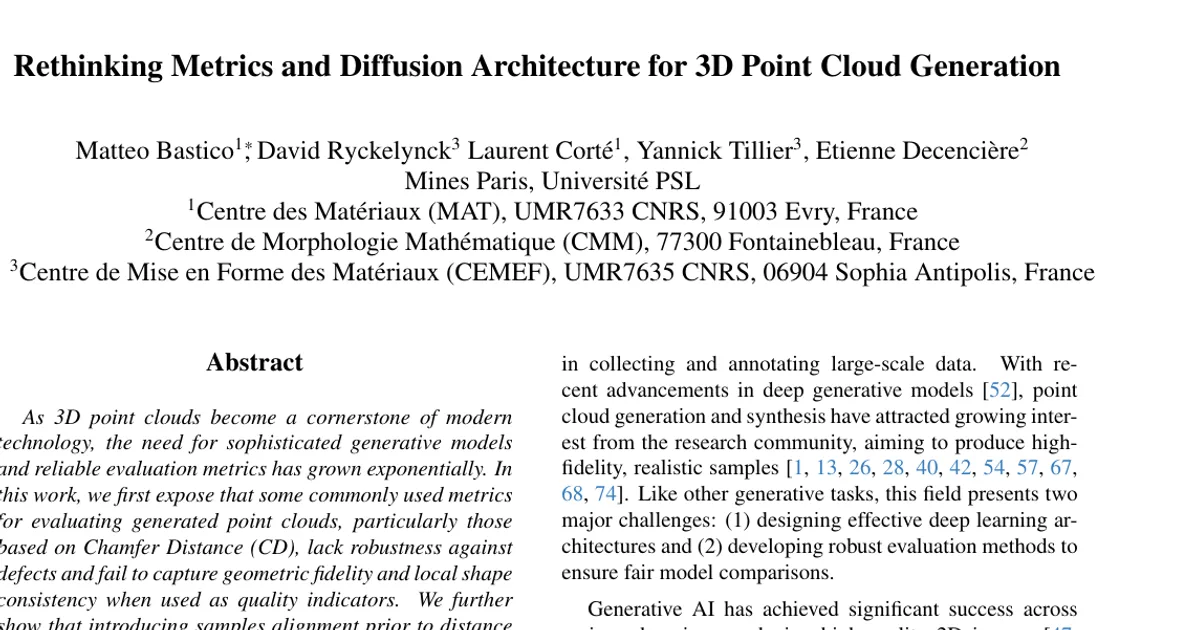

Rethinking Metrics and Diffusion Architecture for 3D Point Cloud Generation

AI summary

Overview

Research area: 3D point cloud generation, generative evaluation metrics, and diffusion-based deep learning architectures.

Technical level: Intermediate to Advanced. The paper assumes familiarity with diffusion models, transformer attention mechanisms, and standard point cloud metrics (Chamfer Distance, EMD, MMD, COV, 1-NNA).

Scope in one sentence: The paper argues that standard evaluation metrics for generated 3D point clouds are unreliable, proposes barycenter alignment, Density-Aware Chamfer Distance (DCD) and a new Surface Normal Concordance (SNC) metric, and introduces a new diffusion transformer called DiPT that avoids voxelization and downsampling.

What This Paper Is About

Generative models for 3D point clouds are increasingly common, but the metrics used to judge them are not robust: they can fail under small translations of generated shapes, can respond wrongly to added noise, and only compare 3D Euclidean coordinates rather than surface geometry. The authors show that aligning samples before distance computation and swapping Chamfer Distance for Density-Aware Chamfer Distance fixes much of this, and they add Surface Normal Concordance (SNC), which compares estimated point normals. They then introduce the Diffusion Point Transformer (DiPT), a point-wise diffusion model that keeps the raw point count through all layers, and evaluate it on ShapeNet.

Key Contributions

1. New guidelines for evaluating point cloud generative models: barycenter alignment of samples before distance computation, and replacing Chamfer Distance (CD) with Density-Aware Chamfer Distance (DCD), to make metrics invariant to shifts and monotonic with respect to noise.
2. A new metric, Surface Normal Concordance (SNC): it compares the estimated point normals of a generated sample with those of its best-matching reference, using the absolute cosine similarity between normals, and can be paired with any distance measure (e.g. EMD or DCD) and any normal estimation method.
3. Diffusion Point Transformer (DiPT): a plain transformer-based DDPM that serializes raw point clouds with space-filling curves (Z-order, Hilbert, and their Trans-Hilbert and Trans-Z variants), applies Serialized Patch Attention and enhanced Conditional Positional Encoding (xCPE), and performs point-wise diffusion without voxelization or downsampling.
4. Extensive experiments and comparisons on ShapeNet (chair, airplane, car categories) plus a small user study with 15 participants and 45 trials validating SNC against human perception.

Main Findings

• Traditional metrics are not robust to shifts or noise: MMD-CD and JSD do not exhibit a monotonic inverse response to noise, and none of the traditional metrics are invariant to barycenter shifts. In the authors' analysis with 4573 training samples treated as ideal generations and 753 reference samples, CD-based metrics such as MMD-CD could even improve when low to mid levels of noise were added, making them unsuitable as quality indicators.
• Alignment matters: barycenter alignment mitigates but does not eliminate the CD problem; MMD-DCD without alignment shows a slight improvement at low noise levels, which disappears once alignment is applied. Under small barycenter shifts, 1-NNA, MMD, and COV varied when computed without alignment and were stable when computed with it.
• DCD and EMD are monotonic in noise: unlike CD, EMD and DCD demonstrated monotonically increasing MMD behavior in response to added noise, both with and without alignment, and for both uniformly and randomly sampled points.
• SNC is highly sensitive to fine-grained detail: small perturbations in point positions cause significant variations in their normals, giving SNC a strong inverse response to noise. It is also independent of global scaling and normalization, so it remains usable as a quality indicator when MMD cannot be compared fairly due to different input normalization.
• User study supports SNC: with 15 participants ranking 5 point clouds across 3 categories in 45 trials, average Spearman correlations were −0.44 for SNC and 0.32 for MMD, suggesting SNC better reflects human perception. DCD achieved the highest correlation to visual perception among all metrics, improving CD by 0.31, whereas SNC maintained similar correlation regardless of the base distance measure.
• DiPT achieves state-of-the-art quality: on ShapeNet, DiPT achieved the best MMD and SNC across all three categories (chair, airplane, car). For chair, DiPT reached MMD-DCD 6.08 and SNC-EMD 75.10; for airplane, MMD-DCD 3.29, MMD-EMD 1.65 and SNC-EMD 86.00; for car, SNC-EMD 80.64. Compared to DiT-3D at the same Small (S) model size, DiPT showed significantly better generalization while producing higher-quality samples.
• Variability results are mixed: DiPT outperformed other methods in variability on airplane (1-NNA DCD 63.70, EMD 74.32; COV DCD 44.20, EMD 46.42) but no single method clearly dominated on the other categories. DiPT led in 4 out of 12 variability scores (3 on airplane, 1 on car), LION led in 2, and other methods topped only 1 each.
• SNC resolves discordant MMD results: on airplane generation, SetVAE and PVD had discordant MMD-DCD and MMD-EMD values, but SNC consistently favored SetVAE with higher values under both DCD and EMD, matching visual comparison.
• Rotation handling cost measured: since ShapeNet shapes share the same orientation, only barycenter alignment was used; on DiPT-S, SNC improved in mean by 0.06% with ICP registration but ran 3.35 times slower.
• JSD was excluded from the final comparison: it remained the only metric lacking robustness and stability even after the refinements.
• Rank consistency: with inhomogeneous references, SNC and MMD-DCD were the most consistent metrics for preserving relative model rankings, achieving the highest rank correlations.

Methodology in Plain English

The authors start by defining three properties a good generative point cloud metric should have: invariance to rigid translations of generated samples, consistent behavior across different point distributions, and an inverse monotonic response to noise.

To test whether existing metrics satisfy these, they take 4573 training samples as "ideal generations" and compare them against a 753-sample reference set, then progressively inject Gaussian noise and barycenter shifts proportional to each sample's diameter (the maximum inter-point distance). Shapes contain 2048 points, sampled either uniformly or randomly to simulate uniform and inhomogeneous point distributions.

They then propose two fixes. First, before computing any distance, they subtract each sample's barycenter so a shifted shape still matches the same reference. Second, they swap Chamfer Distance for Density-Aware Chamfer Distance, which accounts for how many points query each nearest neighbor and is more sensitive to density mismatch. They also define Surface Normal Concordance: for each point in a generated cloud, find its closest point in the best-matching aligned reference, estimate normals for both (using PCA over a neighborhood), and average the absolute cosine similarity. Normals in this work were computed with PCA-based estimation over neighborhoods of 20 points.

For the generative model, DiPT adapts the diffusion structure of DiT-3D and the backbone ideas of PTv3. Raw points are reordered into 1D sequences using space-filling curves, grouped into non-overlapping patches (maximum patch size of 8 in the illustrated example), and attended within patches, which avoids the cost of KNN-based local grouping. Serialization orders are randomly shuffled so each block learns diverse patterns. Positional information comes from xCPE, a sparse convolution with a skip connection placed outside the attention mechanism, which permits optimizations like flash attention. Features are modulated and scaled per block using Adaptive Layer Normalization conditioned on the diffusion timestep and a learnable class embedding, enabling multi-class training.

Models were trained at the Small (S) ViT/DiT configuration: 12 blocks, feature size 384, 6 attention heads, alternating patch sizes in the pattern 256-512-1024-1024, on 32 NVIDIA H100 GPUs for 10000 epochs with AdamW and a one-cycle learning rate policy peaking at 2e-4. A DDPM scheduler was used with 1000 noising steps and linearly increasing forward process variances from 1e-4 to 0.02. Training used the chair, airplane, and car categories of ShapeNet with 2048 points per shape via Furthest Point Sampling, following the dataset splits and preprocessing of PointFlow, including global sample normalization.

Why This Matters

Impact on research. The paper questions the reliability of metrics that the 3D generation community has used for years, showing that reported quality can be distorted by translation and noise sensitivity. Barycenter alignment, DCD, and SNC give researchers a more stable basis for comparing models, and SNC offers a quality signal that survives differences in normalization where MMD cannot. The DiPT architecture further shows that avoiding voxelization and downsampling throughout the network preserves fine surface detail.

Real-world applications.

• Autonomous vehicles, which rely on 3D point cloud perception and could use generated data for training and simulation.
• Robotics, where 3D scene understanding and synthetic object generation support manipulation and navigation.
• Medical domains, where 3D shape generation and assessment from scans can support anatomical modeling.
• LiDAR scene generation, where the paper suggests decomposing scenes into objects such as cars, pedestrians, and buildings and evaluating each with SNC.

Industry relevance. Any pipeline that synthesizes 3D assets or scans and needs an automatic quality gate benefits from metrics that respond correctly to defects and ignore irrelevant positioning differences. The scale of training (32 H100 GPUs, 10000 epochs) also signals the computational expectations of state-of-the-art point cloud diffusion. Code is released at https://github.com/matteo-bastico/DiffusionPointTransformer.

Future Directions

• Rotational registration: the paper used only barycenter alignment because ShapeNet shapes share a common orientation; applying rigid registration methods such as ICP or CPD to handle rotation mismatches in more general scenarios remains open.
• Adapting metrics to irregular objects: SNC is designed for single objects where surface smoothness matters and may struggle with irregular shapes such as trees; it may require tuning of normal estimation, for example changing the PCA neighborhood size or adapting it dynamically to object complexity.
• Extension to scenes and domain-specific data: the authors propose adapting DiPT and the metrics to LiDAR scans and domain-specific datasets, with object decomposition for scene-level evaluation.
• Metric tuning by shape complexity: dynamically adjusting metrics like SNC based on shape complexity, irregularities, and requirements to enable more generalizable assessment of 3D generative models.

Target Audience

Researchers and practitioners working on 3D generative modeling, point cloud analysis, and diffusion models who need trustworthy evaluation protocols. It is also relevant to engineers building synthetic 3D data pipelines for autonomous driving, robotics, or medical imaging, and to anyone benchmarking point cloud generative models on ShapeNet who wants to understand why reported metric values may be misleading.

Authors’ abstract

As 3D point clouds become a cornerstone of modern technology, the need for sophisticated generative models and reliable evaluation metrics has grown exponentially. In this work, we first expose that some commonly used metrics for evaluating generated point clouds, particularly those based on Chamfer Distance (CD), lack robustness against defects and fail to capture geometric fidelity and local shape consistency when used as quality indicators. We further show that introducing samples alignment prior to distance calculation and replacing CD with Density-Aware Chamfer Distance (DCD) are simple yet essential steps to ensure the consistency and robustness of point cloud generative model evaluation metrics. While existing metrics primarily focus on directly comparing 3D Euclidean coordinates, we present a novel metric, named Surface Normal Concordance (SNC), which approximates surface similarity by comparing estimated point normals. This new metric, when combined with traditional ones, provides a more comprehensive evaluation of the quality of generated samples. Finally, leveraging recent advancements in transformer-based models for point cloud analysis, such as serialized patch attention , we propose a new architecture for generating high-fidelity 3D structures, the Diffusion Point Transformer. We perform extensive experiments and comparisons on the ShapeNet dataset, showing that our model outperforms previous solutions, particularly in terms of quality of generated point clouds, achieving new state-of-the-art. Code available at https://github.com/matteo-bastico/DiffusionPointTransformer.
