Reinforcement-Learned Unequal Error Protection for Quantized Semantic Embeddings

AI summary

Overview

Research area: Semantic communication, joint source-channel coding, reinforcement learning for resource allocation, and error-correction coding for bandwidth-constrained networks.

Technical level: Advanced (combines reinforcement learning, channel coding, quantization theory, and stochastic approximation analysis).

Scope: The paper proposes and evaluates an end-to-end system in which a reinforcement-learning agent assigns a discrete repetition count to each individual dimension of a quantized sentence embedding, so that semantically important dimensions receive more protection than unimportant ones under a fixed channel-use budget.

What This Paper Is About

Modern communication systems are built to reproduce bits exactly, but many next-generation applications (6G, IoT, edge computing) only need the meaning of a message to survive the channel. Existing semantic communication systems treat an embedding as a single indivisible unit and apply the same amount of error protection and quantization to every one of its dimensions, even though some dimensions carry far more meaning than others. This paper asks whether a reinforcement-learning policy can learn, per dimension, how many times to repeat each quantized value so that semantic fidelity is maximized within a strict bandwidth budget.

Key Contributions

1. A reinforcement learning framework for per-dimension unequal error protection (UEP) that allocates discrete repetition counts to individual quantized embedding dimensions, rather than uniform or heuristic redundancy.
2. A composite semantic distortion metric that balances global embedding similarity (cosine similarity) against entity-level correctness, used both as the optimization objective and as the scalar reward signal for the RL agent.
3. Empirical evidence of asymmetric cross-quantization transfer: a policy trained only with 8-bit quantization generalizes effectively to 4-bit quantization (halving bandwidth) but degrades at 12- and 16-bit quantization.
4. An argument that code structure must match semantic granularity — repetition coding enables per-dimension adaptation with a tractable action space, whereas block codes such as Reed-Solomon and LDPC enforce symbol-block-level uniformity and eliminate the learned advantage.
5. An actor-critic algorithm with entropy regularization and a two-timescale convergence guarantee, plus evaluation across SNR regimes, quantization levels, channel models, and ECC choices on the AG News dataset.

Main Findings

• Significant gains over uniform protection at 1 dB SNR: the learned policy achieves 6.8% higher chrF and 9.3% better entity preservation than uniform allocation. At 1 dB, the balanced objective reaches chrF 0.3123 (95% CI 0.2710–0.3498) and entity fraction 0.2595, versus 0.2923 and 0.2374 for uniform.

• Cosine similarity alone is a poor objective in low-SNR regimes: cosine similarity saturates early (median permutation-test p_cos = 0.648 at 2 dB and is not significant), while chrF, entity fraction, and the composite distortion D_S remain highly significant. The balanced setting α = 0.5 outperforms entity-only (α = 0) and embedding-only (α = 1) objectives in the critical 1–2 dB range.

• Fast and stable training: across 10 random seeds, the policy attains ≥ 99.9% of the improvement over uniform allocation by the first epoch, with changes beyond epoch 3 below Δ D_S ≤ 5 × 10⁻⁴ (< 0.06% relative) and cross-seed variance σ_D_S ≤ 0.0010.

• Asymmetric transfer across quantization: evaluating the 8-bit-trained policy at 4 bits improves D_S by 30–48% while halving bandwidth (all improvements p < 0.001), whereas evaluating at 12/16 bits increases distortion by up to +167% at 3 dB for 16-bit. Deterministic and stochastic quantization produce very similar numbers, e.g. at 8 bits and 0 dB, D_S = 0.821 (0.818–0.824) deterministic versus 0.825 (0.822–0.828) stochastic.

• Learned allocation beats heuristic and random baselines: at 2 dB the RL policy delivers a 2.7% chrF improvement over uniform, while a variance-based importance heuristic gives only 1.5%. At 1 dB, RL reaches 0.3123 chrF versus 0.3026 (random), 0.2963 (No_UEP), 0.2804 (importance), and 0.2923 (uniform).

• Conventional block codes erase the advantage: gains persist with repetition coding (at 1 dB, RL 0.3123 vs uniform 0.2923, Δ_chrF = +0.0200, p < 0.001) but vanish when Reed-Solomon or LDPC codes are used, because those impose uniform protection at the symbol-block level.

• Low inference cost: per-message inference complexity is O(C_E + C_π + bB), suitable for low-latency edge deployment, versus per-batch training complexity O(N(C_E + C_π + C_v + bB)).

• Channel-model robustness and comparison against contemporary semantic communication systems are listed as planned analyses (Sections 4.8–4.9 of the design), but their results are not reported in the available paper content. Channel models used in evaluation are Rayleigh, Rician with K = 1, Nakagami-m with m = 1, burst-error, and a Binary Symmetric Channel with p ∈ [0.05, 0.10].

Methodology in Plain English

The authors take a sentence and pass it through a frozen sentence encoder (all-MiniLM-L6-v2, producing 384-dimensional embeddings). The embedding is normalized and each dimension is converted into a signed integer with uniform b-bit quantization (8 bits by default). Instead of protecting every dimension equally, a small neural network policy looks at the whole embedding and outputs a probability distribution over how the redundancy budget should be spread across dimensions. The budget is tight — ecc_rate = 0.02, roughly 7–8 extra repetitions across all 384 dimensions — and each quantized symbol is sent 1 + t_i times, then recovered at the receiver by majority voting.

The forward pass uses a deterministic allocation: multiply probabilities by the budget T, take the floor, and give leftover slots greedily to the dimensions with the largest fractional parts. Because this flooring operation is not differentiable, gradients are computed through a relaxed sample (Multinomial or Gumbel-top-k), an approach the authors describe as a straight-through biased policy-gradient scheme. The reward is the negative composite distortion minus a penalty for consuming redundancy, and the policy is trained with Advantage Actor-Critic (A2C) using two hidden layers of 128 units, Adam at η = 5 × 10⁻⁴, gradient clipping at ||∇||₂ ≤ 1.0, entropy coefficient β = 0.01, 3 epochs of 128 episodes, all under a fixed 0 dB AWGN channel to stress the policy. Reconstruction works by closed-vocabulary retrieval: the recovered embedding is compared by cosine similarity against all knowledge-base embeddings, and a two-threshold rule decides whether to return the best match verbatim, flag it as uncertain, or emit a failure token. Evaluation covers 4,000 AG News training sentences with results averaged over 400 held-out messages, bootstrapped confidence intervals from 200 resamples, Wilcoxon signed-rank tests, Cohen's d, and Bonferroni correction.

Why This Matters

Impact on research: The paper argues that the classical separation between source coding and channel coding is the wrong abstraction when the objective is meaning preservation, and that the granularity of a channel code matters as much as its error-correcting power. It also provides a counterintuitive empirical result — that a policy trained at a moderate bit width can be better at aggressive bit widths — and formal convergence conditions for the actor-critic scheme via two-timescale stochastic approximation, with a relaxation bias of order O(1/T) that vanishes as T → ∞.

Real-world applications:

• Edge computing and IoT devices operating under scarce bandwidth but requiring high semantic fidelity.
• 6G semantic-aware networks, where conveying intent rather than bits is the design goal.
• Ultra-reliable low-latency communication (URLLC) and massive IoT deployments cited as the motivating settings.
• Bandwidth-constrained text transmission pipelines where a closed-vocabulary reconstruction (retrieval from a knowledge base) is acceptable.

Industry relevance: The framework is deliberately lightweight — training once at 8-bit resolution and deploying at 4-bit avoids retraining while halving bandwidth — which suits hardware-constrained deployments. The finding that repetition coding with intelligent allocation outperforms conventional block codes in this setting is directly relevant to system designers choosing coding schemes for semantic links.

Future Directions

1. Closing the high-bit-width gap: the policy degrades at 12- and 16-bit quantization (up to +167% distortion at 3 dB for 16-bit); the authors attribute this to the policy protecting only critical dimensions while finer quantization creates many vulnerable levels. A protection policy that adapts to quantization resolution is an open problem.
2. Extending beyond the frozen embedder: the paper explicitly notes that a frozen embedder is used to isolate the contribution of the protection layer, and that end-to-end training of the embedder is complementary but outside its scope.
3. Results under channel mismatch and head-to-head benchmarking against contemporary semantic communication systems: both are listed as planned parts of the evaluation, but their outcomes are not reported in the available content.
4. Scaling the action space: the paper frames repetition coding as a tractable primitive that shifts the challenge "from code design to the intelligent allocation of simple resources," raising the question of whether richer code structures can be made adaptive at per-dimension granularity without losing trainability.

Target Audience

Researchers and graduate students in semantic communication, joint source-channel coding, and reinforcement learning for networking; communications engineers designing coding schemes for bandwidth-constrained or edge deployments; and practitioners in 6G, URLLC, and IoT who need meaning-preserving transmission rather than bit-exact recovery. Readers should be comfortable with quantization, channel coding basics, and policy-gradient reinforcement learning.

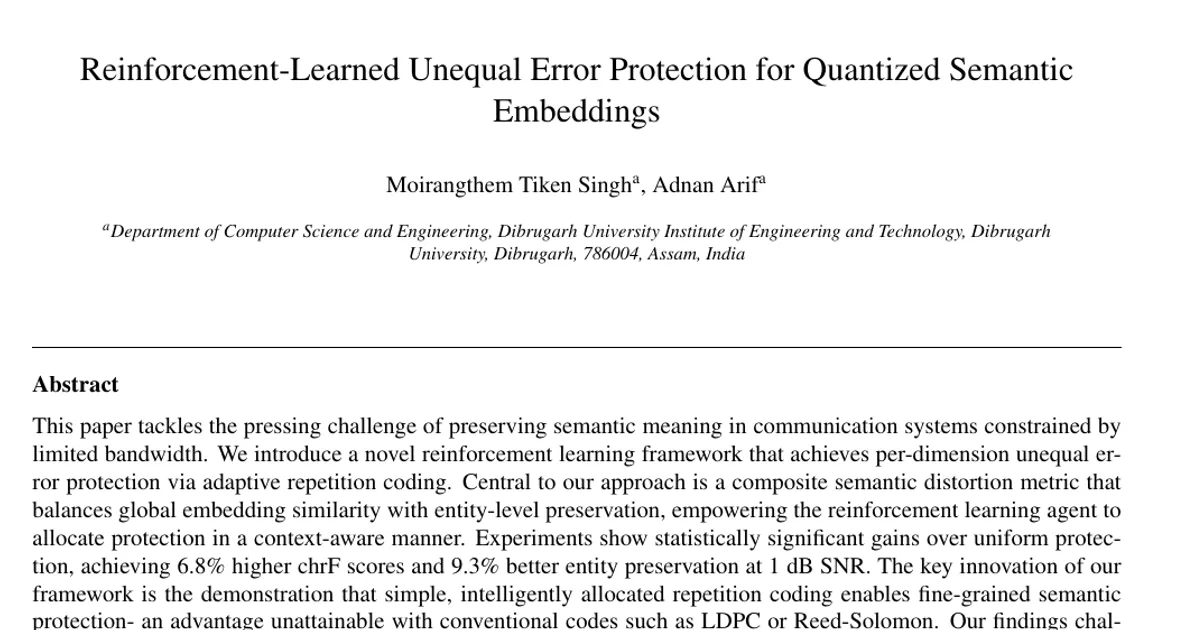

Authors’ abstract

This paper tackles the pressing challenge of preserving semantic meaning in communication systems constrained by limited bandwidth. We introduce a novel reinforcement learning framework that achieves per-dimension unequal error protection via adaptive repetition coding. Central to our approach is a composite semantic distortion metric that balances global embedding similarity with entity-level preservation, empowering the reinforcement learning agent to allocate protection in a context-aware manner. Experiments show statistically significant gains over uniform protection, achieving 6.8% higher chrF scores and 9.3% better entity preservation at 1 dB SNR. The key innovation of our framework is the demonstration that simple, intelligently allocated repetition coding enables fine-grained semantic protection -- an advantage unattainable with conventional codes such as LDPC or Reed-Solomon. Our findings challenge traditional channel coding paradigms by establishing that code structure must align with semantic granularity. This approach is particularly suited to edge computing and IoT scenarios, where bandwidth is scarce, but semantic fidelity is critical, providing a practical pathway for next-generation semantic-aware networks.
