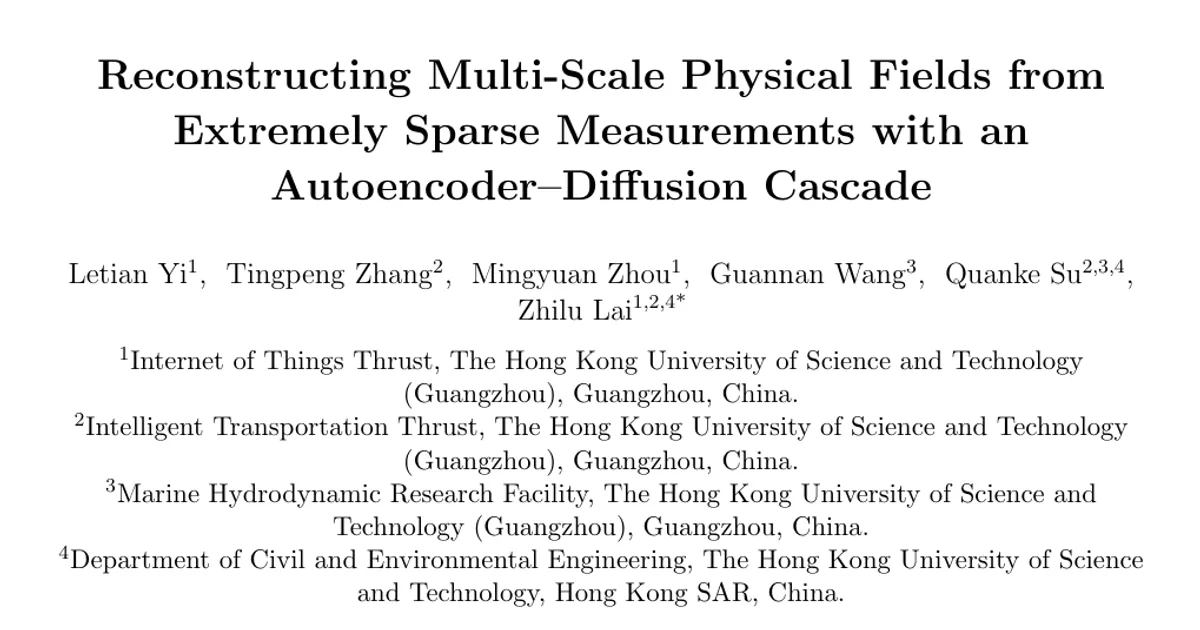

Reconstructing Multi-Scale Physical Fields from Extremely Sparse Measurements with an Autoencoder-Diffusion Cascade

AI summary

Overview

Research area: Scientific machine learning and probabilistic inverse problems — specifically full-field reconstruction of multi-scale physical fields from extremely sparse sensor measurements, combining neural-operator function learning, autoencoders, and denoising diffusion probabilistic models.

Technical level: Advanced. The paper assumes familiarity with Bayesian posterior inference, ill-posed inverse problems, neural operators/kernel integral operators, DeepONet-style coordinate networks, and DDPM forward/reverse processes.

Scope: The paper proposes "Cascaded Sensing" (Cas-Sensing), a two-stage autoencoder–diffusion pipeline that restructures the posterior of a physical field into a deterministic coarse-scale structural estimate plus a stochastically sampled refined-scale residual, and evaluates it on simulated and real-world field data.

What This Paper Is About

When sensors are extremely sparse, many different full physical fields can be equally consistent with the same handful of measurements, so recovering the entire field is severely underdetermined — an ill-posed inverse problem with a multimodal, underconstrained posterior. The paper argues that neither deterministic end-to-end regression (which collapses the uncertainty) nor direct conditional or inference-time-guided generation (which is weak and noise-sensitive under extreme sparsity) handles this regime reliably. Its goal is to reorganize the reconstruction into two simpler, better-conditioned subproblems so that a deterministic stage fixes the field's global structure and a diffusion model only has to sample the remaining fine-scale detail.

Key Contributions

1. A cascaded posterior decomposition (Cas-Sensing). An intermediate coarse-scale variable m is inserted into the posterior via marginalization, p(u|y) = ∫ p(u|m,y) p(m|y) dm. Rather than learning the stochastic p(m|y) exactly — which the authors argue is itself ill-conditioned and expensive — the framework approximates it with a Dirac delta at a deterministic coarse estimate m̂(y), turning the problem into modeling a detail/residual distribution p(d|m̂(y)) where d = u − m.

2. A neural-operator-based functional autoencoder for the coarse stage. The encoder is parametrized as a kernel integral operator with hidden width l = 64, GELU activations, and a linear output layer; both encoder and decoder coordinates are augmented with 16 random Fourier features to reduce spectral bias. A permutation-invariant average pooling operation lets the model accept arbitrarily ordered and arbitrarily sparse unstructured inputs and reduces the latent discrepancy between sparse and dense inputs. It is trained with a complement-mask (masked-input) objective, with the encoder subset ratio r_enc treated as a tunable hyperparameter.

3. A conditional DDPM for refined-scale details, plus Mask-Cascade Training (MCT). The diffusion backbone is a DDPM with a linear noise schedule increasing the variance β_t from 1×10⁻⁴ to 0.02 over T = 1000 steps, using the closed-form posterior variance σ_t² = β_t (1 − ᾱ_{t−1})/(1 − ᾱ_t) rather than a learned variance. Crucially, the model is conditioned only on the coarse structure m̂(y) (hard conditioning), not on the specific sparse observation y, decoupling generalization from specific sensor patterns. MCT passes random sparse masks through the pretrained functional autoencoder to produce diverse coarse conditions and their corresponding details from the same ground-truth field, exposing the diffusion model to condition variability without enumerating all sparse-to-full-field mappings.

4. Manifold-Constrained-Gradient (MCG) guidance repositioned as local refinement. At inference, sparse measurements enter through MCG. Because the global structural anchor is already established, MCG acts as a local refinement mechanism rather than a full-field mode selector — which the authors contrast with purely soft-conditioning approaches whose weak inference-time constraints are said to fluctuate among competing observation-consistent solutions. The same framework is also claimed to extend to fields with internal geometric boundaries, where the autoencoder supplies transferable coarse conditions for boundary configurations unseen during training.

Main Findings

• Structured uncertainty beats one-shot posterior modeling. The paper's central claim, supported by its framing of the ill-posedness, is that the key difficulty is not whether to represent uncertainty but how to structure it: resolving global structural ambiguity first and confining stochasticity to residuals stabilizes posterior inference under extreme sparsity.

• Existing paradigms each have a complementary failure mode. Hard-conditioning approaches (supervised conditional distributions, physics-informed conditional diffusion, FunDiff-style latent conditioning) must learn a broad family of observation-conditioned mappings and rely on training coverage of the state–observation relation; purely soft-conditioning approaches (projection-based or Bayesian posterior sampling on an unconditional prior) avoid that training burden but rely on weak inference-time guidance.

• Soft conditioning can produce unstable mode selection, not a stable multimodal posterior. The paper states that its experiments show posterior sampling under weak observation constraints does not necessarily reflect a stable multimodal posterior but rather an ill-conditioned approximation, where small measurement perturbations can induce substantial changes in the inferred posterior, and generated fields may match sparse observations while remaining inaccurate over the full domain.

• Smoothing behavior of the coarse stage is a deliberate design property. Average pooling is argued to adaptively attenuate high-frequency variation while preserving low-frequency components and to reduce the latent discrepancy between sparse and dense observations, making the learned latent space largely insensitive to the input sampling ratio.

• Reported evaluation scope. Experiments are described as using simulated data of circular cylinder flow and Navier–Stokes vorticity flow, and real-world data of ocean wave height and global ocean temperature. The abstract states the method demonstrates consistent generalization across sensor layouts, sparsity levels, noise conditions, and unseen geometric boundary configurations, producing stable and physically consistent reconstructions in both regular-domain fields and physical systems with internal boundaries.

• Quantitative results are not reported in the provided content. The supplied text is truncated within Section 2.3.1, so no numerical error metrics, benchmark comparisons, dataset sizes, or ablation values are available. Section 3 (experiments), Section 4 (discussion of advantages and limitations), and Section 5 (conclusion and future work) are referenced in the paper's outline but their contents are not included above.

Methodology in Plain English

The authors start from the observation that if you only have a few sensors, the problem of guessing the whole field is mathematically "ill-posed" — the data simply do not pin down a unique answer. Instead of trying to learn the whole complicated answer in one shot, they split the job in two.

Stage one — get the big picture. They train a "functional autoencoder" that takes whatever measurements you have, at whatever locations, and produces a smooth, coarse version of the field. This network is unusual in two ways: it is built to accept data on arbitrary coordinates (using coordinate networks with added Fourier features, and an average-pooling step that ignores the ordering of the input points), and it is trained by repeatedly hiding most of the field and asking it to reconstruct the hidden parts from the visible ones. This makes it good at working from partial information. The output is treated as the field's dominant global structure — the authors frame it as roughly a maximum-a-posteriori style anchor.

Stage two — fill in the detail. Whatever the coarse estimate gets wrong is the "detail" or residual. The authors train a conditional diffusion model — the same family of generative model used in image generation — to produce that residual. Crucially, the diffusion model is conditioned on the coarse estimate only, not on which sensors happened to be active. Because the residual is a much simpler, more concentrated thing to learn than the whole field, sampling is far more stable.

Handling different sensor setups. During training, they randomly mask the fields, push the masked versions through the pretrained autoencoder, and use the resulting variety of coarse estimates as conditions for the diffusion model. This "mask-cascade training" teaches the diffusion model to cope with many kinds of sparse conditions without ever having to memorize every specific sensor pattern.

At test time. The sparse measurements are enforced through manifold-constrained-gradient guidance during reverse diffusion. Because the coarse structure is already fixed, this guidance only nudges the output locally, rather than trying to select among wildly different global solutions.

Why This Matters

Impact on research. The paper reframes sparse field reconstruction from "which generative model to use" to "how to structure the posterior." If the argument holds, it suggests that the instability reported in likelihood-guided diffusion sampling for severely ill-posed scientific inverse problems is partly an artifact of trying to solve the whole posterior at once, and that cascaded decomposition with a deterministic structural anchor is a more robust design principle. It also connects the computer-vision idea of cascaded generation across resolutions to physics-field reconstruction across spatial scales.

Real-world applications (as studied or implied in the paper):

• Ocean and marine monitoring — reconstructing ocean wave height fields from sparse buoy or platform measurements, relevant to the paper's affiliation with a marine hydrodynamic research facility.
• Climate and oceanography — full-field reconstruction of global ocean temperature from limited observations.
• Fluid dynamics and aerodynamics — reconstructing vorticity fields and the flow around a circular cylinder, which are standard test cases for measurement-constrained flow estimation.
• Infrastructure and environmental sensing — the motivating examples of astrophysics, geophysics, and atmospheric science, where dense sensor deployment is prohibitively expensive.

Industry relevance. The key industrial appeal is generalization without retraining: the paper claims consistent performance across different sensor layouts, sparsity levels, and noise conditions, which matters when a sensing system is deployed, sensors fail or move, or the same model must serve multiple configurations. Its support for unstructured coordinates and physical domains with internal boundaries is aimed at practical engineering geometry rather than idealized grids. The paper does not report computational cost, runtime, model size, or data requirements, so deployment economics cannot be assessed from the provided content.

Future Directions

Because the provided text is truncated before Sections 3–5, the authors' own stated future work is not included; the following follow from the paper's framing and open claims:

• Quantifying the cascade's benefit. The paper does not report error metrics or comparisons against compressed sensing, deep-learning end-to-end baselines, or soft-conditioning diffusion in the provided content. Systematic benchmarking across these families would test the central claim directly.
• Restoring the discarded coarse-scale uncertainty. The deterministic Dirac-delta approximation of p(m|y) intentionally compresses coarse-scale variability; how much of that variability matters for downstream scientific use, and whether a partially stochastic coarse stage would help, remains open.
• Sensitivity to noise and sensor configuration. The paper argues soft-conditioning methods are noise-sensitive and unstable. A study of how Cas-Sensing's own stability degrades as noise grows, sparsity increases, and layouts shift further from training conditions would clarify the limits of the structural anchor.
• Extending to more boundary and geometry variation. Generalization to unseen geometric boundary configurations is claimed; how far this transfers (arbitrary internal boundaries, changing domain topology, multiple simultaneous unseen boundaries) is not established in the available content.

Target Audience

This paper is aimed at researchers and graduate students in scientific machine learning, computational physics, and inverse problems who work on data-driven field reconstruction, surrogate modeling, or generative models for physical systems. It will be most useful to readers already comfortable with Bayesian posterior inference, neural operators, and diffusion models — the exposition of the hierarchical decomposition and the autoencoder architecture is technical, and the DDPM formulation is presented in standard, compact notation. Practitioners in ocean/atmospheric sensing, fluid mechanics, and sensor-network engineering who face sparse-measurement reconstruction problems are the likely applied audience, though they would need the (not included) experimental section to judge accuracy gains. Readers seeking quantitative results, dataset sizes, or benchmark comparisons will not find them in the provided content.

Authors’ abstract

Extreme sensor sparsity makes full-field reconstruction a fundamentally ill-posed problem in scientific sensing,where the goal is to infer physical fields from sparse measurements.In this regime,the posterior is severely underconstrained and inherently multimodal,making its approximation highly ill-conditioned.Specifically,deterministic mappings collapse uncertainty,direct conditional learning cannot cover the space of possible observation-conditioned solutions,and likelihood-guided sampling becomes highly sensitive to noise and sensor configurations.These limitations result in unstable posterior estimates and highlight the need for modeling uncertainty in a structural manner.To this end,we propose Cascaded Sensing,a hierarchical framework that restructures posterior inference across scales.Rather than modeling the full-field posterior directly,Cas-Sensing first resolves global structural ambiguity through a deterministic coarse-stage estimator.A neural-operator-based functional autoencoder,trained with masked inputs,maps sparse observations to a coarse-scale structural field,acting analogously to a maximum a posteriori estimator that selects the dominant global configuration.This structural anchor fixes the principal degrees of freedom of the posterior and transforms the problem into a better-conditioned residual inference task.A conditional diffusion model then learns only the refined-scale residual distribution,confining sampling to a stable neighborhood of plausible solutions and suppressing competition among observation-consistent modes.To enhance robustness under varying sensing conditions,we introduce mask-cascade training,which exposes the model to diverse sparse observation patterns through intermediate coarse reconstructions.During inference,manifold-constrained guidance enforces observation consistency as a refinement mechanism rather than a global mode-selection process.
