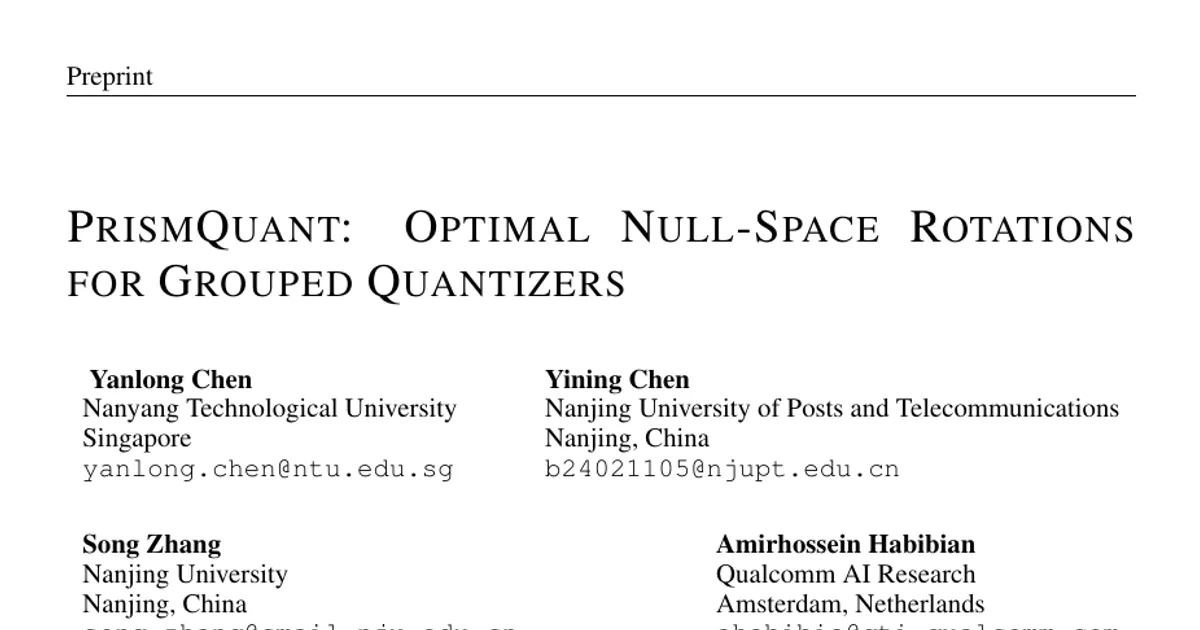

PrismQuant: Optimal Null-Space Rotations for Grouped Quantizers

AI summary

Overview

Research area: Post-training quantization of large language models — specifically 4-bit weight, activation, and KV-cache quantization (W4A4KV4), and the design of rotation/transform methods that reshape activation distributions before quantization.

Technical level: Advanced. The paper combines quantizer geometry, spectral linear algebra (Ky Fan maximum principle), numerical linear algebra (Householder reflections, compact-WY representation), and GPU kernel engineering.

One-sentence scope: The paper introduces PrismQuant, a training-free rotation framework that provably steers the dominant activation eigenspace into the subspace a grouped asymmetric INT4 quantizer represents for free via its per-group affine offsets, and validates it on Llama, Qwen, and Mistral models from 0.6B to 70B parameters.

What This Paper Is About

Low-bit quantization of LLM activations is hard because a few channels or low-dimensional directions dominate the quantization range, leaving little resolution for the rest of the signal. Existing fixes — Hadamard rotations, learned rotations, channel-wise smoothing — either treat the quantizer as fixed or optimize activation geometry without asking which directions the quantizer already handles efficiently. PrismQuant reverses that framing: it identifies the "range-null" subspace that an asymmetric grouped quantizer represents for free through its per-group offsets, and then computes the rotation that puts the most activation energy exactly there.

Key Contributions

1. Quantizer-induced subspace alignment. The authors formalize the group-constant, range-null subspace of a grouped asymmetric quantizer — spanned by the normalized group indicators, with dimension d/g — and cast rotation design as maximizing the activation energy captured by that fixed subspace. Because the target subspace is set by the format rather than estimated from outlier statistics, the problem has a closed-form optimum.

2. Spectral optimality with compact execution. Using the Ky Fan maximum principle, they prove the optimum maps the leading k eigendirections of the activation second moment onto the selected group-constant directions. They realize it with a training-free Householder construction in compact WY form, with a rank k controlling the alignment/cost trade-off, supporting both weight folding and an online block-Hadamard-plus-rank-k correction.

3. A predictive range law and metadata accounting. They bound the aggregate squared within-group range by twice the residual energy outside the range-null subspace, and derive a two-factor law linking the quantization step to residual unaligned energy and group size, with a single measured crest-factor ratio as the only approximation.

4. End-to-end validation and deployment. They benchmark W4A4KV4 on Llama-3.2-3B, Llama-3.1-8B, Llama-3.1-70B, Qwen3-30B-A3B-Base, plus Qwen3 dense models from 0.6B to 8B and Mistral-7B-v0.3, and report a packed-INT4 deployment study with speed and memory measurements on commodity GPUs.

Main Findings

• Alignment reduces within-group variation. On Llama-3.2-3B layer 27 down-projection inputs at g=128, PrismQuant reduces the mean within-group range from 1.76 to 0.84 relative to Hadamard under matched asymmetric INT4 quantization. Across all 28 down-projection inputs of that model, within-group range and activation NMSE drop by roughly 25% and 40% on average relative to Hadamard.

• Best reported result on Llama-3.2-3B among compared methods. At k=max, PrismQuant reaches 8.58 WikiText-2 perplexity and 61.23% mean zero-shot accuracy over eight tasks, versus 9.04 and 59.29% for the metadata-matched Hadamard baseline and 7.80 / 62.73% for bf16. It surpasses the published OffQ result by 0.43 accuracy points with 0.20 lower perplexity.

• Large-model scaling. On Llama-3.1-70B, PrismQuant (k=8) attains 3.85 perplexity and 72.46% average zero-shot accuracy, 0.22 percentage points below the bf16 reference (2.81 / 72.68%) and improving all eight tasks over Hadamard (4.22 / 71.36%). It exceeds BASE-Q by 1.61 points with 0.32 lower perplexity on that model.

• Perplexity-gap closure. Against the metadata-matched Hadamard baseline, PrismQuant closes 37%, 30%, and 26% of the perplexity gap to bf16 on Llama-3.2-3B, Llama-3.1-8B, and Llama-3.1-70B respectively; accuracy gains are 1.94 points on 3B (59.29 → 61.23) and 1.10 points on 70B (71.36 → 72.46).

• Preferred rank is model dependent. In the activation-only ablation (Table 3), k=8 recovers 38.59% of the Hadamard-to-bf16 gap on Llama-3.2-3B and 35.53% on Llama-3.1-8B, while k=max recovers 42.67% and 43.12%. Recovery is not monotone at intermediate ranks. On Qwen3-8B, where the Hadamard gap is three times larger (0.442 versus 0.154 and 0.142 perplexity), recovery rises from 59.12% at k=8 to 99.95% at k=max.

• Mixture-of-experts transfer. On Qwen3-30B-A3B-Base with the router kept in bf16 and one R4 per expert (k=6, its full slot count), Hadamard costs 0.57 WikiText-2 perplexity, 0.77 C4 perplexity, and 1.24 accuracy points against bf16. PrismQuant recovers 46% and 38% of the two perplexity gaps at k=max, and 1.05 of the 1.24 accuracy points at k=8, landing only 0.19 points below bf16 (a gain of 2.4 standard errors). The two PrismQuant rows share expert rotations and differ only in the rank of R1; their 0.29-point accuracy difference is within one standard error.

• Alignment capacity versus granularity. The authors report that at a shared 4.25-bit activation budget, one represented direction per group of 128 beats three per group of 256 on both Llama models (Table 6a), so finer groups are the more effective use of a fixed bit budget.

• Deployment overhead is small relative to the gains. On Llama-3.1-8B, the optimized implementation delivers 1.51× prefill and 1.22× CUDA Graph decode speedups over matched FP16 baselines, 56.34% lower decode peak memory, and only 2.35% additional Graph decode latency over Hadamard. In the appendix accounting, the rank-k correction adds 44 MB and 2.4% decode latency over Hadamard on that model while preserving the backend's 1.5× prefill throughput, 1.2× decode speed, and 56% lower peak memory than FP16.

• Robustness of the construction. Estimating the subspace from all calibration tokens rather than a few extreme ones recovers about a quarter more of the gain; the gain is reported as insensitive to the calibration set, the eigensolver, and the signed permutation. The advantage survives a symmetric quantizer format, and moving the aligned level out of the offset's reach costs only a quarter of the gain. With outlier tokens held in full precision (as in PrefixQuant-style token isolation), most of PrismQuant's gain remains.

Methodology in Plain English

A grouped asymmetric 4-bit quantizer stores, for every group of values, a scale (the group's range divided by 15) and an offset (the group's minimum). That offset gives the format one direction per group it can represent at zero cost — a constant level shared by all values in the group — because a shared level only shifts the offset, it does not widen the range the scale must cover. Across d dimensions with group size g, these constant directions form a subspace of dimension d/g.

PrismQuant's idea is to rotate the activations so that the biggest directions of variation land inside that free subspace. To do this, the authors collect calibration activations, estimate their uncentered second moment (the average outer product of each activation vector with itself), and take its leading eigenvectors. They then build an orthogonal transform in four parts: a product of Householder reflections that carries the leading eigenvectors onto chosen coordinate anchors, a permutation that spreads the remaining coordinates across groups to balance residual energy, a sign flip, and finally a block Hadamard transform that turns each anchor into a constant vector inside its group. This composite is stored compactly in WY form as two thin matrices, so applying it costs O(dk + d log g) per token instead of O(d²) for a dense rotation. The only part that cannot be folded into neighboring weights runs online as a block Hadamard plus a rank-k correction.

The authors also predict how much the quantization step should shrink: if a fraction f_k of the total activation energy is aligned, the residual step is modeled as the Hadamard baseline step times the square root of 1 − f_k, with no fitted coefficients. They separate the quality of the estimated eigenspace from the accuracy of the structured realization, and they report Ritz and anchor residuals separately.

Evaluation uses W4A4KV4 post-training quantization with g=128 for activations (4.25 bits per value), GPTQ INT4 weights, and a KIVI-style KV cache policy. Rotations are applied at the residual stream, after the value projection, and before the down projection. Rotation statistics and GPTQ share 128 calibration sequences of 2048 tokens, and all PrismQuant results are averaged over three random seeds.

Why This Matters

Impact on research. The paper reframes rotation-based quantization: instead of asking how to flatten activation outliers, it asks which directions the quantizer already represents cheaply, and then proves an optimal transform onto them. This turns rotation design into a single well-posed spectral problem with a closed-form solution, decoupled from task-loss optimization, and it makes the trade-off between alignment capacity and group granularity explicit rather than implicit.

Real-world applications:

• On-device and edge inference of LLMs where W4A4KV4 reduces memory footprint and arithmetic cost while the reported 56.34% lower decode peak memory and 1.51× prefill speedup matter directly.
• Serving long-context models, where KV-cache quantization pressure is highest and the paper's per-head value rotation targets the per-head affine offset.
• Deploying mixture-of-experts models such as Qwen3-30B-A3B, where each expert receives its own rotation and the router stays in bf16 so routing behavior is unchanged.
• Quantizing large dense checkpoints (up to 70B), where the reported 0.22-percentage-point accuracy gap to full precision is small enough for practical acceptance.

Industry relevance. The online residual transform is a block Hadamard plus a rank-k correction, a structure that maps directly onto Tensor Core kernels, and the implementation is integrated into a packed-INT4 pipeline with CUDA Graph replay. That makes the method deployable inside existing inference backends rather than requiring a new runtime.

Future Directions

• Native group-wise asymmetric INT4 GEMM. The authors state that a GEMM which consumes group-wise asymmetric activations natively would turn the transform's measured overhead into a checkpoint-level system change.
• Extension to other group-extrema formats. The same alignment logic is claimed to apply to block floating-point and microscaling variants, which also scale by group extrema; this is proposed but not evaluated in the paper.
• Rank selection. Because recovery is not monotone in k and the preferred rank differs across model scales (k=max on 3B/8B, k=8 on 70B, and dramatic improvement up to k=max on Qwen3-8B), how to choose rank per site and per model remains an open design question.
• Shared versus per-layer rotations. R1 is a single rotation pooled over all layers, so individual layers would each prefer a different one; the paper reports per-layer diagnostics but leaves open how much is lost by this sharing and whether a small number of grouped bases would do better.

Target Audience

Researchers and engineers working on LLM compression, quantization, and efficient inference; practitioners who deploy 4-bit weight-and-activation models and need to know where the remaining accuracy gap comes from; and readers interested in applying spectral linear algebra to systems-level ML problems. Familiarity with grouped quantization, eigen-decomposition, and orthogonal transforms is assumed throughout.

Authors’ abstract

Smaller activation outliers do not necessarily imply better low-bit quantization: their alignment with the quantizer matters. We introduce PrismQuant, a quantizer-aware rotation framework that aligns the leading activation eigenspace with the constant group subspace of asymmetric grouped INT4. The affine offsets represent the energy in this subspace without widening the range within the group. We formulate rotation design as a Ky Fan trace maximization and derive a closed-form solution that is provably optimal for this alignment objective. Compact Householder transformations and their compact-WY representation enable gradient-free construction and efficient application at both foldable and online sites. A predictive range law further connects unaligned activation energy and group size to quantization-relevant variation. Experiments on Llama, Qwen, and Mistral span dense models up to 70B parameters and a 30B mixture-of-experts model. Under W4A4KV4, PrismQuant sets the state of the art on Llama-3.2-3B among the compared methods in both perplexity and accuracy. On Llama-3.1-70B, it attains 3.85 perplexity and 72.46% average zero-shot accuracy, only 0.22 percentage points below full precision. In the deployment study on Llama-3.1-8B, our optimized implementation achieves 1.51x prefill and 1.22x CUDA Graph decode speedups over matched FP16 baselines, with 56.34% lower decode peak memory and only 2.35% additional Graph decode latency over Hadamard. Code is available at https://github.com/ForeverBlue816/PrismQuant.
