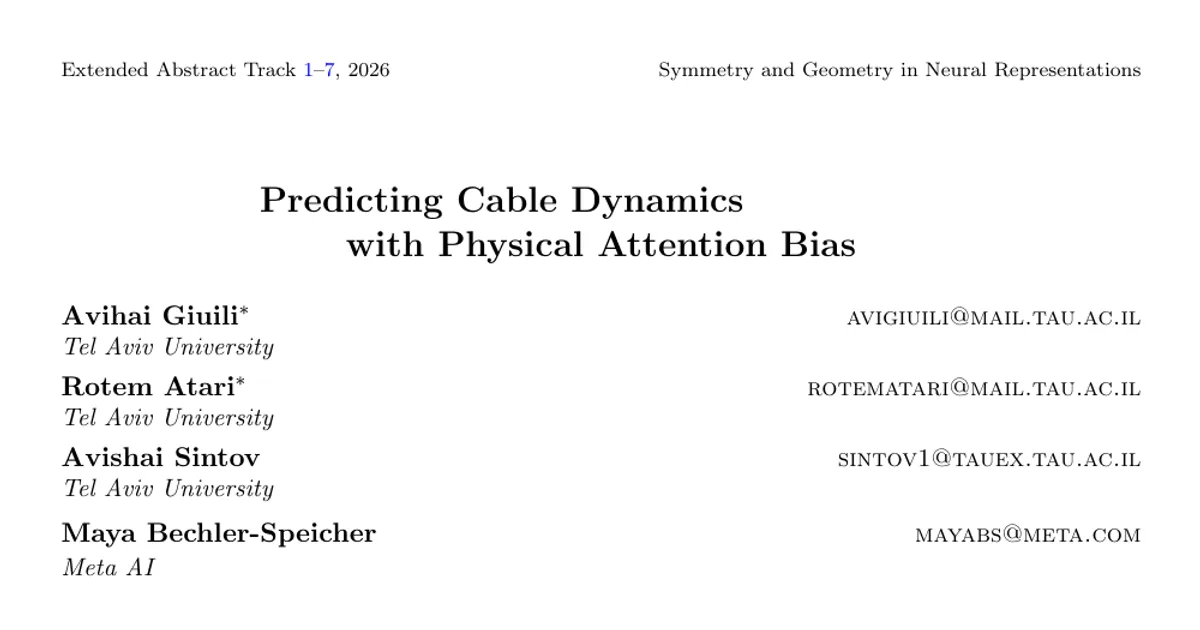

Predicting Cable Dynamics with Physical Attention Bias

AI summary

Overview

• Research area: Robotics — learned dynamics models for deformable linear objects (DLOs), specifically combining graph neural networks, transformers, and geometric priors.
• Technical level: Intermediate. The paper assumes familiarity with attention mechanisms, graph message passing (GatedGCN), and autoregressive rollout evaluation, though the core idea is explained clearly.
• Scope: A controlled study of whether adding a physical distance-based bias term to the attention logits of a hybrid graph-transformer improves prediction of cable motion on unseen cables and over long rollouts.

What This Paper Is About

Learned simulators for cables must generalize in two hard ways: to cables they were never trained on, and to long closed-loop rollouts where their own errors feed back as inputs. Most prediction error concentrates where the cable touches itself or the floor. The paper asks which geometric distance — the arc-length distance along the cable, or the straight-line Euclidean distance in space — should be used to bias global attention between cable segments, since these two distances agree only while the cable is straight and diverge exactly when it folds.

Key Contributions

1. A physical attention bias for DLO dynamics. An additive term on the attention logits with a learned decay rate per head, which after the softmax acts multiplicatively on the attention weights and attenuates the contribution of vertex j to vertex i.
2. A controlled five-variant comparison. Unbiased, Euclidean, Chain, Mixed, and Euclidean+Chain only — the last two being dual-metric allocations that place the two distances on disjoint subsets of heads — holding backbone, optimizer, seeds, and evaluation windows fixed, and costing at most H learned scalars.
3. A dual evaluation protocol. Every variant is scored with the local message-passing stream on and off, isolating the case where attention is the only mechanism connecting distant segments.
4. Comparison against three baselines (chain-only message passing, a per-node MLP, and a global LSTM) plus a phase split of error into floor-contact and free-flight regimes.

Main Findings

• Architecture matters more than the bias. Every hybrid GraphGPS row lowers mean relative ℓ2 error against chain-only message passing by 65–68% with the local stream on and 57–63% with it off. The per-node MLP (0.0868) and global LSTM (0.1070) baselines are far behind the GPS variants (roughly 0.030–0.040).
• The two streams fail differently. Removing the local stream raises relative ℓ2 by 7–23% but multiplies link-length drift by up to 5.6×, suggesting dense attention provides long-range coupling while local message passing holds rest length.
• Physical bias helps on unseen cables in both blocks, and by more when attention is the only path between distant segments. With the local stream off, the Chain variant reaches 0.0339 ± 0.0008 against Unbiased at 0.0399 ± 0.0002 — a 15% reduction with non-overlapping seed means — and more than halves drift.
• The gain shrinks when the local stream is present. With the local stream on, the largest gap falls to 9% and sits inside the window spread, so with three seeds it is described only as an ordering.
• The two distances are not interchangeable. With the local stream off, the Euclidean bias alone lowers relative ℓ2 by 4% while the intrinsic (Chain) bias lowers it by 15%. The intrinsic bias alone closes about two thirds of the drift gap that the entire GatedGCN stream closes. The Euclidean bias alone stays close to unbiased attention.
• Dual-metric allocation is best or near-best everywhere. Euclidean+Chain only is lowest or within one seed standard deviation of the lowest in all six cells of the aggregate table, with Mixed close behind. Relative ℓ2 0.0297 ± 0.0035 (local on) and 0.0343 ± 0.0002 (local off); drift 0.0275 and 0.0784; self-intersection 0.165 and 0.161.
• Floor contact dominates the error. Splitting local-on rollouts by phase, relative ℓ2 during floor contact (0.0479–0.0529 across variants) is about eight times that in free flight (0.0058–0.0064). Every ordering in this phase table sits inside the seed spread.
• No single distance wins everywhere. Chain is only third on the local-on aggregate error and worst in both phase columns.
• Honest caveats. The local-on ranking lies inside the window spread, test cables lie inside the training range, and a lowest mean does not by itself show that heads specialize.

Methodology in Plain English

The cable is represented as a chain of 33 vertices with 32 bidirectional edges. Node features are a 70-frame velocity history, four material parameters, and the clipped floor distance; edge features are relative displacement, distance, and rest length. Absolute coordinates are never used as input, so the representation is invariant to translations parallel to the floor. The network predicts a per-node displacement, is trained one step at a time with random-walk input noise, and is evaluated autoregressively.

Each layer runs two streams in parallel on the same input: a GatedGCN over the chain edges, and dense multi-head attention over all vertices. Each stream's output is added to the layer input and normalized per node, then passed through a two-layer MLP with a second residual. Turning the GatedGCN off leaves attention alone ("local off"); turning attention off leaves chain-only message passing.

The bias is a single term added to attention logits, with one learned scalar rate per biased head, initialized to one and shared across layers, so a prior can be softened or sharpened but not reversed. Both distances are normalized to [0, 1] so their rates are comparable at initialization. During rollout the arc-length distance is fixed by the chain, while the Euclidean distance is recomputed from the model's own predicted positions — so the extrinsic bias is exposed to the model's errors while the intrinsic bias cannot drift.

Data comes from MuJoCo 3.9.0: two grippers drive the cable to a randomized pose and release it, and the fall onto the floor is recorded at 500 Hz until it settles. Training uses 46 cables (rest length 0.80–1.60 m, diameter 1.5–10 mm, five Young's moduli from 10^6 to 10^9 Pa, 100 episodes each); the 40 test cables are interpolated inside the same hull and never appear in training. Every model trains for 100k steps at batch 512 with Adam at d=128, H=8, L=4 (891k parameters); each is rolled out for 400 predicted frames from the same 400 test windows. All 39 runs total roughly 30 GPU-hours; one run trains and is evaluated in under an hour on a single consumer GPU.

Why This Matters

• Research impact: The paper isolates a design question — which geometry should bias global attention in a learned physics simulator — that prior work on graph transformers mostly studied on static benchmarks or with multiple combined signals. It provides a clean controlled comparison of intrinsic versus extrinsic distance, plus a negative-ish result (the Euclidean bias alone barely helps) that constrains how geometric priors should be chosen for one-dimensional bodies.
• Practical takeaway: The bias costs at most H learned scalars and recovers about two thirds of the drift benefit of a whole local message-passing stream when that stream is absent, making it a cheap addition to existing hybrid architectures.
• Real-world applications:
  • Robotic manipulation of cables and wiring harnesses in manufacturing and assembly.
  • Suturing and thread handling in surgical robotics.
  • Rope and tether management for tethered drones or maritime and logistics operations.
  • Any task requiring a deformation model to run online in closed loop without expensive rod-mechanics solves or hard-to-identify material parameters.
• Industry relevance: Online cable simulators are needed for robots that must plan and control DLO manipulation without re-identifying material properties for every new object. A low-cost architectural prior that improves generalization to unseen cables and limits long-horizon drift is directly useful for deployment, where rollout stability matters as much as single-step accuracy.

Future Directions

1. Test cable generalization more aggressively. The current test cables are interpolated inside the training hull, so it is unknown whether the bias helps on cables outside the training range of rest lengths, diameters, and stiffnesses.
2. Resolve the local-on ranking. The largest gap with the local stream present (9%) lies inside the window spread; more seeds or a significance test would determine whether the ordering is real.
3. Verify head specialization. The paper explicitly notes that a lowest mean does not by itself show that heads actually specialize on the two distances; probing learned per-head rates is an open question.
4. Extend beyond two distances and single-head mixing. No variant adds a third distance or mixes both distances within one head, leaving open whether richer per-head geometric priors or other formulations (such as state-dependent attention scaling from concurrent work) combine better.

Target Audience

Robotics and machine learning researchers working on learned physics simulators, graph neural networks, and geometric deep learning — particularly those studying deformable object manipulation, attention biases in graph transformers, or long-horizon rollout stability. It is also useful for practitioners who need a cheap architectural improvement for DLO dynamics models, and for students interested in a compact, well-controlled example of ablating a geometric prior inside a hybrid architecture.

Authors’ abstract

Learned simulators for deformable linear objects (DLOs) such as cables have to predict the motion of cables they were not trained on and stay stable over long rollouts. Most of their error occurs where the cable touches itself or the floor. Attention over all pairs of cable segments can represent contact between parts of the cable that are far apart along its length, but attention has no notion of geometry. A cable has two pairwise distances, which agree only while it is straight: the arc-length distance along the cable, which governs elastic forces, and the Euclidean distance in space, which governs contact. We add a physical attention bias, an additive term on the attention logits with a learned rate, and ask which distance it should use. We compare no bias, each distance alone, and both distances on disjoint sets of heads, keeping the rest of the model and the training protocol fixed. A physical bias improves prediction on unseen cables. The gain is largest when attention is the only mechanism that connects distant segments: there, the arc-length bias reduces prediction error by 15% and more than halves the drift in segment length. The Euclidean bias alone stays close to unbiased attention, while assigning both distances across heads is best or near-best on every metric we report. Code and per-run records: https://github.com/avihaig/dlogps.
