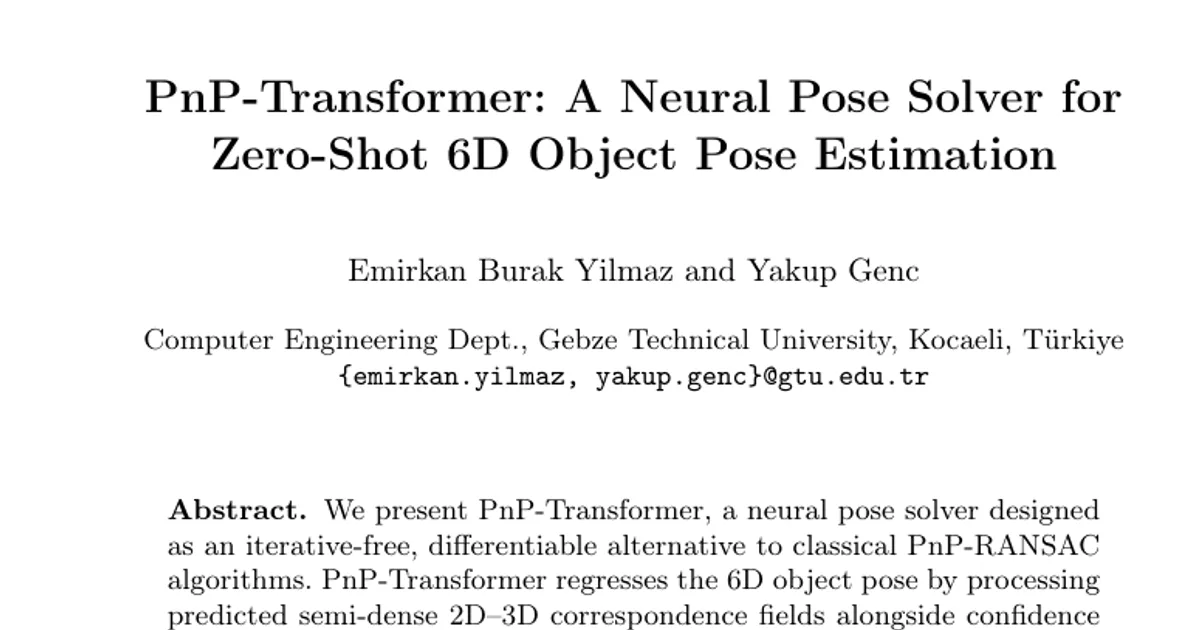

PnP-Transformer: A Neural Pose Solver for 6D Object Pose Estimation

AI summary

Overview

Research area: Computer Vision — zero-shot 6D object pose estimation, specifically the geometric pose-solving stage (PnP) that converts 2D–3D correspondences into rotation and translation.

Technical level: Intermediate. Readers should know what PnP, RANSAC, and transformer self-attention are, but the paper explains its motivations in accessible terms.

Scope: The paper introduces a transformer-based, differentiable replacement for PnP-RANSAC and evaluates it inside a zero-shot 6D pose pipeline across seven core BOP benchmark datasets.

What This Paper Is About

Standard 6D pose pipelines predict 2D–3D correspondences and then hand them to a classical PnP solver wrapped in RANSAC, which is accurate but non-differentiable, so gradients from the pose loss cannot reach the feature extractor. The authors propose PnP-Transformer, a neural network that takes a semi-dense correspondence field plus per-point confidence scores and regresses the 6D pose in one forward pass, with no iterative sampling or matrix inversion. They plug it into a zero-shot pipeline for unseen objects (one RGB image plus a CAD model) and ask a practical question: does the learned solver actually beat the classical one it replaces?

Key Contributions

1. A neural pose solver: PnP-Transformer is presented as a differentiable, iterative-free alternative to classical PnP-RANSAC, regressing the relative template-to-query transformation Δ = (R, t) directly from a correspondence field.
2. A joint-embedding architecture: 2D–3D correspondences and direct 6D target poses are mapped into a shared 256-dimensional latent space, using a PnP-Encoder, a Pose-Encoder (training-time only), and a Pose-Decoder. A latent consistency loss aligns the two embeddings.
3. Integration into a zero-shot pipeline: The solver is embedded in a template-matching pipeline built on CroCoV2 features and CNOS detections, evaluated on seven core BOP datasets (LM-O, T-LESS, TUD-L, IC-BIN, ITODD, HB, YCB-V), reaching 41.2% mean AR at 0.46 s/obj.
4. A controlled solver-swap comparison: Keeping the correspondence module fixed and replacing only the solver with OpenCV EPnP-RANSAC gives 52.2% mean AR at 0.52 s/obj, isolating the solver's contribution and exposing an explicit accuracy-for-latency trade-off.

Main Findings

• Overall accuracy (neural solver): 41.2% mean AR at 0.46 s/obj, ahead of RayPose (39.1%), FoundPose (37.3%), GigaPose (27.6%), GenFlow (23.5%), and MegaPose (20.8%), but behind Co-op (58.4%).
• Strongest and weakest datasets: With PnP-Transformer the pipeline reaches 63.2% AR on HB, 54.4% on YCB-V, 46.3% on TUD-L, 45.6% on LM-O, 35.5% on IC-BIN, 24.0% on T-LESS, and 19.1% on ITODD.
• The classical solver wins on six of seven datasets: Ours-RANSAC reaches 52.2% mean AR, a +11.0% mean AR gain over PnP-Transformer for an additional 60 ms per object. The only dataset where the neural solver is better is ITODD (19.1% vs 18.3%).
• Largest gaps on high-outlier data: T-LESS (24.0% vs 46.1%) and IC-BIN (35.5% vs 61.3%), where the paper attributes RANSAC's advantage to explicit inlier filtering under symmetry and clutter. Gaps narrow on richly textured data: LM-O (45.6% vs 53.3%) and YCB-V (54.4% vs 61.4%).
• A new state of the art for the RANSAC variant on IC-BIN: Ours-RANSAC reaches 61.3% AR versus Co-op's 45.8%, and also performs strongly on HB (67.9%), YCB-V (61.4%), TUD-L (56.9%), and LM-O (53.3%).
• Latent alignment loss matters: Removing the Pose-Encoder and setting the latent loss weight to 0.0 drops mean AR from 41.2% to 39.3%, with the biggest per-dataset drop on T-LESS (24.0 → 18.4).
• The latent space has geometric structure: Using t-SNE on Pose-Encoder embeddings of ground-truth poses, viewpoints sampled on an icosphere organize into concentric rings by elevation with continuous azimuth color transitions, and a full 360° camera orbit maps to a closed loop; a displacement vector Δz transferred across different starting poses preserves direction and magnitude.
• Stated failure modes: Textureless objects (matching relies on silhouette edges), symmetric objects with multi-modal pose ambiguity, and upstream false detections from the CNOS detector.
• Why the gap exists: The correspondence module is trained separately with local matching losses, and the discrete argmax used for patch selection blocks gradients, so joint end-to-end training was not possible in this work; PnP-Transformer must absorb geometrically inconsistent correspondences in a single global-attention pass.

Methodology in Plain English

The pipeline treats pose estimation as "find the template that matches, then compute how the object moved relative to it." Offline, for each CAD model, the authors render RGB-D templates from 42 camera viewpoints obtained by one level of icosahedron subdivision, restricted to out-of-plane rotations as in GigaPose, and store patch-level ViT features. Online, an off-the-shelf CNOS detector crops the target object to 224×224; a frozen ViT-Large encoder extracts patch features, and a transformer decoder with a ViT-Base backbone compares query and template patches to produce a match matrix plus sub-patch offset vectors. Each query patch is assigned to its most likely template patch, refined by the offset, back-projected using the template depth map to give a 3D point, and given a confidence equal to one minus the no-match probability. The highest-scoring template's correspondences go to PnP-Transformer.

Inside PnP-Transformer, each correspondence is turned into a 6-dimensional token (2D point normalized by the camera intrinsics, 3D point, confidence), projected to a 1024-dimensional embedding, and processed by 4 self-attention layers with a learnable class token; the class token is compressed to a 256-dimensional latent vector. A 2-layer MLP decoder predicts a continuous 6D rotation representation (converted to a valid rotation matrix by Gram-Schmidt) and a 3D translation. During training only, a second MLP encodes the ground-truth pose into a target latent vector, and an ℓ2 loss pulls the two latents together, which the authors argue gives the latent space a consistent topology over SE(3).

Training uses the MegaPose-GSO dataset (up to 4 objects per scene, at least 10% visibility, 5% relative depth threshold for correspondences). The two modules are trained separately: the matching decoder for 500k steps at batch size 32 with offset weight 2.0 (~3 days), and PnP-Transformer in two stages — 50k steps on clean ground-truth correspondences (~5 hours), then 250k steps on noisy predicted ones (~3 days) with translation weight 10.0 and latent weight 1.0. Everything runs on a single RTX 4090 with AdamW and a cosine schedule from 2×10⁻⁵ to 1×10⁻⁶.

Why This Matters

The paper is a candid, controlled test of whether learned pose solvers are ready to replace geometric ones. It shows they are not yet more accurate, but that they offer something classical solvers cannot: differentiability, constant GPU latency, and a structured latent representation of pose.

Impact on research: It provides a clean baseline and ablation for the "differentiable PnP" line of work (DSAC, BPnP, EPro-PnP, Linear-Covariance Loss), and its solver-swap protocol gives the community an honest way to attribute gains to the solver rather than the matcher. The latent-space additivity and closed-loop trajectory results suggest pose embeddings could support indexing and filtering rather than only regression.

Real-world applications:

• Robotic bin picking and manipulation, where a fixed per-object latency budget matters more than a few points of AR.
• Augmented reality overlays, which need predictable throughput on GPU hardware and cannot tolerate RANSAC's variable, noise-dependent runtime.
• Warehouse logistics and assembly, where unseen objects arrive without object-specific training data.
• Pose-indexing and place recognition in SLAM, exploiting the structured latent pose space the authors describe as future work.

Industry relevance: The 0.46 s/obj latency on GPU and the absence of discrete sampling make the approach attractive where deployment simplicity and deterministic timing are priorities; the RANSAC variant's 11-point AR advantage at only 60 ms extra cost is equally relevant for accuracy-first deployments.

Future Directions

• End-to-end joint training: The authors explicitly plan to integrate the differentiable solver into an end-to-end framework. The current blocker is the non-differentiable argmax in the correspondence module; removing it would let pose loss shape the matcher to produce geometrically consistent correspondences.
• Robustness to high outlier ratios: Closing the gap on symmetric and textureless objects (T-LESS, IC-BIN), where global attention aggregation currently loses to explicit inlier partitioning, remains open.
• Exploiting the latent pose space: Using the learned embeddings for SLAM, Extended Kalman Filtering, and fast topological pose indexing is proposed but not evaluated.
• Evaluating inference-time embeddings: The latent-space analysis in the paper covers only Pose-Encoder outputs from clean ground-truth poses; analyzing PnP-Encoder embeddings under noisy predicted correspondences is stated as beyond the scope of this evaluation.

Target Audience

Graduate students and applied researchers in computer vision and robotics working on 6D pose estimation, plus engineers building differentiable geometry layers or evaluating learned-versus-classical solver trade-offs. Practitioners deploying pose pipelines with strict latency requirements will find the accuracy-latency comparison directly actionable, and the paper is readable by newcomers with a basic grasp of PnP and transformers, though the SE(3) latent-space analysis assumes some geometric background.

Authors’ abstract

We present PnP-Transformer, a neural pose solver designed as an iterative-free, differentiable alternative to classical PnP-RANSAC algorithms. PnP-Transformer regresses the 6D object pose by processing predicted semi-dense 2D-3D correspondence fields alongside confidence scores, while mapping geometric inputs into a continuous latent space. To evaluate its practical utility, we integrate PnP-Transformer into a zero-shot 6D pose estimation pipeline, where the correspondence module and pose solver are trained separately. PnP-Transformer achieves a 41.2% mean AR score with low latency (0.46 s/obj) on seven core BOP benchmark datasets, surpassing all prior baselines (such as RayPose with 39.1% AR) but one (Co-op with 58.4% AR). When the pose solver is replaced with EPnP-RANSAC (similar to Co-op) while keeping the correspondence module unchanged, the RANSAC alternative outperforms PnP-Transformer on six of the seven datasets by reaching 52.2% mean AR at a cost of an additional 60 ms per object, revealing an accuracy-latency trade-off. Code and pretrained models are available: https://github.com/ebylmz/pnp-transformer
