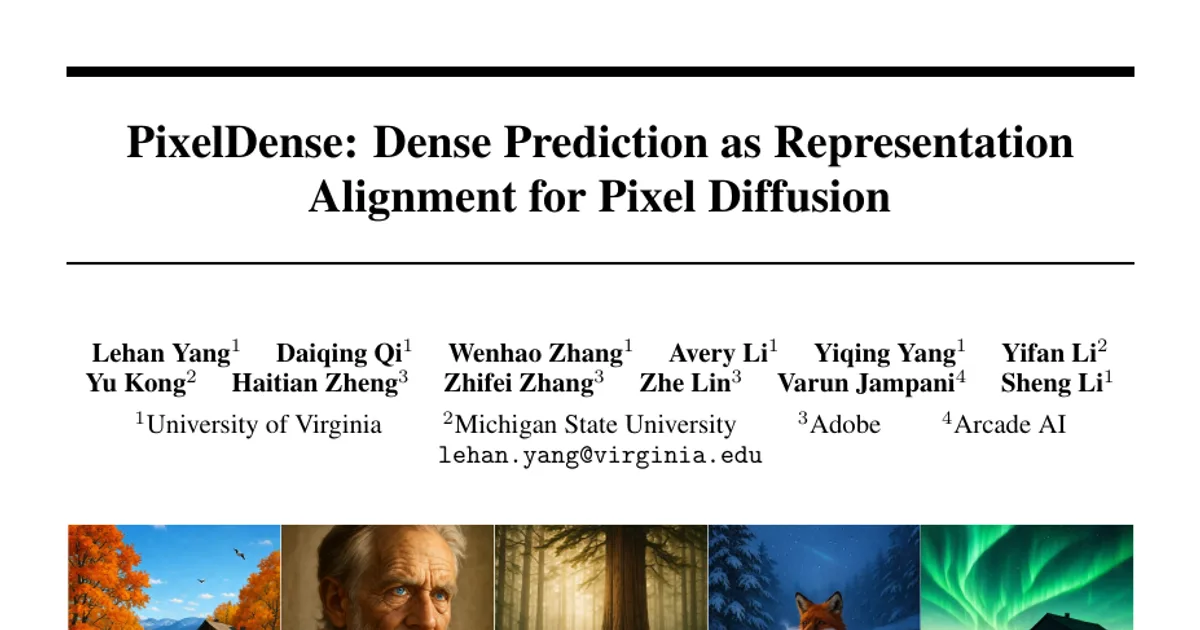

PixelDense: Dense Prediction as Representation Alignment for Pixel Diffusion

AI summary

Overview

Research area: Computer vision — training-time supervision for pixel-space diffusion transformers (text-to-image generation, image editing, and structure-preserving reconstruction).

Technical level: Advanced. The paper assumes familiarity with diffusion/flow-matching training, transformer denoisers, representation alignment (REPA), and dense-prediction foundation models.

Scope: The paper proposes PixelDense, a factored multi-teacher representation-alignment framework that separates semantic and geometric dense-perception supervision into orthogonal projection streams for pixel-space diffusion models, and evaluates it on PixelGen-XXL and DeCo across generation, reconstruction, and editing benchmarks.

What This Paper Is About

Representation alignment (REPA) accelerates diffusion transformer training by matching intermediate denoiser features to a frozen encoder, but nearly all prior work uses only semantic encoders such as DINOv2 and CLIP. Prior analysis (iREPA) suggests the real benefit comes from spatial structure rather than global semantics, yet dense-prediction models — which are explicitly trained to extract that structure — have been overlooked as alignment teachers. The paper's goal is to use segmentation, depth, and surface-normal teachers to supervise a pixel-space generator during training, while solving the problem that semantic and geometric teacher gradients interfere when summed through a single denoiser projection.

Key Contributions

1. PixelDense framework. A dense-perception representation-alignment framework for pixel-space diffusion that uses four frozen teachers (DINOv2, SAM2, Depth Anything v2, Metric3D v2) as training-time supervision, all of which are dropped at inference so the deployed model is the original three-channel RGB generator with its original sampler.

2. Semantic–geometric factorization. DINOv2 and SAM2 are routed through a shared semantic projection stream (width D_s = 768), Depth Anything v2 and Metric3D v2 through a separate geometric stream (width D_g = 1024), with a weight-space orthogonality penalty on the streams' input projections to prevent collapse into a shared denoiser subspace.

3. Identification of a negative-transfer effect. The paper shows that each dense teacher improves GenEval Overall over the DINOv2-only baseline individually, but a flat four-way sum lands below the best single geometric teacher, reframing teacher composition as a representation-routing problem rather than a data problem.

4. Broad empirical validation. On PixelGen-XXL and DeCo, PixelDense improves GenEval, DPG-Bench, and HPS v2.1 over matched fine-tunes, improves geometry preservation in partial-noise reconstruction, converges faster from random initialization, and improves source-structure preservation in SDEdit editing on PIE-Bench.

Main Findings

• Generation quality (PixelGen-XXL, 512×512). PixelDense raises GenEval Overall from 0.7927 (matched PixelGen fine-tune) to 0.8093, a 2.09% relative gain. In the same table: DPG-Bench goes from 78.7 to 78.9 and HPS v2.1 from 0.280 to 0.282. Per-axis GenEval results for PixelDense are 99.38 (Single Object), 89.39 (Two Objects), 58.75 (Counting), 93.09 (Colors), 70.50 (Attribute), 74.50 (Position).

• Individual dense teachers help, but do not compose naively. With DINOv2-only at 0.7927 as the baseline, adding SAM2 gives 0.8020, Depth Anything v2 gives 0.8069, and Metric3D v2 gives 0.8060 — the two geometric teachers lead the segmentation teacher. The unfactored four-teacher sums score 0.8036 (equal weight), 0.7970 (L2-normalized), and 0.8009 (reduced weights), all below the best single geometric teacher.

• Factorization beats each stream alone. Semantic stream only (DINOv2 + SAM2) gives 0.8022; geometric stream only (Depth Anything v2 + Metric3D v2) gives 0.7960; full PixelDense gives 0.8093. Leave-one-out scores are 0.7940 (w/o DINOv2), 0.8027 (w/o SAM2), 0.8025 (w/o DA2), and 0.8037 (w/o M3D).

• Geometry preservation under partial-noise reconstruction. Evaluated at τ ∈ {0.5, 0.7, 0.9} with probes independent of the training teachers. At τ = 0.5 against COCO real panoptic annotations, panoptic PQ rises from 23.23 to 31.43 and mIoU from 37.67 to 45.47. Against Flickr30K pseudo labels at τ = 0.5, PQ rises from 19.66 to 30.09 (a 53.1% gain) and against COCO pseudo labels from 29.53 to 41.16 (35.3% gain against COCO panoptic annotations). Depth AbsRel falls by up to 36.0% (COCO pseudo reference at τ = 0.5: 1.58/1.06 to 1.06/0.68; Flickr30K: 1.61/1.14 to 1.03/0.68). Normal angular error at τ = 0.5 falls from 21.80° to 17.84° on COCO and from 22.45° to 18.25° on Flickr30K. Gaps narrow at τ = 0.9.

• Faster convergence from scratch. Training from random initialization at 128×128 on BLIP3-o-60K, PixelDense reaches the baseline's peak GenEval score roughly 1.23× faster and stays above it for the rest of the 100K-step horizon, while the baseline drifts downward after its peak.

• Transfer to DeCo without retuning. The same recipe ports unchanged to DeCo at 512×512. DeCo + fine-tune scores 0.8620 GenEval Overall and 81.4 DPG; PixelDense scores 0.8690 and 81.8. The gain is smaller than on PixelGen, which the authors attribute to DeCo starting from a stronger model.

• Editing (SDEdit on PIE-Bench). Across seven noise levels τ ∈ {0.3, 0.4, ..., 0.9}, PixelDense is better on all six measured metrics: background LPIPS, PSNR, SSIM, DINOv2 patch self-similarity (full image and background), and FID against source images. Background PSNR is raised by up to 2.2 dB (e.g., 26.07 to 28.00 at τ = 0.3; 23.92 vs. 21.76 at τ = 0.6). FID and DINOv2 gaps shrink at high τ.

• Ablations. Default settings are bottleneck widths 768/1024 (0.8093, vs. 0.8053 at 512/512 and 0.8065 at 1024/1024); alignment at block 8 (0.8093, vs. 0.8075 at block 6 and 0.8007 at block 10); REPA loss weights 0.5/0.3/0.3/0.3 (0.8093, vs. 0.8079 uniform and 0.8081 at 0.5/0.5/0.5/0.5); and λ_orth = 0.01 (0.8093, vs. 0.8053 with no penalty, 0.8077 at 0.001, and 0.8023 at 0.1).

Methodology in Plain English

The researchers start from a pixel-space diffusion transformer that predicts clean images directly in RGB rather than in a compressed latent space. Because the denoiser's internal tokens sit on the same image grid that dense-prediction models consume, each token can be matched directly to a corresponding teacher feature vector at the same spatial location.

They use four frozen teachers as training-time supervisors: DINOv2-B/14 for object-level semantics, SAM2 Hiera-L for segmentation-aware boundary features, Depth Anything v2 ViT-L (layer 17) for monocular depth, and Metric3D v2 ViT-L (layer 17) for surface normals. Alignment happens at block 8 of a 16-block denoiser using a cosine loss, which is the standard REPA recipe. All teacher inputs are the clean image at 512×512, resampled to the denoiser's 16×16 patch lattice and L2-normalized.

The key design decision is that instead of summing all four teacher losses through one projection, the denoiser token is read by two separate projection bottlenecks — one whose width (768) matches the semantic teachers, one whose width (1024) matches the geometric teachers — and each bottleneck feeds lightweight per-teacher heads. Because the two streams both read the same denoiser features, a weight-space orthogonality penalty (the mean absolute cosine between semantic and geometric projection rows, applied only to the first linear layer) keeps them reading different input directions. This penalty is data-free and adds no inference cost.

The total objective combines the flow-matching velocity loss, the alignment loss with per-teacher weights of 0.5/0.3/0.3/0.3, the orthogonality penalty with λ_orth = 0.01, and auxiliary LPIPS and Perceptual-DINO losses inherited from PixelGen. Fine-tuning uses 10,000 optimizer steps with AdamW at learning rate 1e-5 on 2× NVIDIA H200 GPUs, at batch size 16 per GPU with gradient accumulation of 8 (effective batch 256), on BLIP3-o-60K, with classifier-free guidance of 4.0 at inference.

To check whether structure is really being preserved rather than just prompt alignment being improved, the authors add a partial-noise reconstruction probe: they noise an input image at τ ∈ {0.5, 0.7, 0.9}, reconstruct it with its caption, and score the result with probes not used during training — OneFormer (Swin-L and DiNAT-L) for panoptic agreement, and Marigold for depth and surface normals — on COCO 2017 val and Flickr30K.

Why This Matters

Impact on research. The paper reframes multi-teacher representation alignment as a routing problem rather than a weighting problem. It provides direct evidence that semantic and geometric supervision interfere when forced through a shared projection, and that a simple data-free weight-space penalty is sufficient to separate them. It also extends the alignment literature beyond latent-space DiT toward pixel-space diffusion, where teacher tokens and denoiser tokens share a grid — a structural advantage that the paper argues is underexploited.

Real-world applications:

• Text-to-image generation with compositional demands — object counting, attribute binding, spatial relations, and color binding, all axes where PixelDense shows gains on GenEval.
• Structure-preserving image editing — SDEdit on PIE-Bench shows up to 2.2 dB higher background PSNR, which matters for workflows where the source layout must survive the edit.
• Image restoration and reconstruction pipelines — the partial-noise reconstruction results show better preservation of segmentation, depth, and surface-normal structure at moderate noise levels.
• Any training pipeline that wants denser supervision at no extra inference cost — the teachers are frozen during training and dropped afterward, and inference speed is unchanged.

Industry relevance. The method is a training-time-only change: it adds no parameters at inference and leaves the sampler untouched, so it can be applied to an existing pixel-space generator without changing deployment. The recipe transfers unchanged between PixelGen-XXL and DeCo, suggesting it is not tied to one backbone.

Future Directions

• Extending editing beyond SDEdit. The authors explicitly state that inversion-based and instruction-based editing methods are left to future work; only SDEdit on PIE-Bench was tested.
• Testing whether richer teacher banks compose better under factorization. The paper uses two streams (semantic, geometric) for four teachers. It is an open question how the routing should scale as more teacher types are added.
• Understanding why geometric teachers dominate semantic ones in this setting. Depth Anything v2 (0.8069) and Metric3D v2 (0.8060) outperform SAM2 (0.8020) as single additions; the paper connects this to iREPA's spatial-structure finding but does not isolate the mechanism further.
• Investigating why the DeCo gain is smaller. The paper attributes it to DeCo starting from a stronger model but does not test the hypothesis, leaving the interaction between baseline strength and dense-alignment benefit unresolved.

Target Audience

Researchers and practitioners working on diffusion-based image generation, particularly those interested in training-efficiency methods, representation alignment (REPA and its descendants), and pixel-space diffusion transformers. It is also relevant to engineers who want to improve compositional and structural fidelity of a generative model without incurring any inference-time cost, and to readers interested in how dense-prediction foundation models can be repurposed as supervision rather than as downstream components. The paper assumes prior familiarity with diffusion training objectives, transformer denoisers, and cosine-feature alignment losses.

Authors’ abstract

Representation alignment (REPA) accelerates diffusion transformer training, but its alignment targets are almost exclusively semantic encoders such as DINOv2 and CLIP. Recent analysis points to spatial structure, not global semantics, as the carrier of the alignment effect, yet dense-prediction foundation models trained to predict that structure remain overlooked as REPA targets. In pixel-space diffusion, SAM2, Depth Anything v2, and Metric3D v2 each outperform the DINOv2-only GenEval baseline, with the two geometric teachers leading the segmentation teacher. A flat sum of all four teachers, however, lands below the best single geometric teacher, as semantic and geometric gradients compete for one denoiser projection. We introduce PixelDense, which routes DINOv2 and SAM2 through a semantic projection stream, routes Depth Anything v2 and Metric3D v2 through a geometric projection stream, and adds a weight-space orthogonality penalty that keeps the two streams in disjoint subspaces. All four teachers are frozen during training and dropped at inference. Applied to PixelGen and DeCo with a single recipe, PixelDense improves GenEval, DPG-Bench, and HPS v2.1, raises PixelGen-XXL's GenEval Overall from 0.7927 to 0.8093, and beats every single-teacher and unfactored multi-teacher variant. In partial-noise reconstruction, independent panoptic, depth, and surface-normal probes show up to 53.1% PQ gain and 36.0% depth AbsRel reduction at $τ=0.5$ across COCO and Flickr30K. From random initialization, PixelDense also reaches the baseline's peak GenEval 1.23x faster. In SDEdit editing on PIE-Bench, PixelDense keeps more of the source background and layout at every edit strength, raising background PSNR by up to 2.2 dB.
