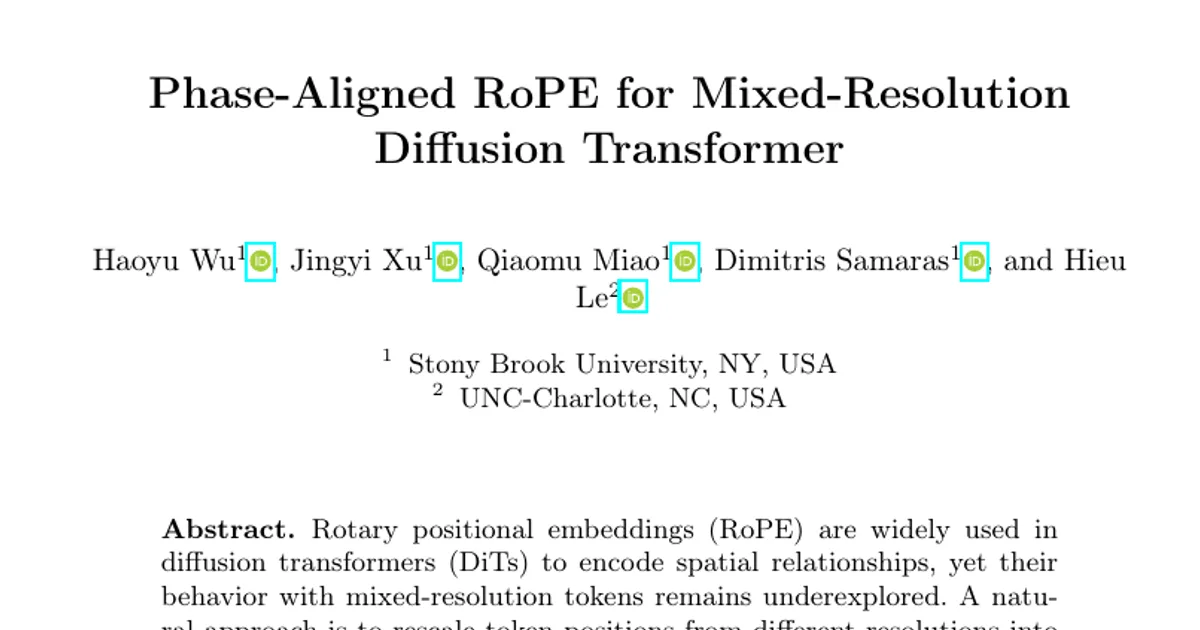

Phase-Aligned RoPE for Mixed-Resolution Diffusion Transformer

AI summary

Overview

• Research area: Computer Vision — efficient diffusion transformers (DiTs) for image and video generation, specifically positional encoding (RoPE) and mixed-resolution attention.
• Technical level: Advanced. The paper combines empirical probing of pre-trained models with a mathematical treatment of Rotary Positional Embeddings, sinusoidal attention-score analysis, and a modified attention mechanism.
• Scope: The paper diagnoses why existing RoPE interpolation schemes fail when low-resolution (LR) and high-resolution (HR) tokens are processed together in a single attention operation, and proposes a training-free fix called Phase-Aligned Mixed-Resolution Attention (PMA), validated on Wan2.1-1.3B for video and FLUX.1-dev for images.

What This Paper Is About

Diffusion transformers spend most of their compute on attention, which grows quadratically with resolution. A natural way to save compute is "mixed-resolution" denoising: process important regions at high resolution and the rest at low resolution. The paper shows that this fails in practice, even when all token positions are carefully rescaled into one coordinate system, and traces the failure to how RoPE interacts with attention. The goal is to make mixed-resolution attention stable without retraining the base model.

Key Contributions

1. The paper identifies and formally analyzes a structural limitation of RoPE that makes mixed-resolution attention inherently unstable, showing that attention similarity follows a periodic (sinusoidal-like) function of token distance that cannot be preserved across two different positional scales at once.
2. It proposes Phase-Aligned Mixed-Resolution Attention (PMA), a training-free mechanism that expresses every key position in the query's native positional scale so that relative offsets are measured at a single, pre-training-consistent reference scale. No architectural changes are required.
3. It introduces a lightweight Boundary Expand-and-Replace (BER) module that locally and bidirectionally exchanges features across adjacent scales near LR–HR boundaries, using a small 25M resizer model, to smooth resolution transitions.
4. It demonstrates a concrete use case: a coarse-to-fine, saliency-guided mixed-resolution denoising pipeline that achieves stable image and video generation with improved visual fidelity and reduced latency, and that composes with orthogonal acceleration methods.

Main Findings

• RoPE imposes a sinusoidal scale bias on attention: Measured on the Wan model along the time, height, and width axes across diffusion steps t ∈ {428, 749, 922}, the mean normalized attention score κ(Δ) between random query–key pairs peaks sharply near Δ ≈ 0 (dropping steeply within the first 2–3 offsets) and then oscillates sinusoidally at larger offsets. The bias is independent of token content and is amplified in RoPE-dominant heads with a RoPE-dominance score greater than 0.085.
• The bias is a learned phase prior, not a denoising artifact: The structure persists from early to late diffusion steps, and the attention score can be written as a mixture of sinusoids, score(q, k, Δ) = Σᵢ Cᵢ(q, k) cos(ωᵢΔ + φᵢ), confirming that each head acts as a learned sinusoidal phase filter calibrated to one positional scale.
• Position interpolation fails systematically: Two unification strategies — fractional unification (LR grid with fractional HR indices) and integerized unification (warp LR zones to keep integer indices) — both fail, but in opposite ways: one produces plausible LR regions while collapsing HR, and the other does the opposite.
• PMA restores stable mixed-resolution generation: On Wan2.1-1.3B (Table 1), the method scores DOVER 99.63 aesthetic / 10.01 technical / 75.34 overall and VBench 80.76 quality / 62.17 semantics / 77.04 total at 43.2 s, versus PI-LR (98.10 / 8.01 / 63.39 and 75.93 / 54.92 / 71.73), PI-HR (86.52 / 4.94 / 35.04 and 70.38 / 49.41 / 66.18), NTK-aware interpolation (92.76 / 5.89 / 44.52 and 71.80 / 52.93 / 68.02), PI+NTK (98.07 / 7.71 / 62.67 and 75.60 / 56.09 / 71.70), and YaRN (98.56 / 8.96 / 66.38 and 76.39 / 56.72 / 72.46). A full high-resolution baseline scores 99.83 / 10.43 / 79.12 and 80.12 / 62.30 / 76.56 at 172.1 s.
• Image results follow the same trend: On FLUX.1-dev (Table 2), the method reaches ImageReward 0.978, CLIP-IQA 0.623, MUSIQ 71.81, and CLIP 31.31 at 2.4 s, compared with PI-LR (0.659 / 0.411 / 53.96 / 31.41), PI-HR (0.935 / 0.523 / 70.94 / 31.41), NTK (0.953 / 0.542 / 70.62 / 31.37), PI+NTK (0.810 / 0.479 / 60.23 / 31.45), and YaRN (0.926 / 0.548 / 69.99 / 31.29); the HR reference is 1.062 / 0.621 / 70.47 / 31.12 at 3.4 s.
• Competitive against general acceleration methods: On Wan2.1-1.3B (Table 3), the method achieves a 4.0× speedup at 43.2 s with DOVER overall 75.34 and VBench total 77.04, compared with UniPC (3.8×, 45.6 s), DPM++ (3.9×, 44.7 s), ToMe (3.6×, 48.0 s), TeaCache (4.0×, 43.5 s), and MagCache (3.8×, 45.5 s). On FLUX (Table 4), the method reaches 4.4× speedup at 2.6 s and 6.6× at 1.7 s, and at 6× it scores ImageReward 0.929, CLIP-IQA 0.565, MUSIQ 69.01, CLIP 31.25 versus RALU (0.900 / 0.533 / 66.87 / 31.07), MagCache (0.487 / 0.425 / 52.82 / 31.21), ToCa (0.345 / 0.435 / 50.23 / 30.99), and Bottleneck (0.753 / 0.424 / 58.34 / 31.18).
• Composable with other acceleration techniques: Combining with feature caching gives 7.2× (TeaCache) and 7.8× (MagCache); combining with the DMD step-distillation model gives 12.2× at 8 steps and 30.7× at 4 steps (Table 5). On FLUX.1-dev, combination with FLUX.1-schnell (4-step) reaches 14.8× (Table 10).
• BER matters: Removing the boundary module drops DOVER overall from 75.34 to 68.43 and VBench total from 77.04 to 74.74; padding 2 tokens for both LR and HR gave 99.63 / 10.01 / 75.34 and 80.76 / 62.17 / 77.04, while padding 2 LR / 4 HR gave 99.62 / 9.88 / 75.18 and 80.69 / 61.76 / 76.90 (Table 7).
• Robust to the choice of saliency model: Results are consistent across DeepGazeI (2.5M parameters, 0.01 s), UNISAL (3.7M, 0.01 s), DeepGazeIIE (104M, 0.27 s), and even a fixed center square (Table 6).
• Extends to more than two resolutions: In a 3-mixed-resolution video setting (480 + 960 + 1920p, Table 8), the method scores DOVER 99.70 / 10.62 / 76.78 and VBench 81.77 / 61.55 / 77.73 in 288 s, versus direct 2K generation at 1995 s — reported as roughly 7× faster. A 3-mixed-resolution image setting (512 + 1024 + 2048, Table 9) shows a similar trend (ImageReward 0.983, CLIP-IQA 0.468, MUSIQ 57.20, CLIP 31.28 at 9.8 s, versus FLUX-2k at 21.2 s).
• Quality–cost trade-off: When generation time is matched against LR+HR and HR-only baselines by varying the HR token ratio or total steps, the method achieves a consistently better quality–cost trade-off.

Methodology in Plain English

The researchers first probed pre-trained diffusion transformers to understand what attention actually does as a function of token distance. By averaging over random token pairs, they isolated the pure positional bias imposed by RoPE — a sinusoid-like curve κ(Δ) that rises sharply near zero distance and then oscillates. This means token pairs at certain distances get artificially boosted or suppressed similarity scores, independent of content. When all tokens share one resolution, the model simply learns around this bias. But when LR and HR tokens are squeezed into one coordinate space, at least one group's pairwise distances get compressed or stretched, shifting them to a different phase of that periodic curve — some pairs become over-attended, others suppressed. Because the curve oscillates rather than decays, no single rescaling can fix both groups at once.

The proposed fix abandons the idea of one global coordinate space. Instead, PMA rescales key positions locally per query–key pair, always expressing the key's position in the query's native scale, using the ratio α_{k→q} = S_q / S_k (the query's scale divided by the key's scale). Concretely, when the query is an HR token, LR key positions are stretched to match the HR grid; when the query is an LR token, HR key positions are compressed to the LR grid (and HR keys are additionally downsampled by strided sampling, e.g. [6,7,8,9] → [3,4] with stride 2). The mechanism only changes token positions before attention — it is training-free and requires no architectural changes.

To handle small visual discontinuities at LR–HR boundaries, a Boundary Expand-and-Replace module dilates each mask by n_pad tokens (e.g., 2) to create an overlapping band, then bidirectionally exchanges content: LR content is upsampled, re-noised to timestep t−1, and used to replace HR tokens in the band; HR content is downsampled, re-noised, and used to replace LR tokens. The latent up/downsamplers are trained with ℓ1 in latent space and ℓ1 + LPIPS in pixel space, using a small 25M resizer.

For the demonstrated pipeline, generation runs coarse-to-fine: a few low-resolution steps first, then a saliency model (off-the-shelf DeepGaze) selects high-importance regions to be switched to high resolution for mixed-resolution denoising with PMA and BER, with an optional small number of final full-resolution steps. Video generation uses 50 steps (15 at 480p, 35 mixed-resolution) with a 15% HR token ratio; two-stage image generation uses 15 steps (5 at 512×512, 10 mixed-resolution) with a 60% HR token ratio.

Why This Matters

The work reframes mixed-resolution denoising from a generic masking/interpolation problem into a positional-encoding problem, and shows the failure is structural rather than a tuning issue. It is, to the authors' knowledge, the first work to focus on mixed-resolution generation; the closest prior work, RALU, uses mixed resolution as an intermediate stage of a coarse-to-fine pipeline but relies on linear interpolation of RoPE, overlooks phase mismatch across resolutions, and compensates with additional noise and extra steps. Because PMA is training-free and composable with caching, samplers, and distillation (reaching 30.7× in the reported DMD 4-step combination), it offers a drop-in efficiency lever rather than a new model.

Real-world applications implied by the work:

• Video generation platforms: producing high-detail 480p + 960p or 480p + 1920p outputs, and 1088×1920 video (161 s versus 716 s with CineScale alone in Table 11).
• Image generation and editing: selective ultra-high-detail rendering, e.g. 2048×2048 images (9.2 s versus 21.2 s with DyPE alone in Table 12) and region-specific detail in upscaling workflows.
• Compute-constrained deployment: the same GPU budget can be spent on salient content rather than uniform full-resolution attention.
• Interactive and content-creation pipelines: coarse-to-fine schedules that surface a fast low-resolution preview before spending compute on selected regions.

Industry relevance: the method targets the dominant cost center of modern DiTs (attention at high resolution), requires no retraining, and integrates with existing inference stacks. It also supports saliency-driven or user-mask-driven control over where detail is allocated.

Future Directions

• Extending the analysis and mechanism past the tested settings: the paper reports 3-resolution and 4-resolution experiments (480/960/1920/3840p) but the presented tables for the 4-mixed-resolution video setting are incomplete in the provided content, and the paper lists failure cases in its supplementary material (Figure 17) — understanding where PMA still degrades remains open.
• Removing dependence on the saliency stage: the pipeline currently relies on an off-the-shelf saliency predictor or user masks to decide what is high resolution. The authors state the contribution is orthogonal to the choice of importance localizer, which suggests learned or task-adaptive importance allocation as a natural next step.
• Better boundary harmonization: BER uses a small 25M resizer trained with ℓ1 latent and ℓ1 + LPIPS pixel losses, with the best band size found empirically at n_pad = 2. More principled or larger-scale transition handling is left open.
• Broader integration with acceleration and resolution-extrapolation methods: the paper demonstrates combinations with caching, DMD, FLUX.1-schnell, CineScale, and DyPE; generalizing across other DiT architectures and distillation regimes is a logical extension.

Target Audience

Researchers and engineers working on diffusion transformers, efficient generative modeling, and positional encoding, particularly those building or deploying high-resolution image and video generation systems. It is most useful to readers with some familiarity with attention mechanisms and RoPE, since the core argument rests on the sinusoidal structure of attention scores and the distinction between global coordinate remapping and per-pair phase alignment. Practitioners focused on inference cost reduction will also find the acceleration and integration tables directly actionable.

Authors’ abstract

Rotary positional embeddings (RoPE) are widely used in diffusion transformers (DiTs) to encode spatial relationships, yet their behavior with mixed-resolution tokens remains underexplored. A natural approach is to rescale token positions from different resolutions into a unified coordinate system before attention, but we show this fails. Our analysis shows that with RoPE, the attention similarity score is a highly structured and periodic function of token distance, so rescaling distances across resolutions moves token pairs to different regions of this periodic function, leading to incorrect attention scores. Motivated by this, we introduce Phase-Aligned Mixed-Resolution Attention (PMA), a training-free mechanism that stabilizes mixed-resolution attention. PMA modifies the RoPE position mapping to enforce a consistent positional scale for every query-key pair, ensuring that relative distances are evaluated under a single reference scale. To further improve local coherence near resolution transitions, we incorporate a lightweight boundary refinement module that softly exchanges features across adjacent scales. Experiments on image and video diffusion models validate our analysis and demonstrate consistent improvements in visual fidelity and computational efficiency.
