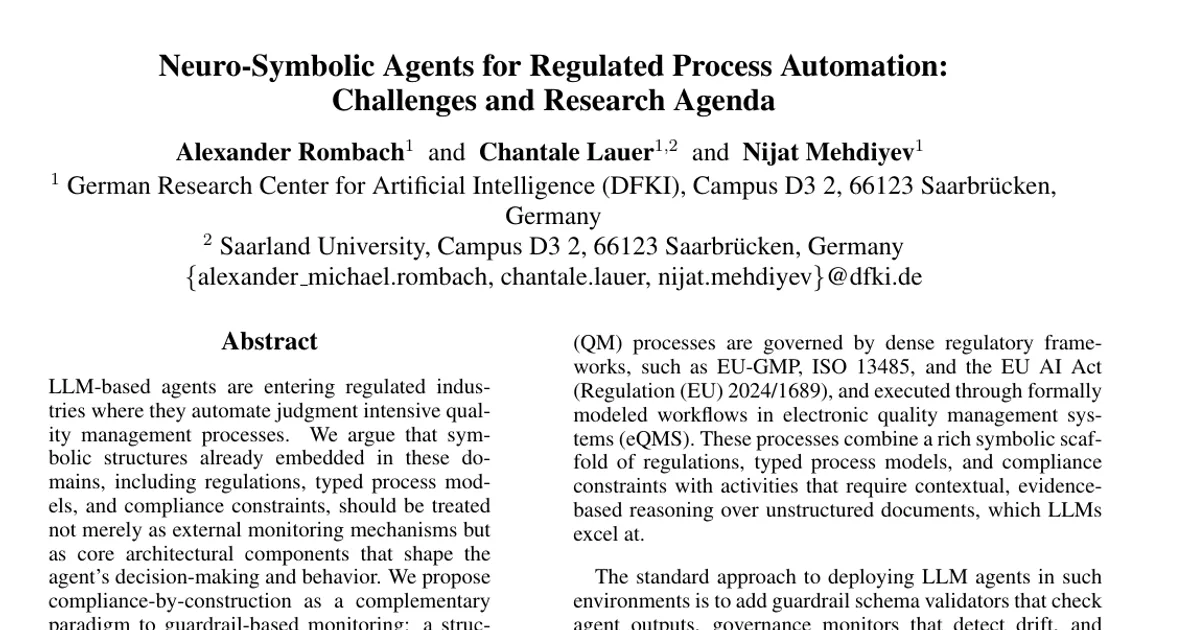

Neuro-Symbolic Agents for Regulated Process Automation: Challenges and Research Agenda

AI summary

Overview

Research area: Neuro-symbolic AI applied to regulated process automation, specifically quality management processes in pharmaceutical manufacturing, biotechnology, and medical devices.

Technical level: Intermediate. The paper is a position paper rather than a technical report, so it names methods (conformal prediction, PDDL planning, knowledge graph construction, BPMN, conformance checking) without derivations, and readers need some background in LLM agents and business process management to follow the argument.

Scope in one sentence: The paper argues that symbolic structures already present in regulated industries should be treated as core architectural components of LLM agents rather than external monitors, and lays out a two-tier neuro-symbolic research agenda whose joint resolution yields "compliance-by-construction."

What This Paper Is About

LLM-based agents are being deployed in regulated industries to automate judgment-intensive quality management work, but the standard approach adds guardrails, drift monitors, and human-in-the-loop gates only after the fact — they detect violations rather than structurally preventing them. In these domains a detected-but-occurred violation is itself a regulatory finding, so the authors argue an additional architectural layer is needed to reduce the range of failures guardrails must catch. The paper's goal is to identify the neuro-symbolic research challenges that, if addressed together, would make control-flow violations structurally impossible while leaving guardrails responsible for semantic errors.

Key Contributions

1. A framing of symbolic domain structures as architecture, not monitoring. The paper argues that regulations, typed process models, and compliance constraints — already maintained, versioned, and audited inside regulated organizations — should co-constitute the agent's reasoning rather than sit outside it.

2. The concept of compliance-by-construction. Defined as an architectural foundation that by design makes structural control-flow violations (wrong sequencing, missing approvals, skipped mandatory steps) impossible, positioned as complementary to guardrail-based monitoring rather than a replacement for it.

3. A structured, two-tier research agenda. A foundational tier (Challenge 1: regulatory knowledge operationalization; Challenge 2: symbolic process grounding with a mediation interface) and a capability tier (Challenge 3: uncertainty-aware autonomy; Challenge 4: symbolic process memory; Challenge 5: cross-boundary explainability), with an explicit dependency structure between the tiers.

4. A timeliness argument grounded in regulation and existing components. The paper contends that agentic AI is entering regulated production now, that the EU AI Act's high-risk obligations take binding effect on August 2, 2026, and that the necessary foundational components already exist in separate research lines but have never been integrated.

Main Findings

• Regulated process automation is proposed as a domain where neuro-symbolic integration is necessary, not merely beneficial. The authors state the domain combines three rarely co-occurring properties: pre-existing symbolic structure (regulations, SOPs, BPMN models, controlled vocabularies, typed document schemas), demanding neural tasks (multi-document reasoning, judgment over unstructured text), and hard verification requirements with legal consequences.

• Classical BPM is argued to be insufficient because the executor has changed. Classical BPM assumed human workers or deterministic scripts at activity nodes; the paper argues LLM agents are probabilistic, opaque, and capable of outputs that are syntactically valid but semantically wrong, which the process engine cannot detect through type schemas alone.

• The paper reports the state of neuro-symbolic research via a cited systematic review. A systematic review of 167 publications from 2020–2024 identifies learning/inference (63%) and knowledge representation (44%) as dominant themes, with explainability (28%) and metacognition (5%) significantly underexplored.

• Economic and regulatory stakes are cited as motivation. Industry estimates place the cost of poor quality in the pharmaceutical sector at 25–40% of operating expenses, compared with 4–8% for comparable quality-driven industries such as semiconductors. The FDA completed 2,953 CGMP drug inspections worldwide in FY2023, with warning letter frequency rising 43% per 100 inspections between 2019–2023.

• The EU AI Act is presented as creating legal demand for this architecture. High-risk obligations take binding effect on August 2, 2026; Article 9 mandates risk management systems throughout the AI lifecycle, Article 14 requires human oversight mechanisms that are technically embedded in the system rather than merely procedural, and Article 17 demands documented quality management procedures. For AI used as safety components in medical devices, third-party conformity assessment is required under Annex II.

• The expressiveness–verifiability tradeoff is identified as genuinely unsolved. Rich semantic postconditions such as "the CAPA addresses the root cause" resist formal verification because they require semantic judgment; the paper states the best architectural offer is ensuring such judgments occur in the right structural context and escalate to humans when neural confidence is insufficient.

• Compliance-by-construction is claimed to guarantee structural, not semantic, compliance. It does not guarantee the correctness of individual judgments. Guardrails remain essential for semantic errors — an LLM misjudging severity, a poorly reasoned CAPA, or an unforeseen edge case outside the contract specification.

Methodology in Plain English

This is a position and agenda-setting paper, not an empirical study; the authors state explicitly that the framing identifies what needs to be solved, not how. The approach works as follows. The authors take a specific, well-documented process — deviation management under EU-GMP Annex 15 and ISO 13485 §8.5.2 — and walk through its stages: capturing and classifying a deviation by severity, defining containment actions, performing root-cause analysis with methods such as Ishikawa diagrams, 5-Whys, or 8D reports, proposing and approving corrective and preventive actions (CAPA), implementing and verifying them, and closing the case with a tamper-proof audit trail. They note that the process carries roles (quality manager, subject matter expert, CAPA owner, approver) and that separation-of-duties requirements forbid the investigator from also approving the resulting CAPA. From this concrete case they derive the properties that make the domain distinctive, contrast those properties with classical BPM's assumptions and with prevailing LLM-agent architectures (ReAct, AutoGen, CrewAI), and then enumerate five research challenges organized into two tiers. Each challenge is presented with three elements: the problem, why it is neuro-symbolic, and the current state and gaps in the literature. The discussion draws on a consortium research project developing multi-agent AI for pharmaceutical quality management, though the authors state the challenges apply to any scenario where autonomous agents operate under formal regulatory constraints. The demands are not backed by experiments or benchmarks; the paper is a call for community engagement.

Why This Matters

Impact on research. The paper argues that the neuro-symbolic community lacks applied domains where integration is not just beneficial but necessary, and proposes regulated process automation as one where failure stakes are high enough to justify the extra architectural complexity. It frames the research problem as integrating pre-existing symbolic structure with neural capabilities under formal guarantees, rather than discovering symbolic structure from data. It also positions a concrete generalization the community has not undertaken: moving symbolic grounding from single-agent, goal-directed, one-shot plan synthesis to long-running, concurrent, multi-party process execution governed by normative constraints rather than goal states.

Real-world applications.

• Pharmaceutical deviation management: severity classification, root-cause analysis, CAPA proposal and approval, and effectiveness verification under EU-GMP and ISO 13485, with mandatory regulatory notification triggered by critical classifications.
• Medical device quality management and safety components: AI subject to third-party conformity assessment under Annex II, where the EU AI Act's risk-management and human-oversight articles apply.
• Incoming goods inspection and out-of-specification handling in biotechnology and pharmaceutical manufacturing, where a single contamination finding or failed test result initiates a regulated workflow.
• Supplier quality and audit response review: judging whether a supplier's corrective-action response letter is adequate against an identified root cause, drawing on prior deviation records and audit findings.

Industry relevance. The authors argue agentic AI is entering regulated production now, so architectural decisions being made today — guardrails alone versus guardrails plus structural compliance, prompt-based control versus formal grounding — will determine trustworthiness. With high-risk obligations under Articles 9–17 taking binding effect on August 2, 2026, the paper claims neuro-symbolic architectures with formal guarantees are becoming legally necessary, not just academically desirable.

Future Directions

• Build the mediation interface between symbolic process state and neural execution. Open questions include how typed activity specifications are translated into effective prompts and how LLM outputs are validated against symbolic contracts, with the expressiveness–verifiability tradeoff as the central unsolved problem. Candidate middle grounds named by the authors include calibrated confidence scores, lightweight semantic validators, and structured output schemas with partial formal coverage.

• Extend calibrated uncertainty from offline process prediction to real-time autonomy control. The gap is integrating conformal prediction, ensemble disagreement, or epistemic uncertainty decomposition with symbolic autonomy-control logic that governs human-in-the-loop escalation during live process execution.

• Design neuro-symbolic architectures for the full knowledge-graph lifecycle under regulatory governance. The requirements largely unaddressed in current work are provenance tracking, temporal validity (is this SOP reference current or superseded?), access control, and the feedback loop in which agents query the Case Graph they also help build.

• Develop layered explanation architectures with differentiated fidelity guarantees. Symbolic process traces are faithful by construction while LLM rationales are post-hoc reconstructions; an open problem is composing traces, evidence attributions, and contract validation records into audit-ready artifacts that annotate which parts are structurally guaranteed and which are best-effort.

• Demonstrate practical feasibility. The authors state that the feasibility of compliance-by-construction remains to be shown through future work, and that processes without pre-existing formal models would require a process discovery step preceding the foundational tier, introducing its own neuro-symbolic challenges.

Target Audience

Neuro-symbolic AI researchers looking for an applied domain with formal verification requirements will find the clearest fit, along with researchers in business process management and process mining who work on agentic automation, governance, and trustworthy process AI. The paper also speaks to AI practitioners and architects building LLM agents for pharmaceutical, biotechnology, or medical device quality management, and to compliance, quality assurance, and regulatory affairs professionals who need to understand how EU AI Act Articles 9, 13, 14, and 17 obligations could be met architecturally rather than procedurally. Readers seeking experimental results, benchmarks, or implementation details should look elsewhere: this is a position paper and reports none.

Authors’ abstract

LLM-based agents are entering regulated industries where they automate judgment intensive quality management processes. We argue that symbolic structures already embedded in these domains, including regulations, typed process models, and compliance constraints, should be treated not merely as external monitoring mechanisms but as core architectural components that shape the agent's decision-making and behavior. We propose compliance-by-construction as a complementary paradigm to guardrail-based monitoring: a structural foundation that prevents control-flow violations, while guardrails remain essential for catching semantic errors. We identify a structured set of neuro-symbolic research challenges on foundational and capability level and show that addressing them jointly enables compliance-by-construction. We call on the neuro-symbolic community to engage with regulated process automation as a high impact research domain.
