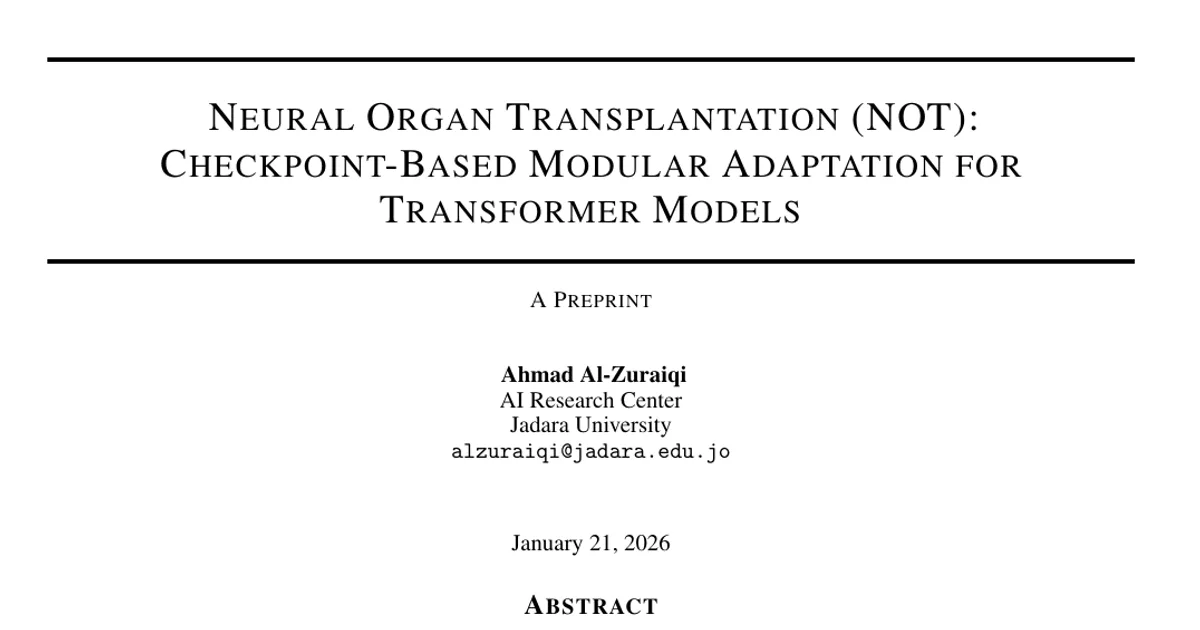

Neural Organ Transplantation (NOT): Checkpoint-Based Modular Adaptation for Transformer Models

AI summary

Overview

• Research area: Modular deep learning and transfer learning for large language models — specifically, checkpoint-based domain adaptation of decoder-only transformers.
• Technical level: Intermediate. The paper assumes familiarity with transformer layers, fine-tuning, LoRA, and perplexity as an evaluation metric, but its central idea is explained in plain, process-oriented terms.
• Scope: The paper proposes and empirically evaluates Neural Organ Transplantation (NOT), a six-phase pipeline for extracting, training, saving, and reinserting subsets of transformer layers as self-contained "donor" checkpoints across three decoder-only architectures (GPT-2, TinyLlama, GPT-OSS) spanning 124M to 20B parameters.

Note: the provided paper content is truncated after Table 11, so the details of Sections 6 (analysis), 7 (limitations), and 8 (conclusion) are referenced by the author but not included here.

What This Paper Is About

Adapting a language model to a specialized domain normally produces trained weights that are permanently tied to one model instance, one training dataset, and one optimization run — so sharing that expertise with a partner requires sharing the underlying data. The paper asks whether a contiguous block of trained transformer layers can instead be packaged as a standalone checkpoint file and transplanted into a compatible recipient model at a chosen position, with no access to the original training data. The goal is a "train-once, deploy-anywhere" paradigm in which domain expertise travels as a file rather than as a dataset.

Key Contributions

1. A checkpoint-based transfer framework. A six-phase pipeline — donor extraction, standalone training, checkpoint creation, surgical integration, recovery fine-tuning, and strategy selection — that extracts contiguous middle layers, trains them inside a minimal wrapper, and saves them as reusable donor_layers.pt files.
2. Substantial performance and efficiency gains. Donor transplantation achieves 2.8–38.6× better perplexity than LoRA on decoder-only architectures, with 2–28× faster training.
3. A characterization of position sensitivity. Insertion position significantly affects performance, with early positions consistently optimal; position variance ranges from 0.058 (TinyLlama) to 5.94 (GPT-2).
4. Evidence for scale-dependent transfer dynamics. Cross-domain transfer incurs 31–74% penalties at smaller scales but shows an unexpected improvement at the 20B scale, suggesting regularization benefits in larger models.
5. An open-source implementation of training scripts, checkpoint formats, and experimental results at https://github.com/zuraiqi/neural-organ-transplant.

Main Findings

• Donor extraction configuration: Three contiguous middle layers are extracted from each model, representing 14–18% of total parameters: GPT-2 (12 layers, donor layers 4–6, 21.3M params, 17.1%), TinyLlama (22 layers, donor layers 7–9, 197.7M params, 18.0%), and GPT-OSS (24 layers, donor layers 8–10, 3.05B params, 14.6%).
• Position sensitivity (RQ1): GPT-2 best PPL 3.50 at position 1 versus worst 9.58 at position 10 (mean 5.52, variance 5.94); TinyLlama best 1.00 at position 3 versus worst 1.63 at position 18 (mean 1.16, variance 0.058); GPT-OSS best 1.00 at position 4 versus worst 3.88 at position 20 (mean 1.59, variance 1.31). The pattern is monotonic, favoring early layers.
• Lossless checkpoint transfer (RQ2): Loaded checkpoints reproduce original perplexity exactly — GPT-2 17.33 / 17.33 (81 MB), TinyLlama 54.15 / 54.15 (751 MB), GPT-OSS 34.56 / 34.56 (11.6 GB) — showing the checkpoint file contains all information needed for deployment.
• Multi-organ composition (RQ3): Compositional capacity is limited to 1–2 organs. GPT-2 prefers 1 organ (4.23 PPL versus 6.76 for 2 and 18.91 for 3); TinyLlama prefers 2 organs (43.60 versus 54.24 for 1 and 57.44 for 3); GPT-OSS prefers 2 organs (29.17 versus 29.27 for 1). Widely spaced organs outperform tightly packed ones.
• Comparative performance (RQ4): On TinyLlama, the donor achieves PPL 54.15 in 8.1s versus LoRA 460.41 (0.41% trainable, 116.5s), full fine-tuning 788.36 (100%, 104.8s), Top-K 1157.83 (18.0%, 41.3s), zero-shot 1493.16, and IA³ 2019.41 (0.01%, 86.0s). On GPT-2, the donor achieves 17.33 in 12.8s versus LoRA 668.40, zero-shot 697.76, full fine-tuning 1352.05, and Top-K 2021.55. On GPT-OSS-20B, the donor achieves 34.56 in 2.7m versus LoRA 98.37 (76.2m), IA³ 214.99 (76.5m), Top-K 365.83 (22.2m), and zero-shot 397.78.
• Training speed: Relative to LoRA, speedups range from 2.3× (GPT-2) to 28.2× (GPT-OSS).
• Overfitting in low data: Full fine-tuning on GPT-2 performs substantially worse than zero-shot (1352.05 versus 697.76 PPL), a pathology the donor method avoids.
• Cross-domain transfer (RQ5): GPT-2 shows a +31.3% penalty (558.1 to 732.9 PPL), TinyLlama +74.2% (1083.1 to 1886.6), but GPT-OSS shows a −84.3% penalty (11932.4 to 1878.8) — cross-domain evaluation improves performance at that scale. Higher absolute values reflect the deliberately challenging out-of-distribution test set.
• Integration strategy: Direct replacement consistently beats bridge-mediated insertion by 32.5%–38.2% across dataset sizes of 100, 500, 1,000, and 2,000 examples on GPT-2, despite training 28.5% versus 18.0% of parameters. Direct replacement is recommended as the default for decoder-only architectures.
• Memory footprint: Direct replacement requires roughly 42% of full model memory for GPT-2; bridge-mediated requires roughly 25%. Both produce models with identical inference cost to the original architecture.
• Scope limitation: The framework is validated exclusively on decoder-only architectures. Preliminary experiments on encoder-only (BERT) and encoder-decoder (T5) models revealed significant challenges, reported as reduced effectiveness.
• Trade-off versus PEFT: PEFT methods train far fewer parameters (0.1–1.3% versus 14–18%) and produce smaller checkpoint files; the paper states LoRA remains preferable when minimal memory footprint is paramount.

Methodology in Plain English

The researchers treat a transformer like a body that can accept a donated organ. First, they cut out a contiguous block of three middle layers from a pre-trained model — the "donor organ" — because prior work shows middle layers carry the most abstract, transferable representations while early layers hold surface features and late layers hold task-specific outputs. This block cannot process raw text on its own, so they wrap it in a minimal scaffold: a frozen copy of the original model's embedding layer feeding into the donor, and a language-model head producing predictions. Only the donor layers receive gradients.

The wrapped donor is trained on domain data using standard causal language modeling with consistent hyperparameters — AdamW at a learning rate of 1×10⁻⁴, weight decay 0.01, batch size 4–8, 5 epochs, warmup ratio 0.1, a cosine schedule, BF16 where supported, and maximum sequence length 512. The trained layers are then saved to a self-contained checkpoint containing state dictionaries, extraction metadata, training metadata, and a compatibility signature (hash of architecture-specific parameters). Loading requires the recipient to match hidden dimension, attention heads, layer normalization type, and activation function, all validated automatically.

Deployment happens in one of two ways. Under direct replacement, the donor layers simply overwrite the recipient layers at the insertion position, and the adjacent layer on each side is unfrozen so it can learn smooth transitions — this trains k+2 layers, about 28.5% of parameters for GPT-2 with k=3. Under bridge-mediated insertion, learned linear transformations (initialized as identity) sit at the donor's input and output boundaries, training only roughly 18% of parameters. A short recovery fine-tuning pass (3–5 epochs for direct replacement; one epoch on bridges then two joint epochs for bridge-mediated) adjusts the seams.

Experiments use WikiText as the primary dataset — 1,000 training samples averaging 156 tokens, 100 validation samples, 100 test samples, and 200 cross-domain samples from a different topical distribution. Baselines are zero-shot, full fine-tuning, LoRA (rank 8, alpha 16), Top-K fine-tuning of the top 10% of parameters by gradient magnitude, and IA³ — all with identical data and optimization settings. Everything runs on dual NVIDIA GH200 GPUs (144 GB HBM3e each) with PyTorch 2.10.0 and a fixed seed of 42.

Why This Matters

Impact on research. The paper reframes model stitching — previously an analysis tool for probing representational similarity — as a practical deployment paradigm. It argues that representation convergence across training runs, which earlier work showed is strongest in middle layers, can be exploited to train components independently and combine them post-hoc. It also introduces testable claims, notably the "causal attention hypothesis" that unidirectional attention makes decoder-only models especially tolerant of modular recombination, and Proposition 1 (Bridge Sufficiency), which predicts that linear bridges suffice when source and target representations have cosine similarity ≥ 1 − ε.

Real-world applications:

• Privacy-preserving expertise sharing: An organization that trains on proprietary medical data can distribute the resulting capability to a partner using a different model instance without exposing the training data — the motivation scenario the paper opens with.
• Rapid domain deployment: Training only 14–18% of parameters and finishing 2.3–28.2× faster than LoRA lowers the compute barrier for standing up specialized models.
• Versioned capability libraries: Because checkpoints are self-contained files, domain expertise can be archived and versioned independently of base-model updates, rather than re-derived each time.
• Resource-constrained adaptation: Memory savings (roughly 42% of full model memory for direct replacement, roughly 25% for bridge-mediated on GPT-2) make adaptation feasible on hardware that cannot accommodate full fine-tuning.

Industry relevance. The paper directly addresses the operational friction of deploying LLMs across organizational boundaries — data-sharing constraints, partner deployments, and the need to keep capabilities decoupled from specific base-model versions. Its explicit framing of when to choose donor transplantation (transferable expertise plus efficient training) versus when LoRA is preferable (minimal memory footprint) is the kind of guidance that informs engineering decisions rather than just benchmark tables.

Future Directions

• Extending beyond decoder-only architectures. The paper states the framework is validated exclusively on decoder-only models, and preliminary tests on encoder-only (BERT) and encoder-decoder (T5) models showed significant challenges — understanding and overcoming this failure mode is the most direct open problem.
• Explaining the negative transfer penalty at scale. The −84.3% cross-domain result on GPT-OSS-20B is described as unexpected and attributed to a hypothesis of regularization benefits at larger scale; the mechanism is not established.
• Widening multi-organ composition. Compositional capacity is currently limited to 1–2 organs, with GPT-2 preferring one, and the paper notes position spacing affects interference. Better spacing strategies or composition rules could raise this ceiling.
• Standardizing checkpoint interoperability. Compatibility currently requires matching hidden dimension, attention heads, layer normalization type, and activation function, enforced by a hash-based signature. Broader transfer across heterogeneous model families would require either looser compatibility criteria or learned adapters.

Target Audience

Machine learning researchers and engineers working on transfer learning, parameter-efficient fine-tuning, and modular or composable model architectures. It is especially useful for practitioners who need to deploy domain-adapted LLMs under privacy constraints or across organizational boundaries and who already understand transformer internals, LoRA, and perplexity-based evaluation. Readers purely interested in minimizing adapter size will find the paper's own conclusion — that LoRA remains preferable for minimal memory footprint — more relevant than its proposed method.

Authors’ abstract

We introduce Neural Organ Transplantation (NOT), a modular adaptation framework that enables trained transformer layers to function as reusable transferable checkpoints for domain adaptation. Unlike conventional fine-tuning approaches that tightly couple trained parameters to specific model instances and training data, NOT extracts contiguous layer subsets ("donor organs") from pre-trained models, trains them independently on domain-specific data, and saves them as standalone checkpoint files that can be transplanted into compatible recipient models without access to the original training data. Through experiments on three decoder-only transformer architectures spanning 124M to 20B parameters (GPT-2, TinyLlama, and GPT-OSS), we demonstrate that donor transplantation substantially outperforms existing adaptation methods, achieving an order-of-magnitude improvement in perplexity over LoRA while training significantly faster. The method exhibits position dependence, with early insertion positions yielding optimal results. Cross-domain transfer at billion-parameter scale reveals unexpected regularization benefits. These findings demonstrate that transformer middle layers can support efficient modular transfer for decoder-only architectures, enabling privacy-preserving expertise sharing through checkpoint distribution. We note that this approach is currently limited to decoder-only models; preliminary experiments on encoder-based architectures show reduced effectiveness.
