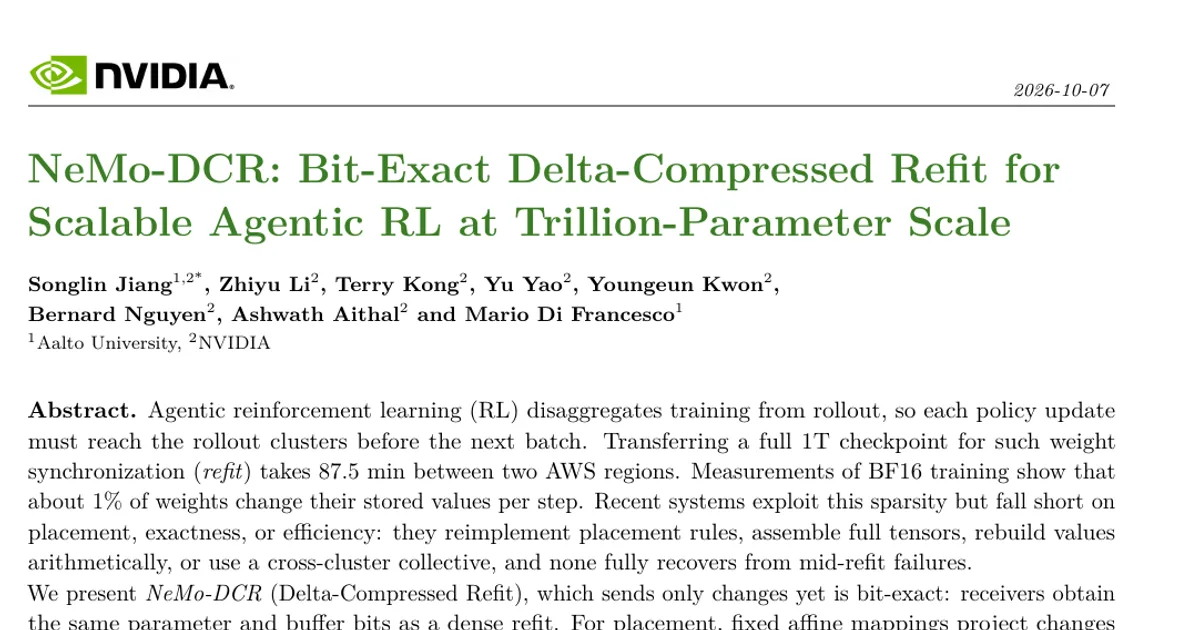

NeMo-DCR: Bit-Exact Delta-Compressed Refit for Scalable Agentic RL at Trillion-Parameter Scale

AI summary

Overview

Research area: Distributed computing and machine-learning systems (cs.DC), specifically weight synchronization ("refit") infrastructure for agentic reinforcement learning.

Technical level: Advanced. The paper assumes familiarity with reinforcement learning post-training (GRPO), MoE and hybrid Mamba-Transformer architectures, tensor/pipeline parallelism, checkpoint formats such as Hugging Face, and inference runtimes such as vLLM.

Scope (one sentence): The paper presents NeMo-DCR, a system that synchronizes updated policy weights to rollout clusters by transmitting only the changed bits in a bit-exact, delta-compressed form, and evaluates it on 30B–1T parameter models across two AWS regions.

What This Paper Is About

Agentic reinforcement learning separates training from rollout, so after every policy update the new weights must reach the rollout (serving) clusters before the next batch can be generated. Sending a full checkpoint is slow — the paper measures 87.5 minutes to move a 1T checkpoint between two AWS regions — even though BF16 training changes only a small fraction of stored values per step.

The goal is a refit mechanism that sends only those changes while still delivering exactly the same parameter and buffer bits as a dense refit, places those changes correctly in each receiver's native storage layout, avoids any collective spanning the two clusters, and recovers cleanly if a refit is interrupted.

Key Contributions

1. Direct projection and residual conversion. One owner per shard detects changed stored bits and projects affine changes directly into the checkpoint's canonical coordinates using fixed index mappings, while residual conversion handles everything else (including changes caused by shared scale factors). This avoids assembling and converting full tensors and makes Qwen3 delta construction 1.08–1.16× faster than full conversion at 3% and 5% element change rates. Affine mappings cover 96.3% of the weight bytes in the Qwen3-30B-A3B checkpoint and 97.0% in the Nemotron-3-Ultra-550B-A55B checkpoint.

2. Mixed XOR/overwrite encoding with compression. XOR masks encode non-overlapping affine changes whose projection and loader path preserve stored bits; absolute overwrites encode all other changes. Both are exact, and mixed encoding cuts Qwen3 payload bytes by 38–40% versus overwrites only.

3. Recoverable in-place refits. Receivers delegate placement to the serving runtime's native loader and apply updates in place, keeping no separate receiver-side baseline copy. Retries re-send the complete changed set as overwrites to repair partial writes, and a joint commit binds each policy version to its source baseline. Proposition 1 guarantees that an applied delta yields the same bits as a dense refit.

4. Pipelined delivery without a cross-cluster collective. Payloads travel over object storage or a relay tree while the delta is still being constructed and, in synchronous RL, while receivers apply earlier buckets. At 3% and 5%, the transport lower bound accounts for 77–94% of refit latency.

Main Findings

• Sparsity is real but small: Across six models, only 0.6–1.2% of training-side source elements change their BF16 values per optimizer step, so a full-checkpoint transfer spends 98–99% of its bytes on unchanged elements.
• Speedups of 12–40×: NeMo-DCR refits of 30B–1T models at 3% and 5% element change rates are 12–40× faster than a transport-only full-checkpoint reference. At 120B, refits take 22.6–49.7 s and are 15.1–33.2× faster.
• 1T refit in 150 s: A 1T relay-tree refit at 3% takes 150 s instead of 87.5 min; the same figure at 120B is 22.6 s instead of 750 s.
• Payload compression: XOR masks are 1.7–2.2× smaller than overwrite values after zstd level-1 compression on 20 million synthetic BF16 values with Gaussian noise standard deviations of 10⁻⁴, 10⁻³, and 10⁻² (in the 10⁻² case, overwrite streams total 25.70 MB and XOR streams 14.93 MB, a 1.72× reduction).
• Projection saves time, XOR saves bytes: In Qwen3-30B-A3B and Qwen3-235B-A22B delta construction, direct projection is 1.08–1.16× faster than full conversion, and XOR encoding reduces payload from 2.44 GB to 1.49 GB (30B, 3%), from 3.80 GB to 2.29 GB (30B, 5%), from 18.42 GB to 11.37 GB (235B, 3%), and from 29.36 GB to 17.58 GB (235B, 5%).
• Bit-exactness confirmed: Comparisons against dense refits from the same candidate weights confirmed bitwise equality of every parameter and buffer element in the evaluated BF16 receiver configurations, and every measured refit passed its post-apply checks.
• Training survives receiver kills: With a vLLM instance killed mid-refit every five steps over 50 GRPO steps on Qwen3-30B-A3B, both NeMo-DCR transports followed dense NCCL's mean reward and KL trajectories. Mean reward over the 50 steps was 0.41 for dense NCCL and for both NeMo-DCR transports.
• Payload fraction: Before replication, compressed payloads including locations total 2.4–3.8% of the 247.2 GB 120B checkpoint, 21–24% less than the uncompressed changed values alone.
• No existing system meets all requirements: For the five requirements (bit-exact, delta, native, decoupled, recovery), no existing system fully meets the recovery requirement, and each fully meets at most two of the five.
• No model-specific logic: The same code handles Qwen3 and hybrid Mamba-Transformer Nemotron models.

Methodology in Plain English

The key move is to describe weight changes in canonical coordinates — the tensor names and indices of the Hugging Face checkpoint format that both the training stack and the serving runtime already understand. Instead of comparing whole assembled tensors, each training shard has a single "owner" rank that keeps a host-memory copy of its own weights (the baseline) and compares raw stored bit patterns. Because BF16 only has 8 significant bits, most optimizer updates round away, so only a handful of bits actually change per step.

For changes covered by fixed affine mappings, the owner computes the destination index directly and emits nothing but the changed bits. Changes that fall outside those mappings — fused Q/K/V tensors, shared scale factors, stacking, padding, tied weights, quantization scales — go through a slower residual path where the affected canonical tensors are constructed and compared against a stored residual baseline.

Each change is then encoded either as an XOR mask (small, compresses well, but unsafe to apply twice) or as an absolute overwrite (safe for retries). Receivers stage payloads into a scratch buffer and let the serving runtime's own weight loader move them into place, intercepting the loader's final storage copies so the update lands exactly where the runtime expects it. Delivery happens over ordinary object storage or a relay tree rather than an inter-cluster NCCL collective, and is pipelined: receivers can apply one bucket of payloads while the next is still being built or arriving.

Correctness is argued through Proposition 1, which states that applying the delta to a receiver's current storage produces the same bits as a dense refit, provided a set of loader conditions holds (every storage write is intercepted, XOR byte ranges are disjoint from all other writes, and overlapping overwrites agree). If an attempt fails mid-way, the system waits, recomputes the full changed set from the same candidate weights, and re-sends everything as overwrites. A control-plane commit record, changed only by compare-and-set, publishes the new version after all required receivers acknowledge.

Why This Matters

Impact on research: The paper reframes weight synchronization for disaggregated RL as a bit-exactness and placement problem rather than a bandwidth problem. It shows that exact deltas, native placement, decoupled transport, and crash recovery can all hold at once, and it gives a formal equivalence statement (Proposition 1) linking delta application to dense refit output. This matters for recipes that depend on rollout and training policies staying identical, since rollout–training mismatch is known to destabilize RL.

Real-world applications:

• Agentic RL post-training at scale: Delivering updated policies to rollout clusters between GRPO steps, including across AWS regions with no InfiniBand or EFA path between them.
• Geo-distributed training pipelines: Refits that must cross a wide-area network between a training datacenter and a serving datacenter.
• Reusing idle inference capacity: Rollout that runs on idle serving GPUs or in other datacenters, where every refit crosses a cluster boundary.
• Trillion-parameter MoE and hybrid models: The 1T relay-tree refit at 150 s demonstrates feasibility for MoE and hybrid Mamba-Transformer checkpoints without model-specific logic.

Industry relevance: The implementation is about 7,000 lines of Python, builds on Megatron Bridge conversion and the vLLM native loader, and works with both object storage (Amazon S3 in the evaluation) and direct links between clusters, which matches how different deployments actually share weights. It targets the bottleneck the paper identifies — rollout consuming over 70% of wall-clock time in agentic RL — by making the refit no longer the thing the next rollout batch waits on.

Future Directions

• Extension beyond the evaluated runtime and dtype: Bit-exactness was confirmed only for evaluated BF16 receiver configurations using the vLLM native loader; behavior for other serving runtimes and other numeric formats is not reported.
• Loader paths that are rejected: NeMo-DCR rejects unsupported loader paths in advance and fails any attempt whose intercepted copies break its loader conditions — how to broaden the set of supported loader paths is an open engineering question.
• Change-rate behavior over longer training: The element change rates in Figure 2 are averaged over each model's first five steps; the paper notes that larger learning rates and early training steps change more stored values, and the latency runs use 3% and 5% as stress cases that exceed every measured rate.
• Latency decomposition at scale: Section 8.6's per-model latency breakdown and Section 8.7

Authors’ abstract

Agentic reinforcement learning (RL) disaggregates training from rollout, so each policy update must reach the rollout clusters before the next batch. Transferring a full 1T checkpoint for such weight synchronization (refit) takes 87.5 min between two AWS regions. Measurements of BF16 training show that about 1% of weights change their stored values per step. Recent systems exploit this sparsity but fall short on placement, exactness, or efficiency: they reimplement placement rules, assemble full tensors, rebuild values arithmetically, or use a cross-cluster collective, and none fully recovers from mid-refit failures. We present NeMo-DCR (Delta-Compressed Refit), which sends only changes yet is bit-exact: receivers obtain the same parameter and buffer bits as a dense refit. For placement, fixed affine mappings project changes from training shards into the checkpoint's canonical coordinates, residual conversion covers the other changes, and the serving runtime's native loader places all changes in receiver storage. For exactness, compressible XOR masks carry affine changes whose projection and loader preserve stored bits, and overwrites carry the others. Receivers apply both in place, retries overwrite partial writes, and a joint commit binds the policy to the baseline for the next delta. For efficiency, object storage or a relay tree streams payloads during delta construction, without a cross-cluster collective. Even at 3% and 5% change rates, NeMo-DCR refits of 30B-1T models are 12-40$\times$ faster than a transport-only full-checkpoint reference. A 1T relay-tree refit at 3% takes 150 s instead of 87.5 min, making refits practical for cross-cluster agentic RL at trillion-parameter scale.
