Multi-Aspect Mining and Anomaly Detection for Heterogeneous Tensor Streams

AI summary

Overview

Research area: Data stream mining and Bayesian tensor decomposition, applied to unsupervised group anomaly detection in event streams (ACM Web Conference 2026, WWW '26, Dubai).

Technical level: Advanced. The paper assumes familiarity with Bayesian nonparametrics, Gaussian processes, Gibbs sampling, state-space models, and tensor notation.

Scope (one sentence): The paper introduces HeteroComp, a streaming Bayesian tensor-decomposition method that summarizes heterogeneous tensor streams — those mixing categorical and continuous attributes with continuous timestamps — into interpretable "components," and uses those components to detect group anomalies.

What This Paper Is About

Event streams such as communication logs (time, IP address, packet length) contain both categorical attributes (e.g., IP address, port) and continuous attributes (e.g., packet length), forming what the authors call a heterogeneous tensor stream. Existing tensor decomposition and anomaly detection methods cannot handle this mixture: they either discretize continuous attributes, treat categorical attributes as continuous, or assume a fixed parametric distribution (e.g., Gamma) for continuous values — all of which distort the underlying statistical properties of the data. The goal of HeteroComp is to summarize such streams continuously without restricting to any specific parameterized form, and to detect group-level anomalies (e.g., DoS attacks, where individual requests may look normal but their aggregation over a short period is abnormal) quickly and accurately.

Key Contributions

1. A heterogeneous-stream model without distributional restrictions. HeteroComp uses logistic Gaussian process (LGP) priors for continuous attributes, directly estimating probability densities from data rather than assuming a fixed distribution family, and Gaussian process priors for the temporal dynamics of components. It handles categorical and continuous attributes uniformly.

2. Latent dynamics modeling. The method models each component's evolution over time with a Gaussian process, exploiting the continuity of timestamps (rather than discretizing them) to capture trends and abrupt changes linked to external events.

3. Streaming inference at bounded cost. Parameters are estimated by collapsed Gibbs sampling with a Polya-Gamma data augmentation trick to make the softmax conjugate; the Gaussian process regression is approximated as a linear time-invariant stochastic differential equation solved with a Kalman filter and Rauch-Tung-Striebel smoother, giving O(T_c p^3) time and O(T_c p^2) memory instead of the naive O(T_c^3). Updates incorporate new records without retraining from scratch, so computation time does not depend on the total stream length.

4. Component-based group anomaly detection. A chi-squared goodness-of-fit test on component counts and per-attribute counts (with a p-value threshold of 0.05) turns the extracted components into an anomaly score, with the score shown to follow a chi-squared distribution with a stated number of degrees of freedom.

Main Findings

• Only HeteroComp meets all five requirements in the capability comparison. Table 1 compares RRCF, MStream, MemStream, Anograph, Trimine, CubeScope, CyberCScope, and HeteroComp across anomaly detection, multi-aspect mining, stream processing, heterogeneous handling, and latent dynamics. HeteroComp is the only method marked as satisfying all of them; no other listed method supports latent dynamics.

• Interpretable components on cybersecurity data (#3 Edge-IIoT). On the Edge-IIoT dataset, HeteroComp finds distinct components in the categorical attribute (source port) and the continuous attribute (TCP segment length). A word cloud shows component blue associated with ports 55338 and 55350, component orange dominated by port 60944, and component red associated with ports 5900 and 1883. Components blue and orange cover records with short TCP segments, while component red primarily represents records with long TCP segments.

• Component dynamics align with specific attack types. In the latent dynamics visualization, component blue becomes dominant during a DDoS HTTP attack; component orange becomes dominant during attacks from a different source port, such as Port Scanning and Vulnerability Scanner; component red tends to increase during attacks that transmit many large-TCP-segment packets, such as DDoS TCP and DDoS ICMP.

• Market analysis illustration (#6 Amazon Movie&TV). A second case study shows four components (Adventure, Kids, SF/Comedy, Western) in the categorical attribute (Title) and the continuous attribute (price in US dollars), with component weights changing in relation to film releases.

• Reported performance claims. The authors state that extensive experiments on real datasets show HeteroComp outperforms state-of-the-art algorithms for group anomaly detection accuracy, and that its computational time does not depend on the data stream length. The provided paper content does not report specific numeric accuracy, F1, or runtime values.

• No anomaly labels required. The method targets unsupervised anomaly detection, since the paper notes there is no anomaly label in streaming settings.

Methodology in Plain English

The method watches a stream of records arriving over time. Each record has a timestamp, one or more categorical attributes (choices from a fixed set of values), and one or more continuous attributes (real numbers). Records are grouped into batches covering a window of timestamps, called the current tensor.

The core idea is that every record belongs to one of K hidden "components" — latent groups that behave coherently. Each component is described by: a multinomial distribution over each categorical attribute, a distribution over each continuous attribute, and a time-varying weight (its latent dynamics) that says how prominent the component is at each moment.

Two modeling choices are central. First, for continuous attributes, instead of guessing a distribution shape, the method places a logistic Gaussian process prior — a flexible function that is turned into a probability density. To keep inference efficient, the real line is split into a fixed number of non-overlapping grids, and density is assigned per grid. Second, the component weights over time are also modeled with a Gaussian process, which lets the model follow smooth trends and sharp shifts without discretizing time.

To fit the model on each incoming batch, the method iteratively reassigns records to components (Gibbs sampling), then updates the component descriptions. A technical obstacle is that the softmax function linking component weights to assignment probabilities is not conjugate with a Gaussian prior; the authors resolve this with the Polya-Gamma data augmentation trick, which restores conjugacy and yields closed-form posterior means and variances. The Gaussian process regression step is too slow if done directly, so it is rewritten as a linear state-space model and solved forward with a Kalman filter and backward with an RTS smoother, giving cost linear in the number of timestamps in the batch. Categorical parameters update analytically via the Dirichlet–Categorical conjugacy; continuous-attribute density parameters are found by maximizing a log-likelihood with the L-BFGS method.

For detection, the method tracks stream statistics — total normal time and accumulated counts of components, component–unit counts, and component–grid counts — across all previously judged-normal windows. For the current window, it computes expected counts based on those statistics and compares them to observed counts using a chi-squared goodness-of-fit statistic. If the resulting p-value is below 0.05, the window is reported as an anomaly; otherwise it is judged normal and its counts are folded into the statistics.

Why This Matters

Impact on research. The work targets a concrete gap: prior streaming tensor methods mostly handle only categorical attributes (Trimine, CubeScope), assume a specific parametric family for continuous attributes (CyberCScope uses Gamma), or discretize timestamps and lose temporal continuity (MStream). HeteroComp's non-parametric treatment of continuous attributes and its continuous-time dynamics model provide an alternative that does not distort the data's statistical properties by pre-discretizing it. It also connects group anomaly detection to streaming tensor decomposition, which the authors argue distinguishes it from point-anomaly methods like isolation forests or deep generative models that are described as computationally expensive for streaming scenarios.

Real-world applications (drawn from the paper's stated use cases):

• Cybersecurity systems: analyzing access logs and detecting attacks such as DDoS HTTP, DDoS TCP, DDoS ICMP, Port Scanning, and Vulnerability Scanner, as fast as possible to minimize damage.
• Online marketing analytics: discovering hidden groups and trends from user review data.
• Location-based services: analyzing multi-aspect event streams tied to time and place.
• E-commerce and entertainment market analysis: as illustrated on the Amazon Movie&TV dataset, tracking how component weights shift with content categories (Title) and price.

Industry relevance. Because the algorithm processes each batch incrementally and its computation time does not depend on the total stream length, it suits long-running deployments where heterogeneous event streams arrive continuously — the paper explicitly frames this as the scenario the framework is built for. Public source code is available at the GitHub repository given in the paper.

Future Directions

These follow from gaps and design choices visible in the paper rather than from an explicitly stated future-work section:

• Choosing the number of components K and other hyperparameters. The model assumes K major trends exist; the provided content describes a default for one hyperparameter (alpha set to 1/K) but does not describe an automatic selection procedure for K, the grid count G, or the state-space order p.

• Sensitivity to the grid discretization of continuous attributes. Continuous densities are approximated on G non-overlapping grids; how the resolution of this discretization affects the fidelity of the estimated density and detection accuracy is an open question.

• Beyond the LTI-SDE approximation. Component dynamics are approximated as a linear time-invariant stochastic differential equation with Kalman/RTS smoothing; whether this captures dynamics that violate that approximation is unclear.

• Distinguishing count-surge anomalies from distributional drift. The detection test is based on whether counts in the current window match historical averages; anomalies that shift the shape of a distribution without changing overall counts may be a different, unaddressed case.

• Combining group-level and point-level detection. The paper contrasts group anomalies with point anomalies and notes that existing streaming point-anomaly detectors cannot detect group anomalies; whether the two views can be combined usefully is unaddressed.

Target Audience

Researchers and practitioners in data stream mining, tensor decomposition, and Bayesian machine learning who are interested in streaming inference with non-parametric priors. It is also relevant to security analysts and engineers building unsupervised anomaly detection systems for logs, though they should expect to engage with the Bayesian and state-space machinery. Readers looking for an introductory treatment will find the method dense; those familiar with collapsed Gibbs sampling, Gaussian process regression, and chi-squared tests will get the most out of it.

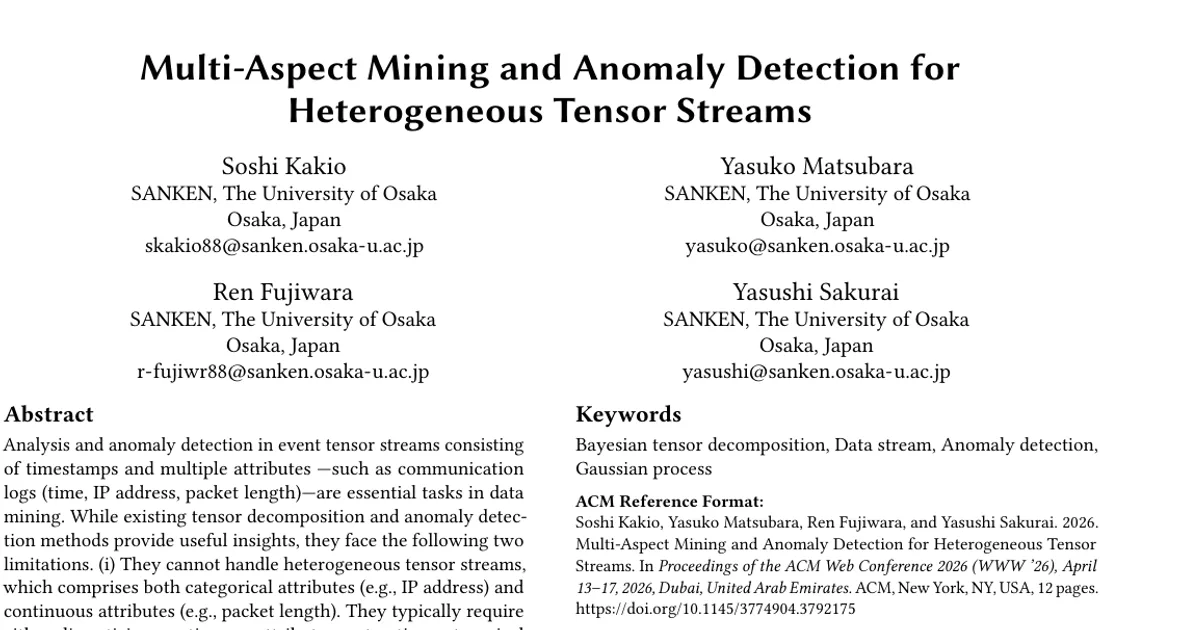

Authors’ abstract

Analysis and anomaly detection in event tensor streams consisting of timestamps and multiple attributes - such as communication logs(time, IP address, packet length)- are essential tasks in data mining. While existing tensor decomposition and anomaly detection methods provide useful insights, they face the following two limitations. (i) They cannot handle heterogeneous tensor streams, which comprises both categorical attributes(e.g., IP address) and continuous attributes(e.g., packet length). They typically require either discretizing continuous attributes or treating categorical attributes as continuous, both of which distort the underlying statistical properties of the data.Furthermore, incorrect assumptions about the distribution family of continuous attributes often degrade the model's performance. (ii) They discretize timestamps, failing to track the temporal dynamics of streams(e.g., trends, abnormal events), which makes them ineffective for detecting anomalies at the group level, referred to as 'group anomalies' (e.g, DoS attacks). To address these challenges, we propose HeteroComp, a method for continuously summarizing heterogeneous tensor streams into 'components' representing latent groups in each attribute and their temporal dynamics, and detecting group anomalies. Our method employs Gaussian process priors to model unknown distributions of continuous attributes, and temporal dynamics, which directly estimate probability densities from data. Extracted components give concise but effective summarization, enabling accurate group anomaly detection. Extensive experiments on real datasets demonstrate that HeteroComp outperforms the state-of-the-art algorithms for group anomaly detection accuracy, and its computational time does not depend on the data stream length.
