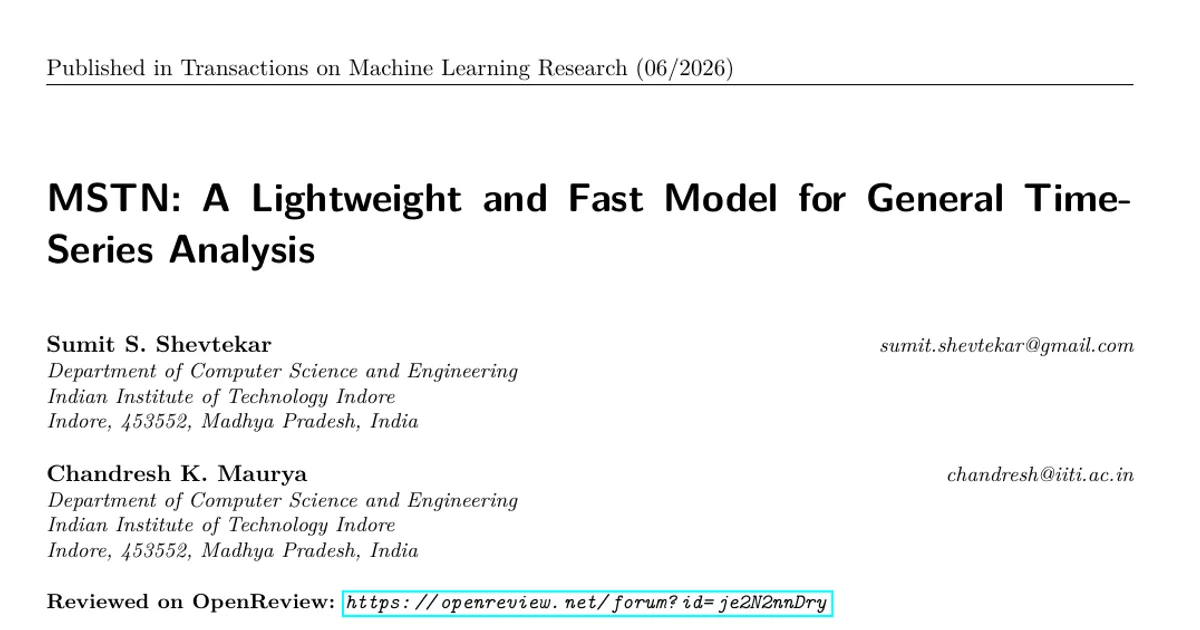

MSTN: A Lightweight and Fast Model for General TimeSeries Analysis

AI summary

Overview

• Research area: Deep learning for multivariate time-series analysis (forecasting, imputation, classification, and cross-domain generalization).
• Technical level: Intermediate — the paper assumes familiarity with convolutions, LSTMs, Transformers, squeeze–excitation blocks, and channel-interaction taxonomies (CI/CD/CP).
• One-sentence scope: The paper introduces the Multi-scale Temporal Network (MSTN), a hybrid dual-branch architecture that combines a multi-scale convolutional branch with either a BiLSTM or a Transformer branch and collapses the temporal dimension early so all downstream refinement and prediction modules run in constant time, evaluated across 27 benchmark datasets.

What This Paper Is About

Real-world time series are non-stationary, nonlinear, and multi-scale — rapid local fluctuations and slow long-range trends coexist — yet most current architectures impose rigid, fixed-scale structural priors such as patch-based tokenization, predefined receptive fields, or frozen backbones, which over-regularize temporal dynamics and limit adaptability to abrupt high-magnitude events. Existing models also tend to specialize in either a single task or a single type of temporal variation (short or long), rarely balancing both. MSTN's goal is a general-purpose architecture that is simultaneously expressive across temporal scales, lightweight in memory, and fast enough for low-latency and edge deployment.

Key Contributions

1. MSTN and the Early Temporal Aggregation (ETA) principle. ETA confines expensive operations (e.g., O(L²) Transformer self-attention, O(L) BiLSTM) to the initial encoders and collapses the sequence length (L → 1) immediately afterward, so all subsequent fusion, refinement, and prediction modules operate in O(1) time with respect to sequence length. The front-end encoder retains its original complexity: O(L²) for the Transformer variant, O(L) for the BiLSTM variant. The paper reports ~398,008 parameters for MSTN-BiLSTM and ~1,055,416 (≈1M) for MSTN-Transformer, and states sub-millisecond inference latency in this contributions list.
2. Broad benchmark evaluation. Across 27 standard benchmarks spanning imputation, long-term forecasting, classification, and cross-dataset generalization, MSTN achieves state-of-the-art performance on 21 datasets, outperforming models such as GPT2, TimesNet, iTransformer, PatchTST, and TSMixer.
3. Cross-domain generalizability study. MSTN is additionally evaluated on 7 datasets from varied domains such as health and safety.
4. A hybrid channel-interaction design. MSTN is positioned as a combined CI + CD approach — a parallel CNN branch (channel-independent, O(L)) alongside a BiLSTM or Transformer branch (channel-dependent) — intended to reconcile the efficiency/expressiveness trade-offs of CI, CD, and CP strategies.

Main Findings

• State-of-the-art coverage: MSTN establishes new best results on 21 of 27 benchmark datasets across imputation, long-term forecasting, classification, and cross-dataset generalization.
• Lightweight footprint: the fixed cores use approximately 398,008 parameters (MSTN-BiLSTM) and approximately 1,055,416 parameters (MSTN-Transformer, ≈1M).
• Low-latency inference: the abstract reports inference under 1 second and often in milliseconds; the contributions section describes sub-millisecond inference latency. No per-dataset latency table appears in the provided content.
• Robust imputation: evaluated under the Missing Completely at Random (MCAR) protocol with random masking ratios of 12.5%, 25%, 37.5%, and 50%, using MSE and MAE; the paper reports strong robustness under high missingness.
• Long-term forecasting: evaluated on four public subsets of California traffic network data from the Performance Measurement System (PEMS03, PEMS04, PEMS07, PEMS08) with prediction horizons H ∈ {12, 24, 48, 96}, following the iTransformer protocol, against iTransformer, PatchTST, and TSMixer.
• Classification: evaluated by classification accuracy against GPT2(6), TimesNet, DLinear, ETSFormer, FEDformer, and Informer, with reported improved accuracy across application domains.
• Handles aperiodic events: the paper argues that periodic/seasonal-decomposition baselines can over-smooth temporal dynamics and miss sudden spikes or crashes, whereas MSTN is designed to handle such events.
• Note on detailed numbers: the provided paper content is truncated before the results tables, so per-dataset MSE/MAE/accuracy values are not reported here.

Methodology in Plain English

MSTN routes the input through two parallel branches that specialize in different things.

1. A multi-scale convolutional branch stacks Conv1D layers with kernel sizes 7 and 5 (producing 128 then 64 channels), each followed by batch normalization and ReLU, with padding to preserve temporal resolution. Global average pooling then compresses the time axis into a 64-dimensional vector, giving translation-invariant local pattern summaries.
2. A sequence modeling branch first projects the input into a 128-dimensional latent space via a linear layer, then runs either a Transformer encoder (4 layers, 8 attention heads) or a BiLSTM (2 layers, 64 hidden units per direction). Mean pooling over time produces a 128-dimensional global summary.
3. Early Temporal Aggregation (ETA) is the pooling plus reshaping step that turns the length-L sequence into a length-1 representation. Because it happens immediately after the encoders, everything downstream is constant-cost in sequence length.
4. Self-gated fusion (SGF) concatenates the two pooled vectors into a 192-dimensional vector and multiplies it element-wise by a sigmoid gate computed from that vector (a learned 192×192 weight matrix and bias), letting the model dynamically reweight each branch's contribution instead of using fixed weights.
5. Squeeze–excitation (SE) recalibration applies channel-wise attention with a reduction ratio of 8 (W1: 24×192, W2: 192×24), amplifying informative channels and suppressing the rest. Since the temporal dimension is already 1, the SE global pooling step is trivial.
6. A single dense layer (SDL) (192×192 weights and bias), followed by LayerNorm and dropout at rate p = 0.1, acts as a global feature recalibration layer rather than a temporal mixer.
7. Task heads are single linear layers: a masked-MSE objective for imputation, an MSE objective for forecasting, and a softmax cross-entropy objective for classification. This modularity lets the same backbone serve all tasks without structural changes.

Why This Matters

Research impact: The paper challenges the assumption of a single dominant temporal scale in time-series architectures and reframes efficiency as a matter of computation ordering rather than a representational shortcut. The ETA principle — collapsing the temporal dimension right after high-capacity encoding rather than progressively or at the final prediction stage — provides a general template that could be applied to other sequence architectures, and the CI + CD hybrid positioning offers a concrete data point in the ongoing debate over channel-interaction strategies.

Real-world applications:

• Healthcare monitoring and physiological signal analysis, where multi-scale dynamics and low latency matter.
• Industrial machine health and prognostics, where sudden mechanical anomalies must be caught without cloud round-trips.
• Intelligent transportation systems and risky driving behavior analysis, illustrated by aperiodic, event-driven patterns such as emergency braking.
• Energy systems, climate and environmental modeling, and flight navigation, where long-range trends and abrupt events coexist.
• Edge-device deployment more broadly, given the small parameter counts and memory footprint.

Industry relevance: The combination of approximately 0.40M–1.06M parameters and millisecond-scale inference makes MSTN a candidate for embedded and real-time settings where Transformer-based forecasters and LLM-inspired time-series models are too costly. The reported robustness under up to 50% missing data is relevant to sensor networks with frequent failures or corruption.

Future Directions

• Anomaly detection. The related work lists anomaly detection as a major time-series task category but the evaluation covers imputation, forecasting, classification, and generalizability only; extending MSTN to anomaly detection is a natural next step.
• Broader forecasting benchmarks. The long-term forecasting evaluation in the provided content is limited to four PEMS traffic subsets; testing on a wider range of standard forecasting datasets and horizons would clarify generality.
• Scaling and channel behavior. The paper notes that channel-dependent approaches scale poorly with channel count (O(C²) costs) and summarizes its own efficiency in terms of sequence length; how MSTN behaves as the number of variates grows is an open question.
• Interpretability and comparison against current LLM-based series models. MSTN is benchmarked against GPT2, TimesNet, iTransformer, PatchTST, and TSMixer; the paper discusses LLM-inspired approaches (TIME-LLM, LLM4TS) mainly as high-latency alternatives, and a direct cold-start or few-shot comparison is not reported in the provided content.
• Deployment validation. The paper motivates edge-device use and cites latency figures, but the provided content does not report measured on-device memory, energy, or hardware-specific benchmarks.

Target Audience

Researchers and practitioners working on multivariate time-series modeling — particularly those interested in efficient, general-purpose architectures spanning forecasting, imputation, and classification. It will also suit machine-learning engineers evaluating whether a compact dual-branch model can replace heavier Transformer or LLM-based pipelines in latency- and memory-constrained deployments. Readers unfamiliar with channel-interaction taxonomies (CI/CD/CP), squeeze–excitation, or BiLSTM/Transformer internals will find the methodology section demanding without background reading.

Authors’ abstract

Real-world time series often exhibit strong non-stationarity, complex nonlinear dynamics, and behavior expressed across multiple temporal scales, from rapid local fluctuations to slow-evolving long-range trends. However, many contemporary architectures impose rigid, fixed-scale structural priors such as patch-based tokenization, predefined receptive fields, or frozen backbone encoders - which can over-regularize temporal dynamics and limit adaptability to abrupt high-magnitude events. To handle this, we introduce the Multi-scale Temporal Network (MSTN), a hybrid neural architecture grounded in an Early Temporal Aggregation principle. MSTN integrates three complementary components: (i) a multi-scale convolutional encoder that captures fine-grained local structure; (ii) a sequence modeling module that learns long-range dependencies through either recurrent or attention-based mechanisms; and (iii) a self-gated fusion stage incorporating squeeze-excitation and a single dense layer to dynamically reweight and fuse multi-scale representations. ETA ensures downstream modules operate in O(1) time, while the encoder retains O(L^2) (Transformer) or O(L) (BiLSTM). This design enables MSTN to flexibly model temporal patterns spanning milliseconds to extended horizons, while avoiding the computational burden typically associated with long-context models. Across extensive benchmarks covering imputation, long-term forecasting, classification, and cross-dataset generalization, MSTN achieves state-of-the-art performance, establishing new best results on 21 of 27 datasets, while remaining lightweight (~0.40M params for MSTN-BiLSTM and ~1.06M for MSTN-Transformer) and suitable for low-latency inference (<1 sec, often in milliseconds), resource-constrained deployment.
