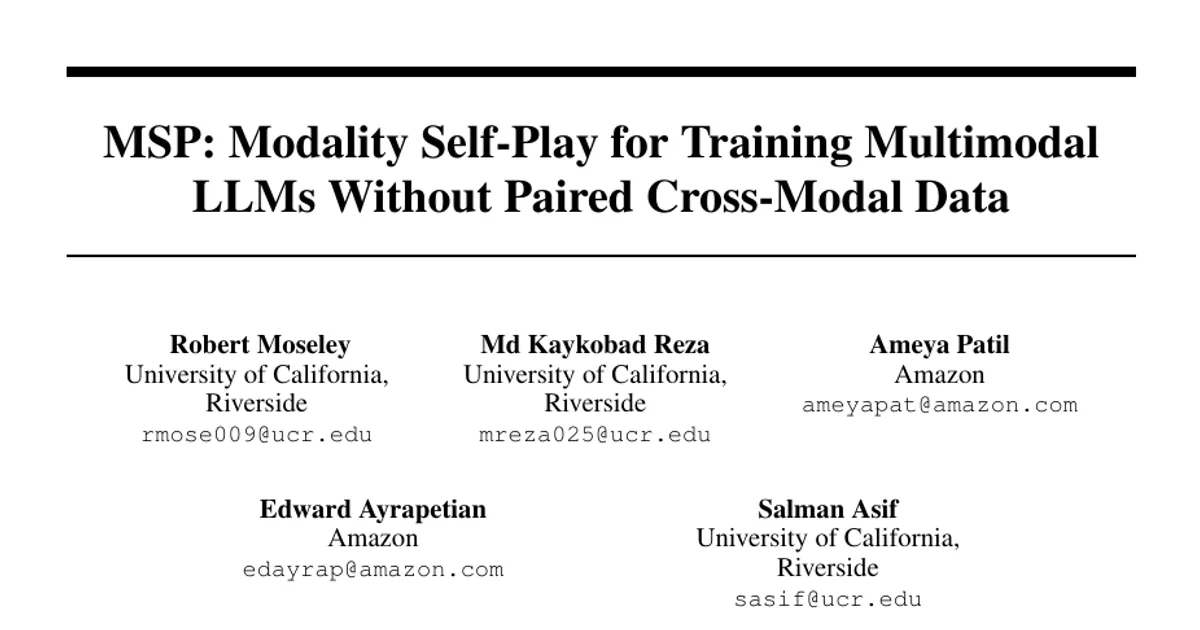

MSP: Modality Self-Play for Training Multimodal LLMs Without Paired Cross-Modal Data

AI summary

Overview

Research area: Multimodal large language models (MLLMs), specifically data-efficient training and cross-modal alignment without paired non-text supervision. Technical level: Intermediate to Advanced (assumes familiarity with contrastive encoders like CLIP/CLAP, LoRA, and LLM projector architectures). Scope: The paper introduces Modality Self-Play (MSP), a two-phase training framework that lets an 8B-parameter multimodal LLM reason jointly over audio and vision at inference time despite never training on a single real audio–vision pair, and evaluates it on AVQA, MUSIC-AVQA, and OmniBench.

What This Paper Is About

Multimodal models typically need large datasets where two non-text modalities are recorded together (for example, audio and video from the same clip), and those datasets are expensive to collect and scale combinatorially as more modalities are added. This paper asks whether a model can learn to compose modalities without ever seeing real paired non-text data, using only ordinary modality–text pairs plus generated "proxy" text descriptions of the modality it cannot see. The goal is to preserve or improve cross-modal reasoning performance while removing the paired non-text supervision bottleneck.

Key Contributions

1. Modality Self-Play (MSP): A training framework that replaces real paired non-text supervision with proxy-mediated alignment, where the model generates textual descriptions of unseen modalities conditioned on an observed "anchor" modality.
2. Empirical demonstration of zero-shot modality composition: Models trained only on single real modalities plus proxy descriptions can integrate and reason over audio and vision jointly at inference time, achieving competitive or state-of-the-art results on AVQA, MUSIC-AVQA, and OmniBench.
3. A learned text-to-modality bridge: A per-modality linear map fit by ridge regression (λ = 1.0) on 1,000 paired caption–modality samples (500 training, 500 held-out) that corrects the offset between a contrastive encoder's text tower and modality tower, improving alignment over proxies alone.
4. Ablation and representational analysis: Experiments isolating the contributions of proxies and bridges, plus probing and logit-lens analysis showing that proxies need not match real modality features in hidden space—they converge to similar output predictions instead.

Main Findings

• MUSIC-AVQA: MSP reaches 65.65 at LoRA rank r = 512, 64.17 at r = 256, and 60.24 at r = 128, versus 47.60 for OneLLM (7B), 47.75 for Qwen2.5-VL (7B), 50.08 for GPT-4o, and 44.50 for X-InstructBLIP (13B). The r = 512 result is reported as +18.05 pp over OneLLM and +15.57 pp over GPT-4o.
• AVQA: MSP achieves 85.73 at r = 256, 85.70 at r = 128, and 85.58 at r = 512, described as the highest reported zero-shot AVQA performance among methods not finetuned on AVQA. It outperforms zero-shot baselines ImageBind-LLM (55.00) and X-InstructBLIP (44.29) by 30.73–41.44 pp, and also surpasses PSAC (78.60), HGA (82.20), and HCRN (82.50), which were trained on the AVQA train set.
• OmniBench: MSP scores 43.26 at r = 256, 42.12 at r = 128, and 41.07 at r = 512, above Gemini-1.5-Pro (42.91—slightly below MSP) and Baichuan-Omni-1.5 (42.90), but below Qwen2.5-Omni (56.13). MSP is described as the only method in the comparison trained without real paired cross-modal data.
• Proxies and bridges both matter (r = 512, audio-video setting): Removing both drops AVQA to 70.21 and MUSIC-AVQA to 45.75; proxies without a bridge give 82.91 and 58.60; full MSP gives 85.58 and 65.65. Proxies are worth +12.70 on AVQA and +12.85 on MUSIC-AVQA, with the bridge adding +2.67 and +7.05.
• Output-space alignment, not residual-space mimicry: Last-layer residual cosine similarity is .778 (audio) and .805 (vision), while vocabulary-space similarity recovers to .944 and .929, giving Δ = +0.166 and +0.124 above residual similarity at the final layer.
• Real and proxy states stay distinguishable: A logistic-regression probe (n = 400 per cell) separates real from bridged-proxy hidden states with accuracy 0.953 / 0.970 / 0.963 for audio and 1.000 / 1.000 / 0.998 for vision at the input, middle, and final layers—so MSP does not erase the distinction in the residual stream.
• Real modalities beat proxies at inference (r = 512): AVQA 85.58 (real/real) vs 81.19 (imagined audio + real vision), 79.28 (real audio + imagined vision), and 75.75 (both imagined); MUSIC-AVQA 65.65, 57.34, 62.87, and 41.33 respectively.
• Content in the token slot is used: Token-matched controls show real slots score 85.58 / 65.65, learned null 81.50 / 60.48 (audio slot) and 80.24 / 61.35 (vision slot), zero 80.28 / 56.76 and 78.35 / 59.01, moment-matched Gaussian 79.66 / 56.08 and 74.97 / 58.08, and shuffled features 76.81 / 52.95 and 72.89 / 54.48.
• Single-token design does not collapse: At r = 512, AVQA "Come From" (sound localization) reaches 90.9 and "Where" (spatial) 80.3; MUSIC-AVQA "Counting" reaches 72.6 and "Location" 57.2.
• Composition training adds value beyond QA formatting: The paper states that Phase 2 trains on QA-formatted data, and separating that supervision from composition (Table 13) still shows MSP composition training with proxies enabling significantly better performance than QA supervision alone.

Methodology in Plain English

The framework has four frozen or trainable parts: frozen contrastive encoders (LAION-CLAP for audio, MetaCLIP ViT-B/16 for vision, each producing a single 512-dimensional feature), trainable per-modality MLP projectors mapping 512 dimensions into Qwen3-8B's 4096-dimensional embedding space, frozen text-to-modality bridges, and Qwen3-8B itself with LoRA adapters on attention and MLP layers.

Phase 1 trains each projector independently on ordinary modality–caption data (AudioCaps and WavCaps for audio, LLaVA-665K for images) using next-token prediction, with each modality represented by a single special token (<audio> or <vision>).

Phase 2 is where the trick happens. For each example, one real modality is the anchor and the other is missing. The frozen Phase-1 model is prompted to write a short caption describing what the missing modality would contain—for instance, describing the sounds implied by an image, or the visual scene implied by audio. Prompt templates deliberately mimic the caption style each contrastive encoder was trained on and ban words that would leak the source modality's vocabulary.

Because a contrastive encoder's text tower and modality tower occupy shifted regions of the same space, feeding raw text features into a projector trained on modality features would cause a distribution mismatch. So a linear bridge per modality is fit once by ridge regression before Phase 2 and frozen. The bridged proxy then flows through the same projector and the same token slot as a real modality, giving real and proxy inputs identical shape and insertion semantics.

A key constraint is the one-real-anchor rule: any sample that happened to contain both vision and audio was assigned to only one modality, so no training example ever contains two real non-text modalities. Audio anchors come from Clotho-AQA, AudioCaps, WavCaps, and the audio tracks of MSRVTT-QA and MSVD-QA; vision anchors come from VQAv2, LLaVA-665K, and frames from MSRVTT-QA and MSVD-QA. For video, 4 frames are uniformly sampled, encoded with MetaCLIP ViT-B/16, and mean-pooled into one 512-dimensional token. All proxies are generated once and cached.

Training uses AdamW with bfloat16 mixed precision, peak learning rate 5×10⁻⁵, cosine decay, one epoch per phase, seed 42, effective batch size 16, and DeepSpeed ZeRO-2 on a single NVIDIA H100 (80 GB). For the first 2,000 optimizer steps the LLM is frozen and only the projectors update. At inference, no proxies are generated—real modalities go through the standard encoder–projector pathway.

Why This Matters

The work challenges a foundational assumption in multimodal learning: that cross-modal reasoning requires explicit paired supervision. If proxy text plus contrastively pretrained encoders suffice, progress is no longer gated by the combinatorial cost of curating aligned datasets for every modality combination. The paper is explicit that MSP still relies on modality–text pairs, pretrained contrastive encoders, and modality-distribution bridge calibration—it removes paired non-text supervision, not all cross-modal priors.

Real-world applications:

• Data-scarce sensing domains (medical imaging plus clinical audio, industrial acoustic monitoring, or field ecology) where co-recorded multimodal data is rare but text descriptions are plentiful.
• Privacy-sensitive deployments where collecting synchronized audio-video of people is restricted, but separate single-modality data with captions is permissible.
• Rapid modality expansion in product systems—adding a new sensor or modality by pairing it with existing text data and proxies rather than commissioning a new aligned corpus.
• Cost reduction in data pipelines, since curation of aligned multimodal datasets is described as expensive, domain-specific, and hard to scale.

Industry relevance is direct: the work is a collaboration with Amazon, and the paper argues that reducing reliance on costly data-curation pipelines makes multimodal capability cheaper to extend.

Future Directions

• Improving proxy quality: stronger generative models or retrieval-based proxy generation to produce more accurate, semantically grounded descriptions, since Appendix K indicates noisy or weakly aligned proxies degrade performance.
• Closing the training–inference gap: the paper reports real modalities consistently outperform proxies at inference (e.g., 85.58 vs 75.75 on AVQA when both are imagined), motivating either better inference-time proxy integration or proxy-free alignment mechanisms.
• Scale and generality: extending MSP to a wider range of modalities and more complex reasoning tasks, studying behavior at larger scales, and using it "in paradigms with significantly more tokens."
• Establishing the paired-data ceiling: determining how closely MSP compares against models trained with real paired data, and whether that ceiling can be exceeded with additional text proxies (Appendix L).
• Theory: developing a deeper theoretical account of when and why multimodal composition can emerge without real paired non-text supervision.

Target Audience

Researchers and engineers working on multimodal foundation models, data-efficient training, and cross-modal alignment—particularly those building audio-visual or omni-modal systems who are constrained by paired-data availability. It is also useful for practitioners interested in projector/bridge design for LLM-based multimodal architectures and for those evaluating whether proxy-based supervision can substitute for expensive aligned corpora. Readers should be comfortable with contrastive pretraining, LoRA, and standard multimodal benchmark conventions; the framework itself is conceptually simple, but the ablation and probing analyses assume an intermediate-to-advanced background.

Authors’ abstract

Large multimodal models have achieved remarkable progress by scaling model capacity and training on massive paired multimodal data. However, this paradigm introduces a fundamental bottleneck: aligned multimodal datasets are expensive to curate, difficult to scale across diverse modality combinations, and increasingly constrain further progress. We introduce Modality Self-Play (MSP), a training framework for multimodal foundation models based on proxy-mediated modality composition. Instead of relying on paired cross-modal data, MSP uses anchor-supporting proxy textual descriptions of unseen modalities as semantic bridges during training. Given an observed modality (e.g., image or audio), the model generates proxy descriptions for complementary unseen modalities, which are then encoded and aligned with the observed modality through learned bridges, enabling cross-modal interaction without real paired non-text supervision. Our central hypothesis is that proxy text, combined with contrastively trained pretrained encoders, provides sufficient semantic structure for multimodal composition to emerge. We show that MSP enables zero-shot modality composition: models trained only with a real anchor modality and accompanying proxy descriptions can integrate and reason over multiple modalities at inference time despite never observing real paired non-text data during training. Empirically, MSP achieves state-of-the-art or competitive performance on multiple multimodal benchmarks. Ablation studies further demonstrate that learned bridges improve alignment, while anchor-supporting proxy descriptions enable effective cross-modal composition. MSP removes the need for real paired non-text (e.g., audio-vision) supervision, while continuing to rely on modality-text pairs, pretrained contrastive encoders, and modality-distribution bridge calibration.
