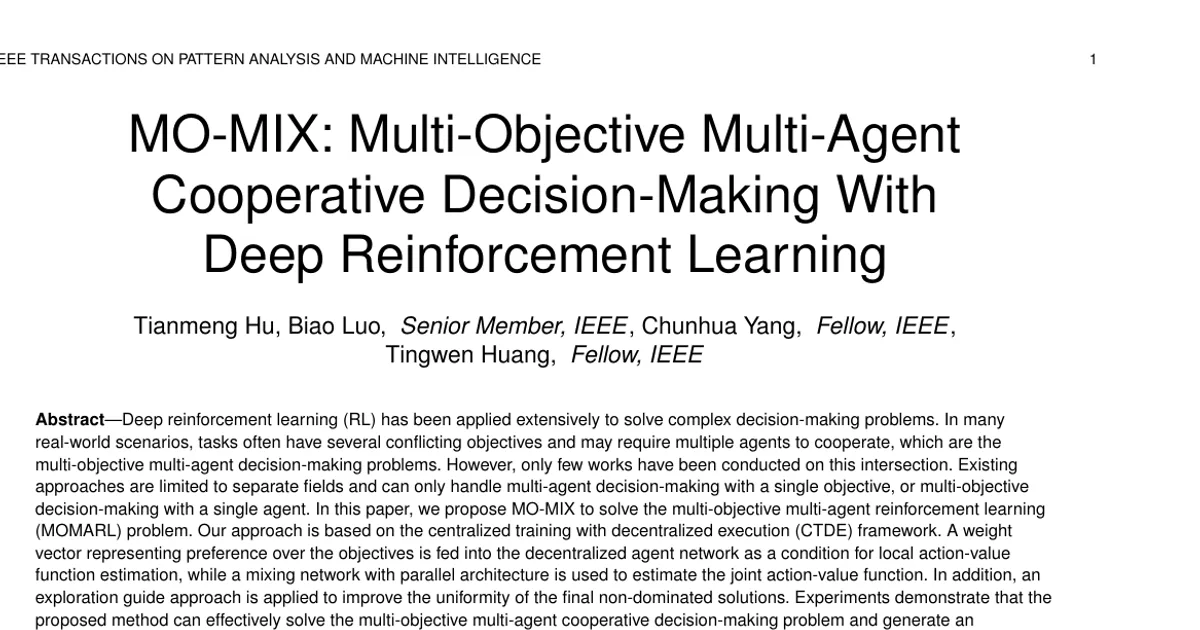

MO-MIX: Multi-Objective Multi-Agent Cooperative Decision-Making With Deep Reinforcement Learning

AI summary

Overview

Research area: Deep reinforcement learning, specifically at the intersection of multi-agent reinforcement learning (MARL) and multi-objective reinforcement learning (MORL) — referred to in the paper as multi-objective multi-agent reinforcement learning (MOMARL).

Technical level: Advanced. The paper assumes familiarity with Markov decision processes, decentralized partially observable Markov decision processes (Dec-POMDPs), value function factorization (VDN, QMIX), centralized training with decentralized execution (CTDE), and Pareto optimality.

One-sentence scope: The paper proposes MO-MIX, a CTDE-based deep RL method that trains a single model to produce a set of non-dominated policies approximating the Pareto set for cooperative multi-agent tasks with multiple conflicting objectives.

Note: the paper content provided is truncated — it cuts off mid-sentence near the end of Section IV-D, before the experimental results and conclusion sections. Quantitative experimental numbers (benchmark scores, dataset sizes, episode counts) are therefore not reported in the available content. Only qualitative claims about the experiments appear.

What This Paper Is About

Many real-world decision problems involve several objectives that conflict with one another (for example, speed versus passenger comfort in autonomous driving), and many also require multiple agents to cooperate. Existing methods handle only one of these dimensions at a time: multi-agent methods handle a single objective, and multi-objective methods handle a single agent. The goal of this paper is a method that can do both — learning a set of policies for cooperating agents, where each policy corresponds to a different preference over the objectives, with the resulting collection approximating the Pareto set.

Key Contributions

1. MO-MIX algorithm. The authors propose MO-MIX, described as the first multi-objective reinforcement learning approach applicable to multi-agent systems that yields high-quality non-dominated solution sets. It generates different policies based on input preferences and produces a dense, high-quality Pareto set approximation.

2. Exploration guide approach. A mechanism that guides the exploration direction during training by adjusting how preferences are sampled, described as improving the uniformity of the final Pareto set approximation.

3. Evaluation in OpenAI's multi-agent particle environment. The authors construct an outer-loop MOMARL algorithm using QMIX as a baseline and report that MO-MIX produces higher-quality non-dominated sets with advantages in all four kinds of evaluation metrics, while also requiring much less computational cost.

4. Extension of the Envelope MOQ-Learning operator to the multi-agent setting. The paper designs a TD-target based on the multi-objective optimization operator from Yang et al.'s Envelope MOQ-Learning, and argues that the theoretical analysis of that operator still holds in the multi-agent case because the monotonicity condition (Equation 2) is satisfied.

Main Findings

• Baseline comparison: MO-MIX is reported to significantly outperform the baseline in all four kinds of evaluation metrics. The baseline is an outer-loop MOMARL algorithm constructed using QMIX. The specific metric names and numeric values are not present in the provided (truncated) content.

• Computational cost: The proposed method is claimed to require much less computational cost than the baseline, described as a "significant efficiency advantage." No specific timing, memory, or FLOP figures are reported in the available content.

• Pareto set quality: The method is reported to generate a dense and high-quality Pareto set approximation, with the exploration guide specifically improving the uniformity of the final non-dominated solutions.

• Limitations of prior work identified: Existing single-agent MORL methods cannot address non-stationarity of the environment (other agents' changing policies become part of the environment), partial observability (agents only get local observations), or credit assignment (a poorly performing agent can receive spurious reward from other agents' good behavior).

• Why multi-policy MORL over constrained RL: The authors argue that multi-policy MORL offers multiple solutions for different preferences, does not require setting natural constraints that may not exist, and does not require retraining when preferences or constraints change — whereas constrained RL requires changing constraints and retraining.

• Prior MOMARL work critiqued: Khamis et al. and Mannion et al. scalarized the reward vector into a single objective (yielding only a single solution); Robinson et al. treated objectives as constraints to find one solution; Tittaferrante et al.'s multiadvisor approach used an independent DQN per agent rather than a MARL algorithm, which the authors argue may reduce stability and effectiveness, and cannot provide multiple non-dominated solutions for different preferences.

• Convergence argument: Applying the optimization operator iteratively on the joint action-value function is argued to theoretically converge to the optimal joint action-value function Q^tot*, with decentralized action selection preserved because the monotonicity constraint holds.

Methodology in Plain English

MO-MIX sits inside the centralized training with decentralized execution framework: agents act on their own local information during execution, but training uses global information.

Two components make up the model:

• Conditioned Agent Network (CAN). Each agent has its own CAN, which estimates that agent's vector-valued Q-function — one Q-value per objective — and picks its action. The inputs are the agent's partial observation, its previous action, and a preference vector ω (the weights expressing how important each objective is). A GRU layer lets the network use the agent's full observation-and-action history, compensating for partial observability, and two MLP layers after the GRU increase representational capacity. Because the observation and action inputs have much higher dimensionality than the preference vector, the preference vector is replicated to avoid being ignored — the paper gives the example of a 2-objective problem where a 2-dimensional preference vector is replicated to 14 dimensions before concatenation. Actions are chosen by scalarizing the vector Q-values with the current weights and taking the argmax, using an ε-greedy policy during training.

• Multi-objective Mixing Network (MOMN). During centralized training, a mixing network estimates the joint action-value function from all agents' Q-vectors. MOMN is internally split into m parallel tracks, one per objective; each track has two MLP layers. The agents' Q-vectors are reorganized by objective, so the Q-values belonging to a given objective go into that objective's track, and the track outputs are concatenated into the joint vector Q^tot. Hypernetworks generate the weights and biases of each track's layers, which is how the monotonicity constraint is enforced: weight-producing hypernetworks use a single linear layer with an absolute value activation so outputs are non-negative, while bias-producing hypernetworks need no such constraint. For the final layer's biases, a two-layer hypernetwork with ReLU is used. Each track therefore needs four hypernetworks (two per layer). All hypernetworks take the global state as input.

Exploration guide. Because some regions of the objective space are much harder to reach than others (the paper's example: a walking robot asked to be both fast and energy-efficient, where staying still is an easy but useless solution), the authors maintain a running non-dominated set of solutions found so far. They split the preference space into multiple subspaces — in practice, since a preference vector is an angular vector spanning 0–90 degrees, they divide the space uniformly into four parts by angle. Subspaces whose solutions are sparser get sampled more often, so under-performing regions receive more training. The non-dominated set is reset periodically so it reflects the current quality of the policies.

Training loop. Each episode samples a preference from a discretized sampling space with an interval of 0.0125, giving preferences {[0, 1], [0.0125, 0.9875], [0.0250, 0.9750], …, [1, 0]}. Transitions (global state, partial observations, joint action, reward vector, next global state, next partial observations, preference) are stored in an experience replay. In the update phase, a batch is sampled along with additional preferences, the TD-target is computed using the envelope-style operator over the sampled additional preferences and the target network, and the loss is the absolute difference between the scalarized target and the scalarized predicted joint Q-value. An evaluation network and a periodically synchronized target network are used for stability.

Why This Matters

Impact on research. The paper claims to be the first multi-objective reinforcement learning approach applicable to multi-agent systems that yields high-quality non-dominated sets, and to be the first to extend an advanced deep MARL method into the MOMARL domain. It also argues it is the first such approach able to handle decision-making problems with continuous state space, unlike prior MOMARL works that the authors say cannot handle complex cooperative problems with continuous or high-dimensional state spaces. The connection drawn to Envelope MOQ-Learning provides a theoretical bridge between single-agent and multi-agent multi-objective theory.

Real-world applications (as raised in the paper and its framing):

• Autonomous driving, where passenger comfort and vehicle speed conflict — fast travel implies more hard braking and lane changing, while comfort implies lower average speed.
• Robot control, where speed and energy conservation conflict, and where users cannot easily set an energy-consumption constraint in advance.
• Smart home energy control, cited as a prior MOMARL application domain (multiadvisor reinforcement learning).
• Traffic signal control and dynamic economic emissions dispatch, both cited as prior MOMARL application domains.

Industry relevance. The practical hook is that a single trained model can serve multiple preferences without retraining: the user supplies a preference vector and gets the corresponding policy. This matters when preferences change over time or cannot be expressed as hard constraints, and when training multiple separate models would be prohibitively expensive. The claimed computational efficiency advantage over the outer-loop QMIX baseline reinforces this practical angle.

Future Directions

• Handling partially observable, continuous or high-dimensional state spaces more broadly. The authors position their method as an advance here, but the provided content does not report experiments beyond OpenAI's multi-agent particle environment — extending to richer, more realistic cooperative domains is a natural next step.
• Improving Pareto front coverage and uniformity further. The exploration guide currently divides the preference space into four parts by angle for the practical implementation; whether finer or adaptive partitioning schemes improve results is left open.
• Reconciling with constrained reinforcement learning. The paper explicitly contrasts MORL with constrained RL (including Liu et al.'s CMIX, which combines constrained RL with CTDE and handles peak and average constraints) — bridging these frameworks, particularly for settings where natural constraints do exist, is an open direction.
• Scaling the monotonicity constraint. The method inherits QMIX's monotonicity requirement, which the paper notes struggles with non-monotonic reward problems (the motivation behind Weighted QMIX and QTRAN) — extending MO-MIX to non-monotonic multi-objective cooperative settings remains open.

Target Audience

Researchers and graduate students working on deep reinforcement learning, multi-agent systems, or multi-objective optimization, particularly those familiar with value-decomposition MARL methods and Pareto-based decision-making. It is also relevant to applied researchers in domains with genuinely conflicting objectives across cooperating agents — autonomous driving, robotics, energy management, and traffic control — who need a set of trade-off policies rather than one fixed solution. Because of the CTDE and value-factorization prerequisites, the paper is best read by someone with at least intermediate grounding in reinforcement learning.

Authors’ abstract

Deep reinforcement learning (RL) has been applied extensively to solve complex decision-making problems. In many real-world scenarios, tasks often have several conflicting objectives and may require multiple agents to cooperate, which are the multi-objective multi-agent decision-making problems. However, only few works have been conducted on this intersection. Existing approaches are limited to separate fields and can only handle multi-agent decision-making with a single objective, or multi-objective decision-making with a single agent. In this paper, we propose MO-MIX to solve the multi-objective multi-agent reinforcement learning (MOMARL) problem. Our approach is based on the centralized training with decentralized execution (CTDE) framework. A weight vector representing preference over the objectives is fed into the decentralized agent network as a condition for local action-value function estimation, while a mixing network with parallel architecture is used to estimate the joint action-value function. In addition, an exploration guide approach is applied to improve the uniformity of the final non-dominated solutions. Experiments demonstrate that the proposed method can effectively solve the multi-objective multi-agent cooperative decision-making problem and generate an approximation of the Pareto set. Our approach not only significantly outperforms the baseline method in all four kinds of evaluation metrics, but also requires less computational cost.
