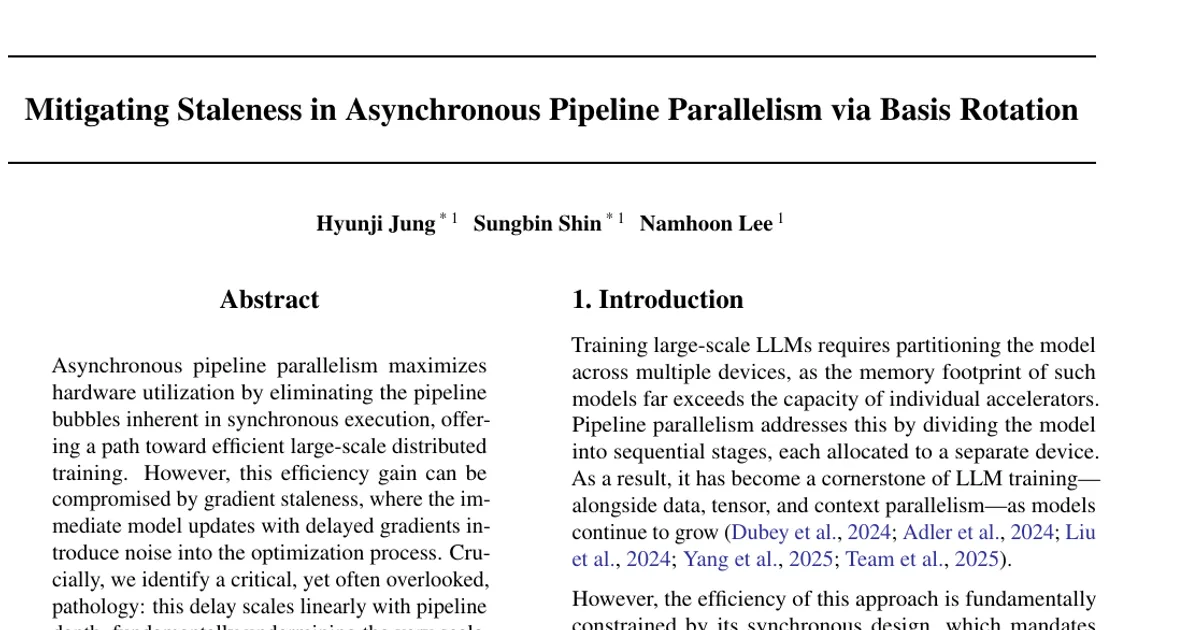

Mitigating Staleness in Asynchronous Pipeline Parallelism via Basis Rotation

AI summary

Overview

Research area: Distributed large-scale machine learning systems — specifically asynchronous pipeline parallelism and the optimization dynamics of Adam-family optimizers under stale (delayed) gradients.

Technical level: Intermediate. The paper assumes familiarity with pipeline parallelism, Adam's coordinate-wise adaptive updates, and Hessian/eigenbasis language, though the core intuition is explained geometrically.

Scope (one sentence): The paper diagnoses why gradient delay in asynchronous pipeline parallelism worsens as pipeline depth grows, attributes it to misalignment between the Hessian eigenbasis and the standard coordinate basis, and proposes rotating the optimizer's coordinate system to fix it.

What This Paper Is About

Asynchronous pipeline parallelism removes the idle "pipeline bubbles" of synchronous training by letting stages update weights without waiting for the full pipeline cycle — but gradients then arrive stale, computed against older weights. The authors show that this staleness penalty scales with pipeline depth, so the very scalability asynchronous pipelining promises is undermined: they observe a 5.81-fold slowdown in convergence speed when the number of stages increases for a fixed model. Their goal is to keep delayed gradient information useful by rotating the optimization space so that Adam's coordinate-wise adaptive scaling works in a basis where it is actually effective.

Key Contributions

1. Identifying a critical issue in scaled pipelines. The authors document that asynchronous pipeline parallel training suffers significant convergence and model performance degradation as the number of stages increases, a problem they say has received limited formal study.

2. Demystifying the mechanism of failure. They identify basis misalignment — the mismatch between the Hessian eigenbasis and the standard coordinate basis — as the primary reason Adam-type optimizers are sensitive to delay, supporting this with both empirical evidence (quadratic and spiral loss experiments) and a convergence analysis.

3. The basis rotation framework. They propose rotating the optimizer's coordinate system to align with the estimated Hessian eigenbasis, and introduce several practical rotation strategies built from different Hessian approximations (second-moment vs. first-moment sources; bilateral vs. unilateral rotation geometries), with theoretical analysis of their approximation quality.

4. Empirical validation at scale. They evaluate on language modeling with decoder-only Transformers from 95M to 1B parameters, plus a reported 3B-parameter LLM pre-training run, against PipeDream, PipeDream-LR, and Nesterov baselines.

Main Findings

• Delay penalty grows with pipeline depth. For a fixed model, increasing the number of stages causes a drastic 5.81-fold slowdown in convergence speed, indicating staleness is a fundamental barrier to scalability rather than a minor nuisance.

• Basis misalignment is the root cause. In a quadratic objective with a diagonal Hessian, Adam suppresses oscillations and follows a near-direct trajectory; under basis misalignment, Adam's trajectory resembles AdaSGD and oscillates severely along the dominant eigenvector direction. These oscillations make delayed gradients point in outdated or adversarial directions.

• The spiral-loss experiment localizes the effect. On a spiral loss landscape, Adam stays stable in basis-aligned regions but oscillates in misaligned regions. The measured slowdown ratio T_delay / T_no-delay is minimized near basis-aligned regions and maximized in misaligned regions.

• Theory couples delay with misalignment. Theorem 2.3 gives a convergence bound for asynchronous Adam in which the delay τ enters multiplicatively with C, the (1,1)-norm of the Hessian (a proxy for misalignment). For fixed delay, the delay-dependent terms contribute more to the bound as C grows. The result implies delay slows the deterministic rate from O(sqrt(1/T)) to O(sqrt(τ/T)), recovering the no-delay Adam rate under ℓ∞ smoothness when τ = 0.

• Stage-dependent delay is dominated by early stages. Extending the analysis, the authors define an effective delay τ' where earlier pipeline stages (with larger per-stage delay K − k) have larger impact and dominate convergence degradation.

• Basis rotation reduces basis misalignment. Theorem 3.1 shows that with a Kronecker-factorized empirical Fisher, the bilateral-rotation Hessian norm is no larger than the unilateral one, which is no larger than the original, and the bilateral value achieves the global minimum over all rotations.

• Robustness across pipeline depths. Across varying numbers of stages P, basis rotation consistently outperforms baselines with the gap widening as P increases. At P = 32, basis rotation achieves the same training loss with 71.6% fewer iterations than the best-performing baseline. Slowdown at P = 32 relative to P = 1 is 4.24x for the best baseline versus 1.27x for basis rotation.

• Scalability is restored. When Transformer blocks and stages are increased jointly (one block per stage), baselines show higher training loss as model size grows — contradicting standard scaling laws — while basis rotation achieves performance improvements as model size grows.

• Gains increase with model size. At P = 24, basis rotation achieves the same training loss with 76.8% fewer iterations for a 1B model, surpassing the 62.4% reduction in smaller models. At 3B scale, iterations are reduced by 81.7%.

• Estimation fidelity matters. Comparing eigenbasis-estimation strategies via slowdown at P = 32: PipeDream-LR 4.24x; basis rotation with first-moment source 2.55x (unilateral) and 1.77x (bilateral); with second-moment source 1.66x (unilateral) and 1.27x (bilateral). Even the least accurate strategy (first-moment / unilateral) outperforms the best-performing baseline.

• Wall-clock efficiency holds. Basis rotation reaches the same training loss with 54.3% less GPU time than the most competitive baselines, and remains significantly more efficient even with a basis update frequency of 100 iterations.

• Stage-aware allocation adds speedup. Allocating the subspace-update budget proportionally to per-stage delay yields a 29.2% speedup in convergence over a uniform-frequency baseline at the same total computational budget; an inversely-ordered allocation degrades performance relative to uniform.

• Robustness without weight stashing. Without weight stashing — which introduces incorrect gradient computation but avoids memory overhead that scales with pipeline stages — basis rotation remains robust, whereas the best-performing baseline exhibits severe degradation. Results with PipeMare-style weight prediction likewise favor basis rotation.

• Mechanistic validation during real training. Tracking parameter updates along mid-training eigenvectors shows standard training oscillates severely along the dominant eigenvector while basis rotation dampens those oscillations; non-dominant directions remain stable in both settings.

Methodology in Plain English

The authors start from a simple observation: Adam's strength is giving each parameter coordinate its own adaptive step size, but that strength only works if the coordinate axes line up with the directions in which the loss surface actually curves. When they do not line up, updates bounce back and forth along the steepest direction, and a delayed gradient — computed before that bouncing moved the parameters — becomes a bad estimate of where to go next.

To make this concrete, they use a quadratic objective with a diagonal Hessian to compare AdaSGD and Adam with and without delay, then build a "spiral" loss landscape whose curvature direction rotates as training progresses, so they can measure how much delay hurts in aligned versus misaligned regions.

For theory, they assume coordinate-wise bounded gradient noise and coordinate-wise ℓ∞ smoothness, then derive a convergence bound for Adam under delay τ. The key quantity is the (1,1)-norm of the Hessian, which is minimized when the Hessian is diagonal for a given eigenvalue spectrum and grows with misalignment — so it serves as a measurable proxy for the problem.

The fix: rotate the parameters into a coordinate system where the Hessian looks diagonal, run Adam's adaptive update there, and rotate back. To make this affordable for big models, they assume the Hessian is block-diagonal (so rotation happens matrix-wise) and Kronecker-factorizable (so a large rotation splits into two smaller matrices U and V). They estimate the eigenbasis from gradient statistics, using either second moments (approximating the empirical Fisher) or first-order moments (reusing the existing momentum buffer), and either bilateral or unilateral rotation geometry. Eigenvectors come from a single power iteration followed by QR decomposition, updated infrequently (every 10 iterations by default). Baselines are PipeDream, PipeDream-LR, and Nesterov, with weight stashing used across all methods for fairness in the main experiments.

Why This Matters

Impact on research. The paper reframes asynchronous pipeline parallelism's weakness as an optimizer-geometry problem rather than an inherent cost of staleness. If correct, this shifts the search for solutions away from pure scheduling or momentum correction toward basis alignment, and it links asynchronous training theory to the line of work on optimization in the Hessian eigenbasis (which the authors note has mostly been studied in the zero-delay regime).

Real-world applications:

• Large-scale LLM pre-training, where pipeline parallelism is one of the standard partitioning strategies alongside data, tensor, and context parallelism.
• Memory-constrained training clusters, where the method's robustness without weight stashing matters because stashing memory scales with the number of pipeline stages.
• Deep pipeline configurations spanning tens or hundreds of stages, the setting the paper argues is where the problem bites hardest.
• Resource-limited settings, since even the cheapest estimation strategy (first-moment / unilateral) reportedly beats the best baseline.

Industry relevance. Training budgets are measured in GPU hours, and the paper reports a 54.3% reduction in wall-clock time to a target loss versus the strongest baseline. It also ships code at https://github.com/LOG-postech/basis-rotation.

Future Directions

• Scaling beyond 3B. The paper's largest reported pre-training result is a 3B-parameter LLM; whether the 81.7% iteration reduction holds or grows at frontier scale is not established in the content provided.
• Cheaper or adaptive estimation. The framework already exposes a fidelity/cost tradeoff across four strategy combinations, and the stage-aware budget allocation gives a 29.2% speedup — further work could ask how to choose source, geometry, and update frequency automatically rather than fixing them.
• Interaction with other parallelism dimensions. The paper positions pipeline parallelism alongside data, tensor, and context parallelism; how basis rotation composes with those, and with weight prediction schemes like PipeMare, is only partially explored here.
• Basis drift over long runs. The method relies on infrequent re-estimation of the Hessian eigenbasis; the accuracy and stability of that estimate over much longer training horizons is a natural open question.

Target Audience

Researchers and engineers working on distributed training systems and optimization for large language models — particularly those implementing or tuning asynchronous pipeline parallelism, and those studying the theory of delayed or stale gradients in adaptive optimizers. It is also relevant to practitioners who need the intuition for why Adam behaves differently under a rotated coordinate system, since the geometric explanation is accessible even where the convergence proofs are not.

Authors’ abstract

Asynchronous pipeline parallelism maximizes hardware utilization by eliminating the pipeline bubbles inherent in synchronous execution, offering a path toward efficient large-scale distributed training. However, this efficiency gain can be compromised by gradient staleness, where the immediate model updates with delayed gradients introduce noise into the optimization process. Crucially, we identify a critical, yet often overlooked, pathology: this delay scales linearly with pipeline depth, fundamentally undermining the very scalability that the method originally intends to provide. We trace this pathology to a specific property of the optimization landscape: the misalignment between the Hessian eigenbasis and the standard coordinate basis, which triggers oscillations in the update trajectories of coordinate-wise adaptive optimizers. We identify that these oscillations cause delayed updates to diverge from their true counterparts, invalidating their use for current iterations. This insight is formalized through theoretical analysis, including a convergence bound showing that basis misalignment amplifies the delay penalty, and substantiated with empirical evaluation. To address this, we propose basis rotation, a framework that rotates the optimizer's coordinate system to align with the Hessian eigenbasis, keeping delayed updates useful. We theoretically demonstrate that basis rotation minimizes basis misalignment, thereby counteracting the conditions that amplify delay penalties. Empirically, in training up to a 3B-parameter LLM, basis rotation reduces the required iterations by 81.7\% compared to the best-performing asynchronous baseline.
