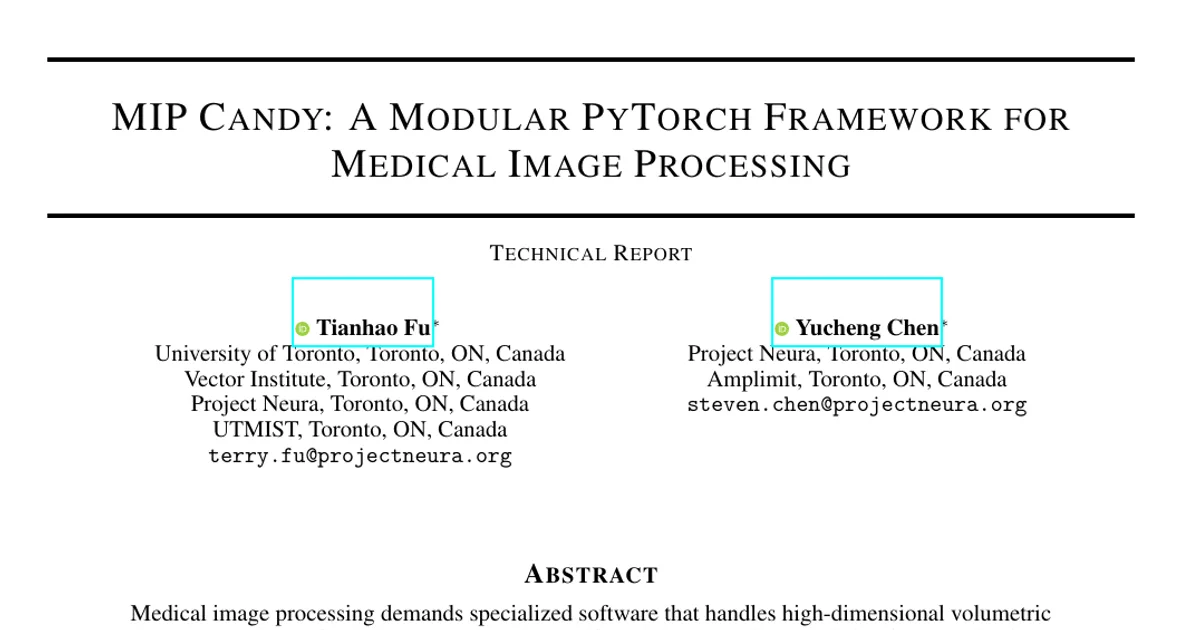

MIP Candy: A Modular PyTorch Framework for Medical Image Processing

AI summary

Overview

Research area: Medical image processing software infrastructure — specifically 3D/2D medical image segmentation pipelines built on PyTorch.

Technical level: Intermediate. The paper assumes familiarity with PyTorch (nn.Module, DataLoader), medical imaging formats (NIfTI, DICOM, MHA), and segmentation training concepts such as cross-validation, deep supervision, and exponential moving average.

Scope: A technical report describing the design, architecture, and usage of MIPCandy, an open-source (Apache-2.0) PyTorch framework that spans data loading, training, inference, and evaluation for medical image segmentation, illustrated through two case studies rather than a quantitative benchmark evaluation.

What This Paper Is About

Medical image segmentation pipelines require format-aware data loading, geometry-preserving transforms, specialized losses, sliding-window inference, and reproducible experiment management — engineering work that gets repeated across research groups. Existing tools sit at two extremes: component libraries like MONAI and TorchIO that must be assembled by hand, or monolithic pipelines like nnU-Net that resist modification. The paper's goal is to present MIPCandy as a middle ground: a complete pipeline that produces a working segmentation workflow from a single implemented method (build_network), while keeping every component independently usable and replaceable.

Key Contributions

1. LayerT, a deferred module configuration mechanism that stores a module type alongside its constructor arguments and instantiates it only at assemble() time. This enables runtime substitution of convolution, normalization, and activation layers without subclassing. The paper notes that an inheritance-based approach supporting 2D and 3D convolutions, batch and group normalization, and multiple activations would require 2 × 2 × k subclasses.

2. A hierarchical training framework with a SegmentationTrainer preset, deep supervision, exponential moving average, training state recovery, and multi-frontend experiment tracking (Weights & Biases, Notion, MLflow).

3. A dataset inspection system — the inspect() function — that automatically computes per-case foreground bounding boxes, class distributions, and intensity statistics, from which the framework derives a statistical foreground shape and a region-of-interest shape for patch-based training via RandomROIDataset.

4. Validation score prediction via quotient regression, which fits a rational function P(x)/Q(x) to the validation score trajectory to estimate the maximum achievable score, the epoch at which it will be reached, and thus an estimated time of completion (ETC).

5. An extensible bundle ecosystem packaging model architectures, trainers, and predictors into self-contained, reusable units that follow a consistent three-file trainer–predictor pattern.

Main Findings

• No quantitative benchmark results are reported. The paper contains no accuracy, Dice, or comparison tables with measured scores. Its comparison of frameworks is a qualitative feature matrix (Table 1) covering capabilities such as complete training pipeline, one-method setup, modularity, custom architecture swap, deep supervision, EMA support, training state recovery, real-time metric visualization, prediction previews, score prediction/ETC, multi-frontend tracking, dataset inspection and ROI, patch-based sampling, k-fold cross-validation, and bundle ecosystem.

• MIPCandy's claimed positioning: It is described as the only framework in the comparison table marked as having all of a complete training pipeline, one-method setup, modularity, built-in training state recovery, built-in real-time metric visualization, built-in prediction previews, and score prediction/ETC. It reports multi-frontend tracking as WandB / Notion / MLflow, versus TensorBoard for nnU-Net and MONAI.

• Minimal setup code: The 2D skin lesion segmentation case study states the complete pipeline — data loading, k-fold splitting, trainer configuration, and training — requires 8 lines of code. Without a bundle, the same workflow requires implementing a single method, build_network, on SegmentationTrainer.

• Three-file bundle pattern: Each bundle consists of a Model (nn.Module subclass plus builder functions such as make_unet2d and make_unet3d), a Trainer (extending SegmentationTrainer, overriding build_network() and optionally build_padding_module(), build_optimizer(), or backward()), and a Predictor (extending Predictor, overriding build_network()). The only mandatory override is build_network(). No monkey-patching or registration is required.

• Preset defaults: SegmentationTrainer ships with a combined Dice–cross-entropy loss that automatically selects a binary or multiclass variant, SGD with momentum 0.99 and Nesterov acceleration, a polynomial learning rate scheduler, and gradient clipping. Deep supervision is enabled with one flag and uses auto-computed weights w_i = 2⁻ⁱ. EMA via PyTorch's AveragedModel is also enabled with a single flag.

• Validation score convention: Defined as the negated combined loss, s = −ℒ_val, so that best-checkpoint selection, early stopping, and score prediction all use a single "higher is better" comparison direction regardless of the underlying criterion.

• Score prediction warm-up: The quotient regression fitting begins after a configurable warm-up period, defaulting to 20 epochs.

• ROI sampling default: RandomROIDataset samples random patches with configurable foreground oversampling, defaulting to 33% of patches containing foreground.

• Worst-case previews: After each validation epoch the framework identifies the worst-performing validation case by validation score and saves the raw input, ground-truth label, prediction, an expected overlay, and an actual overlay. The stated rationale is to direct attention to the most informative failure mode rather than a random or cherry-picked example.

• Bundles shipped at time of writing: U-Net, UNet++, V-Net, CMUNeXt, MedNeXt, and UNETR, covering 2D and 3D segmentation tasks.

• Module decomposition: The framework is organized into nine loosely coupled modules — mipcandy.data, mipcandy.layer, mipcandy.training, mipcandy.presets, mipcandy.inference, mipcandy.evaluation, mipcandy.metrics, mipcandy.frontend, and mipcandy.common. The training framework has no compile-time dependency on the evaluation module, and the metrics module depends only on PyTorch tensors.

• Metrics provided: Dice-family metrics — binary_dice, dice_similarity_coefficient, and soft_dice — covering boolean, one-hot, and soft-probability formats, serving dual roles as loss components and evaluation metrics.

• I/O stack: Reads and writes medical images via SimpleITK, supporting NIfTI, MetaImage, and raster formats; fast_save() and fast_load() use the safetensors format for intermediate storage with zero-copy deserialization.

• Environment requirements: Python 3.12 or later. The framework deliberately uses modern language features — type aliases (PEP 613), pattern matching, the Self type, and the @override decorator.

• Case study configurations reported: The 2D study uses the PH2 dermoscopy dataset with a U-Net bundle, batch size 2 for training and 1 for validation, num_classes set to 1, and 100 training epochs; Figure 1 shows training progress from a U-Net trained on PH2 for 90 epochs. The 3D study uses the BraTS 2021 dataset with num_dims = 3, num_classes = 4, deep supervision enabled, train(200, early_stop_tolerance=20), and 3D previews rendered via PyVista, including a PANTHER predicted segmentation referenced as Figure 3. No accuracy figures are given for either case study.

Methodology in Plain English

The authors designed a framework rather than conducting an experiment. Their approach rests on four stated principles: being PyTorch-native (every trainable component is a standard nn.Module, every dataset a standard torch.utils.data.Dataset), being opt-in and incremental (no module assumes the rest of the framework is present), preferring composition over inheritance (runtime configuration instead of class proliferation), and keeping the API surface minimal (the common case requires no configuration, and trainer.train(100) launches a full run).

The central technical idea is deferred configuration. Instead of defining a new subclass for every combination of convolution, normalization, and activation, MIPCandy stores a module type together with its constructor keyword arguments. Parameters can be written as strings (for example "in_ch") that are resolved to concrete values later, when assemble() is called. This lets a single descriptor adapt to different channel counts and lets users swap layers by passing different LayerT instances.

Around that core, the authors built a pipeline: a dataset hierarchy with a fold() method for k-fold cross-validation, an inspection routine that computes foreground bounding boxes and intensity statistics to derive patch shapes, a Trainer base class managing the lifecycle with state held in a TrainerToolbox dataclass, a SegmentationTrainer preset with researched defaults, a Predictor class for inference, and an Evaluator producing per-case and aggregate metrics. Training runs automatically emit timestamped experiment folders with checkpoints, per-epoch metrics as CSV, progress plots, log files, and worst-case prediction previews. The authors then demonstrate the resulting workflows on PH2 (2D) and BraTS 2021 (3D), showing the minimal code required and the artifacts produced.

Why This Matters

• Impact on research: The paper argues that the engineering work of building a segmentation pipeline — format-aware loading, geometry-preserving transforms, specialized losses, sliding-window inference, reproducible experiment management — is duplicated across research groups. A framework with researched defaults and a one-method setup aims to reduce that duplication while preserving the ability to replace individual components. Its emphasis on training transparency (per-epoch metric curves, worst-case previews, ETC estimation) is positioned as an explicit contrast to pipelines that report only a final score.

• Real-world applications:

  • Clinical decision support for skin lesion segmentation and diagnosis from dermoscopy images (demonstrated on PH2).
  • Brain tumor segmentation from multi-modal MRI volumes for treatment planning (demonstrated on BraTS 2021, with 4-class labels).
  • Longitudinal disease monitoring where foreground bounding boxes and intensity statistics across a patient cohort support ROI-based patch sampling.
  • Treatment planning and radiotherapy target delineation, where volumetric segmentation of structures is a prerequisite.

• Industry relevance: Multi-frontend experiment tracking (Weights & Biases, Notion, MLflow, and hybrid combinations), timestamped experiment folders, training state recovery via recover_from() and continue_training(), and an Apache-2.0 license make the framework suitable for team-level and production-oriented research environments where long 3D jobs are interrupted by hardware failures, preemption, or resource limits. The bundle ecosystem offers a distribution mechanism for sharing architectures without forking the core framework.

Future Directions

• Expanding the metric library with surface-distance metrics — specifically Hausdorff distance and average symmetric surface distance — which the paper lists as planned future work.
• Adding sliding window inference for large volumes, noted as a gap despite sliding window inference being identified in the introduction as a requirement for building segmentation pipelines.
• Supporting semi-supervised and self-supervised learning paradigms, an open question given that the paper identifies scarce and expensive expert annotations as a motivating constraint on medical imaging.
• Extending the bundle ecosystem with task-specific bundles for detection and registration, moving beyond the current segmentation-focused library of U-Net, UNet++, V-Net, CMUNeXt, MedNeXt, and UNETR.

A further open question the paper implies but does not answer: no quantitative segmentation accuracy is reported for any of the shipped bundles or case studies, so how MIPCandy's defaults compare in predictive performance to nnU-Net, MONAI-assembled pipelines, or MIST remains unevaluated in this report.

Target Audience

Medical imaging researchers and research engineers who build segmentation pipelines and want faster setup without giving up control over individual components. It is also relevant to machine learning engineers in healthcare settings evaluating frameworks for team-based work, given the multi-frontend tracking and training state recovery features, and to developers interested in framework design patterns — particularly the deferred configuration approach behind LayerT and the three-file bundle convention. Readers looking for empirical benchmarking of segmentation accuracy will not find it here; the paper is a software design and capability report.

Authors’ abstract

Medical image processing demands specialized software that handles high-dimensional volumetric data, heterogeneous file formats, and domain-specific training procedures. Existing frameworks either provide low-level components that require substantial integration effort or impose rigid, monolithic pipelines that resist modification. We present MIP Candy (MIPCandy), a freely available, PyTorch-based framework designed specifically for medical image processing. MIPCandy provides a complete, modular pipeline spanning data loading, training, inference, and evaluation, allowing researchers to obtain a fully functional process workflow by implementing a single method, $\texttt{build_network}$, while retaining fine-grained control over every component. Central to the design is $\texttt{LayerT}$, a deferred configuration mechanism that enables runtime substitution of convolution, normalization, and activation modules without subclassing. The framework further offers built-in $k$-fold cross-validation, dataset inspection with automatic region-of-interest detection, deep supervision, exponential moving average, multi-frontend experiment tracking (Weights & Biases, Notion, MLflow), training state recovery, and validation score prediction via quotient regression. An extensible bundle ecosystem provides pre-built model implementations that follow a consistent trainer--predictor pattern and integrate with the core framework without modification. MIPCandy is open-source under the Apache-2.0 license and requires Python~3.12 or later. Source code and documentation are available at https://github.com/ProjectNeura/MIPCandy.
