MGP-KAD: Multimodal Geometric Priors and Kolmogorov-Arnold Decoder for Single-View 3D Reconstruction in Complex Scenes

AI summary

Overview

Research area: Computer vision, specifically single-view 3D reconstruction using implicit surface representations and multimodal feature fusion.

Technical level: Advanced. The paper assumes familiarity with signed distance functions (SDFs), implicit decoders, multi-head attention, and spline-based neural network layers.

Scope: The paper proposes MGP-KAD, a framework that combines RGB features with a clustered, class-level geometric prior library and a Kolmogorov-Arnold Network (KAN) based implicit decoder to reconstruct 3D object surfaces from a single image on the Pix3D benchmark.

What This Paper Is About

Reconstructing 3D geometry from a single 2D image is ambiguous, and it becomes much harder in real-world scenes where images contain noise, objects vary widely within a category, and labeled datasets are limited. Existing methods commonly rely on RGB or depth priors and linear MLP decoders, which the authors argue fail to capture underlying object geometry and handle multimodal inputs well. MGP-KAD addresses this by adding an explicitly generated geometric prior derived from ground-truth shapes and by replacing the linear decoder with a hybrid KAN-based decoder.

Key Contributions

1. A class-level geometric prior modeling framework. The authors generate geometric priors by sampling and clustering ground-truth object data, producing class-level features that adjust dynamically during training, including a dynamic weight allocation strategy for categories with few samples.
2. A KAN-based hybrid decoder. The decoder combines a front-end feature-transformation MLP with a multi-scale KAN decoder, which the authors present as a way to overcome the limitations of traditional linear decoders when fusing multimodal inputs.
3. State-of-the-art results on Pix3D. Compared with the strongest baseline (SSR), the method reports a 9.86% reduction in Chamfer Distance, a 6.03% increase in F-score, and a 12.2% improvement in Normal Consistency, with qualitative results shown for fine structural detail and continuity.
4. A three-stage pipeline design. The system is organized as offline prototype library construction, online feature extraction and geometric prior retrieval, and feature fusion with surface-optimized decoding, with a rendering branch used only during training.

Main Findings

• Chamfer Distance on Pix3D (mean, lower is better): MGP-KAD reaches 19.64, compared with SSR 21.79, InstPIFu 24.65, LIEN 51.31, and MGN 44.32.
• F-Score on Pix3D (mean, higher is better): MGP-KAD reaches 62.14, compared with SSR 59.71, InstPIFu 45.62, MGN 36.20, and LIEN 31.45.
• Normal Consistency on Pix3D (mean, higher is better): MGP-KAD reaches 0.805, compared with SSR 0.778, InstPIFu 0.683, MGN 0.659, and LIEN 0.646.
• Category-level results are mixed. MGP-KAD improves over SSR on chair (21.59 vs 26.23 CD), desk (28.26 vs 28.63), sofa (5.24 vs 5.68), table (40.52 vs 43.87), bookcase (7.07 vs 7.21), and wardrobe (1.91 vs 2.07), but is worse on bed (7.01 vs 6.31), tool (17.92 vs 8.29), and misc (61.81 vs 35.03).
• Attribution of gains. The authors attribute the 12.2% Normal Consistency gain to the explicit geometry prior compensating for RGB-only input, and the 9.86% Chamfer Distance reduction to the KAN module's added nonlinear decoding capacity.
• Ablation: removing the KAN module hurts most. After 50 training epochs, the full model (KAN + geometry prior) reaches CD 22.29, F-score 59.02, PSNR 25.64, IoU 0.399, and NC 0.803. Removing KAN gives CD 30.08 (+7.79) and F-score 54.75 (-4.27), which the text describes as a 34.9% CD increase and a 4.27-point F-score decrease.
• Ablation: the geometry prior also matters. Removing the geometry prior gives CD 25.92 (+3.63), F-score 56.50 (-2.52), PSNR 23.57 (-2.07), IoU 0.381 (-0.018), and NC 0.786 (-0.017), described as a 16.3% CD increase and a 2.52-point F-score decrease.
• Swapping KAN for an MLP degrades performance. Replacing KAN with an equally sized ReLU MLP gives CD 29.99 (+7.70), F-score 55.11 (-3.91), PSNR 24.42 (-1.22), IoU 0.363 (-0.036), and NC 0.769 (-0.034), described as a 34.5% CD increase.
• Removing both components is not the worst ablation on CD. The row without KAN and without geometry prior reports CD 23.76 (+1.47) and F-score 52.69 (-6.33), which is a smaller CD penalty than removing KAN alone, though the largest F-score drop.
• Prior library is distinguishable by category. A 2D t-SNE visualization shows clear separation between categories, and each geometric prior library entry contains 6,272 points per geometry.
• Training configuration: The Pix3D dataset provides 12,471 image–model pairs across 9 object categories, split into 55.6% train, 22.3% validation, and 22.1% test. The framework is implemented in PyTorch and trained on NVIDIA GeForce RTX 3090 GPUs with the Adam optimizer (initial learning rate 6 × 10⁻⁵ with scheduler decay), 200 epochs, and batch size 16.

Methodology in Plain English

The system works in stages.

First, an image encoder based on the M3D architecture extracts dense semantic features of size 256 from the input image. Separately, the authors build a prototype library offline: for each of the 9 object categories in Pix3D, they pick the training shape closest to that category's mean surface distribution, cluster the resulting shapes, reduce their dimensionality, and encode each prototype into a feature vector by processing spatial coordinates and SDF values through separate MLPs and then fusing them.

Second, at run time, the image's semantic features act as queries in a multi-head attention mechanism, while the stored geometric priors act as keys and values. A 9-dimensional one-hot category vector preserves class identity, and the attention output produces a geometric feature that is combined with the image features.

Third, the fused features go into the decoder. A front-end MLP mixes positional encoding, image features, and geometry features into one latent space; the authors use a specific initialization scheme, setting the final layer's weights to small random values (std = 0.0001) and its biases to −1.0 to bias the output toward valid SDF values, and initializing positional feature weights with larger magnitudes. The latent vector then passes through a stack of KANLinear layers that progressively shrink the dimension from 128 to 32 to 16 to 8 to 1, where the single output is the SDF value. Each KANLinear layer mixes a linear term using the SiLU activation with a B-spline basis term, and a dynamic grid adaptation routine adjusts the spline grid points based on the input distribution.

During training, a rendering branch borrowed from M3D adds photometric consistency and geometric regularization (depth and normal reprojection) losses. At inference this rendering branch is removed and surfaces are extracted with Marching Cubes, so final reconstruction uses geometry only.

Why This Matters

Research impact. The paper tests whether explicitly constructed class-level geometric priors can substitute for the missing structural information that RGB-only pipelines lack, and whether KAN layers are a useful alternative to MLPs in implicit 3D decoding. It reports that both changes contribute measurable gains, and that combining them gives the best result, suggesting a direction for multimodal implicit reconstruction beyond linear decoders.

Real-world applications (drawn from the applications the paper cites for 3D reconstruction):

• Virtual reality content and scenes built from single photographs.
• Autonomous driving perception, where 3D structure must be inferred from limited views.
• Robotic navigation, where an agent needs object geometry from a single camera image.
• General 3D asset creation from ordinary 2D images, useful where multi-view capture is impractical.

Industry relevance. Single-view reconstruction from consumer photos is cheap compared with multi-view scanning rigs, and this work targets exactly the noisy, object-diverse conditions of real datasets rather than clean synthetic benchmarks. The paper also reports that the rendering branch is disabled at inference, which is presented as enabling efficient geometry-only processing — relevant for deployment settings where per-image compute matters.

Future Directions

1. Adding more modalities. The authors explicitly state they will explore integrating additional modalities such as depth and surface normals to further improve reconstruction quality.
2. Improving weak categories. MGP-KAD underperforms SSR on bed, tool, and misc in the Pix3D comparison, and the paper's dynamic weight allocation strategy is designed for underrepresented categories, so whether that strategy can close those specific gaps is an open question.
3. Generalizing beyond Pix3D. Evaluation is limited to Pix3D's 9 categories and 12,471 image–model pairs; whether the prototype library and KAN decoder transfer to broader category sets or other datasets is not tested.
4. Scaling the prior library and grid mechanism. The paper does not report how reconstruction quality or cost changes with the number of stored prototypes, the 6,272-point prior resolution, or the KAN grid size and spline order hyperparameters, which are practical questions for extension.

Target Audience

Researchers and graduate students working on single-view or implicit 3D reconstruction, neural implicit surface representations, or multimodal feature fusion. It is also relevant to practitioners interested in Kolmogorov-Arnold Networks as a drop-in alternative to MLP decoders, and to engineers evaluating single-image 3D reconstruction for VR, robotics, or autonomous driving pipelines. Readers without background in SDF-based reconstruction and attention mechanisms will find the method section difficult, since it is written for a technical computer vision audience.

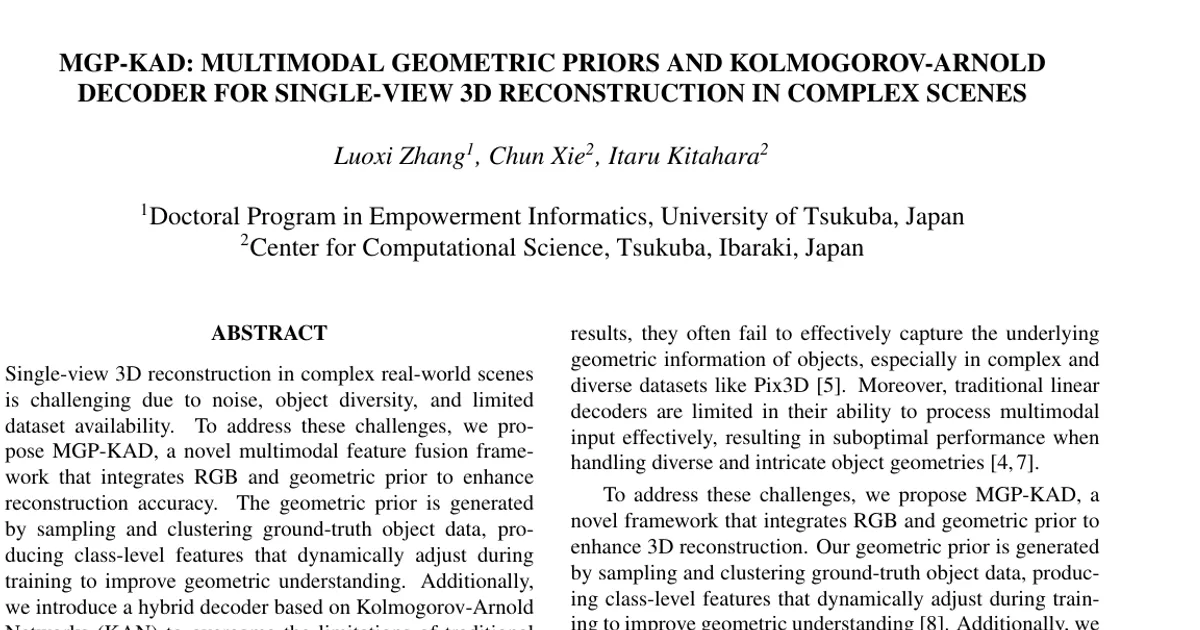

Authors’ abstract

Single-view 3D reconstruction in complex real-world scenes is challenging due to noise, object diversity, and limited dataset availability. To address these challenges, we propose MGP-KAD, a novel multimodal feature fusion framework that integrates RGB and geometric prior to enhance reconstruction accuracy. The geometric prior is generated by sampling and clustering ground-truth object data, producing class-level features that dynamically adjust during training to improve geometric understanding. Additionally, we introduce a hybrid decoder based on Kolmogorov-Arnold Networks (KAN) to overcome the limitations of traditional linear decoders in processing complex multimodal inputs. Extensive experiments on the Pix3D dataset demonstrate that MGP-KAD achieves state-of-the-art (SOTA) performance, significantly improving geometric integrity, smoothness, and detail preservation. Our work provides a robust and effective solution for advancing single-view 3D reconstruction in complex scenes.
