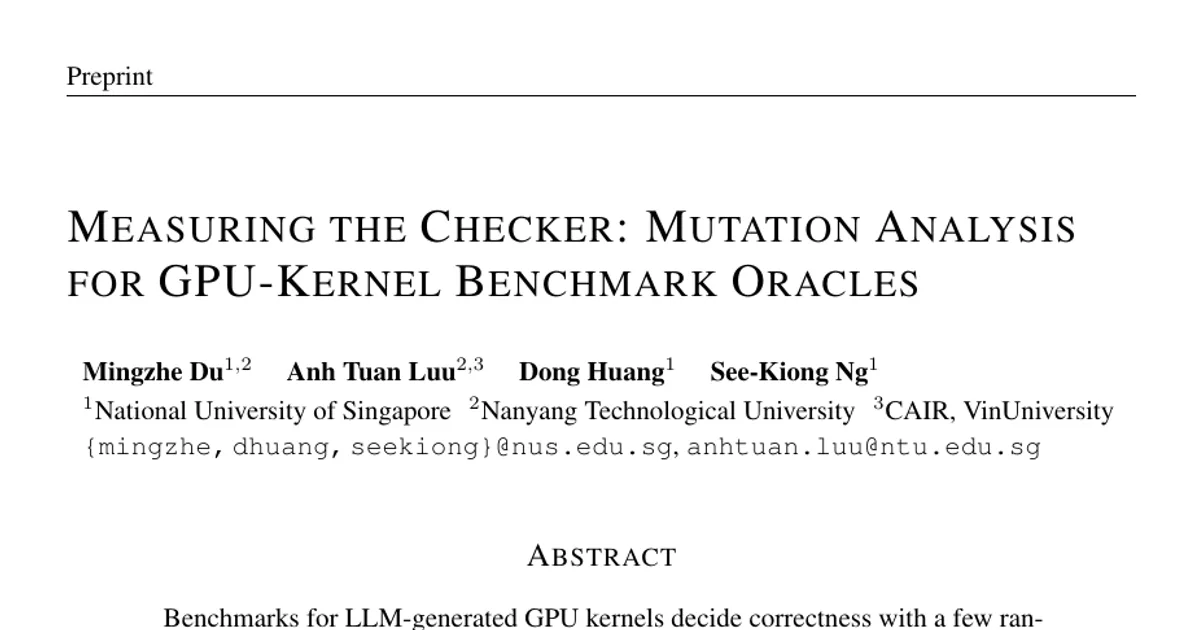

Measuring the Checker: Mutation Analysis for GPU-Kernel Benchmark Oracles

AI summary

Overview

Research area: Benchmark correctness checking for LLM-generated GPU kernels, combined with mutation analysis from software engineering.

Technical level: Advanced. The paper assumes familiarity with CUDA, floating-point tolerance semantics (torch.allclose, atol/rtol), mutation testing concepts, and benchmark protocols for kernel generation.

Scope: The paper builds an at-scale mutation-analysis measurement of the oracle (correctness checker) used by KernelBench-style GPU-kernel benchmarks, scores the official protocol and several published hardened replacements with it, and releases the resulting artifact as KernelBench-M.

What This Paper Is About

GPU-kernel benchmarks decide whether a generated kernel is correct using a few random inputs and a loose floating-point tolerance, and those verdicts feed public leaderboards, production gating, and reinforcement-learning rewards. The authors argue that the community has been patching these checkers by hand — adding input distributions, fuzzing recipes, and tighter tolerances — without any way to measure whether a patch actually covers the faults that matter. The paper adapts mutation analysis into an adequacy metric for graded numerical oracles so that checker quality becomes a number, then uses that number to explain the official check's blind spots, audit existing patches, and synthesize better test suites.

Key Contributions

1. The first at-scale measurement of kernel-benchmark oracle strength. 124 deterministic rules inject 10,303 compilable faults into verified CUDA implementations, yielding 8,253 distinct mutants and 7,384 witnessed mutants (mutants backed by a concrete, validity-gated input on which they verifiably fail). Prior work validated checkers against at most 10 hand-seeded bugs.
2. Identification and quantification of two governing mechanisms. Tolerance vacuity — a blind band that grows with output/reduction magnitude until an all-zeros output passes — and the legitimate-variance ceiling — a measured bound above which harsher inputs reject correct kernels through floating-point non-associativity.
3. An audit of existing hardened checkers under their own published parameters. KernelBench-Verified's +8.5-point gain decomposes into +4.0 points from its four hidden input distributions and +4.5 from its tighter tolerance — a split its authors state they cannot compute — while a reconstructed fuzzing baseline rejects correct kernels 107 times.
4. From measurement to synthesis. Set cover over the kill matrix produces two-input suites reaching 98.0% detection (94.8% held-out) versus 83.1% for the official five inputs, and a knowledge-ladder experiment shows a measurement-derived fault taxonomy teaches a test generator more than the concrete faults themselves.
5. Extension to whole architectures. Across 48 level-3 networks and 12,361 distinct mutants, the official check's blindness grows with scale, and two problems prove unrefereeable because their official references violate the benchmark's own tolerance against their fp64 selves.

Main Findings

• The official check misses one in six detectable faults. The official protocol (each problem's own get_inputs(), five seeds) detects 6,136 of 7,384 witnessed faults: 83.1%. The 1,248 misses are deterministic, not sampling noise — bootstrap resampling shows the 90% interval contracting from [8, 29]% at ten problems onto 16.9% at the full set.
• Misses are skewed hard by fault family. Arithmetic faults escape at 8.7%, indexing at 14.4%, semantic at 14.9%, boundary at 22.9%, synchronization at 27.8%, and precision faults at 78.6% — three to nine times the average rate for the implementation-level families real kernel bugs occupy.
• The per-problem distribution is right-tailed. The median problem loses 10% of its witnessed faults, while a tail dominated by transposed-convolution and reduction problems loses 40–73%.
• Tolerance vacuity is systematic, not an edge case. On a softmax over d = 393,216 elements, the reference output averages 2.5 × 10⁻⁶ per element while the check accepts anything within atol = 10⁻², so an all-zeros kernel passes every official trial. The largest undetectable relative error is 0.39 at d = 64 and 2.5 × 10³ at d = 393,216. Softmax contributes 28 tolerance-blind survivors where structurally identical log-softmax contributes 9.
• There is a measured ceiling on input aggressiveness. On a K = 4096 reduction, sign-mixed inputs scaled by 300 push a correct fp32 kernel past the official tolerance, making the input itself invalid; same-sign inputs of far larger magnitude remain safe because the tolerance scales with the un-cancelled output.
• Reseeding cannot fix the official inputs. Official inputs are drawn from [0, 1), so deleting a ReLU is the identity on the whole support and removing softmax's max-subtraction stabilizer is unobservable — survival under such inputs is a property of the distribution.
• Hardened protocols plateau. On a unified denominator of 8,215 witnessed mutants across 235 problems, KernelBench-Verified improves on the official check by +8.5 points (+4.0 from its four hidden distributions, +4.5 from its tighter tolerance), but its four transforms only rescale magnitude and never vary shape or structure, leaving boundary and indexing families unreachable by construction. The reconstructed fuzzer reaches 86.2% but buys part of it with invalid inputs, falsely rejecting correct kernels 107 times.
• The blind band has a describable anatomy. Collapsed into distinct miss-patterns, its core is 643 mutants that every baseline misses and only the targeted suite detects; the targeted suite misses 10 of 7,320 in the residual mixed tail.
• Chosen inputs beat more inputs. Greedy set cover reaches full coverage of witnessed mutants with a median of two inputs per problem (maximum six); one dense-random plus one targeted input suffice for 86 of the 152 problems with a non-trivial witnessed pool. Detection at budget: 87.1% at b = 1, 98.0% at b = 2, 99.5% at b = 3, 100.0% at b = 5, versus the official 83.1%; held-out figures are 84.5%, 94.8%, 96.4%, and 96.6% (82.9% official).
• The taxonomy generalizes better than the faults. On a hard target of 1,154 mutants that survive all official inputs across 30 problems: random fuzz kills 21.6%, a naive prompt 42.9%, taxonomy-plus-ceiling knowledge 61.0% (at 94% accumulated validity), and white-box access to the mutated source sites only 57.3%.
• Architecture-level checking is weaker on every accounting. Under strict witnessed accounting, 17.3% of level-3 faults escape versus 16.9% at operator scale, and this is a floor because the level-3 witness search is far shallower (2–4 targeted suites per problem versus the full matrix). The distinct-mutant upper bound is 1.7×: 43.0% versus 25.7%.
• Depth supplies the opportunity for masking; homogeneity realizes it. Deep homogeneous pipelines are near-opaque (VGG-19 90%, SqueezeNet 90%, LSTM stacks 77–87%, a 17-layer MLP 82%), while normalization- and branch-dense networks stay checkable even at extreme depth (ResNet-18 at 51 kernels: 11%; SwinMLP at 71 kernels: 14%); the per-architecture median of 25.7% matches operator scale exactly. Faults injected in the front half survive at 44–49%, falling to 39% in the output quartile (n = 1,401–5,745 per quartile).
• Two level-3 problems cannot be refereed at all. For 48_Mamba2ReturnY, whose reference exponentiates cumulative sums of unbounded random parameters, outputs reach 10²⁰ and the official fp32 forward violates the benchmark's tolerance against its own fp64 evaluation at 352 positions. For 45_UNetSoftmax, which chains softmax into batch normalization, the official fp32 forward deviates from fp64 by up to 0.74 (9,379 violations). No prior audit noticed; KernelBench-Verified ships hidden tests for both.
• A cautionary replication note on the authors' own tooling. An early version of the audit guessed 𝒩(0,1) × 10⁴ for KernelBench-Verified's large-magnitude distribution and saw false rejections — the fault was the guess, not the protocol, whose published ×3 cannot cross the ceiling. The episode is retained because it shows an input designer cannot tell when they have crossed the ceiling without a measured validity gate.
• Realism probe. An LLM asked to write leaderboard-style optimized kernels for 60 random problems produced three incorrect kernels: a compile error, a misaligned-address crash from an unguarded vectorized load (boundary/guard family), and a value error in a fused GEMM–GroupNorm (accumulation/semantic families).

Methodology in Plain English

The authors treat the benchmark's correctness checker as the thing under test, and measure it the way software engineers measure test suites: by injecting small, known faults and counting how many the checker catches.

Concretely, they take each KernelBench problem and maintain a correct CUDA implementation to serve as a mutation target — the benchmark's own PyTorch reference stays the oracle. Those substrates are auto-gated against the official reference, and the gate does reject real errors (for example, an L1-norm dividing by sum instead of mean). They then apply 124 deterministic rewrite rules spanning six fault families: classical arithmetic and relational swaps; GPU-specific operators such as barrier removal, __syncthreads weakened to __syncwarp, ceil-to-floor grid division, bounds-guard deletion, fp16 accumulation, and index-axis swaps; and finer-grained families mined with LLM assistance (argmax tie-breaking, perturbed polynomial constants, shifted piecewise thresholds).

Three obstacles shape the pipeline. First, mutants that do not compile, produce an identical compiled image, or are equivalent to the original are removed — 1,594 non-compiling, 279 duplicate compiled images, and 177 equivalent mutants are cut, 2,050 in total. Second, because the oracle is a graded numerical comparison, an unkillable mutant would deflate every protocol equally, so a mutant enters the scoring denominator only with a kill witness: a concrete input that passes a validity gate (it must not reject the correct kernel) and on which the mutant verifiably fails. Third, compiling mutants through the standard torch extension path takes roughly 200 s each, which would make ten thousand mutants cost GPU-years; NVRTC runtime compilation brings this to 84 ms, a 500× reduction. The resulting kill matrix — mutants × inputs, filled where an input detects the mutant — is over 120,000 mutant–input evaluations and can score any protocol by the fraction of witnessed mutants it kills.

The same matrix supports three downstream uses: auditing published patches by re-implementing them from their released source or papers, synthesizing minimal suites via greedy set cover, and

Authors’ abstract

Benchmarks for LLM-generated GPU kernels decide correctness with a few random inputs and a loose floating-point tolerance, and their verdicts now feed leaderboards and reinforcement-learning rewards. Recent work agrees these checkers are weak and patches them by hand---extra input distributions, fuzzing recipes, tighter tolerances---with no way to \emph{measure} whether any patch suffices. We introduce mutation analysis as an adequacy metric for kernel-benchmark oracles: deterministic rules inject 10{,}303 compilable faults into verified CUDA implementations of 188 KernelBench problems, 7{,}384 of them with an independent kill witness; any test protocol is scored by the fraction it detects. The official check misses \textbf{one in six} witnessed faults (16.9%), deterministically, and the misses are skewed by family: 8.7% of arithmetic faults escape, but 78.6% of precision faults do. The metric explains why (a tolerance blind band growing with reduction size; a measured ceiling on input aggressiveness set by legitimate floating-point variance), audits the strongest existing patch (KernelBench-Verified's gain splits into $+4.0$ points from hidden inputs and $+4.5$ from tighter tolerance, a split its authors could not compute), and exposes a published fuzzing recipe that rejects \emph{correct} kernels 107 times. Optimizing suites over the kill matrix reaches 98.0% detection with two inputs per problem (94.8% held-out), and the measurement's fault taxonomy teaches a test generator more than the raw faults themselves. Across 48 whole architectures, the blindness grows with scale, concentrating in deep homogeneous pipelines, and two problems prove unrefereeable: their official references violate the benchmark's own tolerance against fp64. We release everything as \href{https://huggingface.co/datasets/Elfsong/KernelBench-M}{KernelBench-M}.
