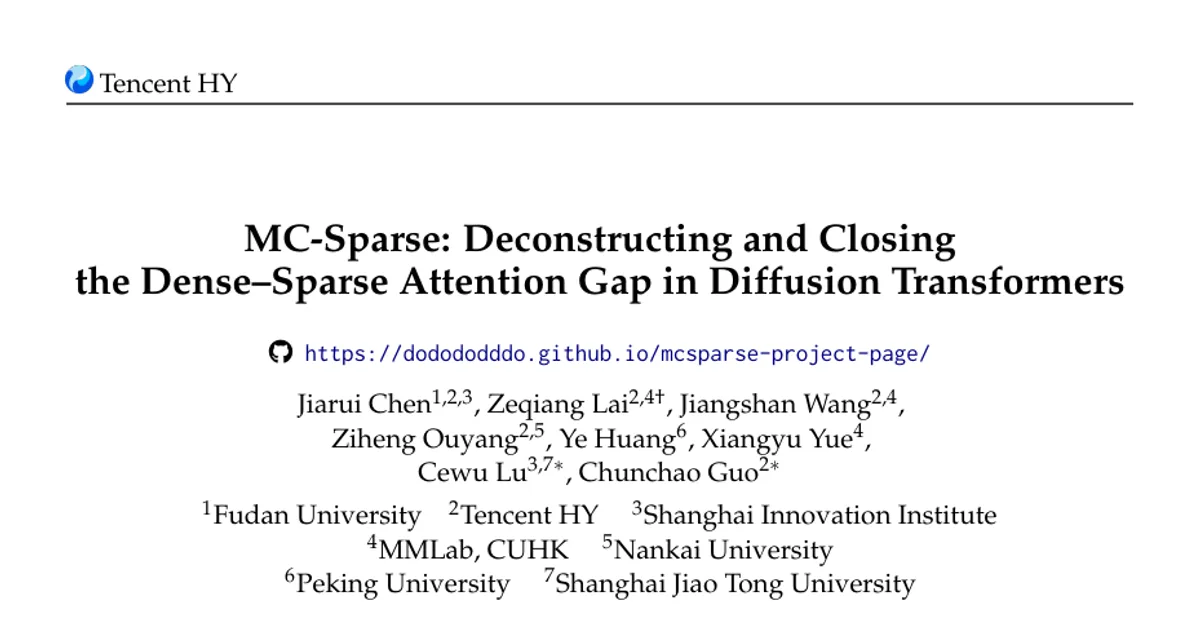

MC-Sparse: Deconstructing and Closing the Dense-Sparse Attention Gap in Diffusion Transformers

AI summary

Overview

• Research area: Efficient inference for diffusion transformers (DiTs) — specifically training-free sparse attention for long-sequence video and 3D asset generation.
• Technical level: Advanced. The paper assumes familiarity with FlashAttention-style tiling, block-sparse attention, online softmax, GPU kernel design (CuTeDSL, WGMMA), and diffusion denoising trajectories.
• Scope: A single paper proposing MC-Sparse, a training-free sparse-attention framework that diagnoses three sources of quality loss in block-sparse attention and closes them via token-level KV selection, tile-aligned query grouping, cross-step caching, and residual compensation.

What This Paper Is About

Diffusion transformers generate video and 3D assets, but attention cost grows quadratically with sequence length, which reaches tens to hundreds of thousands of tokens. Existing sparse-attention methods operate at block granularity, and pushing sparsity higher degrades generation quality relative to dense attention. The paper isolates exactly where that quality gap comes from using controlled oracle comparisons, then builds a training-free method that narrows the gap while still running efficiently on GPUs.

Key Contributions

1. A diagnostic decomposition of the dense–sparse gap. Using controlled oracle comparisons at matched attention densities on Wan2.1-1.3B-T2V at 480p, the authors isolate three distinct error sources: structural binding error (KV tokens bound in blocks, and queries sharing one selection), selection error (approximate scoring such as mean pooling), and discarded tail error (omitted tokens that still carry nonzero attention mass).
2. MC-Sparse, a training-free sparse-attention framework. It selects individual KV tokens across block boundaries, groups similar queries into equal-size tile-aligned groups via a median-split Fast PDDP, and reuses query groups, KV indices, and dense–sparse output residuals across denoising steps at anchor/reuse steps.
3. Efficient implementations. A fast Principal Direction Divisive Partitioning (Fast PDDP) for grouping using batched power iteration, a two-pass exact selection kernel that recovers attention probabilities from FlashAttention's log-sum-exp values, and a token-sparse attention kernel written in CuTeDSL with warp-specialized producer/consumer warps, plus cache offloading and prefetching.
4. Generality across video and 3D generation. Evaluation spans Minimax-H3-Base, HunyuanVideo-13B, Wan2.1-14B-T2V, Wan2.1-14B-I2V, and HY3D-Internal, with fidelity metrics to dense-attention outputs and measured denoising speedups.

Main Findings

• Speedups on headline models: MC-Sparse delivers a 1.80× DiT denoising speedup on Minimax-H3-Base at 15% attention density and a 2.32× speedup on 3D asset generation at the same density, both reported with negligible quality loss. At 25% density on Minimax-H3-Base it reaches 1.61×.

• Better fidelity than block-sparse baselines at lower density: On Minimax-H3-Base at 25% density, MC-Sparse reaches 28.44 dB PSNR, 0.899 SSIM, 0.161 LPIPS and 1.61× speedup, versus 23.66 dB, 0.816, 0.234 and 1.59× for Sol-Attn at 32.4% density, and 23.45 dB, 0.811, 0.243, 1.52× for PISA at 30.0% density. The MC-Sparse-Flash configuration reaches 1.80× at 15% density with 27.30 dB PSNR.

• Consistent gains on HunyuanVideo and Wan2.1: MC-Sparse reports the highest PSNR and SSIM and the lowest LPIPS among the evaluated sparse methods, with 1.52×–1.82× speedup on those settings. On HunyuanVideo-13B at 15% density it reports 30.78 dB PSNR, 0.919 SSIM, 0.135 LPIPS at 2.00× speedup; at 25% density, 32.89 dB, 0.940, 0.114 at 1.82×. On Wan2.1-14B-T2V at 25% density it reports 28.81 dB, 0.912, 0.128 at 1.53×, compared with SVG-EAR's 27.61 dB, 0.897, 0.142 at 25.3% density and 1.38×.

• Large 3D fidelity improvement at high sparsity: On HY3D-Internal at 15% density, MC-Sparse reports Chamfer distance 0.177 versus PISA's 0.976 and Sol-Attn's 1.901, with Vol-IoU-1536 of 82.91 and F1@0.001 of 96.33. Input-image consistency (Uni3D-I 0.3311, ULIP3D-I 0.1206) is comparable to dense attention (0.3309, 0.1204) despite the compared methods running at higher attention densities.

• Each component contributes cumulatively: In the ablation on Wan2.1-1.3B-T2V at 480p, PSNR at density s=0.2 rises from 20.96 (vanilla BSA) to 21.60 (adding exact KV selection with reuse), 22.57 (adding token granularity), 23.51 (adding query grouping), and 27.05 (adding residual compensation). The same ordering holds at s=0.25 and s=0.30.

• Residual compensation is the single largest gain, but is design-dependent: Adding the residual yields +3.54 dB at s=0.20, +2.88 dB at s=0.25, and +2.30 dB at s=0.30 on top of MC-Sparse's selection and grouping. Applied to vanilla BSA the gains are smaller (+1.25, +1.45, +1.64 dB), and smaller still on PISA (+0.49, +0.78, +0.90 dB), which retains its native block-statistics compensation.

• Token-level granularity beats block granularity at matched realized density: Token-level KV selection improves attention recall and reduces output relative L1 under every grouping strategy. Fast PDDP with token granularity reaches recall 0.856 / 0.923 / 0.953 and relative L1 0.080 / 0.042 / 0.026 at s = 0.1 / 0.2 / 0.3, versus a per-query oracle of 0.908 / 0.951 / 0.971 and 0.048 / 0.025 / 0.015. k-means grouping incurs an alignment inflation factor of 2.08 for blocks and 1.45 for tokens.

• Kernel efficiency is preserved: On Wan2.1-14B-T2V at 720p (H=40, D=128, S=75600), MC-Sparse achieves 96%–99% of the ideal 1/s speedup, compared with 80%–81% for SVG2 and 82%–87% for PISA. At s=0.5 it reaches 1.97× with efficiency 0.99.

• Grouping is cheap: Fast PDDP reduces amortized grouping cost by 3.96× at 1.3B/480p (0.57 ms vs 2.26 ms for Flash-KMeans) and 6.14× at 14B/720p (3.33 ms vs 20.43 ms).

• Anchor overhead is bounded: The two-pass selector adds a QK-only pass costing approximately half a dense attention evaluation in GEMM operations. With the first anchor overlapping the final warm-up step, the amortized overhead is equivalent to an absolute density increase of roughly Δs ≈ 5%, or 5%–6% including query grouping and auxiliary operations — reported as below SVG2's combined clustering and variable-length kernel overhead.

• Cache transfers hide behind computation: For Wan2.1-14B-T2V, transferring cached residuals and selected KV indices moves 2435 MB at 47.7 ms versus 208.8 ms of sparse-attention compute (29.1 TFLOP, C/V = 11,409 FLOP/B); for HunyuanVideo-13B, 2710 MB at 52.9 ms versus 244.5 ms (34.6 TFLOP, C/V = 12,164 FLOP/B). Prefetching one layer ahead hides the transfer in these settings.

Methodology in Plain English

The authors start by asking a diagnostic question rather than proposing a method immediately. They build three "oracle" selectors that all use the exact dense-attention probabilities to keep the highest-attention-mass interactions at a fixed budget, but differ in what they are allowed to choose:

• the block oracle picks whole KV blocks per query block (like standard block-sparse attention),
• the token oracle picks individual KV tokens but still shares one selection within a query block,
• the per-query oracle lets every query pick its own KV tokens.

Comparing mean-pooled block-sparse attention against these oracles, and the oracles against each other, separates three losses: KV tokens constrained to travel together, queries with different attention patterns forced to share a selection, and the attention mass thrown away entirely. Each loss maps to one design decision.

To remove KV binding, MC-Sparse gathers individual key/value rows by index at kernel time instead of packing them into blocks. To remove query binding without wasting GPU tiles on padding, it groups queries into exactly tile-sized groups using a median-split principal-direction partitioner (PDDP), splitting each group by the median along its principal direction until every group has exactly C queries — the same size as the kernel's query tile. Since building a naive PDDP on GPU is expensive, they use batched power iteration across all heads at each tree depth and pass only index arrays between levels.

Exact selection is expensive because FlashAttention never materializes the attention matrix. Instead of paying for it every denoising step, the authors exploit the observation that attention patterns are stable across nearby denoising steps and that exact selections reused from earlier steps outperform mean-pooled selections recomputed at every step. So MC-Sparse only performs grouping and exact selection at designated anchor steps (the last step of a dense warm-up or refresh segment) and reuses that metadata at intervening reuse steps. The keys, values, and queries themselves are recomputed at every step.

The final loss — the discarded tail — is compensated by caching the difference between the dense and sparse outputs at the anchor step and adding it back at reuse steps. The authors justify this by showing that the dense–sparse residual varies less across denoising steps than the attention output itself, and that exact selection further reduces this variation relative to mean pooling.

Selection itself is implemented as a two-pass kernel: the first pass computes the dense output and row-wise log-sum-exp values, and the second recomputes QK scores to recover attention probabilities, fusing group-wise aggregation and top-K so the dense attention matrix is never materialized.

Why This Matters

This work reframes sparse attention for diffusion transformers from "better block selector" to "three distinct errors that need three distinct fixes." The oracle methodology gives the community a way to attribute quality loss to structure versus scoring versus discarded mass, which is a reusable diagnostic rather than a one-off benchmark result. Because MC-Sparse is training-free, it can be applied to existing pretrained checkpoints without retraining — a practical constraint for large video and 3D models.

Real-world applications:

• Video generation services producing long, high-resolution clips (the paper evaluates 768p 14.4-second, 345-frame generation on Minimax-H3-Base), where denoising latency dominates serving cost.
• 3D asset and game-content pipelines that generate geometry from a single input image (HY3D-Internal at 1536 resolution), where the reported Chamfer distance reduction from 0.976 to 0.177 and 2.32× speedup matter for iteration speed and surface quality.
• Interactive and real-time creative tools, where denoising latency determines whether generation feels responsive.
• Deployment on memory-constrained hardware, where the cache offloading and prefetching scheme allows inactive cached metadata to live in CPU memory and be overlapped with GPU computation.

Industry relevance: inference cost, not training cost, is the dominant economic factor for diffusion-based generation services at scale. A training-free speedup that applies to already-deployed checkpoints, without retraining or fine-tuning, is directly monetizable across video and 3D product lines.

Future Directions

• Adaptive sparsity and anchor scheduling. The paper fixes reuse intervals and anchor steps by configuration (anchor steps {10, 26} for most video models, {1} for HY3D-Internal). Whether density or anchor placement could be chosen per layer, per step, or per content type is left open.
• Closing the remaining gap to the per-query oracle. MC-Sparse reaches attention recall 0.953 at s=0.3 on token-level selection with Fast PDDP, versus 0.971 for the per-query oracle. The residual is attributed to sharing one selection per query group, but the paper does not pursue it further.
• Extending beyond video and 3D assets. The framework is evaluated only on those two long-sequence tasks; image generation, audio, and other long-context diffusion workloads are not tested.
• Comparability with low-precision attention. The authors explicitly exclude SpargeAttn's runtime because its implementation uses INT8 or FP8 instructions while others use BF16, and they estimate PISA's HY3D-Internal speedup from Sol-Attn kernel latency because PISA's provided kernel could not run efficiently on that model without modification. A unified low-precision comparison is left unresolved.

Target Audience

Researchers and engineers working on efficient inference for diffusion transformers, particularly those focused on video and 3D generation. It is most useful to readers with a working knowledge of FlashAttention-style tiling, GPU kernel design, and diffusion sampling, who want either a deployable training-free acceleration method or a rigorous framework for diagnosing why sparse attention loses fidelity. Readers primarily interested in training-time architectural changes or in non-transformer generation backbones will find less direct applicability.

Authors’ abstract

Sparse attention is a primary approach to reducing the latency of diffusion transformers in long-sequence generation tasks, such as video and high-resolution 3D asset generation. However, existing methods can degrade generation quality and fidelity at high sparsity levels. Through controlled oracle comparisons, we trace this degradation to three sources: constraints imposed by token grouping, inaccurate interaction selection, and the attention contributions lost when tokens are discarded. Guided by this analysis, we propose Meta-Cached Sparse Attention (MC-Sparse), a training-free framework that selects individual key-value (KV) tokens while organizing similar queries into tile-aligned groups for efficient GPU execution. MC-Sparse caches metadata comprising query groups, KV indices selected using exact attention probabilities, and residuals between dense and sparse attention outputs, and reuses them across subsequent denoising steps. Across video and 3D generation models, MC-Sparse achieves higher fidelity to dense-attention outputs and larger denoising speedups than existing sparse-attention baselines, without visible quality degradation. Relative to dense attention, it delivers a $1.80\times$ denoising speedup on Minimax-H3-Base and a $2.32\times$ speedup on 3D asset generation, both with negligible quality loss.
