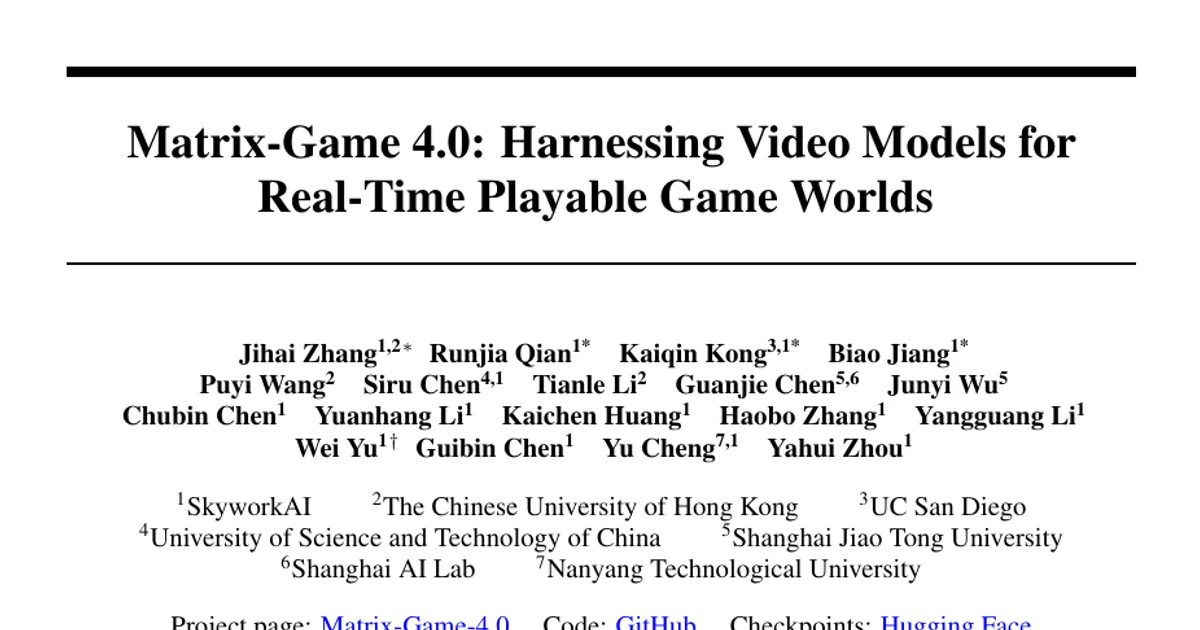

Matrix-Game 4.0: Harnessing Video Models for Real-Time Playable Game Worlds

AI summary

Overview

Research area: Generative world models and real-time interactive video generation, at the intersection of computer vision (autoregressive diffusion video models) and game-engine systems.

Technical level: Intermediate. The paper mixes a conceptual architecture argument with heavy systems engineering (distillation, KV-cache design, GPU kernel work), but each component is explained in plain language before the technical details.

Scope: Matrix-Game 4.0 is a technical report describing a system that separates game logic (run by a lightweight engine plus a multimodal coding agent) from visual rendering (done by a distilled, causal video model), and reports the latency, throughput, memory, and data scale of that system on consumer GPUs.

What This Paper Is About

Video-generation models can produce explorable scenes, but they hold the "world" only implicitly in generated pixels, so errors accumulate, memory grows with rollout length, and there is no way to enforce real game rules like health, collisions, or objectives. The authors argue that a genuinely playable world needs persistent state, executable rules, and low-latency interaction, which video models alone do not provide. Their solution is to wrap a video model in an external "harness" — a game engine that owns the state and rules, a coding agent that writes game code and scene descriptions, and a rendering model that turns the engine's crude low-poly output into detailed visuals.

Key Contributions

1. A playable, real-time system on a single consumer GPU. Matrix-Game 4.0 runs 480p gameplay at 60 FPS on one NVIDIA RTX 5090 with a key-press-to-display latency of 112 ms; single-step generation reaches 83 FPS steady-state throughput at about 18.2 GiB peak GPU memory.
2. A roadmap that separates game execution from visual generation. The proposed harness combines a lightweight engine for world state and rule execution, a multimodal coding agent for creating and modifying scenes and gameplay, and an autoregressive video model for real-time rendering — moving from "controllable videos" to "executable worlds."
3. A reusable pipeline spanning data, training, and runtime. The paper integrates capture of pixel-aligned low-poly and high-fidelity Unreal Engine 5 pairs with dynamic captions, supervised fine-tuning, three-stage causal few-step distillation, and an optimized inference stack.
4. An open-source foundation for generative games. Code, model weights, and low-poly game assets are released at launch, and the coding agent is shown enabling natural-language creation and modification of scenes, interactions, and gameplay.

Main Findings

• Latency and throughput: The renderer achieves 83.4 FPS steady-state and 112 ms key-to-frame latency at 480 × 864 on one RTX 5090, an overall 19× speedup and 9.9× latency reduction relative to the starting configuration of 4.5 FPS and 1110 ms, built up cumulatively across eight optimizations (tiny VAE, RoPE kernel and cached text KV, 8-bit weights with CUDA Graph, one-step distillation, asynchronous I/O, fused Triton kernels, ring KV cache, split-KV FlashAttention).
• Denoising cost: With one denoising step the model denoises a four-frame chunk in 48 ms; two steps give about 57 FPS; peak memory is about 18.2 GiB in both cases.
• Smaller consumer GPUs: With fixed prompts and one denoising step, steady-state throughput reaches approximately 67 FPS on an RTX 5080 and 58 FPS on an RTX 5070 Ti, using approximately 12.8 GiB and 10.9 GiB of GPU memory.
• Comparison with other interactive systems: The paper reports 112 ms end-to-end latency versus approximately 517 ms for StreamRender-H3, 878 ms for AgentGarten, 1.55 s for Magpie, and approximately 10.2 s for streaming Code World Model — about one fifth the latency of the next-best system, and the only one measured on a single consumer GPU rather than H100, H200, or GB200 hardware.
• Long rollouts: Qualitative comparisons over 40-second held-out rollouts (961 frames at 24 FPS) show generated frames following the proxy's layout, camera path, and object motion while adding materials, vegetation, lighting, smoke, and muzzle effects, with scene appearance stable across the rollout.
• Data scale: The UE5 paired dataset totals 114,334 clips and 1,712 hours across four scenes: a medieval castle third-person shooter (17,848 clips, 290 hours), an ancient Egypt desert third-person shooter (40,296 clips, 643 hours), desert canyon air combat (28,720 clips, 467 hours), and the CitySample megacity driving scene (27,470 clips, 312 hours), all captured at 1280 × 720.
• Dynamic captions work without a vision-language model: Because every object carries an instance ID linked to a semantic description and the engine reports visibility and events, frame-aligned captions are produced by a rule-based template rather than a VLM.
• Engine-enforced gameplay customization: The coding agent implements health and ammunition control, shield durability, a faster shotgun, a game-over condition, sound effects, a time trial with checkpoints and collision penalties, and a pursuit mode; all rules are evaluated by the engine, and the video model only renders what the engine outputs.

Methodology in Plain English

The design starts from a division of labor. A lightweight game engine acts as the "referee": it holds the actual state — health, inventory, gravity, collisions, quest progress — and enforces the rules in code, so objects outside the camera's view still exist and behave correctly. Instead of drawing detailed graphics, the engine outputs a crude low-poly proxy: flat-colored boxes and prisms for buildings, a cylinder and sphere for a tree, block figures for characters, a black sky, and a gray checkerboard ground.

A multimodal coding agent works in both directions. Downstream, it translates the engine's scene and events into text descriptions that guide rendering — a box becomes "an old thatched cottage weathered by sea winds, with a dark red wooden front door," and when a player shoots an oil barrel the engine decides whether it hit and explodes, while the agent only describes the visual result. Upstream, the agent turns player requests into working game code and scene configuration, or improvises content when the player leaves details open.

The rendering model starts from Wan2.2 5B in its Fun Control variant and is converted into a video-to-video model. Each chunk of four frames is conditioned on four things: the low-poly proxy (concatenated with the latent along the channel dimension, telling the model what to draw and where), a dynamic caption (supplying semantics, which objects are present and in what state), spatial-memory reference frames (keeping a revisited place consistent), and the first frame (connecting to what is already on screen). Captions are regenerated from engine state as the view or events change.

Training happens in two phases. First, supervised fine-tuning on 81-frame windows at 704 × 1280 of pixel-aligned low-poly/high-fidelity pairs, with random dropping of the first frame, the prompt, and the proxy control so the model can also run without them. Second, a three-stage distillation following Causal Forcing++ that turns the bidirectional model into a causal autoregressive generator denoising one chunk at a time: a teacher-forced autoregressive stage, a causal consistency distillation stage on 48 noise levels, and a distribution-matching stage where the student learns from its own rollouts with a rolling cache of the first frame plus the latest 20 latent frames.

The final layer is inference engineering. Because chunks are short and each call does little arithmetic, the GPU spends much time waiting for kernel launches, so the authors record the backbone as a CUDA Graph, use 8-bit weights, write fused Triton kernels for RoPE, normalization, and quantization, swap the full VAE decoder for the lightweight TAEHV decoder, make the KV cache a ring buffer that overwrites the oldest slot instead of shifting history, split self-attention across window ranges, and move decoding ahead of the clean-KV update so frames appear earlier.

Why This Matters

For research, the paper makes a conceptual argument as much as an engineering one: diffusion models learn statistical correlations, and visual realism does not imply causal or physical understanding, so apparent "world knowledge" in video generators may largely come from upstream language models while diffusion acts as a renderer. If that is right, then putting state and rules in executable code rather than in the network is a principled path to persistent, rule-governed worlds — and the reported 112 ms latency on one consumer GPU makes the paradigm testable at interactive speed rather than only in data-center settings.

Real-world applications the design points toward:

• Rapid game prototyping: A designer describes a mechanic in natural language and the coding agent writes it into runnable game code, with neural rendering supplying the visuals.
• Player-authored content and modding: Modes like the paper's team battle, time trial, and pursuit mode are produced by editing existing game code through conversation.
• Low-cost content variation: Because materials, lighting, and detail come from the renderer rather than hand-built high-fidelity assets, one low-poly scene can be re-skinned or restyled without new 3D art.
• Agent training environments: Engine-enforced rules and shared world state give a consistent, inspectable environment in which multiple players or agents can interact.

Industry relevance centers on cost and access. The system runs on a single RTX 5090 with 32 GB, and also on 16 GiB consumer cards, rather than on H100/H200/GB200 hardware — a meaningful shift in who can build and run video-model-driven games. The authors frame the release as both a research foundation and a concrete preview of a game-development workflow combining natural-language prototyping, engine-enforced mechanics, and neural rendering, while noting that coding agents are making lightweight game construction easier to approach.

Future Directions

• Cheaper inference and lower hardware requirements: The conclusion states that near-term work will focus on reducing inference cost and hardware requirements, with the stated goal of releasing a technical preview on Steam. The paper's future-work section is truncated in the provided content beyond this point.
• Extending beyond the four captured scenes: The pipeline is presented as a reusable foundation for adapting the approach to additional games, but the reported results cover one trained model per game for the castle shooter, the desert shooter, and city driving — generalizing across games is left open.
• Richer and more open-ended gameplay: The demonstrated mechanics are shooter and driving modes; the architecture's promise of persistent consequences, explicit objectives, and multiplayer shared state is argued conceptually and demonstrated in a limited set of modes.
• Multiplayer and shared world state: The paper asserts that multiple players can share the same world state, each seeing it from their own perspective, but reports no multiplayer experiments or measurements.

Target Audience

Researchers working on interactive world models, streaming and autoregressive video generation, and structure-conditioned neural rendering will get the most from this paper, along with graphics and game-systems engineers interested in replacing or augmenting conventional rendering with learned models. It is also relevant to game developers and technical artists who want a realistic picture of what natural-language-driven prototyping and neural rendering can do today, and to practitioners focused on inference optimization, since the paper documents a full stack of latency techniques with per-step measurements on consumer hardware. Readers need some familiarity with diffusion models and transformer inference to follow the rendering and distillation sections in detail, but the architectural argument in the introduction and roadmap is accessible without it.

Authors’ abstract

Moving from controllable videos to genuinely playable worlds requires persistent world state, executable game rules, and low-latency interaction. We outline a roadmap for the next generation of Matrix-Game that separates game execution from visual generation through an executable game harness, and introduce Matrix-Game 4.0 as the first system built on this design. A lightweight game engine maintains world state and executes interaction rules, a multimodal coding agent translates player ideas into game code and dynamic scene captions, and a renderer based on autoregressive video model transforms engine-rendered low-poly proxies into detailed visuals, conditioned on dynamic captions and memory references. This framework provides continuous guidance for visual generation and enables natural-language creation and modification of scenes and gameplay. Our renderer is trained on aligned low-poly and high-fidelity video pairs and distilled into a causal generator that generates in four-frame chunks with one or two denoising steps. Together with targeted inference optimizations, Matrix-Game 4.0 enables 480p, 60 FPS gameplay on a single NVIDIA RTX5090 with a key-press-to-display latency of 112ms. Single-step generation achieves 83FPS steady-state throughput with 18.2GiB of peak GPU memory usage. With fixed prompts, steady-state throughput also reaches 67FPS on an RTX5080 and 58FPS on an RTX5070Ti. We demonstrate customizable shooter and driving games with engine-enforced mechanics, and release code, model weights, and low-poly game assets to support research and creation of playable game worlds.
