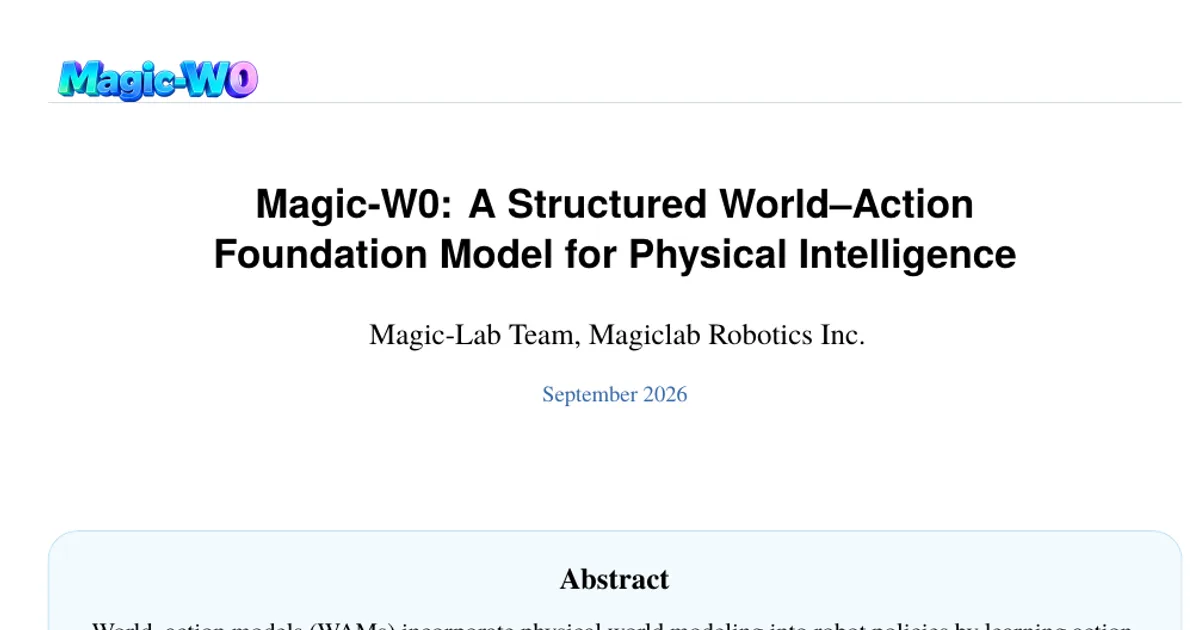

Magic-W0: A Structured World-Action Foundation Model for Physical Intelligence

AI summary

Overview

Research area: Robotics and embodied AI — specifically world–action models (WAMs) and vision–language–action (VLA) policies for robot manipulation.

Technical level: Advanced. The paper assumes familiarity with VLA architectures, flow-matching action experts, latent world models, 3D geometry representations, and cross-embodiment training pipelines.

Scope (one sentence): Magic-W0 is a cross-embodiment foundation model that represents robot interaction as a structured Current State–Transition–Future State (Structured World Transition) and couples that prediction bidirectionally with continuous action generation through a layer-aligned world–action interaction architecture.

What This Paper Is About

Existing world–action models either reconstruct future observations (pixels/video) or predict generic latent features, but neither approach organizes the predicted world into a structure that is explicitly useful for control, and neither tightly interleaves prediction with action generation. The authors argue that current robot policies also face asymmetric supervision: vision–language pre-training gives rich semantic priors and demonstrations constrain which actions to take, but the state changes a candidate action would cause in the environment are rarely supervised as an independent prediction objective. Magic-W0 addresses both issues by learning three structured world representations — Current 3D Geometry, 3D Motion, and Future Semantics — and by letting evolving action hypotheses and predicted world transitions condition each other at multiple network depths.

Key Contributions

1. A structured world–action foundation model. Magic-W0 models robot interaction as Current State–Transition–Future State. Current State combines VLM context with Current 3D Geometry; Transition is represented by 3D Motion (action-induced three-dimensional change); Future State is represented by Future Semantics (task-relevant outcomes). Together these form structured predictive world representations tailored to robot control, pre-trained on large-scale embodied data across embodiments.

2. Layer-aligned bidirectional coupling of world prediction and continuous action generation. A world–action interaction architecture continuously exchanges information between the structured world representations and a continuous action expert at multiple network depths: action hypotheses inform future world transitions (action-conditioned world transition), and predicted world representations feed back into action updates (world-informed action generation).

3. A unified cross-embodiment representation for heterogeneous data. Egocentric human manipulation, UMI, real-robot, and simulation data differ in embodiment structure, action space, and supervision. The paper constructs a unified 34-dimensional state–action interface that maps end-effector poses, gripper information, and joint states to corresponding dimensions, with unified coordinate conventions and action representations enabling joint world–action pre-training across these sources.

Main Findings

• RoboDojo-Sim ranking: On RoboDojo-Sim, Magic-W0 achieves an average Score of 36.75, ranking first among all compared methods.

• Real-robot adaptation: On multiple real-robot tasks, Magic-W0 achieves strong performance after fine-tuning with limited downstream data, demonstrating generalization and rapid adaptation in complex embodied tasks. (The paper content provided does not report per-task numbers, task counts, or baseline comparisons for these real-robot evaluations.)

• Inference-time interventions: Interventions at inference reveal that structured world representations respond to changes in candidate actions, while action-related information propagates through shared 3D representations into future semantic predictions. This supports the claim of bidirectional coupling rather than one-way conditioning.

• Structured representation rather than reconstruction: The paper argues against full future-observation reconstruction, noting that texture, lighting, background, and viewpoint changes are weakly related to control, and that two-dimensional appearance changes do not explicitly reveal three-dimensional structure and motion. Magic-W0 instead learns latent representations directly in teacher feature spaces.

• Temporal alignment matters across sources: Because action sampling multipliers differ across sources, action chunks of equal length cover different intervals. The authors introduce source-aware action–world temporal alignment; for example, EgoDex uses an action sampling multiplier of 1.95, giving H/ρ ≈ 25.64 frames for H = 50 and a rounded future-frame offset Δ = 26, whereas teleoperated data typically use multipliers between 0.9 and 1.2.

• Training scale: Pre-training uses approximately 2.014 million valid manipulation episodes (after filtering and aggregation) across four acquisition domains, mixed with an approximately 2.61 million-sample vision–language supervised fine-tuning corpus (EO-Data1.5M, Robo2VLM-1, and in-house annotations constructed from selected open-source datasets) at a 9:1 manipulation-to-vision–language batch ratio.

Methodology in Plain English

Magic-W0 keeps the proven pattern of a vision–language model backbone plus a continuous action expert, but adds explicit structure to what the model predicts about the world.

• What it predicts: Three latent targets, all expressed as 16×16×1024 spatial features. Current 3D Geometry describes the scene structure before the action. 3D Motion describes how the scene changes in three dimensions because of the action. Future Semantics describes what the scene means, task-wise, after the change. The first two live in a shared "3D stream" and the third lives in a separate "semantic stream."

• Where the targets come from: Frozen teacher models supply supervision only during training. Track4World provides geometry features from its DA3 backbone (trained on dynamic scenes) and cross-time motion features from its 3D motion head; DINOv3 provides future-frame patch features for semantics.

• How the pieces talk to each other: A Qwen3.5-2B VLM encodes multi-view images, the language instruction, and a projected proprioceptive token into task context, and also receives action-space type and joint dimensionality as textual metadata. The network has 24 layers with one attention layer after every three Gated DeltaNet layers, so the VLM, semantic stream, 3D stream, and action expert exchange information at layers 4, 8, …, 24. At those layers each expert stream uses its own queries to attend to a concatenation of all four streams' keys and values. Semantic and 3D tokens can attend to action tokens; action tokens can attend to both world streams. The VLM itself does not attend to the expert streams and keeps its native causal path. During training, action queries' access to either the 3D or the semantic stream can be randomly masked (only one is selected per masking event), while semantic and 3D query visibility is unchanged.

• How actions are generated: The action expert produces a chunk of H = 50 tokens using flow matching, with a velocity field v_θ(x_τ, τ) trained against the target velocity ε − a, where x_τ = (1−τ)a + τε. The action stream combines a projection of noisy actions, within-chunk positional embeddings, flow time, and proprioceptive conditioning. Controls use a chunk-wise delta representation: joint angles and end-effector positions use relative changes, rotations use relative rotations, and grippers keep absolute openings.

• How it is trained: The total objective combines the flow-matching action loss with semantic, geometry, and motion losses, plus auxiliary VQA cross-entropy and a FAST discrete action objective that gives the VLM backbone explicit robot-action supervision. Semantics use cosine distance; geometry and motion use mean squared error after parameter-free channel normalization with d = 1024. Missing views and invalid teacher outputs are masked out. Pre-training uses gradient isolation (knowledge insulation) so the expert streams can access VLM context without disrupting the backbone, along with auxiliary weight schedules.

• How heterogeneous data is unified: All manipulation data is mapped to a 34-dimensional state–action vector containing per side seven joint dimensions, one gripper opening, three end-effector position dimensions, and six rotation dimensions, with superscripts denoting the camera coordinate frame at time t. Sources populate only their observable slots; the rest are zero-padded and excluded from losses via validity masks, so new embodiments can populate slots without changing model or checkpoint parameter shapes. UMI uses kinematic retargeting to convert handheld-device trajectories into joint, gripper, and end-effector supervision; egocentric human data use hand motion to construct virtual end-effector poses and gripper openings, leaving all 14 joint slots invalid.

Why This Matters

Impact on research. The paper reframes the central design question for world–action models from "should we predict pixels or latents?" to "how should the predicted world be structured for decision-making?" It also argues that prediction and action generation should be mutually conditioning at multiple depths rather than one being an auxiliary loss or a final-stage condition. If the reported ranking on RoboDojo-Sim holds up, it suggests that control-oriented structured latents plus deep bidirectional coupling are a competitive recipe relative to both action-centered VLAs and generic WAMs.

Real-world applications:

• General-purpose manipulation policies that follow open-ended language instructions and execute continuous control, the stated goal of embodied intelligence.
• Cross-embodiment robot deployment, since the unified 34-dimensional interface lets a new platform populate its own slots without changing model parameter shapes.
• Rapid adaptation to new tasks with limited data, as demonstrated by fine-tuning results on multiple real-robot tasks.
• Learning from human manipulation video, since egocentric human manipulation is one of the four pre-training domains and supplies end-effector pose and gripper supervision without a robot in the loop.

Industry relevance. Magic-W0 is developed by Magiclab Robotics Inc. (Magic-Lab Team) and released with a project page and a public GitHub repository, which positions it as an industry foundation-model effort rather than a purely academic study. The engineering choices — a 9:1 data mixing ratio, gradient isolation across objectives, validity masks instead of re-sized checkpoints, and source-aware temporal alignment — are the kinds of decisions that matter for scaling a single checkpoint across many robots and data vendors.

Future Directions

1. Scale and diversity of the pre-training corpus. With approximately 2.014 million valid manipulation episodes already aggregated across four domains, the natural question is how performance scales with more embodiments, more human video, and larger vision–language corpora beyond EO-Data1.5M and Robo2VLM-1.

2. Which structured component carries the benefit. The paper introduces three world targets (geometry, motion, semantics) plus a joint-attention design with random masking of action-query access. The provided content does not report ablations isolating each target or each interaction pathway, so determining how much each contributes is an open experiment.

3. Extending the structure beyond geometry, motion, and semantics. The authors note related work that adds tactile and contact information into latent world states (for example, Being-H0.8 includes future visual and tactile information in posterior supervision), suggesting contact, force, and other non-visual modalities as possible additions to Structured World Transition.

4. Generalization to unseen physical motions and interaction skills. The paper cites DreamZero's observation that semantic generalization from vision–language priors does not automatically translate into generalization to unseen physical motions, and Video Prediction Policy's point that static visual representations cannot fully capture required temporal dynamics. Whether structured world prediction closes this gap is left as an ongoing question.

Target Audience

Robotics and embodied-AI researchers working on robot foundation models, VLA policies, and world models; engineers building general-purpose manipulation systems or cross-embodiment training pipelines; and graduate students or advanced practitioners who already understand flow matching, transformer attention variants such as Gated DeltaNet, and latent representation learning. Readers looking for detailed experimental tables, per-task real-robot numbers, or ablation studies will not find them in the provided content, which covers the abstract, introduction, related work, and the model and pre-training sections up to the discussion of gradient isolation.

Authors’ abstract

World-action models (WAMs) augment robot policies with action-conditioned environment dynamics, yet existing approaches largely rely on future observation reconstruction or generic latent prediction and lack structured, control-oriented world representations tightly coupled with action generation. We introduce Magic-W0, a world-action foundation model that jointly models structured physical state evolution and continuous actions. Magic-W0 represents interaction as a Structured World Transition consisting of Current State, Transition, and Future State. Current State combines vision-language context with Current 3D Geometry; Transition is represented by 3D Motion capturing action-induced three-dimensional changes; and Future State is represented by Future Semantics describing task-relevant outcomes. To couple prediction and control, we propose a layer-aligned world-action interaction architecture in which evolving action hypotheses condition world-transition prediction, while predicted world representations continuously inform action generation. Magic-W0 is pre-trained on large-scale egocentric human manipulation, UMI, real-robot, and simulation data, with latent supervision for geometry, 3D motion, and future semantics from pre-trained visual models. Inference-time interventions show that structured world representations respond systematically to changes in candidate actions and that action-related information propagates through shared 3D representations into future semantic predictions. On RoboDojo-Sim, Magic-W0 achieves an average Score of 27.10, the highest among the compared WAMs. Across multiple real-robot tasks, it also demonstrates strong downstream performance after fine-tuning with limited downstream data, supporting generalization and rapid adaptation.
