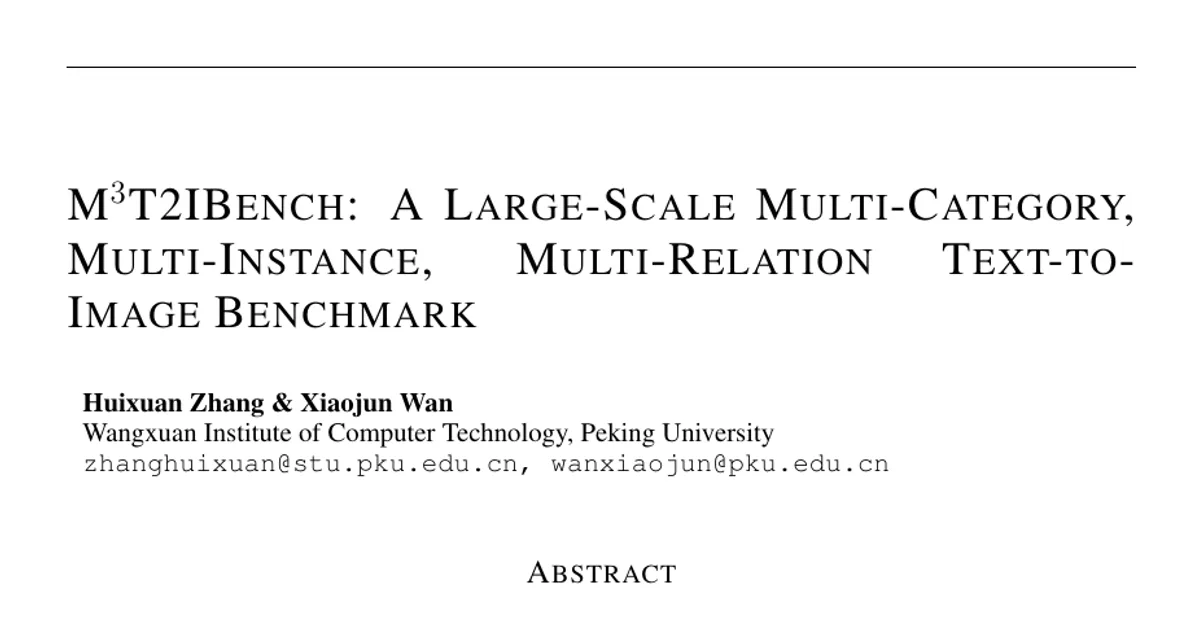

M$^{3}$T2IBench: A Large-Scale Multi-Category, Multi-Instance, Multi-Relation Text-to-Image Benchmark

AI summary

Overview

Research area: Computer vision, specifically text-to-image (T2I) generation evaluation and inference-time methods for improving image-text alignment.

Technical level: Intermediate. The reader needs basic familiarity with diffusion models, classifier-free guidance, object detection, and standard evaluation metrics such as CLIPScore and VQAScore.

Scope: The paper introduces M$^{3}$T2IBench, a 10,000-prompt benchmark for multi-category, multi-instance, multi-relation text-to-image generation, proposes an object-detection-based metric called AlignScore, and introduces a training-free post-editing method named Revise-Then-Enforce.

What This Paper Is About

Text-to-image models frequently fail to generate images that faithfully follow their prompts, but existing benchmarks either test overly simple prompts or use metrics that do not track human judgment well. The authors build a harder benchmark that includes multiple object categories, several instances within the same category, colors assigned to each instance, and spatial relations between instances, and they pair it with an automatic metric that correlates with human ratings. They then use the benchmark to measure how current models fail and to test a method that improves alignment without any additional training.

Key Contributions

1. M$^{3}$T2IBench, a large-scale Multi-Category, Multi-Instance, Multi-Relation text-to-image benchmark with 10,000 data points, structured data for every prompt, maximum prompt length of 78, maximum relation number of 6, and maximum instance number of 5.
2. AlignScore, an object-detection-based evaluation metric for image-text alignment, together with its components Bias and Acc, reported to correlate with human evaluation at Pearson r = 0.6711 and Kendall tau = 0.5348 — higher than CLIPScore, VQAScore, and DSGScore.
3. A broad model evaluation covering six open-source T2I models and DALLE-3, revealing systematic failures as prompt complexity grows across multi-category, multi-instance, and multi-relation settings.
4. Revise-Then-Enforce (R&E), a training-free post-editing method that identifies misaligned parts of an already generated image and re-generates it using paired positive and negative conditioning prompts.

Main Findings

• All models perform poorly on the benchmark: The paper reports that average accuracy across models falls below 70% and average bias exceeds 1, which the authors describe as clearly unacceptable.
• Accuracy and bias do not move together: Stable-Diffusion-3 performs best on Acc (66.9), while FLUX.1-dev excels on Bias (1.27) and on overall AlignScore (54.8). The authors argue this shows both aspects must be measured separately.
• VQAScore appears unreliable here: Stable-Diffusion-3.5-Large-Turbo shows the highest VQAScore of the base models (71.3) while its other metrics remain low (AlignScore 50.8, Acc 61.9, Bias 1.52), which the authors attribute to a flaw in VQAScore.
• Multi-instance lowers accuracy: With the total number of instances fixed at 4, Acc generally falls as more instances of the same category (and therefore fewer distinct categories) appear in the prompt.
• Multi-category raises bias: Bias tends to increase as more categories are introduced, which the authors attribute to independent counting errors accumulating per category.
• Multi-relation lowers accuracy almost linearly: Adding more relations leads to a near-linear decline in Acc, though its effect on Bias appears random and, in the authors' words, warrants further investigation.
• Revise-Then-Enforce improves every base model it is applied to: SD1.5 AlignScore rises from 26.7 to 27.5; PixArt-Sigma from 42.0 to 44.1; SD3 from 53.3 to 55.1; SD3.5 from 52.0 to 53.1. VQAScore also improves in each of these cases.
• Prior training-free methods do not help much: On SD1.5, Attend-and-Excite reaches AlignScore 26.8 and Composable Diffusion reaches 26.5, versus 26.7 for the plain base model.
• Both prompt halves of R&E are necessary: The paper reports that the Negative Prompt variant (AlignScore 50.5, Acc 63.4, Bias 1.66 on SD3) and the Positive Prompt variant (53.3, 67.0, 1.53) each fail to improve all four metrics, while the full paired formulation achieves 55.1, 69.2, 1.43, and 58.5.
• DALLE-3 also struggles: The closed-source model, tested on a 100-prompt subset, reaches AlignScore 51.0, Acc 60.5, Bias 1.41, and VQAScore 49.0.

Methodology in Plain English

Building the benchmark. The authors generate prompts from structured data rather than free-form text. They start from the 80 object categories labeled by MSCOCO, then have two annotators mark which colors are plausible for each category and keep only the intersection; 66 of the 80 categories survive, each annotated with 1 to 7 possible colors drawn from {green, red, yellow, brown, black, white, blue}. For each data point they randomly pick categories, assign a random number of instances per category, give each instance a color, and then randomly assign spatial relations — left, right, above, or below — to some instance pairs, each pair receiving at most one relation with probability p = 0.05 per relation type. Because a single prompt can contain many relations, they run a topological sort twice (once for the above/below axis and once for the left/right axis) to eliminate cycles such as A above B, B above C, C above A. Finally the structured data is filled into a fixed natural-language template rather than being written by ChatGPT, to avoid subjective wording that would complicate evaluation.

Evaluating images. They detect objects with Mask2Former using a Swin-S backbone from the MMDetection toolbox, applying non-maximal suppression, discarding boxes with confidence below 0.3, discarding boxes with IoU over 0.9 against a higher-confidence box of the same category, and discarding boxes with a side shorter than 5 pixels. Colors are read by cropping to each box, masking the background to grey, and asking CLIP (CLIP-ViT-L-14) which color name best matches, using two prompt templates. Relations are inferred geometrically from box centers and sizes with an offset hyper-parameter c = 0.1. Bias is the summed absolute difference between the required and detected count per category; Acc scores color and relation correctness under the best possible matching between prompt instances and detected instances, found by exhaustive search over all possible mappings, with unmatched prompt instances treated as "blank" and scored as incorrect. AlignScore combines them as ½(Acc + 1/(Bias+1)).

Improving generation. The Revise-Then-Enforce method starts from a normally generated image, uses the evaluation pipeline to identify which parts of the prompt were not satisfied, then re-runs the diffusion sampling from the same starting noise with an extra classifier-free-guidance-style term: a positive prompt describing what those parts should look like (c1) and a negative prompt describing how they were wrongly generated (c2). The intuition is drawn from word-vector arithmetic, where king + (woman − man) ≈ queen — the claim is that the final score should combine the original prompt with the difference c1 − c2. The authors also test two ablations: using only c2 as a negative prompt, and using only c1.

Validation. Two college-student annotators rated image-text alignment on a 1–5 Likert scale for 500 generated samples, following a six-point written criterion, achieving a Krippendorff's alpha of 0.92.

Why This Matters

Impact on research. Existing benchmarks such as GenEval, T2I-CompBench, GenAI-Bench, and ConceptMix top out at prompt lengths of 20, 32, 42, and 50, with at most 3 or 4 instances and limited handling of multiple instances of the same category. M$^{3}$T2IBench extends these limits to 78, 5 instances, and 6 relations while remaining fully structured, giving the community a harder and more reproducible testbed. The finding that Acc and Bias dissociate — and that VQAScore can be high while everything else is low — also challenges how alignment is currently reported.

Real-world applications (implied by the work, not measured in the paper):

• Evaluating image generation tools used in advertising or e-commerce, where a prompt like "three red mugs and two blue mugs on the left" must be rendered literally.
• Quality control for design and illustration pipelines where object count and spatial layout are contractual requirements.
• Content moderation and dataset curation, where detecting counting or attribute failures automatically reduces human review load.
• Improving consumer-facing image generators by applying a post-editing step without retraining the underlying model.

Industry relevance. R&E is training-free and applicable to diffusion models in general, so it can be layered on top of an existing deployed model without additional training compute. The authors report improvements on base models with AlignScore from 26.7 up to 54.8, meaning the method helps both weak and strong systems.

Future Directions

• Investigating the Bias behaviour under multiple relations. The authors state that the effect of multi-relations on Bias seems random and requires further investigation.
• Fixing or replacing VQAScore. The anomalously high VQAScore of Stable-Diffusion-3.5-Large-Turbo alongside low performance on all other metrics is attributed to a flaw in the metric, which remains unresolved.
• Extending beyond color attributes and four spatial relations. The benchmark deliberately restricts itself to color and to above/below/left/right to reduce evaluation ambiguity; other attributes and relations are left open.
• Testing the Revise-Then-Enforce formulation further. The paper reports R&E results for SD1.5, PixArt-Sigma, SD3, and SD3.5, but not for SD3.5-Large-Turbo, FLUX.1-dev, or DALLE-3, so the method's behaviour on those models is not reported.

Target Audience

Researchers and engineers working on text-to-image diffusion models, especially those building evaluation suites or inference-time alignment methods. It is also relevant to practitioners who need automated, human-correlated measures of prompt adherence for generative image systems, and to benchmark designers interested in how structured data can make complex prompt evaluation reproducible.

Authors’ abstract

Text-to-image models are known to struggle with generating images that perfectly align with textual prompts. Several previous studies have focused on evaluating image-text alignment in text-to-image generation. However, these evaluations either address overly simple scenarios, especially overlooking the difficulty of prompts with multiple different instances belonging to the same category, or they introduce metrics that do not correlate well with human evaluation. In this study, we introduce M$^3$T2IBench, a large-scale, multi-category, multi-instance, multi-relation along with an object-detection-based evaluation metric, $AlignScore$, which aligns closely with human evaluation. Our findings reveal that current open-source text-to-image models perform poorly on this challenging benchmark. Additionally, we propose the Revise-Then-Enforce approach to enhance image-text alignment. This training-free post-editing method demonstrates improvements in image-text alignment across a broad range of diffusion models. \footnote{Our code and data has been released in supplementary material and will be made publicly available after the paper is accepted.}
