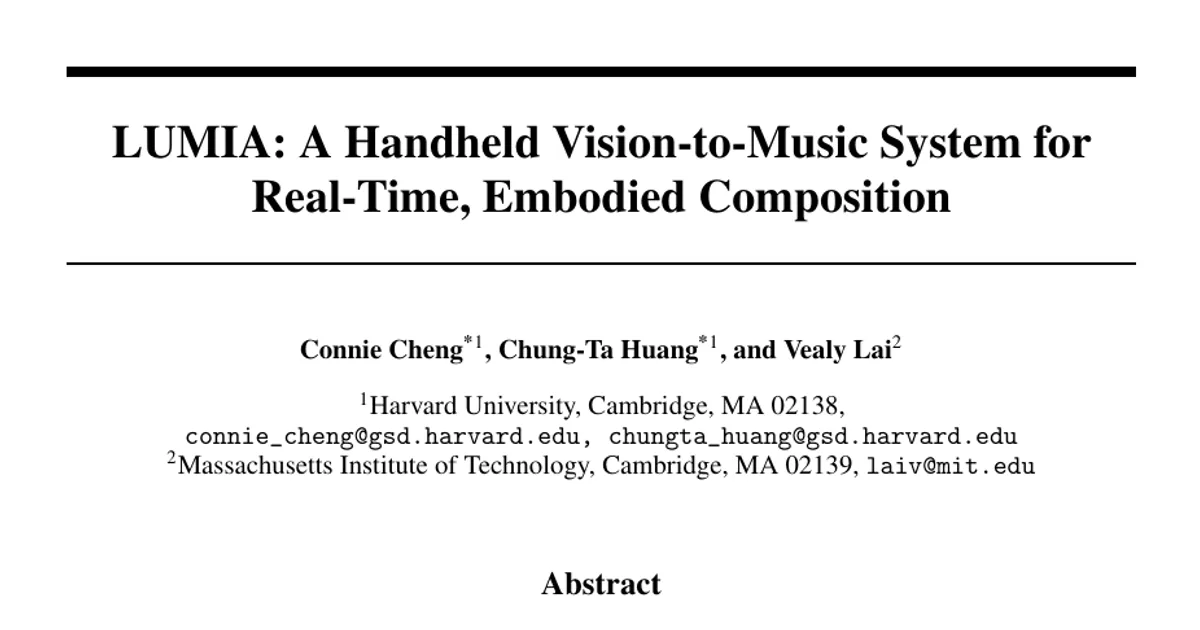

LUMIA: A Handheld Vision-to-Music System for Real-Time, Embodied Composition

AI summary

Overview

• Research area: Human-Computer Interaction (cs.HC), at the intersection of tangible/embodied interfaces, multimodal generative AI, and creative music tools.
• Technical level: Intermediate. The system design and user study are readable without specialist background, but the audio scheduling math, prompt architecture, and API-level pipeline assume some familiarity with generative models and digital audio.
• Scope: The paper presents LUMIA, a camera-shaped handheld device that captures still images, converts them into structured musical prompts via GPT-4 Vision, and generates 15-second loopable audio segments through Stability AI's Stable Audio 2.0, with automatic AI mixing and mastering.

What This Paper Is About

Most digital music tools are screen-based and prompt-driven, which limits physical, improvisational, and environment-grounded workflows. LUMIA tackles this by letting a user "compose through looking": point a handheld camera at a scene, press a button, and the scene's objects, mood, and inferred genre/BPM become a musical phrase. The goal is a co-creative loop where human framing and model inference jointly shape the music, rather than parameter tuning.

Key Contributions

1. A real-time vision-to-audio pipeline. A frame from the camera is sent to GPT-4 Vision, which returns structured JSON metadata (scene description, salient objects, mood adjectives, section role, genre, and suggested BPM). That metadata is merged with user-selected instrumentation into a single-sentence prompt for Stable Audio 2.0, which returns a 15-second stereo WAV at 44.1 kHz.
2. A camera-inspired physical interface. A compact handheld device with five buttons (four for instrument selection, one for capture/playback), LEDs indicating instrument state, an onboard display showing tempo, genre, section role, and audio levels, a built-in speaker, and a microcontroller managing I/O.
3. A tempo-adaptive loop playback engine. Sections are scheduled with a crossfade window defined as max(120/b, 0.3) seconds, equal-power crossfade envelopes (cosine/sine) that preserve constant instantaneous power, an optional power-law envelope with α₀ ≈ 2.5 for ambient sections, and a look-ahead scheduler that quantizes splices to bar boundaries to enable uninterrupted "hot-swaps."
4. Automatic AI mixing and mastering integration. When at least two sections exist and auto-mix is enabled, an asynchronous preview mix job is dispatched to the Tonn AI multitrack service; for export, sections are concatenated via pydub's AudioSegment and submitted to Tonn's album-style mastering service at 44.1 kHz. Results are inserted at bar boundaries without interrupting playback.

Main Findings

• Formative evaluation scale: Three professional audio engineers with 4–6 years of experience each composed a 120–150 s multi-section track; sessions lasted roughly 25–30 minutes and ended with a survey and semi-structured interview.
• Survey design: Five constructs were rated on 1–7 multi-item Likert-type scales — co-creation/agency, musical quality, audio mapping, interaction/flow, and value/fit. Two additional 0–10 sliders measured authorship share and expectation match. Construct scores were computed as item means.
• Authorship and expectation scores: On the 0–10 scales, authorship averaged 4.0 and expectation match averaged 6.3. Per-construct mean scores are referenced to Figure 10 but their numeric values are not reported in the paper text.
• Speed and nuance were valued: Participants cited faster "vibe-finding" than starting from a DAW template, and described nuanced control such as chorus lift with a subtle bass change and a macro close-up that "calmed the drums."
• Requested improvements: Optional genre/BPM locks, micro-nudge layer edits, a visual-to-sonic mapping legend, and reduced latency.
• Latency profile: End-to-end latency from capture to audio in the loop is 5.0–6.5 s; capture to mixed audio update is 10–13 s. Captioning averages 1.2 ± 0.3 s, generation 3.8 ± 0.6 s, mix preview 5.2 ± 0.9 s, and full master 8.6 ± 1.1 s.
• Cost profile: About $0.002 per captioning request, about $0.14 per music generation (1 API credit), about $0.05 per stem for mix preview, and about $0.15 for a final master.
• Compute footprint: All ML inference runs provider-side with no local GPU. The frontend is a MacBook Pro (Apple M2 Pro, 16 GB RAM) running Chrome 126, with CPU load ≤ 8% during playback and roughly 400 MB memory with 4 concurrent AudioBuffers loaded.
• Design insight on color: Image color strongly influenced genre inference, which led to adding physical color filters for simple visual genre control.
• Prompt bias correction: Overemphasis on literal objects degraded audio, so prompts were biased toward contextual and atmospheric descriptors, with genre, tempo, and key kept consistent across segments.
• Scheduling insight: The generation model's lack of temporal awareness made full-track regeneration disruptive, so the authors moved to a sequential composition model that appends each new section in time.

Methodology in Plain English

The authors built a physical device that looks and behaves like a compact camera. When the user presses capture, a still frame is sent to GPT-4 Vision, which describes what is in the image and infers a mood, a section role (intro, verse, chorus, bridge, or outro — defaulting to verse when uncertain), a genre, and a BPM. That structured output is programmatically merged with the instruments the user has chosen (a limit of 1 to 3 instruments, which the authors state promotes perceptual stream segregation and reduces masking for novices), plus section-specific modifiers and, for non-initial sections, a variation tag to encourage continuity. The combined sentence becomes the prompt for Stable Audio 2.0.

Generated audio returns as a 15-second clip and is immediately decoded into an AudioBuffer and added to a continuous playback loop. The loop engine computes a tempo-adaptive crossfade window, schedules each new section to start slightly before the previous one ends, and applies equal-power crossfades so loudness stays steady. A short look-ahead scheduler snaps all splice points to bar boundaries so the groove is preserved, and lets the engine atomically swap in a better mix or master when it arrives.

A browser-based frontend acts as the orchestrator, keeping the tactile feedback instant while high-latency AI calls run asynchronously in the background. The Arduino firmware is a finite-state loop that debounces buttons, updates the display, and drives LEDs; it is stateless beyond display duties, so playback and audio logic live entirely in the frontend. A small formative study with three audio engineers then probed how the system felt to use.

Why This Matters

Impact on research. The paper argues that multimodal language models, normally used for captioning or classification, can act as live generative agents inside a physical creative tool. It positions vision as a form of sampling, and reframes generative music from parameter tuning to contextual improvisation. It also extends the Large Language Object (LLO) concept from VBox, moving from tactile navigation of latent audio spaces toward composition. The authors claim LUMIA is the first portable, vision-driven music generation device merging multimodal AI inference, tangible interaction, and live compositional practice.

Real-world applications.

• Rapid idea sketching and mood-boarding for musicians and producers.
• Creating backing tracks for short-form video.
• Accessible music-making for non-experts and educational settings, where the camera metaphor lowers the entry barrier.
• Interdisciplinary prototyping at the intersection of design, sound, and AI.

Industry relevance. The system is assembled entirely from commercial cloud services (OpenAI GPT-4 Vision, Stability AI Stable Audio 2.0, Tonn AI mixing and mastering), with documented per-call latency and cost, making it a concrete reference for how consumer-priced generative audio pipelines can be embedded in hardware products. The authors also flag dependency on proprietary services as a risk.

Future Directions

1. Expanded physical modulation. Planned hardware updates extend the FX button for real-time modulation of pitch, duration, reverb, and volume, mapped to gestures such as shakes, strikes, or pressure input.
2. Intermediate prompt editing. Because open-ended scene analysis introduces variability and interpretability challenges, future versions may add layers that let users refine or constrain descriptions before generation.
3. Requested interaction refinements. Optional genre/BPM locks, micro-nudge layer edits, a visual-to-sonic mapping legend, and reduced latency were all named by study participants.
4. Responsible deployment and cultural representation. The paper raises overreliance on machine output, erosion of local styles through model bias, and dependence on proprietary services, proposing transparency in mapping and prompt construction, stronger user control over generative parameters, and community participation in system evolution as mitigations.

Target Audience

This paper is most useful to HCI researchers working on tangible and embodied interfaces, creative-AI and co-creation researchers, interaction designers building generative-AI hardware, music technology developers interested in API-based audio pipelines, and educators or practitioners exploring accessible, non-DAW music-making. Readers wanting a fully powered controlled study should note that the evaluation here is formative and involves three professional audio engineers.

Authors’ abstract

Most digital music tools emphasize precision and control, but often lack support for tactile, improvisational workflows grounded in environmental interaction. Lumia addresses this by enabling users to "compose through looking"--transforming visual scenes into musical phrases using a handheld, camera-based interface and large multimodal models. A vision-language model (GPT-4V) analyzes captured imagery to generate structured prompts, which, combined with user-selected instrumentation, guide a text-to-music pipeline (Stable Audio). This real-time process allows users to frame, capture, and layer audio interactively, producing loopable musical segments through embodied interaction. The system supports a co-creative workflow where human intent and model inference shape the musical outcome. By embedding generative AI within a physical device, Lumia bridges perception and composition, introducing a new modality for creative exploration that merges vision, language, and sound. It repositions generative music not as a task of parameter tuning, but as an improvisational practice driven by contextual, sensory engagement.
