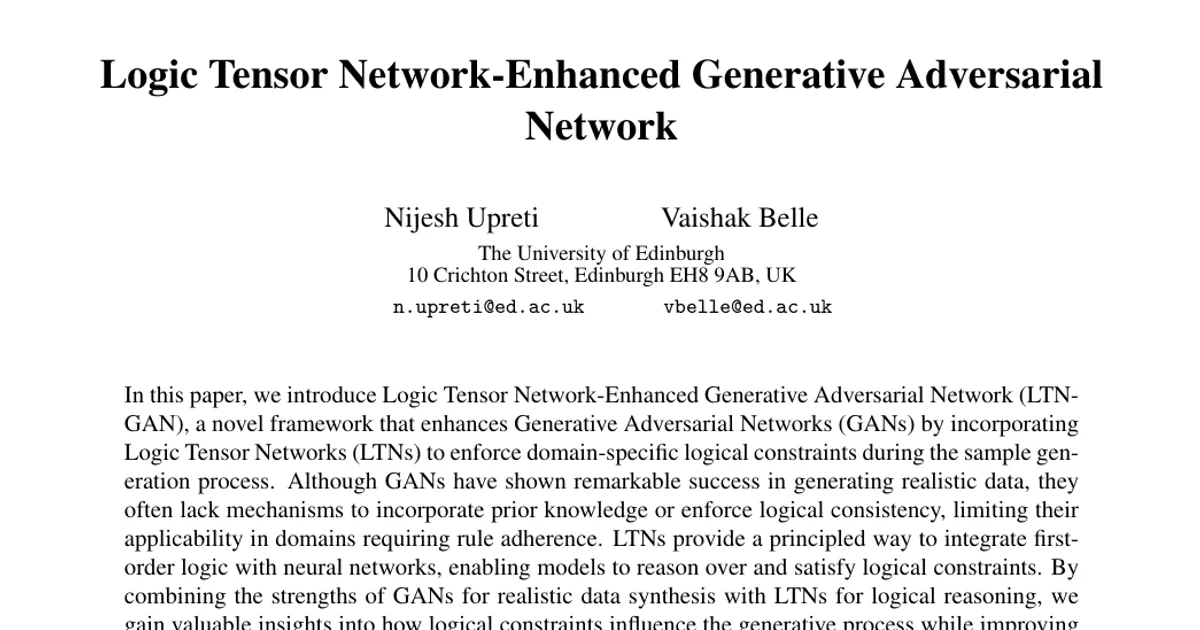

Logic Tensor Network-Enhanced Generative Adversarial Network

AI summary

Overview

Research area: Neuro-symbolic machine learning — specifically the integration of first-order logic reasoning into generative adversarial networks for constrained data synthesis.

Technical level: Advanced. The paper assumes familiarity with GAN training dynamics (adversarial minimax objectives, non-saturating generator loss, label smoothing), fuzzy logic semantics (t-norms, Reichenbach implication, differentiable quantifiers), and neuro-symbolic frameworks such as Logic Tensor Networks.

Scope: The paper proposes LTN-GAN, a framework that augments a standard GAN's generator objective with a differentiable logic loss derived from a Logic Tensor Network, and evaluates it against a matched baseline GAN on three synthetic 2D datasets (Gaussian, Grid, Ring) and MNIST.

What This Paper Is About

Traditional GANs learn only from data, so they have no mechanism for respecting domain rules — they can produce samples that look plausible but violate constraints like "this molecule must be chemically valid" or "these points must lie inside the ring." The authors address this by wiring a Logic Tensor Network (a neuro-symbolic module that expresses first-order logic formulas as differentiable functions) directly into the generator's loss, so that the generator is rewarded both for fooling the discriminator and for satisfying a knowledge base of logical rules. The goal is to show that this combined objective improves rule adherence without sacrificing — and in their results, while improving — sample quality and diversity.

Key Contributions

1. LTN-GAN framework. A hybrid generative architecture that integrates a Logic Tensor Network component into standard GAN training, adding a differentiable logic loss to the generator's composite objective alongside the adversarial loss and an optional task-specific auxiliary loss.

2. A concrete differentiable logic machinery for generation. The paper specifies how predicates (fixed analytical functions or small learned neural networks), fuzzy connectives (product t-norm for conjunction, max or probabilistic sum for disjunction, 1−a for negation, Reichenbach implication for ⇒), and soft quantifiers (power means with exponent typically p = 2 for ∀, and a complement-based variant for ∃) are assembled into a weighted knowledge base K = {(F_i, w_i)} and evaluated on batches of generated samples.

3. Adaptive training strategies. A monotone logic-weight schedule λ_e that ramps the weight of the logic term over training, plus an adaptive per-rule weighting scheme used in the Ring experiment that boosts rules with satisfaction below 0.3 and relaxes rules above 0.8, with clipping to a stable range and momentum smoothing.

4. Empirical evaluation with ablations. Comparisons against a baseline GAN matched in architecture, optimizer, label smoothing, and update schedule (differing only in the logical component), across Gaussian, Grid, Ring, and MNIST, plus dataset-specific ablation studies over constraint strength and scheduling variants.

Main Findings

• Logic satisfaction is achieved where baselines have none. Baseline GANs score N/A or 0.000 on logic satisfaction across all datasets, while LTN-GAN reaches 0.916 on Gaussian, 0.823 on Grid, 0.817 on Ring, and 0.978 on MNIST.

• Quality scores improve across all four datasets. LTN-GAN raises the quality score from 0.183 to 0.470 on Gaussian, 0.387 to 0.775 on Grid, 0.562 to 0.964 on Ring, and 0.360 to 0.395 on MNIST.

• Logic penalties raise generator loss but training stays stable. On Gaussian, total generator loss rises to 0.671 from a 0.635 adversarial component; on Grid, to 1.031 from 0.441 adversarial; on Ring, LTN-GAN's generator loss is 3.566 (adversarial and total equal), and on MNIST Table 1 lists 0.727 adversarial / 0.279 total, with the authors noting higher discriminator loss on MNIST.

• Stricter constraints help on Gaussian. The ltn_high_constraint variant achieves the best combined quality (0.598) and logic satisfaction (0.925), versus combined quality 0.470 for full_ltn_gan and 0.183 for baseline_gan. Its mean error drops to 0.030, against 0.641 for the baseline.

• Even without explicit formulas, soft predicates help. The ltn_no_constraints variant still reports logic satisfaction of 0.916 on Gaussian and 0.500 on Grid, which the authors attribute to lifted reasoning over soft predicates.

• Grid coverage is all-or-nothing between approaches. The baseline places only 607 of 1000 samples within the grid boundaries, whereas all logic variants place 1000 of 1000; ltn_no_constraints places only 57.

• Ring results show the largest structural gap. full_ltn_gan reaches ring adherence 0.970 with inner/outer counts of 291/188 and balance 0.785, compared with baseline ring adherence 0.524, inner 231, outer 0, balance 0.000.

• Simpler ring constraint sets remain competitive. simple_constraints matches or exceeds more complex configurations on balance (0.929) and dead-zone avoidance (0.964), with logic satisfaction 0.824; no_progressive_phases reports the highest logic satisfaction in that table at 0.856.

• Fast scheduling can hurt coverage. On Grid, ltn_fast_scheduling keeps high quality (0.778) but drops coverage to 0.179, which the authors attribute to insufficient constraint exposure.

• Configurations differ only in the logic component. Optimizer settings (Adam with β₁ = 0.5, β₂ = 0.999), update schedule (one D step then one G step per batch), labels, and seeds are otherwise identical between baseline and LTN-GAN variants.

• Training horizons and logic schedules are dataset-specific. 100 epochs for Gaussian (λ ramping from 0.05 to 0.30 over K = 80 epochs), 120 for Grid (fixed constant), 150 for Ring (λ ramping from 2 to 10, adaptive per-rule weights), and a 5-step demonstration loop for MNIST (α = 0.6, β = 0.3, λ_e = 0.1, with a minimal 10–20% per-sample template blend).

• Predicate implementations vary by domain. Gaussian uses fixed analytical predicates InRange(x) = σ(3 − ‖x‖∞) and GaussianShape(x) = exp(−½(‖x‖/2.5)²); Grid uses a learned OnGrid MLP plus four cell predicates; MNIST uses per-digit IsDigit_k classifiers alongside ValidPixels, IsConnected, IsComplete, and HasProperIntensity.

• The MNIST ablation table is not available in the provided content. The paper text is truncated mid-sentence ("highlighting the robu"), so the values in Table 5 and any conclusion or future-work section are not reported here.

Methodology in Plain English

The authors start with an ordinary GAN: a generator turns random noise into samples, and a discriminator tries to tell real samples from generated ones. They then add a third "judge" — the Logic Tensor Network — that reads each batch of generated samples and scores how well the batch satisfies a set of rules written in first-order logic.

Three design choices make that judge usable for gradient training. First, every rule is expressed with fuzzy logic operators that are smooth and differentiable, so a verdict like "0.83 satisfied" has a gradient the generator can follow. Second, instead of checking rules one sample at a time, the network aggregates truth values over a whole batch using power means: for universal rules ("all samples must be on the grid") it uses a small positive exponent (typically p = 2) that punishes even a few violations; for existential rules ("at least one sample must land in this cell") it flips the scores and aggregates so that one good sample is enough. Third, rules can be weighted — fixed for most datasets, and adjusted dynamically in the Ring experiment by pushing up weights for rules scoring below 0.3 and easing off rules scoring above 0.8.

The generator's loss then becomes a weighted sum of the adversarial loss, this logic loss, and (on MNIST) an auxiliary classification loss. The weight on the logic term follows a schedule so that the model first learns the data manifold and only later tightens rule compliance. Each dataset gets its own predicate set and its own rules: bounding and concentration for Gaussian, alignment plus per-cell coverage for Grid, six hierarchical constraints for Ring (existence, mutual exclusivity, dead-zone avoidance, spatial consistency, balance, precision refinement), and digit identity plus visual-validity rules for MNIST. Everything else — architectures (MLPs with LeakyReLU and dropout), optimizer, label smoothing, and the one-discriminator-step-per-generator-step schedule — is held fixed, so any difference in results traces back to the logic component.

The authors evaluate by logging the global logic satisfaction score, the adversarial and total generator losses, the discriminator loss, discriminator accuracy, and the current logic weight during training, plus comparing scatter plots to target geometries in 2D and inspecting generated image grids for MNIST. The precise definitions of the domain-specific quality metrics are placed in an appendix (Appendix 6) that is not included in the available content.

Why This Matters

Impact on research. The paper targets a gap the authors explicitly identify: although constrained GAN variants such as Constrained Adversarial Networks, Constrained Deep Generative Models, Disjunctive Refinement Layers, and GenCO exist, the use of Logic Tensor Networks inside adversarial training remains underexplored. LTN-GAN offers a general, differentiable route to inject first-order domain knowledge into generation without problem-specific constraint formulations, and reports that even soft learned predicates with no explicit formulas improve structural metrics — a finding relevant to the broader neuro-symbolic generation literature.

Real-world applications (drawn from domains the paper discusses for prior constrained-generation work):

• Molecular and materials design, where generated structures such as molecular graphs must satisfy chemical validity and feasibility rules.
• Scientific simulation, where generative models must respect physical properties and conservation laws, as in the Earth-system modeling work the paper cites.
• Data augmentation in regulated settings, where synthetic samples must obey user-specified linear inequalities or policy constraints rather than merely look realistic.
• Controllable language and media generation, where lexical, semantic-similarity, or structural constraints must be honored, as in the cited BFGAN and CONGAN approaches.
• Distributed and federated learning, where resource constraints on communication and computation must hold alongside data-quality goals.

Industry relevance. Any pipeline that generates synthetic data for a rule-governed domain — drug discovery, engineering design, financial or regulatory simulation, medical imaging augmentation — faces exactly the failure mode this paper addresses: outputs that pass a realism check but fail a compliance check. A drop-in logic loss that leaves the rest of the training recipe untouched is attractive because it does not require rewriting the generative backbone.

Future Directions

• Scaling beyond 2D toy geometry and MNIST. The evaluation covers 100–150 epoch runs on three synthetic 2D distributions and a 5-step demonstration loop on MNIST; whether the framework holds on higher-resolution images, video, or molecular graphs is not established in the available content.

• Understanding why unconstrained soft predicates help. The ltn_no_constraints variants report logic satisfaction of 0.916 on Gaussian and 0.500 on Grid despite having no explicit logical formulas, a phenomenon the paper attributes to lifted reasoning but does not isolate further.

• Choosing scheduling and constraint strength systematically. The ablations show that stricter constraints help on Gaussian but that fast scheduling collapses Grid coverage to 0.179, and that flattened ring constraints rival hierarchical ones — leaving open how to select a schedule and constraint set for a new domain.

• Head-to-head comparison with alternative constraint mechanisms. The related work covers CANs, C-DGMs, DRL, GenCO, and posterior regularization, but the reported baselines are restricted to a matched plain GAN, so the relative standing of LTN-GAN against those methods is not reported.

• Reliability of learned predicates. Several predicates are trainable neural networks trained jointly with the generator and discriminator; how robust the resulting truth degrees are, and what happens when a learned predicate is wrong, is not addressed in the available content.

Target Audience

This paper is best suited to machine learning researchers working on neuro-symbolic AI, constrained or knowledge-guided generative modeling, and differentiable logic, as well as graduate students already comfortable with GAN training and fuzzy-logic semantics. Practitioners who need generative models to satisfy explicit domain rules — in molecular design, scientific simulation, or regulated data synthesis — will find the framework and the ablation methodology useful, provided they can supply the predicate implementations themselves. Readers seeking a beginner-level introduction to GANs or to Logic Tensor Networks should look elsewhere first, since the paper assumes both.

Authors’ abstract

In this paper, we introduce Logic Tensor Network-Enhanced Generative Adversarial Network (LTN-GAN), a novel framework that enhances Generative Adversarial Networks (GANs) by incorporating Logic Tensor Networks (LTNs) to enforce domain-specific logical constraints during the sample generation process. Although GANs have shown remarkable success in generating realistic data, they often lack mechanisms to incorporate prior knowledge or enforce logical consistency, limiting their applicability in domains requiring rule adherence. LTNs provide a principled way to integrate first-order logic with neural networks, enabling models to reason over and satisfy logical constraints. By combining the strengths of GANs for realistic data synthesis with LTNs for logical reasoning, we gain valuable insights into how logical constraints influence the generative process while improving both the diversity and logical consistency of the generated samples. We evaluate LTN-GAN across multiple datasets, including synthetic datasets (gaussian, grid, rings) and the MNIST dataset, demonstrating that our model significantly outperforms traditional GANs in terms of adherence to predefined logical constraints while maintaining the quality and diversity of generated samples. This work highlights the potential of neuro-symbolic approaches to enhance generative modeling in knowledge-intensive domains.
