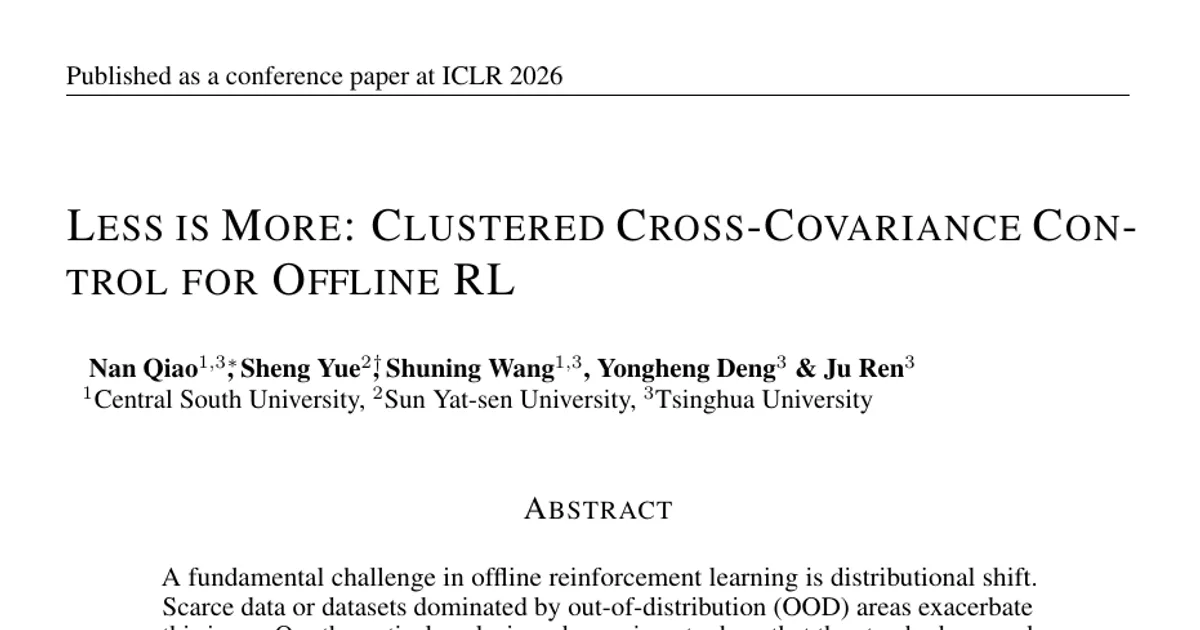

Less is More: Clustered Cross-Covariance Control for Offline RL

AI summary

Overview

Research area: Offline reinforcement learning (RL), specifically training value functions and policies from fixed datasets without environment interaction; the work sits at the intersection of temporal-difference (TD) learning theory, implicit regularization, and clustering-based data partitioning.

Technical level: Advanced. The paper combines a second-moment / covariance decomposition of the TD loss, a Gaussian-mixture clustering formulation of gradient pairs, and lower-bound arguments for policy-constrained offline RL.

Scope (one sentence): The paper identifies a harmful cross-time covariance term induced by the squared TD objective, and proposes a clustered, EM-style training scheme called C⁴ that controls it through single-cluster buffer sampling plus a gradient-based corrective penalty.

What This Paper Is About

Offline RL agents are trained on fixed datasets, so when data are scarce or dominated by out-of-distribution (OOD) regions, distributional shift degrades learning. The authors show that the standard squared-error TD objective, 𝔼[δ²], implicitly induces a harmful cross-time covariance of gradient features that grows in OOD areas, biasing optimization and sometimes causing collapse. Their goal is to suppress that covariance at the level of how data are sampled and how the loss is penalized, while leaving the underlying offline RL objective intact.

Key Contributions

1. Diagnosis of a data-limited failure mode. The authors decompose the TD second moment via 𝔼[δ²] = (𝔼[δ])² + Var[δ] and show (Theorem 1) that Var[δ] splits into two beneficial implicit-regularizer terms (Term A and Term B, analogous to noisy supervised learning) and a third TD-specific cross term (Term C) that acts against the intended objective and dominates under severe OOD.

2. C⁴: Clustered Cross-Covariance Control for TD. The method clusters stacked gradient pairs y = [g′, g] over the replay buffer and trains critics with single-cluster minibatches. Theorem 2 shows the cross covariance decomposes as C = 𝔼[C_Z] + Cov(μ′_Z, μ_Z), so single-cluster sampling removes the between-cluster driver and leaves updates governed by within-cluster covariance C_z.

3. An explicit gradient-based corrective penalty. A tunable penalty on the Frobenius norm of the per-minibatch cross covariance (plus a trace term weighted by β) is added to the TD loss, cancelling covariance-induced bias within each update.

4. A lower-bound guarantee for partitioned training. The paper proves that buffer partitioning preserves the lower-bound property of the maximization objective and that the constraints mitigate excessive conservatism in extreme OOD areas without altering the core behavior of policy-constrained offline RL, making C⁴ effectively "plug-and-play" for existing offline RL algorithms.

Main Findings

• Variance, not mean, drives the damage. The identity 𝔼[δ²] = (𝔼[δ])² + Var[δ] combined with the paper's cosine-similarity experiments (Figure 1a) shows the variance term dominates gradient updates across benchmarks.

• Three implicit regularizers, one of them harmful. Theorem 1 gives Var[δ] ≈ γ²(k′)²Var(⟨w′, ∇{x′}Q{φ′}(x′)⟩) + k²Var(⟨w, ∇x Q_φ(x)⟩) − 2γkk′Cov(⟨w′, ∇{x′}Q_{φ′}(x′)⟩, ⟨w, ∇_x Q_φ(x)⟩). Larger A and B correlate with better performance, while the cross term C grows under TD minimization and is harmful (Figure 1b).

• Single-cluster sampling provably removes the between-cluster covariance. Theorem 2 gives the bound |−2γkk′Cov(⟨w′, g′⟩, ⟨w, g⟩)| ≤ 2γkk′‖C_z‖₂ ≤ 2γkk′√(tr Σ′_z)·√(tr Σ_z), so the harmful term is limited by within-cluster variances.

• Clustered training optimizes a certified lower bound. For a CQL-style target, Lemma 2 implies 𝒰_CQL(π; s) ≥ 𝔼_π[Q(s,a)] − ρ̄ α sup_{s′} χ²(π‖π_β)(s′), with ρ̄ = 1/(1−γ). Because f-divergences are convex in their second argument (Lemma 3, D_f(π‖ν) ≤ Σ_m w_m D_f(π‖ν_m)), the cluster-decomposed surrogate J_z(π) has unbiased gradients and is a computable lower bound to the mixture objective.

• Stability carries over per cluster. Proposition 3 gives strong concavity ≥ mβρ̄ near θ_β, the step cap ‖θ* − θ_β‖ ≤ ‖∇θ𝔼_π[Q]|{θ_β}‖ / (mβρ̄), the Gaussian-mean solution μ* = μ_β + κΣ_β g with κ ≤ 1/(βρ̄) = (1−γ)/β, and Pearson inflation bounded by χ²(π_{μ*}‖π_β) ≤ β/(2α) − 1 when α > 0.

• Strong empirical gains in low-data regimes. On D4RL MuJoCo locomotion tasks restricted to 10k state-action pairs (approximately 1% of the full dataset), the method shows higher stability and up to 30% improvement in returns over prior methods, with improvements exceeding 30% on several benchmarks, especially with small datasets and splits that emphasize OOD areas.

• Comparison set. C⁴ is instantiated as a plug-in module on top of existing backbones and compared against BC, CQL, TD3+BC (TD3BC), IQL, DOGE, TSRL, BPPO, A2PR, DR3, LayerNorm (LN), and SORL.

• Not reported in the available content. The provided text is truncated during Section 7.2, so per-task numerical scores for AntMaze, Maze2D, and Adroit, the exact value of the 10k-pair sampling procedure's variance across seeds, and the sensitivity study for the number of clusters are not available in the content above.

Methodology in Plain English

The authors start from a simple algebraic fact: the squared TD loss equals the square of the mean residual plus the variance of the residual. They then ask what happens if you nudge the value function's input features a small distance k along some direction w — a stand-in for moving toward OOD areas — and track how that variance changes. Working this out reveals two variance terms that behave like the helpful implicit regularization seen in noisy supervised learning, plus one extra term that couples the current state's gradient with the next state's gradient. Because that extra term enters with a negative sign while the loss is being minimized, training tends to increase it, which is the harmful mechanism.

To control this term, they measure it directly as a matrix C = Cov(g′, g), where g′ and g are the current- and next-state gradients. They then cluster the stacked pairs y = [g′, g] with a K-component Gaussian mixture using an EM-style loop: compute per-sample responsibilities, update the mixture parameters, then draw each critic minibatch from a single sampled cluster. Training within one cluster removes the covariance that comes from differences between cluster means, leaving only the smaller within-cluster covariance. On top of this, they add a penalty term on the Frobenius norm (and the trace) of the minibatch cross covariance to the TD loss, with coefficients λ and β.

Finally, they check that this data-partitioning trick does not break the theoretical guarantees of conservative offline RL. Using a CQL-style target that propagates a Pearson (χ²) divergence penalty through the Bellman operator, they show that replacing the mixture with per-cluster penalties only tightens a lower bound, and that the KL-based step-size caps and Pearson-inflation bounds hold per cluster.

Why This Matters

Impact on research. The paper reframes a known offline RL failure mode — instability under scarce or OOD-heavy data — as a sampling-geometry problem rather than only a loss-design or data-selection problem. It shows that the same implicit regularizer can be suppressed at the sampling level, a lever the related-work section says had not yet been recognized. The lower-bound results also argue that clustering-based replay does not compromise the conservatism guarantees of policy-constrained methods, which matters for anyone combining clustering ideas with conservative objectives.

Where this typically matters in practice (the paper reports benchmark experiments, not deployed systems):

• Robotics, where offline datasets come from limited or expensive-to-collect demonstration runs and exploration on real hardware is risky.
• Industrial control and process optimization, where logging coverage is narrow and untested regions are hazardous.
• Healthcare treatment or dosing research, where only historical records exist and active exploration is ethically constrained.
• Autonomous driving and simulation-to-reality transfer, where collected data skew toward routine scenarios and rare events are underrepresented.

Industry relevance. The method is designed to be "plug-and-play" on top of existing offline RL backbones, requiring only small adjustments to sampling and loss, and code is released at https://github.com/NanMuZ/C4. That lowers the cost of adoption for teams already running CQL, IQL, or TD3+BC pipelines on small proprietary datasets.

Future Directions

• Designing the clustering schedule itself. Section 6 explicitly describes the clustering design as an open challenge: periodic clustering can reshape data geometry and shift support across clusters, which may compromise the policy constraints imposed during improvement.
• Extending beyond f-divergences. The authors note the f-divergence case is illustrative rather than exclusive, and that any constraint satisfying D(π‖Σ_z w_z ν_z) ≤ Σ_z w_z D(π‖ν_z) can be used, leaving the space of admissible divergences to explore.
• Quantifying the gap from the convexity relaxation. The difference between the per-cluster lower bound and the original mixture objective is governed by divergence convexity; how loose that gap is in practice is a natural follow-up.
• Characterizing poor-coverage regimes. Remark 2 reportedly quantifies poor-coverage regimes and explains why adding KL prevents runaway steps; the interaction between coverage level, cluster count K, and the observed gains is an obvious empirical question.

Target Audience

The primary audience is offline RL researchers and graduate students working on TD learning stability, implicit regularization, or conservative policy learning. It is also relevant to practitioners who train policies on small or poorly covered proprietary datasets and who already use CQL, IQL, or TD3+BC and want a drop-in stabilization module. Readers without a background in value-function theory, covariance decompositions, or mixture models will find the theoretical sections demanding; the paper is not beginner-friendly.

Authors’ abstract

A fundamental challenge in offline reinforcement learning is distributional shift. Scarce data or datasets dominated by out-of-distribution (OOD) areas exacerbate this issue. Our theoretical analysis and experiments show that the standard squared error objective induces a harmful TD cross covariance. This effect amplifies in OOD areas, biasing optimization and degrading policy learning. To counteract this mechanism, we develop two complementary strategies: partitioned buffer sampling that restricts updates to localized replay partitions, attenuates irregular covariance effects, and aligns update directions, yielding a scheme that is easy to integrate with existing implementations, namely Clustered Cross-Covariance Control for TD (C^4). We also introduce an explicit gradient-based corrective penalty that cancels the covariance induced bias within each update. We prove that buffer partitioning preserves the lower bound property of the maximization objective, and that these constraints mitigate excessive conservatism in extreme OOD areas without altering the core behavior of policy constrained offline reinforcement learning. Empirically, our method showcases higher stability and up to 30% improvement in returns over prior methods, especially with small datasets and splits that emphasize OOD areas.
