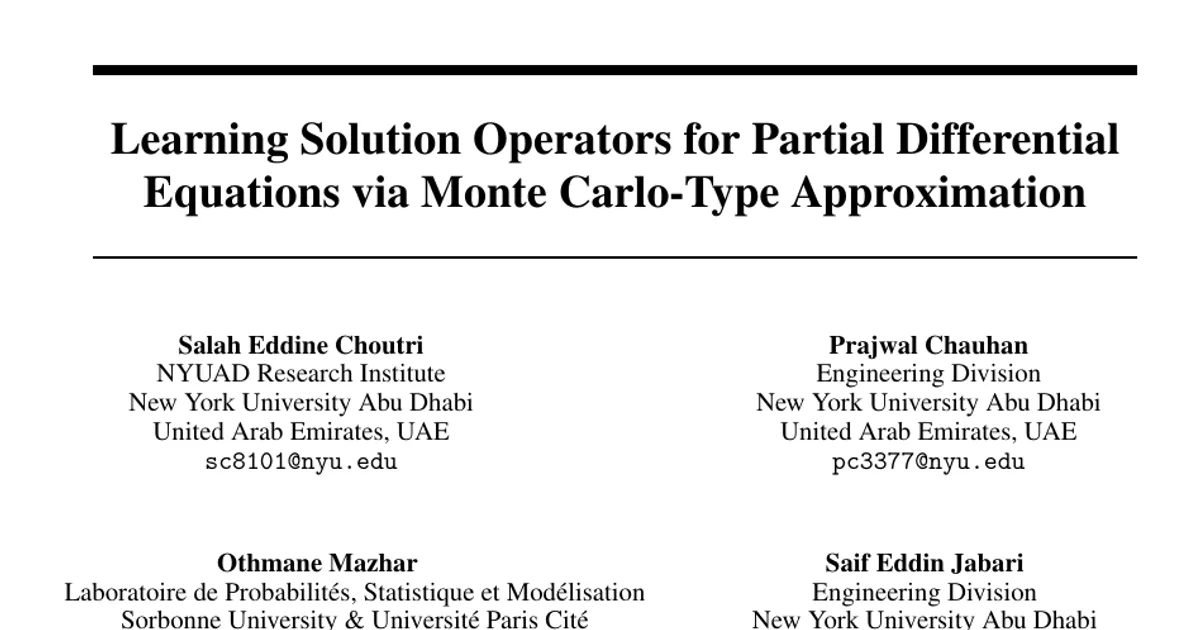

Learning Solution Operators for Partial Differential Equations via Monte Carlo-Type Approximation

AI summary

Overview

• Research area: Scientific machine learning, specifically neural operators for learning solution operators of parametric partial differential equations (PDEs).
• Technical level: Intermediate. The paper assumes familiarity with PDEs, integral operators, and the neural operator framework, but its core idea is simple enough to follow without deep spectral or probabilistic background.
• Scope in one sentence: The paper introduces the Monte Carlo-type Neural Operator (MCNO), a lightweight kernel-integral architecture that replaces spectral transforms with a fixed Monte Carlo estimate of the kernel integral, and evaluates it on two standard 1D PDE benchmarks against FNO, WNO, MWT, GNO, LNO, and MGNO.

What This Paper Is About

Neural operators learn to map PDE problem inputs (such as initial conditions or coefficients) directly to PDE solutions, so that solutions can be produced by fast inference instead of expensive classical solvers. Most successful architectures, such as Fourier Neural Operators, rely on spectral convolutions, translation-invariance assumptions, or deep hierarchical designs. This paper asks whether a much simpler approach — approximating the kernel integral with a fixed Monte Carlo sample of points and a learnable kernel tensor — can achieve competitive accuracy at lower computational cost, without spectral or translation-invariance assumptions.

Key Contributions

1. The MCNO architecture: A neural operator that estimates the kernel-integral transformation at each layer using a Monte Carlo average over a fixed set of randomly sampled points, requiring only a single random sample at the beginning of training rather than repeated sampling.
2. Feature mixing via parallel tensor contractions: The kernel is represented as a learnable tensor $\phi = {\phi_i}_{i=1}^N$ with each $\phi_i \in \mathbb{R}^{d_v \times d_v}$ acting on the feature vector $v_t(y_i)$, implemented with PyTorch's einsum for efficient GPU parallelization.
3. An interpolation mechanism for structured grids: Because the Monte Carlo integral is evaluated only on a subset of points, the latent representation is reconstructed onto the full grid using lightweight linear interpolation that scales linearly with $N_{\text{grid}}$.
4. A bias–variance analysis and dimensional scaling argument: The paper decomposes the approximation error into a bias term scaling as $C_1 N_{\text{grid}}^{-1/d}$ and a variance term scaling as $C_2\sqrt{\log(2N_{\text{grid}}/\delta)/N}$, yielding total cost $\tilde{\mathcal{O}}(\varepsilon^{-2} + \varepsilon^{-d})$ to reach tolerance $\varepsilon$.

Main Findings

• Burgers' equation accuracy: MCNO achieves relative $L_2$ errors of 0.0064, 0.0067, 0.0062, 0.0069, 0.0071, and 0.0065 at resolutions $s = 256, 512, 1024, 2048, 4096, 8192$ respectively. This outperforms FNO (0.0183 to 0.0168 across the same resolutions), GNO, LNO, and MGNO, and is stable across grid resolutions.
• Burgers' equation efficiency: MCNO's time per epoch is reported as (0.40s, 1.32s) for $s=256$ and $s=8192$, compared with FNO at (0.44s, 1.56s), WNO at (2.45s, 3.1s), and MWT Leg at (3.70s, 7.10s).
• MWT Leg on Burgers' equation: MWT Leg achieves the lowest errors in the table (0.0027 to 0.0023) but is the slowest, at (3.70s, 7.10s) per epoch.
• KdV equation accuracy: MCNO reports relative $L_2$ errors of 0.0070, 0.0079, 0.0088, and 0.0081 at resolutions $s = 128, 256, 512, 1024$, outperforming FNO (0.0126, 0.0125, 0.0122, 0.0133), MGNO (0.1515, 0.1355, 0.1345, 0.1363), LNO (0.0557, 0.0414, 0.0425, 0.0447), and GNO (0.0760, 0.0695, 0.0699, 0.0721).
• KdV equation efficiency: MCNO's time per epoch on KdV is (0.36s, 0.49s), faster than MWT Leg at (3.24s, 4.96s) and FNO at (0.48s, 0.50s).
• MWT Leg on KdV: MWT Leg again attains slightly lower errors than MCNO (0.0036, 0.0042, 0.0042, 0.0040) but at much higher per-epoch cost.
• Stability with respect to sample count: The paper reports that MCNO's relative $L_2$ error and per-epoch time remain stable as the number of samples increases (Figures 2–5 in the paper).
• Theoretical error trade-off: The bias term decreases with grid resolution while the Monte Carlo variance term decreases with the number of samples $N$; the paper notes that the Monte Carlo variance, and thus the stochastic sample complexity, is dimension-independent, while the dimension $d$ enters through the bias and grid cost.
• Comparison fairness caveat: Errors for FNO, MWT, and WNO were re-implemented by the authors on the same Tesla V100-SXM2-32GB GPU used for MCNO, while GNO, LNO, and MGNO errors are taken from prior work, where they were trained and tested on an Nvidia V100-32GB GPU; the authors describe the comparison as "fair to a certain extent."

Methodology in Plain English

The researchers start from the standard neural operator recipe: lift the input function into a higher-dimensional representation, pass it through several layers that combine a pointwise linear transformation with a kernel-integral transformation plus a nonlinear activation, and finally project back to the solution space. Where existing methods compute that kernel integral exactly (via FFTs, wavelets, or graph aggregation), MCNO replaces it with a plain average over $N$ randomly chosen points. These points are drawn once at the start of training and kept fixed, so the model never re-samples. Each sampled point gets its own learnable matrix that mixes feature channels, and the resulting per-point updates are combined with einsum tensor contractions so the whole operation runs in parallel on a GPU.

Because only $N$ points are used, the layer output lives on a sparse subset of the domain; a cheap linear interpolation step expands it back to the full computational grid. The architecture uses four such kernel layers with ReLU activations and width 64. Training data consists of 1000 samples with 100 held out for testing, optimized with Adam at an initial learning rate of 0.001, halved every 100 epochs over 500 total epochs, with $N = 100$ sampled points for Burgers' equation and $N = 75$ for the KdV equation. For Burgers' equation, initial conditions are drawn from a Gaussian $\mu = \mathcal{N}(0, 625(-\Delta + 25I)^{-2})$ and solutions are computed with a split-step method on an 8192-point grid. For KdV, initial conditions follow $u_0 \sim \mathcal{N}(0, 7^4(-\Delta + 7^2 I)^{-2.5})$ with solutions computed via Chebfun on $2^{10}$ points.

Why This Matters

Impact on research. MCNO shows that dropping spectral transforms, translation-invariance assumptions, and deep hierarchical designs does not necessarily cost accuracy on standard 1D PDE benchmarks. If the result generalizes, it argues that the kernel integral — the heart of the neural operator framework — can be approximated by simple randomized averaging, opening a lower-complexity design space for operator learning and giving a cleaner theoretical handle on the accuracy-cost trade-off through the bias–variance decomposition.

Real-world applications.

• Fast surrogate models for fluid flow simulation, where Burgers'-type equations model viscous flow.
• Shallow-water wave and dispersive wave forecasting, the physical setting of the KdV equation.
• Real-time or repeated-query engineering design loops where a classical PDE solver would be too slow, and where the model's resolution-agnostic behavior means a surrogate trained at one grid can be reused at another.
• Deployment on irregular or nonuniform meshes, since MCNO makes no translation-invariance assumption — relevant for domains that do not map cleanly to a uniform grid.

Industry relevance. The per-epoch timings reported (0.40s to 1.32s for Burgers', 0.36s to 0.49s for KdV) and the linear scaling in the number of sampled points make MCNO attractive for practitioners who want competitive surrogate accuracy at modest compute. However, the paper only evaluates 1D problems, so industrial adoption for realistic 2D or 3D settings is not yet demonstrated.

Future Directions

1. Extension to higher-dimensional PDEs. The paper's own error analysis shows that the bias term scales as $N_{\text{grid}}^{-1/d}$, meaning grid cost grows quickly with dimension; whether MCNO remains practical in 2D and 3D is an open question explicitly raised by the authors.
2. Adaptive sampling strategies. The current design uses a single fixed random sample drawn once at the beginning of training; adaptive or learned sampling could improve the accuracy-versus-sample-count trade-off.
3. Unstructured and heterogeneous domains. The authors list applying MCNO to irregular geometries as future work, which would test the value of avoiding translation-invariance assumptions.
4. Closing the gap with MWT. MWT Leg achieves consistently lower relative $L_2$ errors on both benchmarks (0.0027–0.0023 on Burgers', 0.0036–0.0040 on KdV), so understanding whether MCNO can match that accuracy while keeping its lower per-epoch cost is an open question.

Target Audience

Researchers and graduate students working on neural operators, scientific machine learning, and surrogate modeling for PDEs, who will benefit from the architectural contrast with FNO and other spectral or graph-based operators. Practitioners seeking a lightweight, easy-to-implement operator-learning baseline for 1D parametric PDE problems will also find the benchmark tables directly useful. Readers without prior exposure to operator learning or PDEs would need supplementary background, since the paper assumes the standard neural operator formulation and moves quickly to its bias–variance analysis.

Authors’ abstract

The Monte Carlo-type Neural Operator (MCNO) introduces a lightweight architecture for learning solution operators for parametric PDEs by directly approximating the kernel integral using a Monte Carlo approach. Unlike Fourier Neural Operators, MCNO makes no spectral or translation-invariance assumptions. The kernel is represented as a learnable tensor over a fixed set of randomly sampled points. This design enables generalization across multiple grid resolutions without relying on fixed global basis functions or repeated sampling during training. Experiments on standard 1D PDE benchmarks show that MCNO achieves competitive accuracy with low computational cost, providing a simple and practical alternative to spectral and graph-based neural operators.
