Learning Quantum Data Distribution via Chaotic Quantum Diffusion Model

AI summary

Overview

Research area: Quantum machine learning / quantum generative modeling (quant-ph), specifically diffusion-based generative models for quantum data.

Technical level: Advanced. The paper assumes familiarity with quantum denoising diffusion probabilistic models (QuDDPMs), projected ensembles, random unitary circuits, the eigenstate thermalization hypothesis, and quantum chaos diagnostics such as the average adjacent-gap ratio.

Scope: The paper proposes replacing circuit-based random unitary scrambling in quantum diffusion models with chaotic Hamiltonian time evolution, and benchmarks the resulting schemes numerically against the original QuDDPM approach on small quantum datasets.

What This Paper Is About

Quantum denoising diffusion probabilistic models (QuDDPMs) can learn distributions over quantum states, but their forward "noising" step relies on random unitary circuits (RUCs). Building those circuits demands fine-grained spatio-temporal control, substantial circuit depth, and heavy calibration and compilation effort — requirements that are hard or impossible to meet on analog quantum hardware such as Rydberg atom arrays and ultracold atoms in optical lattices, where control is typically global and time-independent. The paper's goal is to replace the RUC-based diffusion engine with evolution under a single fixed chaotic Hamiltonian, generating diffused state ensembles through the projected ensemble framework while keeping generative accuracy comparable to QuDDPMs.

Key Contributions

1. A chaotic-Hamiltonian diffusion mechanism. The authors propose the chaotic quantum diffusion model, which generates projected ensembles via chaotic Hamiltonian time evolution instead of random unitary circuits. The mechanism requires only global, time-independent control, reducing implementation overhead across diverse analog quantum platforms.

2. Two concrete diffusion schemes. They introduce Cumulative Time Evolution Diffusion (CTED), which applies a cumulative propagator e^(−iHkΔt) from the initial ensemble, and Repeated Time Evolution Diffusion (RTED), which repeatedly applies a single short-time unitary e^(−iHΔt) of a fixed chaotic Hamiltonian. CTED requires K unitaries, whereas RTED requires only one unitary, and both use τ·N·K(K+1)/2 execution time to generate all diffused ensembles S_k.

3. A classically-enhanced projected ensemble. For each diffusion step, the complement subsystem is initialized in a random computational basis state drawn from a distribution q(x), adding classical randomness that is converted into quantum randomness of the resulting state ensemble. The authors use a uniform q(x) in experiments as the maximum-entropy choice, treating q(x) as a tunable knob rather than a fixed requirement.

4. A finite-temperature universality argument. The paper argues that because CTED and RTED start from finite-energy states, the diffused ensembles do not reach Haar randomness but instead converge generically to Scrooge ensembles, which are universal (ETH-fixed moments for local observables) yet maximally constrained by conserved quantities such as energy. The authors claim this regime improves trainability and robustness relative to Haar-targeting RUCD.

Main Findings

• Chaoticity is verified, not assumed. The mixed-field Ising Hamiltonian used in Eq. (6) is characterized across the (h^x, h^y) plane using the average adjacent-gap ratio ⟨r⟩. Values of ⟨r⟩ ≈ 0.53 signal Wigner-Dyson (chaotic) statistics and ⟨r⟩ ≈ 0.39 signal Poisson (integrable) statistics. The experiments use the operating point (h^x, h^y) = (0.8090, 0.9045) with J = 1.0, described as lying well inside the chaotic region.

• Finite-temperature rather than Haar scrambling. Longer evolution times in CTED allow more scrambling, but because the dynamics start from finite-energy states, projected ensembles remain constrained by energy conservation and saturate at a finite-temperature universal distribution. In RTED, resets on diffused states preserve some initial structure across steps, further deviating from full Haar scrambling.

• Comparable generative accuracy. The authors state that, despite deviating from Haar scrambling, CTED and RTED achieve generative accuracy comparable to RUCD while operating in a more physically realistic and information-efficient diffusion regime. The specific numerical distance values achieved are not reported in the portion of the paper available here.

• Reduced control overhead. Existing RUCD implementations require N·K random unitary gates and τ_u N K(K+1)/2 execution time, with per-step circuit synthesis and recompilation. The chaotic approach needs only global, time-independent control, which the authors call a decisive advantage on analog platforms and still removes per-step circuit-synthesis and recompilation overhead on gate-based digital devices.

• Trainability argument. The paper argues that energy-dependent structure retained in finite-temperature diffusion may provide a smoother learning landscape than RUCD, where diffusion toward fully Haar-random states can lead to barren-plateau behavior in deep variational quantum circuits.

• Experimental setup details. Results are shown for complement sizes n_f ∈ {2, 4, 6, 8} and multiple moment orders m, with a dashed horizontal line in each panel giving the finite-sample Haar floor, which depends only on sample size N and moment order m and is independent of n_f.

Methodology in Plain English

The researchers keep the overall QuDDPM pipeline — progressively scramble quantum states in a forward process, then learn to undo the scrambling with parameterized circuits in a backward process — but swap out the scrambling engine.

Instead of applying sequences of random gates, they take a bipartite system: the data subsystem (n_d qubits) plus a complement (n_f qubits). The complement is initialized in a random computational basis state. A single fixed chaotic Hamiltonian (a one-dimensional mixed-field Ising model with open boundary conditions) then drives the whole system forward in time. Measuring the complement subsystem in the computational basis projects the data subsystem into a pure state, and repeating this over many random initial complement states produces a projected ensemble of states with associated Born probabilities. When the complement is large enough and the dynamics chaotic, this ensemble mimics the statistics of random states — providing diffusion without any gate-level circuit design.

Two variants are tested: CTED, which applies a longer, cumulative evolution for each diffusion step, and RTED, which repeatedly applies one short fixed-time evolution. The backward process trains a Hardware Efficient Ansatz on the data qubits plus n_a ancilla qubits, with projective measurements on the ancillas producing non-unitary denoising. Training is layerwise, one denoising step at a time, using either maximum mean discrepancy or 1-Wasserstein distance as the cost, with state fidelity computed by a SWAP test or a classical shadows kernel.

Numerical experiments use the TensorCircuit library with JAX automatic differentiation and the Adam optimizer at a learning rate of 0.001, with circuit parameters initialized uniformly in [−π, π]. Time is discretized with Δt = 0.02 in units of J^(−1). The datasets are a three-cluster mixture (40% / 40% / 20%, with clusters centered on |0⟩^⊗n_d, |1⟩^⊗n_d, and the GHZ state, perturbed by Gaussian noise with σ = 0.05), a circular ensemble of states cos(β/2)|0…0⟩ + sin(β/2)|1…1⟩ with β ∈ [0, 2π), and a quantum distribution derived from a chemistry dataset, all with n_d = 4 qubits. Source code is available in a linked GitHub repository.

Why This Matters

Impact on research. The work reframes quantum diffusion not as engineered randomness but as a natural consequence of quantum chaos. If a single fixed Hamiltonian suffices as a diffusion engine, then generative quantum models become accessible on analog simulators that cannot run arbitrary gate sequences, potentially widening the set of platforms on which quantum generative learning can be tested. It also connects generative modeling to the physics of projected ensembles, Scrooge ensembles, and eigenstate thermalization.

Real-world applications.

• Chemoinformatics and quantum chemistry, where learning distributions over molecular quantum states could aid in exploring chemical space.
• Quantum physics and many-body simulation, where generating ensembles of correlated states supports the study of entanglement and measurement statistics.
• Materials science and biology, cited by the authors as domains where efficient quantum data generation is essential.
• Quantum error correction and multimodal quantum data, cited as a motivation for the multi-cluster ensemble benchmark.

Industry relevance. The work comes from Fujitsu Research's Quantum Laboratory, and its central selling point is deployment practicality: less calibration, less compilation, and compatibility with hardware that offers only global control. The claimed efficiency gain in execution time (linear-scaling N·K(K+1)/2 rather than per-gate circuit costs) and code availability support near-term experimentation on Rydberg-atom and trapped-ion platforms.

Future Directions

• Identifying which Hamiltonians work as diffusion engines. The authors state that any sufficiently chaotic, hardware-compatible Hamiltonian is expected to serve equally well, but only the mixed-field Ising model is tested here; this claim is left open.
• Characterizing the Scrooge-ensemble regime. The paper argues that finite-temperature diffusion converges to Scrooge rather than Haar ensembles and that this may be beneficial, but the precise consequences for generative fidelity and trainability are not fully quantified in the available text.
• Scaling to larger systems. Experiments use n_d = 4 data qubits and a total system size of n_d + n_f = 14 for the chaos diagnostic. Whether the approach holds at larger n_d and how n_f should scale remain open questions.
• Choices of the randomness distribution q(x). The authors treat q(x) as a tunable knob and note that a more concentrated q(x) injects less randomness and can bias the projected ensemble when scrambling is incomplete; the optimal choice is left for further study.

Target Audience

Quantum machine learning researchers and quantum information scientists familiar with diffusion models, projected ensembles, and quantum chaos diagnostics. The paper will also interest hardware-focused researchers on analog quantum platforms (Rydberg atom arrays, trapped ions, ultracold atoms in optical lattices) evaluating which generative algorithms are actually implementable, and computational chemists and materials scientists tracking quantum-native methods for sampling quantum state distributions.

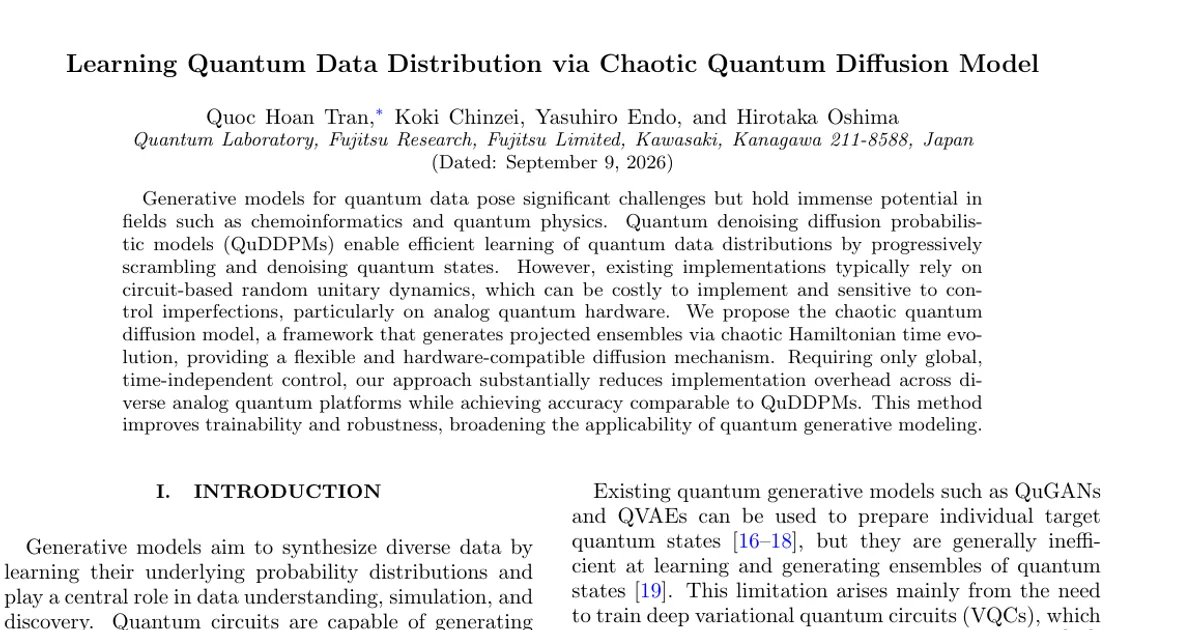

Authors’ abstract

Generative models for quantum data pose significant challenges but hold immense potential in fields such as chemoinformatics and quantum physics. Quantum denoising diffusion probabilistic models (QuDDPMs) enable efficient learning of quantum data distributions by progressively scrambling and denoising quantum states; however, existing implementations typically rely on circuit-based random unitary dynamics that can be costly to realize and sensitive to control imperfections, particularly on analog quantum hardware. We propose the chaotic quantum diffusion model, a framework that generates projected ensembles via chaotic Hamiltonian time evolution, providing a flexible and hardware-compatible diffusion mechanism. Requiring only global, time-independent control, our approach substantially reduces implementation overhead across diverse analog quantum platforms while achieving accuracy comparable to QuDDPMs. This method improves trainability and robustness, broadening the applicability of quantum generative modeling.
