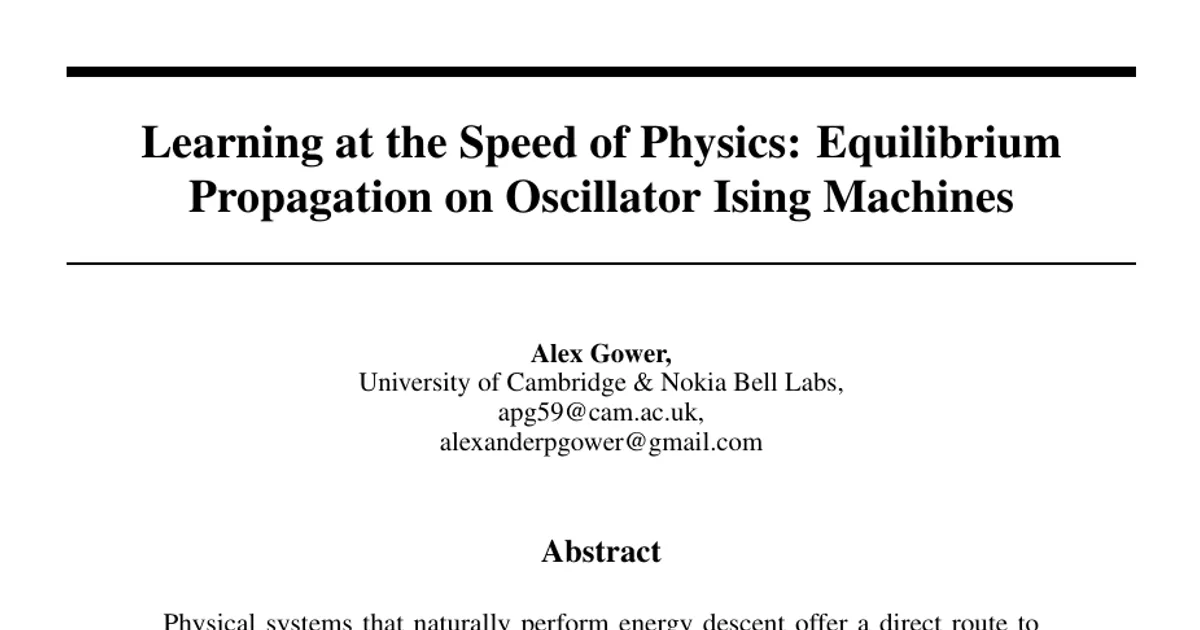

Learning at the Speed of Physics: Equilibrium Propagation on Oscillator Ising Machines

AI summary

Overview

Research area: Neuromorphic computing and physics-based machine learning — specifically training energy-based models on analog hardware rather than on conventional digital processors using Equilibrium Propagation (EP) on Oscillator Ising Machines (OIMs).

Technical level: Advanced. The paper assumes familiarity with energy-based models, dynamical systems, gradient descent as a physical process, and local learning rules as an alternative to backpropagation.

Scope: The paper derives and simulates a scheme that maps equilibrium propagation directly onto existing oscillator Ising machine hardware, showing competitive image-classification accuracy and tolerance to realistic hardware imperfections.

What This Paper Is About

Machine learning training is normally done on digital processors, which is slow and power-hungry, even though many physical systems naturally relax toward low-energy states in a way that looks like optimization. Oscillator Ising Machines are one such system: their GHz-frequency dynamics perform energy descent, but they were originally built for combinatorial optimization, not for training neural networks. This paper asks whether Equilibrium Propagation — a local learning rule that nudges a physical system's steady state toward correct outputs — can be implemented on unmodified OIM hardware, and whether that implementation remains accurate under the noise and quantization limits real chips impose.

Key Contributions

1. First EP framework mapped directly onto existing OIM hardware without modification. Previous EP implementations on oscillators ran into initialization or synchronization problems; this work repurposes devices designed for combinatorial optimization as neural network processors through software-level configuration only.

2. An explicit energy-term mapping of neural network components onto OIM physics. Biases are implemented through $-b_i\cos(\phi_i)$ terms, hidden-to-output weights through $-w^{(h,y)}_{ij}\cos(\phi_i^{(h)}-\phi_j^{(y)})$ terms, and input-to-hidden weights are folded into the hidden bias $h_i^{(h)}$ so no extra oscillators are needed. An MSE loss is implemented by setting $h_i^{(y)}=b_i^{(y)}+\beta\hat{y}_i$ and using the synchronization fields already present in OIMs, $S_i^{(y)}=-\beta/2$.

3. Empirical verification that EP updates match Backpropagation Through Time (BPTT) on OIMs, despite the OIM's nonlinear sinusoidal couplings differing from the quadratic couplings used in conventional EP implementations.

4. A robustness study under hardware constraints, covering phase quantization, parameter quantization, and Gaussian phase noise, plus a proposal that moderate noise can act as useful regularization.

Main Findings

• Competitive accuracy on standard benchmarks: A 784–500–10 MLP reaches 97.2±0.1% on MNIST and 88.0±0.1% on Fashion-MNIST. A 784–120–10 MLP reaches 90.6±1.7% on the MNIST/100 subset (92.0±0.3% with noise).

• Accuracy is architecture-limited, not training-limited: BPTT on the same OIMs reaches 96.8±0.1% on MNIST, indicating the EP training procedure itself is not the bottleneck.

• Comparison to other physical substrates: OIM results surpass D-Wave annealers on MNIST/100, outperform p-bit Ising machines on Fashion-MNIST, and are competitive with other neuromorphic MLPs.

• EP–BPTT correspondence confirmed: Symmetric EP updates closely match BPTT updates once the free-phase duration is increased and the nudging factor is decreased, confirming OIMs satisfy the gradient-descent property needed for scaling.

• Noise robustness depends on the nudging factor: With Gaussian phase noise, accuracy degrades if $\beta$ is fixed, but remains robust when $\beta$ is optimized, peaking at 92.0±0.3% for $\xi=0.2$. Robustness holds for $\beta \gtrsim \xi/2$, and accuracy is preserved even at $\xi=0.3$.

• Quantization tolerance: Accuracy holds down to 4-bit phase quantization (89.8±1.5%) and degrades at 2-bit; parameter quantization is stable at 10-bit (89.4±1.5%) and degrades at 8-bit.

• Overall hardware viability: OIMs maintain accuracy under 10-bit parameters, 4-bit phase detection, and moderate phase noise, which the paper presents as confirming viability for CMOS implementations.

• Projected speed advantage: With GHz-frequency oscillators reaching microsecond timescales for parameter updates and phase measurements, full MNIST training (50 epochs, 60k examples, 3 EP phases) could complete in seconds to minutes, compared to roughly 40 hours for EP and roughly 60 hours for BPTT in the authors' simulations.

• Noise has a second interpretation: The intrinsic noise of OIMs corresponds to Langevin dynamics, hinting at native support for sampling as well as optimization.

Methodology in Plain English

The authors start from the physics of an Oscillator Ising Machine: a network of coupled oscillators, each described by a phase, whose dynamics are equivalent to gradient descent on an energy function defined by coupling strengths, biases, and synchronization fields. They then show algebraically that the pieces of a standard neural network — weights, biases, and a squared-error loss on outputs — can each be written as one of those same energy terms, using the mapping from oscillator phase to a value in the range $[-1,1]$ via a cosine. This means the OIM's natural relaxation process is the neural network's forward pass, and no extra oscillators are needed for the input layer.

Training follows the standard three-phase equilibrium propagation recipe for each input: a free phase with no nudging, a positive nudged phase, and a negative nudged phase, all initialized from the same reference state. The difference between the parameter gradients at the two nudged equilibria gives the weight update. Critically, every update depends only on the phases of directly connected oscillators, so it can be computed locally at each synapse or neuron — no global backpropagation circuitry is required. Updates are averaged over mini-batches and are compatible with standard optimizers such as learning-rate schedules, weight decay, and momentum.

The implementation was simulated in PyTorch using explicit Euler integration of the OIM dynamics. For full MNIST and Fashion-MNIST the authors used 4000 free-phase steps, 400 nudged steps, and a time step of 0.45 with $\beta=0.1$; for MNIST/100 they used 3500, 350, and 0.5 with $\beta=0.05$. Batch sizes were 128 and 20 respectively, with layer-specific learning rates of 0.01 for the first weight layer and 0.001 for the others. Weights were initialized with the He scheme and zero biases, and oscillators were initialized to a reference phase of $\pi/2$ (the paper notes that any random initialization also works provided it is used consistently). The hyperparameters were chosen by increasing the free-phase duration and decreasing $\beta$ until the symmetric EP updates closely matched BPTT updates while keeping the dynamics stable, and by making the nudged-phase duration long enough that nudged updates saturated. Convergence was verified by checking that the maximum phase derivative was negligible at the end of each free phase.

Why This Matters

Impact on research. Energy-based models are often bottlenecked by the long relaxation and sampling times they require on conventional processors. This work suggests that hardware whose physical dynamics directly perform the model's optimization could remove that bottleneck, and it provides a concrete bridge between a device built for combinatorial optimization and the machine learning workloads it can be repurposed for. It also reinforces a broader principle: when physical dynamics coincide with an ML objective, they can be harnessed directly to build faster and more efficient learning systems.

Real-world applications:

• Energy-efficient training accelerators. GPU training consumes substantial power; OIMs aim to achieve both speed and energy efficiency by exploiting GHz-frequency physical dynamics for rapid energy descent.

• Edge and embedded inference. The demonstrated tolerance to 10-bit parameters, 4-bit phase detection, and moderate phase noise means inference and training could run on imprecise, low-power analog circuits rather than requiring high-precision digital hardware.

• Repurposing existing optimization hardware. Devices already deployed or designed for combinatorial optimization can be turned into neuromorphic processors through software-level configuration alone, without hardware modification.

• Probabilistic computing and sampling. Because OIM noise corresponds to Langevin dynamics, the same substrate might natively support sampling tasks in addition to optimization, which matters for generative and Bayesian workloads.

Industry relevance. The work was supported by UKRI/EPSRC CASE Award 220191 in partnership with Nokia UK Limited and by a G-Research academic grant, with presentation at NeurIPS 2025, indicating direct commercial interest from telecommunications and quantitative finance in fast, low-power physical learning substrates.

Future Directions

• Physical demonstration. All results reported here come from simulation in PyTorch with explicit Euler integration; the paper's own viability arguments rest on CMOS-level constraints, so an actual hardware demonstration on a physical OIM remains the central open step.

• Scaling beyond small MLPs and small benchmarks. The evaluated architectures are 784–120–10 and 784–500–10 on MNIST, Fashion-MNIST, and a 1,000/100 MNIST subset; whether OIM–EP scales to deeper networks and harder datasets is not established.

• Exploiting noise for sampling. The correspondence between OIM noise and Langevin dynamics suggests native support for sampling, but the paper only hints at this rather than demonstrating it.

• Refining the relationship between noise and nudging. The observed robustness condition, $\beta \gtrsim \xi/2$, and the interpretation of moderate noise as regularization, raise questions about how best to tune the nudging factor against the noise characteristics of a given physical device.

Target Audience

This paper is most valuable to researchers working on neuromorphic hardware and physics-based machine learning, particularly those interested in Ising machines, oscillator networks, and analog accelerators. It will also interest machine learning theorists studying local learning rules and alternatives to backpropagation, and hardware engineers evaluating whether energy-based models can be trained on imperfect analog substrates. Readers without a background in dynamical systems or energy-based models will find the derivations demanding, though the high-level argument — that a device's physics can do the learning for you — is accessible.

Authors’ abstract

Physical systems that naturally perform energy descent offer a direct route to accelerating machine learning. Oscillator Ising Machines (OIMs) exemplify this idea: their GHz-frequency dynamics mirror both the optimization of energy-based models (EBMs) and gradient descent on loss landscapes, while intrinsic noise corresponds to Langevin dynamics - supporting sampling as well as optimization. Equilibrium Propagation (EP) unifies these processes into descent on a single total energy landscape, enabling local learning rules without global backpropagation. We show that EP on OIMs achieves competitive accuracy ($\sim 97.2 \pm 0.1 \%$ on MNIST, $\sim 88.0 \pm 0.1 \%$ on Fashion-MNIST), while maintaining robustness under realistic hardware constraints such as parameter quantization and phase noise. These results establish OIMs as a fast, energy-efficient substrate for neuromorphic learning, and suggest that EBMs - often bottlenecked by conventional processors - may find practical realization on physical hardware whose dynamics directly perform their optimization.
