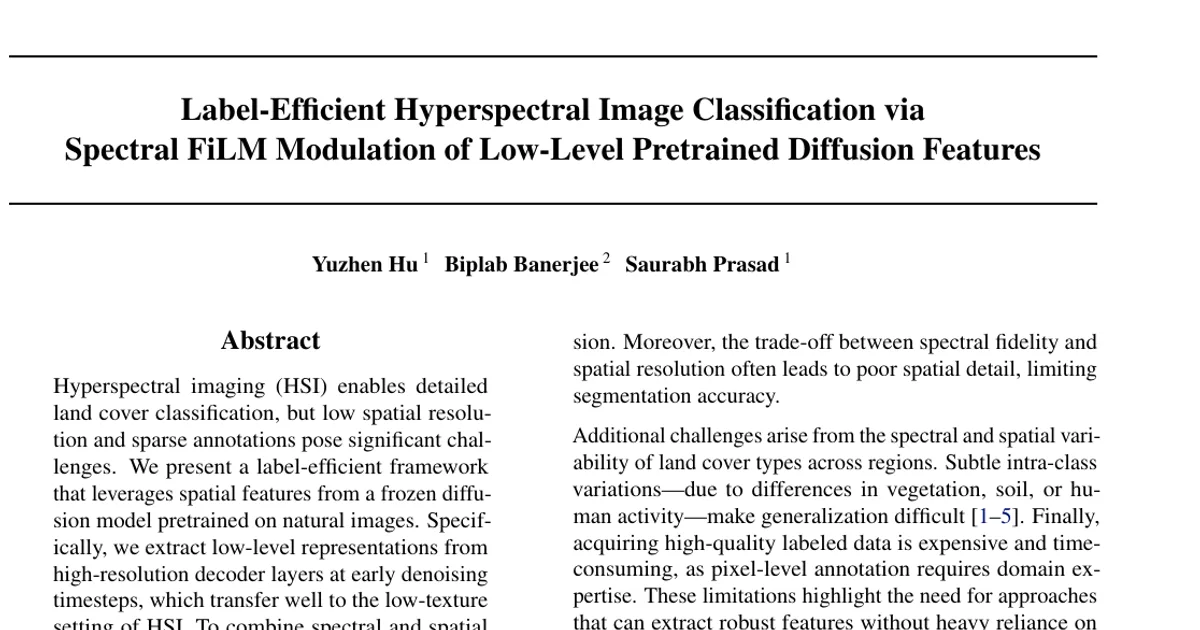

Label-Efficient Hyperspectral Image Classification via Spectral FiLM Modulation of Low-Level Pretrained Diffusion Features

AI summary

Authors: Yuzhen Hu (University of Houston), Biplab Banerjee (Indian Institute of Technology Bombay), Saurabh Prasad (University of Houston) — arXiv:2512.03430v1 [cs.CV], 03 Dec 2025

Overview

• Research area: Remote sensing / computer vision — hyperspectral image (HSI) land-cover mapping, transfer learning from generative diffusion models, and multimodal spectral–spatial fusion under sparse supervision.
• Technical level: Intermediate. Readers should be comfortable with convolutional U-Nets, diffusion forward processes, and standard classification metrics (OA, AA, Kappa), but the core idea is explained without requiring prior work on hyperspectral imaging.
• Scope: The paper proposes and evaluates GeoDiffNet and GeoDiffNet-F, two label-efficient pipelines that reuse a frozen diffusion model pretrained on natural images to classify hyperspectral pixels using only a small set of labeled training samples.

What This Paper Is About

Hyperspectral images carry dense spectral reflectance information that is useful for land-cover mapping, but they are low in spatial resolution, low in texture, high-dimensional, and expensive to annotate at the pixel level. The authors ask whether a diffusion model pretrained on ordinary natural (ImageNet) images can supply spatial features that transfer to this very different geospatial domain without any domain-specific finetuning, and whether per-pixel spectral reflectance can be injected into those frozen features to improve accuracy when labels are scarce. Their answer is GeoDiffNet (spatial features only) and GeoDiffNet-F (spatial features modulated by spectral embeddings via FiLM).

Key Contributions

1. GeoDiffNet — a lightweight framework that repurposes frozen decoder layers of a pretrained diffusion model to extract low-level spatial features that generalize to geospatial imagery with weak texture and low resolution.
2. Demonstration of cross-domain transferability — the paper argues diffusion features transfer strongly to hyperspectral imagery without any domain-specific finetuning, and claims to be the first to evaluate a universal pretrained diffusion model for geospatial analysis in this way.
3. GeoDiffNet-F — a spectral–spatial fusion model that regresses FiLM scaling (γ) and shifting (β) vectors from per-pixel spectral signatures and uses them to condition the frozen spatial features, enabling dynamic feature-wise modulation.
4. A transferability analysis across decoder layers and denoising timesteps, showing that shallow decoder layers and low-noise timesteps yield the most transferable features despite significant domain shift.

Main Findings

• Low-level diffusion features transfer well: Features taken from shallow decoder layers (near the output) at low denoising timesteps produced sharp class boundaries despite the domain gap between natural pretraining images and geospatial imagery.
• Best layer/timestep is dataset-dependent: Performance peaked at layer 10 (timestep 0) for Augsburg and at layer 11 (timestep 50) for Berlin. Timestep 0 was optimal for Augsburg, while a small amount of added noise at timestep 50 helped Berlin — so the optimal timestep is not universally the minimum.
• GeoDiffNet on Augsburg: Overall accuracy (OA) 90.98%, average accuracy (AA) 65.05%, Kappa coefficient (KC) 86.82%, using only HSI pseudo-RGB bands, surpassing MIFNet (OA 89.21%) and DFINet (OA 88.06%), both of which use HSI plus SAR.
• GeoDiffNet on Berlin: OA 72.15%, AA 60.74%, KC 58.50%, exceeding ContextCNN (OA 66.31%) and described by the authors as comparable to DFINet (OA 67.93%).
• GeoDiffNet-F improves on both datasets: Augsburg OA 91.23%, AA 68.17%, KC 87.26%; Berlin OA 74.44%, AA 61.34%, KC 61.32%. These are the highest OA and KC values on both datasets.
• Kappa favors the fusion model under class imbalance: The authors note that GeoDiffNet-F's AA on Berlin is slightly lower than MIFNet's (61.34% vs 66.47%), but argue OA and KC give a more balanced evaluation when classes are imbalanced.
• Layer progression is monotonic in informativeness: Visual and quantitative results showed higher decoder layers produce more refined features — e.g., Augsburg OA rose from 80.44% at layer 2 (timestep 0) to 90.98% at layer 10.
• Features are semantically coherent even from degraded input: K-means clustering (k=6) on decoder features from Layers 6–11 at timesteps T=0 to T=200 produced coherent clusters; lower and intermediate layers (6–7) segmented coarse regions, while higher layers (9–11) better delineated boundaries and suppressed noise.
• Only a subset of bands is needed: GeoDiffNet uses three pseudo-RGB bands rather than the full spectrum, yet outperformed several methods that use full HSI or HSI plus an additional modality.

Methodology in Plain English

• Build pseudo-RGB inputs. From each hyperspectral cube, three spectral bands approximating red, green, and blue are selected — bands 40, 30, and 15 for Berlin, and bands 21, 11, and 6 for Augsburg. Images are split into overlapping 64×64 patches with a stride of 32, with padding to preserve coverage.
• Extract spatial features with a frozen diffusion model. The patches are passed through a pretrained diffusion model (a U-Net from Dhariwal and Nichol, pretrained on ImageNet) with the weights completely frozen. The authors use the decoder rather than the encoder (because skip connections integrate encoder feature maps) and the forward noise process rather than the reverse process (because it computes x_t in a single step). Decoder activations from layers 2 to 11 are resized to patch resolution so each labeled pixel maps to a feature vector.
• Classify with a tiny head. In GeoDiffNet, a two-layer MLP classifies each pixel from its frozen spatial feature. This setup lets the authors sweep layers and timesteps to see which features transfer best.
• Condition spatial features on spectra (GeoDiffNet-F). Each pixel's full reflectance signature (180 bands for Augsburg, 244 for Berlin) is encoded by a shallow MLP, and a second MLP regresses FiLM vectors γ(s_i) and β(s_i) in R^d. These modulate the spatial feature as f̂_i = γ(s_i) · f_i^spatial + β(s_i), so the same spatial representation is adapted differently depending on the pixel's spectrum.
• Train only the small parts. The diffusion backbone stays frozen; only the spectral branch (encoder plus FiLM regressor) and the classification layers are trained, using learning rate 0.003, batch size 64, up to 10 epochs, with early stopping if no validation improvement within 1000 iterations.
• Inference on large scenes. Full images are tiled into 64×64 patches with stride 32, and predictions in overlapping regions are combined by max-voting.
• Why 64×64 matters: The authors state this input is over 30× larger than the typical 11×11 HSI patches used in geospatial tasks, giving more spatial context while matching the scale the diffusion model was optimized for.

Why This Matters

• Impact on research: The work argues that pretrained generative models can serve as domain-agnostic, label-efficient feature extractors for remote sensing and scientific imaging, and that low-level (rather than high-level semantic) features are the ones that survive a large domain shift. It also introduces FiLM conditioning as a lightweight alternative to concatenation or summation for spectral–spatial fusion, which the authors describe as largely unexplored in hyperspectral settings.
• Real-world applications:
  • Environmental monitoring and land-cover mapping over large regions.
  • Agriculture, including crop and vegetation mapping.
  • Resource management and urban planning from satellite imagery.
  • Disaster response in regions with limited annotation resources.
• Industry relevance: Because the diffusion backbone is frozen and only a shallow MLP and spectral branch are trained, the approach reduces annotation cost and compute relative to training domain-specific diffusion models from scratch — a practical advantage for organizations that cannot afford large labeled hyperspectral datasets.

Future Directions

• Generalize beyond the two German datasets. Only Augsburg and Berlin are evaluated; extending to other sensors, regions, and land-cover types would test the transferability claim more broadly.
• Remove the timestep and layer tuning burden. The optimal layer (10 vs 11) and timestep (0 vs 50) differed between datasets, so automatically selecting these hyperparameters is an open problem.
• Investigate why noise helps some datasets. The paper reports that a small amount of noise at timestep 50 helped Berlin but not Augsburg, and connects this to the "Chain of Forgetting" theorem, leaving the dataset-specific mechanism unexplained.
• Address the weak classes. Per-class accuracies for Commercial Area and Water remain low in several settings (e.g., Augsburg Commercial Area was 12.33% for GeoDiffNet-F), so improving rare-class performance under sparse labels remains open.

Target Audience

Researchers and practitioners in remote sensing, geospatial machine learning, and hyperspectral image analysis; computer vision researchers interested in feature transferability from diffusion models to out-of-domain data; and applied scientists in environmental monitoring, agriculture, or disaster response who need accurate land-cover maps from very few labeled pixels. Readers seeking a quick intuition about frozen diffusion features plus light multimodal fusion will find the paper accessible, while those wanting full architectural details will need the appendices, which include the per-layer resolution, channel, and attention configuration of the pretrained diffusion model (Appendix D) and detailed layer-wise and timestep-wise result tables (Appendices B and C). Code is publicly available at https://github.com/hutuhehe/diffusion_hyperspectral.

Authors’ abstract

Hyperspectral imaging (HSI) enables detailed land cover classification, yet low spatial resolution and sparse annotations pose significant challenges. We present a label-efficient framework that leverages spatial features from a frozen diffusion model pretrained on natural images. Our approach extracts low-level representations from high-resolution decoder layers at early denoising timesteps, which transfer effectively to the low-texture structure of HSI. To integrate spectral and spatial information, we introduce a lightweight FiLM-based fusion module that adaptively modulates frozen spatial features using spectral cues, enabling robust multimodal learning under sparse supervision. Experiments on two recent hyperspectral datasets demonstrate that our method outperforms state-of-the-art approaches using only the provided sparse training labels. Ablation studies further highlight the benefits of diffusion-derived features and spectral-aware fusion. Overall, our results indicate that pretrained diffusion models can support domain-agnostic, label-efficient representation learning for remote sensing and broader scientific imaging tasks.
