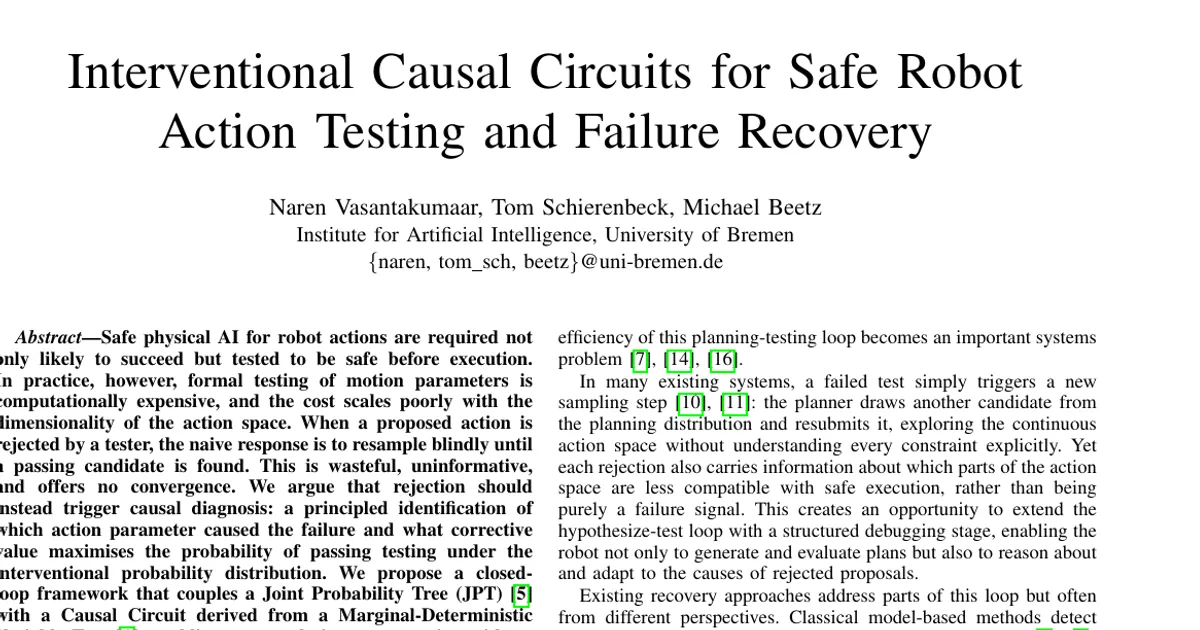

Interventional Causal Circuits for Safe Robot Action Testing and Failure Recovery

AI summary

Overview

Research area: Robotics / safe physical AI — combining causal inference, tractable probabilistic circuits, and robot action planning and testing.

Technical level: Advanced. The paper assumes familiarity with probabilistic circuits, marginal-determinism/Q-determinism, Pearl's do-calculus, backdoor adjustment, and average treatment effects.

Scope: The paper proposes a closed-loop hypothesize-test-debug pipeline that couples a Joint Probability Tree (JPT) with an Interventional Causal Circuit built from a Marginal-Deterministic Variable Tree (MdVtree), so that rejected robot plans are causally diagnosed and corrected without retraining or extra data.

What This Paper Is About

Robots that propose motion parameters must have those parameters pass a safety tester before execution, but formal testing is computationally expensive and its cost grows with the dimensionality of the action space. When a candidate is rejected, the usual response is to resample blindly until something passes — a wasteful loop with no convergence guarantee. The paper's goal is to make rejection informative: identify which action parameter caused the failure and what corrective value maximises the probability of passing, using only the already-fitted planning distribution and the tester's outputs.

Key Contributions

1. A construction turning a fitted JPT into a Causal Circuit. The authors extend a trained Joint Probability Tree (already used for parameter sampling in robot action planning) by imposing a Marginal-Deterministic Vtree derived from an ATE_norm (normalised average treatment effect) priority ordering, producing marginal determinism without retraining or additional data collection.
2. A pre-deployment support determinism verification step. Before the robot begins operating, the circuit is checked for the Q-determinism condition (pairwise disjoint children supports on each cause variable), returning a certificate that all interventional queries will be tractable and exact. Violations identify the exact SumUnit and variable responsible.
3. A closed-loop hypothesize-test-debug pipeline. Each rejected plan triggers causal diagnosis and a one-shot, non-chaining parameter correction on the identified primary cause variable, while all remaining parameters are resampled from the conditional planning distribution — preserving the correlations the planner learned. Out-of-support plans (where the observed parameters lie entirely outside training support) are automatically detected and excluded from correction.
4. Structured, interpretable failure reporting. Every rejected plan produces a Failure Diagnosis Result naming the primary cause variable, its observed value and interventional probability, the recommended corrective region and its probability, and the full per-variable profile — without a separately trained failure model.

Main Findings

• Both JPT variants reached 100% success in the high-quality condition. Over 5,000 iterations, the baseline JPT and JPT + Causal both achieved 5,000 successful plans (100%) and 0 failed iterations, so the high-quality planning distribution was already sufficient for task completion.
• Under the high-quality JPT, the gain was efficiency, not success rate. Total failed attempts fell from 97 to 87 (a 10.3% reduction), average attempts per recovery from 2.04 to 1.02, average recovery time from 24.0 sec to 14.1 sec, and worst-case attempts per iteration from 3 to 2. Corrected attempts fell from 95 to 84.
• Under the degraded JPT, the gain was correctness as well as efficiency. The baseline reached 4,997 successful plans (99%) with 3 failed iterations and 4,280 total failed attempts; JPT + Causal reached 5,000 successful plans (100%) with 0 failed iterations and 2,674 total failed attempts — a 37% reduction in wasted tester calls and a 2.2× speedup, with average attempts per recovery dropping from 2.86 to 1.13, average recovery time from 35.5 sec to 16.3 sec, and worst-case attempts per iteration from 10 to 3.
• Degraded JPT specifics. The degraded JPT was fitted with coarser precision (δ = 0.15, n_min = 600) and moderate approach-coordinate noise (σ = 0.18), producing systematic failures near leaf boundaries that blind resampling could not reliably escape. The high-quality JPT used the full 1,742 samples at fine precision (δ = 0.005, n_min = 25), producing 53 leaves.
• Out-of-support cases were handled automatically. Cases where ρ_i(x̂_i) = 0 for all i — parameters lying entirely outside the training support — were excluded from the correction loop and reported as a distinct failure category.
• No extra machinery was needed. Diagnosis is computed entirely from the trained circuit, requiring no additional data, simulation rollouts, retraining, or learned failure model.

Methodology in Plain English

The starting point is a database of Narrative Enabled Episodic Memories (NEEMs) — structured logs recording each plan's action parameters, context, and outcome. From the successful executions, a Joint Probability Tree is fitted. A JPT works like a regression tree: it recursively cuts the parameter space into axis-aligned regions and fits a simple, independent distribution inside each region, giving a piecewise joint distribution p(x) that captures correlations between variables and supports fast exact marginal and conditional inference. Because each leaf covers a bounded interval, the JPT has finite support — p(x) = 0 for any parameter combination absent from training — which makes out-of-support detection exact rather than a soft approximation.

A plain JPT, however, only reflects observational data and cannot answer interventional questions of the form "what is the probability of success if I force parameter x_i to value v?" To get there, the authors designate cause variables C and an effect variable Y, rank the causes by normalised average treatment effect (ATE_norm) on Y across the training set, and build a Marginal-Deterministic Vtree in that order. Restricting the JPT's splits to the cause variables in this order forces every SumUnit at each causal level to partition its children's supports disjointly — the property called marginal determinism. This transforms the JPT into a Causal Circuit and enables exact, polytime interventional computation via Pearl's backdoor adjustment.

The structural condition is verified formally before deployment. At runtime, a candidate x̂ is sampled from the JPT and submitted to the tester. If it passes, the robot executes it. If it is rejected, the circuit evaluates, for each cause variable x_i, the interventional success probability π_i(v) = P(Y ≥ τ | do(x_i = v), C_{-i} = x̂_{-i}). The primary cause is the variable whose observed value minimises π_i(x̂_i); the recommended corrective value is v* = argmax_v π_i(v). A Causal Sampling Correction then constrains that variable to the interval [v* − δ, v* + δ], where δ is one JPT leaf width for that variable, while all other parameters are drawn from the conditional distribution p(x_{-i} | x_i = v*). The correction is one-shot: if it succeeds, the system reverts to unconstrained sampling; if it fails, the correction is discarded rather than refined.

The circuit also computes ρ_i(x̂_i), the interventional probability mass in a narrow interval around the observed value, giving a measure of how anomalous that value is under the causal model. The recommended corrective region R* = argmax over regions of P(x_i ∈ R_k | do(x_i)) is returned as a set of bounds rather than a single point, so the downstream correction can derive a value from it directly.

The evaluation used a PR2 robot in a ROS2 simulation performing a milk pick-and-place task: grasping a milk carton from a kitchen counter and placing it on a dining table. The action vector has five variables — counter approach (x, y), table approach (x, y), and arm selection. The JPT was trained on 1,742 successful executions in an open-world environment and transferred to an apartment world by coordinate remapping, without retraining. The cause priority order from ATE_norm analysis was: counter approach pose x, table approach pose x, arm selection, counter approach pose y, and table approach pose y. The effect variable was the milk's final placing height z, used as a task-success proxy with threshold τ. The support determinism verification step passed before each run.

Why This Matters

The framework shows that a safety tester's rejection signal can carry actionable causal information rather than simply triggering another sampling attempt — and that this is achievable at runtime with a distribution the robot has already fitted, with no failure dataset, no retraining, and no simulation rollouts. It also maintains a safety property that purely data-driven recovery methods lack: because JPT leaf regions are bounded, the system can detect when a proposed plan lies outside everything it has observed and refuse to recommend a correction, instead of extrapolating without guarantees.

Real-world applications:

• Warehouse and logistics manipulation. Pick-and-place systems that must pass collision, reachability, and stability checks before a gripper moves could diagnose which approach parameter caused a rejection and target the next attempt at a feasible region, reducing wasted tester calls in high-throughput operations.
• Assistive and service robotics. Robots operating around people must test motions before executing them; interpretable causal reports give human supervisors an audit trail explaining why a plan was rejected and what was changed.
• Industrial assembly with constrained geometry. The evaluation's narrow-passage constraint resembles fixtures and cluttered cells where only a subset of geometrically plausible approach poses permits a collision-free path — the exact regime where blind resampling degrades.
• Fleet-level monitoring and accountability. Since cause variables carry explicit semantic meaning, the structured report supports operator oversight, audit, and safety accountability without a separately trained failure model.

Industry relevance: the approach targets the systems-level cost of the planning-testing loop, a recurring bottleneck in safe physical AI deployment. Because it works with an already-fitted planning model and requires no additional data collection, it is compatible with existing planners and testers rather than requiring a replacement stack. The experiments use ROS2, a widely deployed robotics middleware, and the authors' code, training data, and model files are released publicly.

Future Directions

1. Move beyond positional planning. The current evaluation covers only a single pick-and-place task with positional parameters; the framework has not been tested on complex manipulation tasks or on physical variables such as gripper force, object weight, or contact dynamics.
2. Test on real hardware. All experiments are in ROS2 simulation; transferring the experimentation to the real world would test the pipeline's actual performance.
3. Handle sequential manipulation. Failure at one step can propagate causally to the next, which the current one-step diagnosis and one-shot correction do not address.
4. Couple with a continuous tester. Integrating the causal circuit with a tester that produces soft safety scores rather than binary pass/fail could extend diagnosis beyond the current threshold-based success proxy.

Target Audience

This paper is most useful to robotics and embodied-AI researchers working on safe action execution, task and motion planning under uncertainty, and execution monitoring and replanning. It is also relevant to researchers in tractable probabilistic modelling and causal inference who want to see probabilistic circuits and backdoor adjustment applied at runtime in a robotics setting, and to engineers building planning-testing pipelines in ROS2 who need interpretable failure diagnosis without training a separate failure model. Readers without a background in probabilistic circuits or do-calculus will find the system-level motivation and experimental results accessible, but the construction of the Causal Circuit requires an advanced statistical foundation.

Authors’ abstract

Safe physical AI for robot actions are required not only likely to succeed but tested to be safe before execution. In practice, however, formal testing of motion parameters is computationally expensive, and the cost scales poorly with the dimensionality of the action space. When a proposed action is rejected by a tester, the naive response is to resample blindly until a passing candidate is found. This is wasteful, uninformative, and offers no convergence. We argue that rejection should instead trigger causal diagnosis: a principled identification of which action parameter caused the failure and what corrective value maximises the probability of passing testing under the interventional probability distribution. We propose a closed-loop framework that couples a Joint Probability Tree (JPT) with a Causal Circuit derived from a Marginal-Deterministic Variable Tree, enabling exact polytime computation without retraining, or additional data collection. The framework validates tractability of all interventional queries before the robot begins operating, and out-of-support candidates are detected and excluded from correction automatically. We perform experiments in a ROS2 simulation environment, and the framework demonstrates complementary roles across quality of distribution: under a high-quality JPT, the Causal Circuit reduces failed attempts by 10.3% and under a degraded JPT, it reduces total failed attempts by 37%. Every rejected plan produces a structured, interpretable causal report naming the primary cause variable, its observed value, and the recommended corrective region, supporting operator oversight and autonomous recovery without a separately trained failure model.
