Improved Runtime Guarantees for the SPEA2 Multi-Objective Optimizer

AI summary

Overview

Research area: Theoretical runtime analysis of multi-objective evolutionary algorithms (MOEAs) in computer science, specifically the domination-based optimizer SPEA2 (Strength Pareto Evolutionary Algorithm 2) analyzed on classic pseudo-Boolean benchmarks.

Technical level: Advanced. The paper consists of mathematical proofs of expected-runtime bounds; it assumes familiarity with asymptotic notation (O, Θ, ω), dominance relations, and drift or multiplicative-growth arguments for stochastic processes.

Scope in one sentence: The paper proves improved upper bounds on the expected number of function evaluations needed by SPEA2 to cover the Pareto front of the OneMinMax, LeadingOnesTrailingZeros, and OneJumpZeroJump benchmarks, showing far weaker dependence on population sizes than previously known.

Publication details: arXiv:2511.07150v2 [cs.NE], category cs.NE, authors Benjamin Doerr, Martin S. Krejca, and Milan Stanković (Laboratoire d'Informatique (LIX), CNRS, École Polytechnique, Institut Polytechnique de Paris; École Polytechnique, Institut Polytechnique de Paris). Listed as published 2025-11-10, with the v2 revision dated 05 Jan 2026.

What This Paper Is About

SPEA2 is one of the most widely used domination-based MOEAs, alongside NSGA-II, but its complex selection mechanism makes it the least understood of these algorithms from a theoretical perspective. Prior runtime guarantees for SPEA2 — and for NSGA-II and SMS-EMOA — grow linearly with the parent population size μ, meaning that performance guarantees weaken as soon as the population is made larger than the Pareto front. This paper examines SPEA2's selection mechanism in detail and derives runtime bounds that depend much less on population size, showing that SPEA2 achieves near-optimal runtimes across a wide range of parameter choices.

Key Contributions

1. A balanced-selection lemma for SPEA2 (Lemma 1). The paper proves that SPEA2's σ-criterion-based elimination removes individuals with the most frequently represented objective value, so that at least min{|A_u|, ⌊μ/|F_t|⌋} individuals sharing any given non-dominated objective value u survive into the next generation. This holds for arbitrary multi-objective optimization problems, not only for the benchmarks studied — in particular, at least min{|A_u|, ⌊μ/M̄⌋} survive, where M̄ is the maximum size of an incomparable set of solutions.

2. A multiplicative-growth analysis of population multiplicities (Lemma 4). Combining the balanced-selection property with the probability of creating copies of individuals via standard bit mutation, the paper shows that the number of individuals carrying a given objective value grows multiplicatively, reaching a target multiplicity B in expected O(⌈μ/λ⌉ log B) iterations.

3. Improved runtime bounds for three benchmarks (Theorems 5, 8, and 13). The paper proves new expected-runtime guarantees for OneMinMax, OneJumpZeroJump, and LeadingOnesTrailingZeros that keep the population size out of the leading term over much larger ranges of μ and λ than before, and it drops the previous restriction λ = O(μ) by allowing arbitrary offspring population sizes.

4. A robustness claim about parameter choice. The results show that SPEA2 attains the runtime most standard MOEAs achieve only with asymptotically optimal parameters for much wider parameter ranges, implying SPEA2 is more robust to parameter changes than the main other domination-based MOEAs.

Main Findings

• Balanced selection instead of middle-concentration. Lemma 1 shows SPEA2 distributes multiple copies of objective values evenly across the Pareto front for arbitrary multi-objective problems. This contrasts with NSGA-II, where large populations tend to concentrate in the middle of the Pareto front (Doerr and Qu 2023b).

• OneMinMax (Theorem 5): SPEA2 covers the Pareto front in an expected O((μ + λ)n + n² log n) function evaluations. The previous best bound was O(μ n log n), and that bound required λ = O(μ). As OneMinMax has a Pareto front of size n + 1, the new result gives an expected runtime of O(n² log n) — the runtime observed with most standard MOEAs — for all n + 1 ≤ μ = O(n log n) and all λ = O(n log n). This is strictly better than the Θ(μ n log n) runtime known for NSGA-II once μ = ω(n).

• LeadingOnesTrailingZeros (Theorem 13): SPEA2 covers the Pareto front in an expected O((μ + λ)n log(μ/(n+1)) + n³ + λn) function evaluations, again when μ is at least the Pareto front size n + 1. This is the typical O(n³) runtime of standard MOEAs on this benchmark for all n + 1 ≤ μ = O(n²) and all λ = O(n²).

• OneJumpZeroJump (Theorem 8): For gap size k ∈ [2, ⌊n/2⌋] ∩ ℤ, SPEA2 covers the Pareto front in an expected O((μ + λ)n + n^{k+1}) function evaluations, provided μ ≥ n − 2k + 3. The best known guarantee of O(n^{k+1}) is therefore achieved not only for μ = Θ(n) and λ = O(n) but for arbitrary μ, λ = O(n^k); the body of the paper states the range as all n − 2k + 3 ≤ μ = O(n^k) and all λ = O(n^k).

• The growth mechanism. Lemma 2 supplies the stochastic tool: if a process satisfies X_0 = 1, Y_{t+1} ⪰ Bin(k, min{rX_t, 1}), X_{t+1} = X_t + Y_{t+1} with k r ≥ 0.29, then the hitting time of level B has expectation at most 4⌈log_{1+kr} B⌉. Lemma 4 applies this to the count of individuals with a given objective value, obtaining an expected O(⌈μ/λ⌉ log B) time to reach multiplicity B. The constant 0.29 is noted to come from a binomial-distribution estimate (Doerr 2018); the proof uses that (1 − 1/n)^n ≥ 8/27 > 0.29 for n ≥ 3.

• Population-size sensitivity comparison. For prior SPEA2 results, and for all known results on standard NSGA-II and SMS-EMOA, the bounds depend linearly on the population size, so the best guarantee comes from a population size equal to the Pareto front size and any increase weakens the guarantee linearly. In the new bounds, the linear increase in μ (and λ) only kicks in for larger population sizes.

• Caveat on the σ-criterion. The paper notes that the σ-criterion initially requires O(μ²) shortest-distance computations among all pairs of individuals, and O(μ) subsequent shortest-distance computations per individual added or removed — potentially expensive compared to NSGA-II's selection criteria. The authors state that this exact cost is not relevant to their analysis, which counts function evaluations, but that it remains important when interpreting the results. They also note that keeping track of the number of copies of objective values can reduce this cost.

• Crossover tolerance. The authors state that the results also hold when SPEA2 applies crossover in each iteration with a probability at most a constant different from 1, and that comparable results should hold for other settings as long as copies of individuals are created sufficiently easily.

• Comparison to a modified NSGA-II. The paper notes that the NSGA-II selection issue was recently addressed by adding a third selection criterion (Doerr, Ivan, and Krejca 2025), yielding guarantees comparable to those proved here, but at the cost of a moderate increase in the time to execute one iteration, and with no information yet on practical performance. The authors highlight that standard, unmodified SPEA2 achieves balanced selection on its own.

• No lower bounds proven here. The paper proves upper bounds only. It notes that no lower bounds exist for SMS-EMOA either, but the authors expect from studying existing NSGA-II proofs that SMS-EMOA would behave like NSGA-II.

Methodology in Plain English

The researchers work with a reformulated version of SPEA2 that they argue is almost equivalent to the original algorithm of Zitzler, Laumanns, and Thiele (2001): the original algorithm's archive and population correspond to the paper's parent population (size μ) and offspring population (size λ), offspring are generated before survival selection rather than after, parents are chosen uniformly at random rather than by binary tournaments, and their variant is well defined for all values of λ and μ (the original is not properly defined for λ < μ).

Instead of analyzing the algorithm end-to-end in one complicated argument, the authors split the problem. First, they isolate the effect of the selection mechanism: when SPEA2 must trim the non-dominated set down to size μ, the σ-criterion removes individuals whose objective values are most abundant, so any objective value represented fewer than ⌊μ/|F_t|⌋ times is protected from elimination. Second, they show that this protection lets existing objective values accumulate copies, because offspring generation occasionally selects a parent and mutates it into an exact copy. To handle the fact that the per-iteration copy probability can be small when λ is small relative to μ, they do not apply their growth lemma directly; instead they look at the process only every ⌈μ/λ⌉ iterations, at which point the multiplicative growth condition of Lemma 2 is satisfiable. The expected hitting time from that lemma then converts into the multiplicity growth bound, which in turn feeds into the three benchmark-specific runtime theorems. They prove these results for bit-string representations and standard bit mutation, where each bit flips independently with probability 1/n.

Why This Matters

Impact on research. SPEA2 is described as the least theoretically understood of the widely used domination-based MOEAs, and this paper is only the second runtime analysis of it. The balanced-selection lemma is proven for arbitrary multi-objective problems, making it a reusable structural insight rather than a benchmark-specific trick. The results also sharpen the contrast with NSGA-II, for which matching lower bounds exist and whose linear dependence on population size is known to be unavoidable without modifying the algorithm. For OneMinMax, the new SPEA2 bound is strictly better than the Θ(μ n log n) known for NSGA-II once μ = ω(n).

Real-world applications. The paper motivates multi-objective optimization broadly, stating that many real-world problems involve optimizing several conflicting objectives simultaneously and that MOEAs are among the best and most popular approaches for such problems. The paper does not enumerate specific application domains, so the following are general areas where multi-objective optimization of the kind studied here is used, not applications claimed by the authors:

• Engineering design problems where several performance criteria must be traded off simultaneously.
• Problems where the full set of incomparable optimal trade-offs (the Pareto front) is the desired output rather than a single solution.
• Settings where the size of the Pareto front is unknown in advance, so the population size must be chosen without knowing the "right" value.
• Problems where a single function evaluation is expensive, which is why the paper counts function evaluations rather than wall-clock work.

Industry relevance. The central practical message is about parameter selection: choosing suitable parameters is described as a key challenge in using heuristic algorithms, and the new bounds show that SPEA2's parameter choice is much less critical than NSGA-II's or SMS-EMOA's. Because the best runtime is retained across wide ranges of μ and λ, a practitioner who does not know the Pareto front size in advance can pick a population size with less risk. The paper cautions, however, that its analysis counts function evaluations only, and that SPEA2's σ-criterion carries its own O(μ²) initial cost that remains a practical consideration.

Future Directions

• Lower bounds for SPEA2. The paper proves upper bounds only; establishing matching lower bounds would determine whether the new guarantees are tight and how far SPEA2's parameter robustness extends.
• Other search spaces and variation operators. The authors state that their multiplicity-growth result is proved for binary representations and bit-wise mutation but that comparable results should hold for other settings where copies of individuals are created sufficiently easily, leaving the general case to be formalized.
• Extension to more than two objectives. The paper restricts itself to the bi-objective case and explicitly does not discuss in detail the earlier many-objective results of Ren et al. (2024a) and the improvements by Wietheger and Doerr (2024); extending the balanced-selection analysis to m objectives is an open direction.
• Practical comparison with the modified NSGA-II. The third-criterion modification to NSGA-II (Doerr, Ivan, and Krejca 2025) yields comparable guarantees but increases per-iteration time, and there is no information yet on its practical performance; how standard SPEA2 compares in practice on real workloads is left open by this purely theoretical work.

Target Audience

This paper is aimed at theoretical computer scientists working on the runtime analysis of evolutionary algorithms and, more broadly, at researchers in evolutionary computation who want rigorous guarantees for MOEA behavior. It is also relevant to algorithm designers and practitioners who must choose population sizes for SPEA2 or NSGA-II without knowing the Pareto front size in advance, provided they can follow asymptotic notation and the argument structure. Readers looking for experimental results, implementation guidance, or concrete application case studies will not find them here: the work is theoretical and reports no numerical experiments.

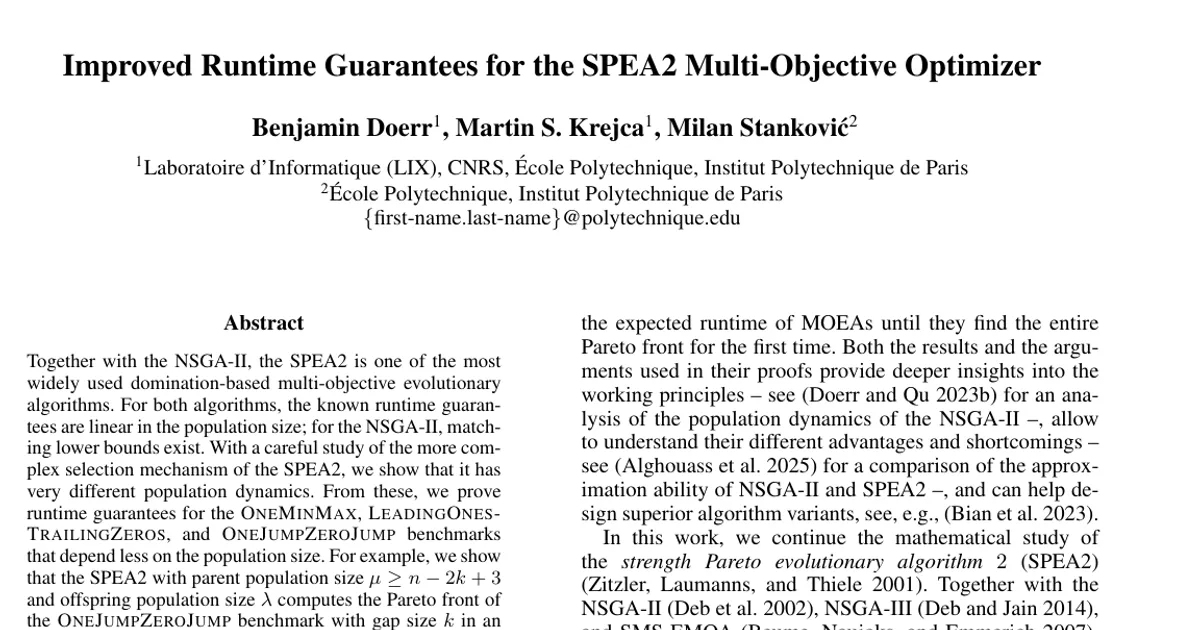

Authors’ abstract

Together with the NSGA-II, the SPEA2 is one of the most widely used domination-based multi-objective evolutionary algorithms. For both algorithms, the known runtime guarantees are linear in the population size; for the NSGA-II, matching lower bounds exist. With a careful study of the more complex selection mechanism of the SPEA2, we show that it has very different population dynamics. From these, we prove runtime guarantees for the OneMinMax, LeadingOnesTrailingZeros, and OneJumpZeroJump benchmarks that depend less on the population size. For example, we show that the SPEA2 with parent population size $μ\ge n - 2k + 3$ and offspring population size $λ$ computes the Pareto front of the OneJumpZeroJump benchmark with gap size $k$ in an expected number of $O( (λ+μ)n + n^{k+1})$ function evaluations. This shows that the best runtime guarantee of $O(n^{k+1})$ is not only achieved for $μ= Θ(n)$ and $λ= O(n)$ but for arbitrary $μ, λ= O(n^k)$. Thus, choosing suitable parameters -- a key challenge in using heuristic algorithms -- is much easier for the SPEA2 than the NSGA-II.
